Life KRV306 Robot Vacuum Cleaner and Mop User Manual

مقدمه

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Life KRV306 Robot Vacuum Cleaner and Mop. The KRV306 is an intelligent 2-in-1 cleaning device designed to vacuum and mop various floor types, offering convenience and efficiency for daily home cleaning.

1. راه اندازی

1.1 باز کردن بسته بندی

با دقت تمام قطعات را از بسته‌بندی خارج کنید. مطمئن شوید که تمام لوازم جانبی موجود هستند:

• Life KRV306 Robot Vacuum Cleaner
• کابل/آداپتور شارژ
• زباله دانی
• Mopping Pad (if pre-installed or separate)
• برس های جانبی
• راهنمای کاربر (این سند)

1.2 شارژ اولیه

Before first use, fully charge the robot. Connect the charging cable to the robot and a power outlet. The indicator light will show charging status. A full charge takes approximately 3 to 4 hours.

۴.۲ نصب برس‌های جانبی

Align the side brushes with the corresponding posts on the bottom of the robot and press down until they click into place.

1.4 Installing the Dustbin and Mopping Pad

Insert the dustbin into its designated slot until it is securely in place. If using the mopping function, attach the mopping pad to the bottom of the water tank (if separate) or directly to the robot as per design.

2. دستورالعمل های عملیاتی

2.1 روشن/خاموش کردن

Press and hold the power button on the robot for a few seconds to turn it on or off. A chime or indicator light will confirm the status.

2.2 حالت های تمیز کردن

The KRV306 offers three optimized cleaning modes:

• حالت خودکار: The robot cleans in a zigzag pattern, covering large areas efficiently. This is the default mode for general cleaning.
• حالت نقطه ای: For concentrated dirt, the robot cleans intensively in a circular pattern. Place the robot directly over the area to be cleaned and select this mode.
• حالت لبه: The robot follows walls and furniture edges to ensure thorough cleaning of corners and baseboards.

To select a cleaning mode, press the appropriate button on the robot or use the remote control (if included).

۵.۱ شروع چرخه تمیز کردن

Press the "Start" or "Clean" button on the robot. The robot will begin cleaning in the selected mode. Ensure the floor is free of large obstacles and loose cables.

۵.۵ مکث و از سرگیری

To pause a cleaning cycle, press the "Start/Pause" button. Press it again to resume cleaning.

2.5 Returning to Charger

When the battery is low, the robot will automatically attempt to return to its charging base. You can also manually send it back by pressing the home/charge button.

3. تعمیر و نگهداری

نگهداری منظم، عملکرد بهینه را تضمین می‌کند و طول عمر جاروبرقی رباتیک شما را افزایش می‌دهد.

۶.۱ خالی کردن سطل زباله

Image: The Life KRV306 robot vacuum cleaner demonstrating its large dustbin capacity, designed to hold more debris per clean and reduce emptying frequency. The image shows the robot on a wooden floor, actively vacuuming various types of debris including hair, pet hair, confetti, dust, and general debris, with an inset showing the removable dustbin component.

Empty the dustbin after each cleaning cycle or when full. Press the release button to remove the dustbin, open its lid, and discard the collected debris. Clean the filter regularly by tapping it gently to remove dust or rinsing it with water if specified (ensure it's completely dry before reinstallation).

۶.۵ تمیز کردن پد تی

Remove the mopping pad after each use. Rinse it thoroughly with water and mild detergent if necessary. Allow it to air dry completely before reattaching or storing.

۶.۳ تمیز کردن برس‌های کناری

Periodically check the side brushes for tangled hair or debris. Remove any obstructions carefully. If brushes are worn or damaged, replace them.

۷.۶ حسگرهای تمیزکننده

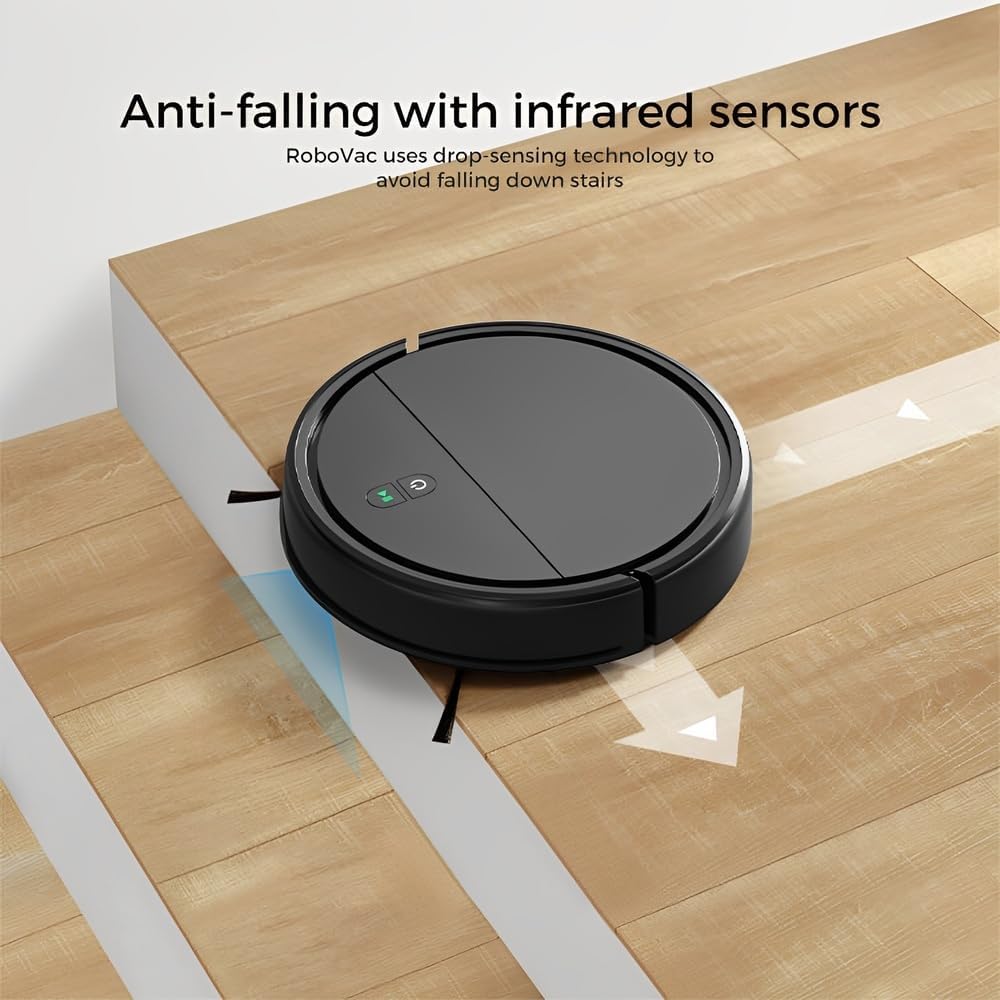

Image: The Life KRV306 robot vacuum cleaner positioned near a set of stairs, illustrating its anti-falling capability. The image highlights the infrared sensors that detect drops, preventing the robot from falling down stairs or off ledges.

Wipe the anti-falling infrared sensors and other sensors on the robot's underside with a clean, dry cloth to ensure they function correctly and prevent navigation issues.

4 عیب یابی

برای مشکلات رایج و راه حل های آنها به این بخش مراجعه کنید.

4.1 Robot Not Moving or Getting Stuck

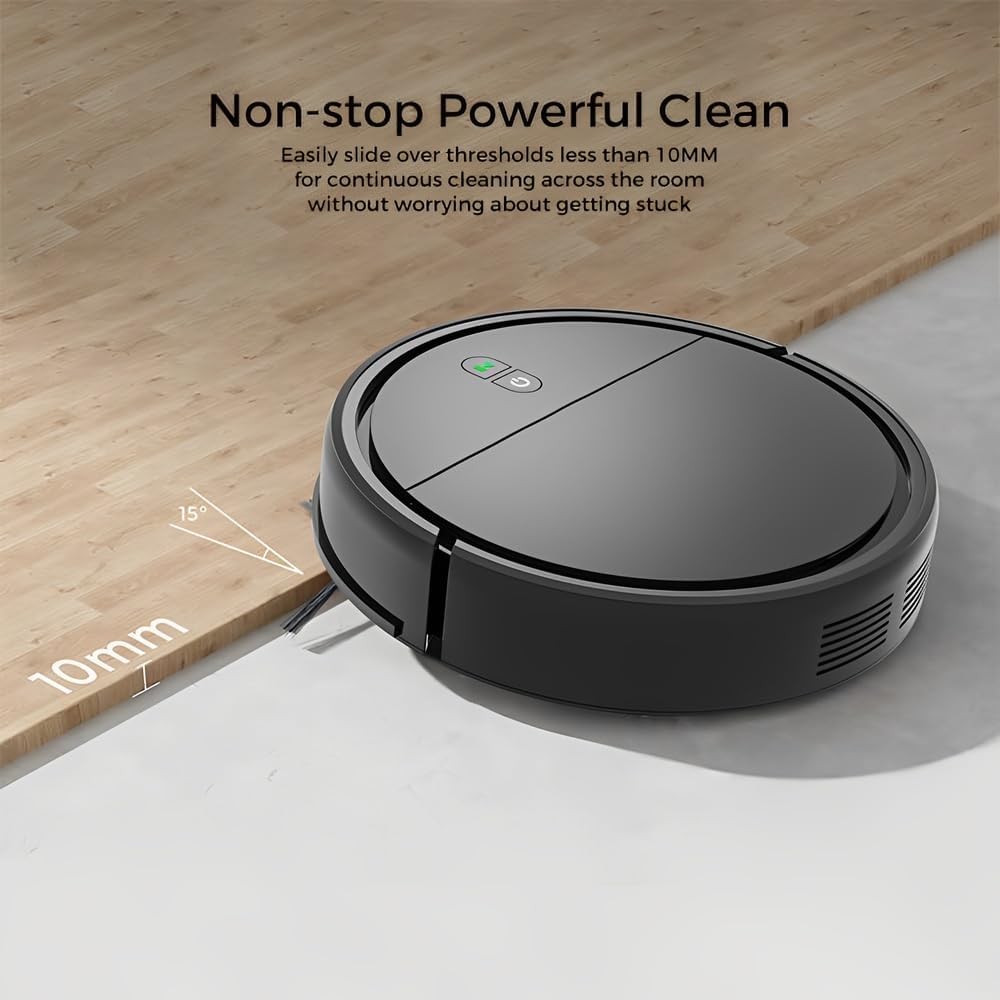

Image: The Life KRV306 robot vacuum cleaner demonstrating its ability to navigate over thresholds up to 10mm high, ensuring continuous cleaning across different rooms without getting stuck. The image shows the robot smoothly transitioning from one floor level to another.

• بررسی موانع: Ensure there are no loose cables, rugs, or small objects obstructing the robot's path. The robot is designed to handle thresholds up to 10mm.
• Clean Wheels and Brushes: Remove any hair or debris tangled around the wheels or side brushes.
• انسداد حسگر: Clean the anti-falling sensors and bumper sensors.

۶.۲ عملکرد ضعیف در تمیز کردن

• سطل زباله خالی: A full dustbin or clogged filter can reduce suction power. Empty the dustbin and clean the filter.
• برس‌های تمیز: Ensure side brushes are free of debris and spinning correctly.
• سطح باتری: Ensure the robot is fully charged for optimal performance.

۵.۱ شارژ نشدن ربات

• بررسی اتصالات: Ensure the charging cable is securely connected to both the robot and the power outlet.
• مخاطبین شارژ تمیز: Wipe the charging contacts on both the robot and the charging base with a dry cloth.

4.4 Robot Bumping into Furniture Excessively

Image: The Life KRV306 robot vacuum cleaner demonstrating its collision mechanical bumper. The robot is shown gently encountering a chair leg, indicating its ability to soft-hit obstacles and automatically adjust its path without causing damage to furniture.

• Clean Bumper Sensors: Ensure the bumper area is clean and free from obstructions.
• شرایط روشنایی: In very dark environments, obstacle detection might be less effective.

5. مشخصات

6. اطلاعات گارانتی

The Life KRV306 Robot Vacuum Cleaner and Mop comes with a 90 روز گارانتی از تاریخ خرید. این ضمانت‌نامه شامل نقص‌های ناشی از تولید و نقص در استفاده عادی می‌شود. خسارات ناشی از سوء استفاده، تصادفات، تعمیرات غیرمجاز یا فرسودگی عادی را پوشش نمی‌دهد. لطفاً فاکتور خرید خود را برای موارد گارانتی نگه دارید.

7. پشتیبانی مشتری

If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact our customer support. Refer to your purchase documentation or the retailer's webسایت برای اطلاعات تماس خاص.

هنگام تماس با پشتیبانی، لطفاً اطلاعات زیر را آماده داشته باشید:

• مدل محصول: Life KRV306
• تاریخ خرید
• شرح موضوع
