Hiboy EX6 Electric Bike User Manual

1. اطلاعات ایمنی

Before operating your Hiboy EX6 Electric Bike, please read this manual thoroughly and retain it for future reference. Always prioritize your safety and adhere to local traffic laws and regulations.

• هنگام موتورسواری همیشه از کلاه ایمنی و تجهیزات ایمنی مناسب استفاده کنید.
• قبل از هر بار استفاده، یک بررسی اولیه انجام دهید، ترمزها، فشار باد لاستیک‌ها و سطح باتری را بررسی کنید.
• از محیط اطراف خود آگاه باشید و با حالت تدافعی رانندگی کنید.
• Do not operate the electric bike under the influence of alcohol or drugs.
• Familiarize yourself with the bike's controls and features before riding at higher speeds or in challenging conditions.

Traffic Notice for New York State: In New York State, you cannot use this device on sidewalks or on highways with speed limits over 30 MPH (except where local laws, ordinances, rules, or regulations allow). Consult with local cities, towns, or villages where you are operating this device for their specific conditions. Always yield to pedestrians and follow traffic rules.

Image: Hiboy EX6 charger with a warning label and a traffic notice sticker on the bike frame.

2. Package Contents & Assembly

Your Hiboy EX6 Electric Bike is packaged securely to prevent damage during transit. The package includes the following components:

• Hiboy EX6 Electric Bike (partially assembled)
• کیت ابزار
• راهنمای کاربر
• شارژر باتری

۱.۱ جعبه‌گشایی و راه‌اندازی اولیه

Carefully remove the electric bike and all components from the packaging. The bike is largely pre-assembled, requiring minimal setup.

۳.۲ اتصال دسته فرمان

Attach the handlebars to the stem. Ensure the small round rubber seal is correctly placed at the base of the stem before tightening the handlebars. Tighten all bolts securely for safe operation.

2.3 نصب چرخ جلو

Install the front wheel. Pay close attention to the axle orientation; the quick-release lever should be on the non-drive side (left side of the bike when seated). Ensure the disc brake rotor is correctly aligned with the caliper.

2.4 نصب پدال

The pedals are bi-directional. The left pedal has a left-hand thread, and the right pedal has a right-hand thread. Ensure you attach the correct pedal to the corresponding crank arm to prevent damage and ensure secure attachment.

2.5 باد لاستیک

Inflate the 20"x4.0" fat tires to the recommended pressure. The maximum inflation pressure is 20 PSI. Adjust pressure based on riding conditions and desired comfort, keeping in mind lower pressures offer more cushion and grip on soft terrain, while higher pressures provide a faster ride on paved surfaces.

3. دستورالعمل های عملیاتی

۳.۲ باتری و شارژ

The Hiboy EX6 is equipped with a 48V 14.5Ah removable lithium battery, UL 2849 certified for safety. The charging port is conveniently located on the side of the battery pack.

• شارژ کردن: Plug the charger into a standard 110V outlet, then connect it to the bike's charging port. The charger indicator light will be red while charging and turn green when fully charged.
• اولین استفاده: قبل از اولین سواری، باتری را کاملاً شارژ کنید.
• محدوده: Expect approximately 40 miles (65 km) in pure electric (throttle) mode and up to 75 miles (120 km) in pedal-assist mode. Actual mileage may vary based on terrain, rider weight, and riding style.

تصویر: دقیق view of the Hiboy EX6 battery, highlighting its removable design, 48V 14.5Ah capacity, UL 2849 certification, BMS intelligent protection, and IP5 waterproof rating.

3.2 Motor & Performance

The 500W power motor provides strong torque, allowing the bike to reach speeds of up to 25 mph (40 km/h) and conquer slopes up to 20% gradient.

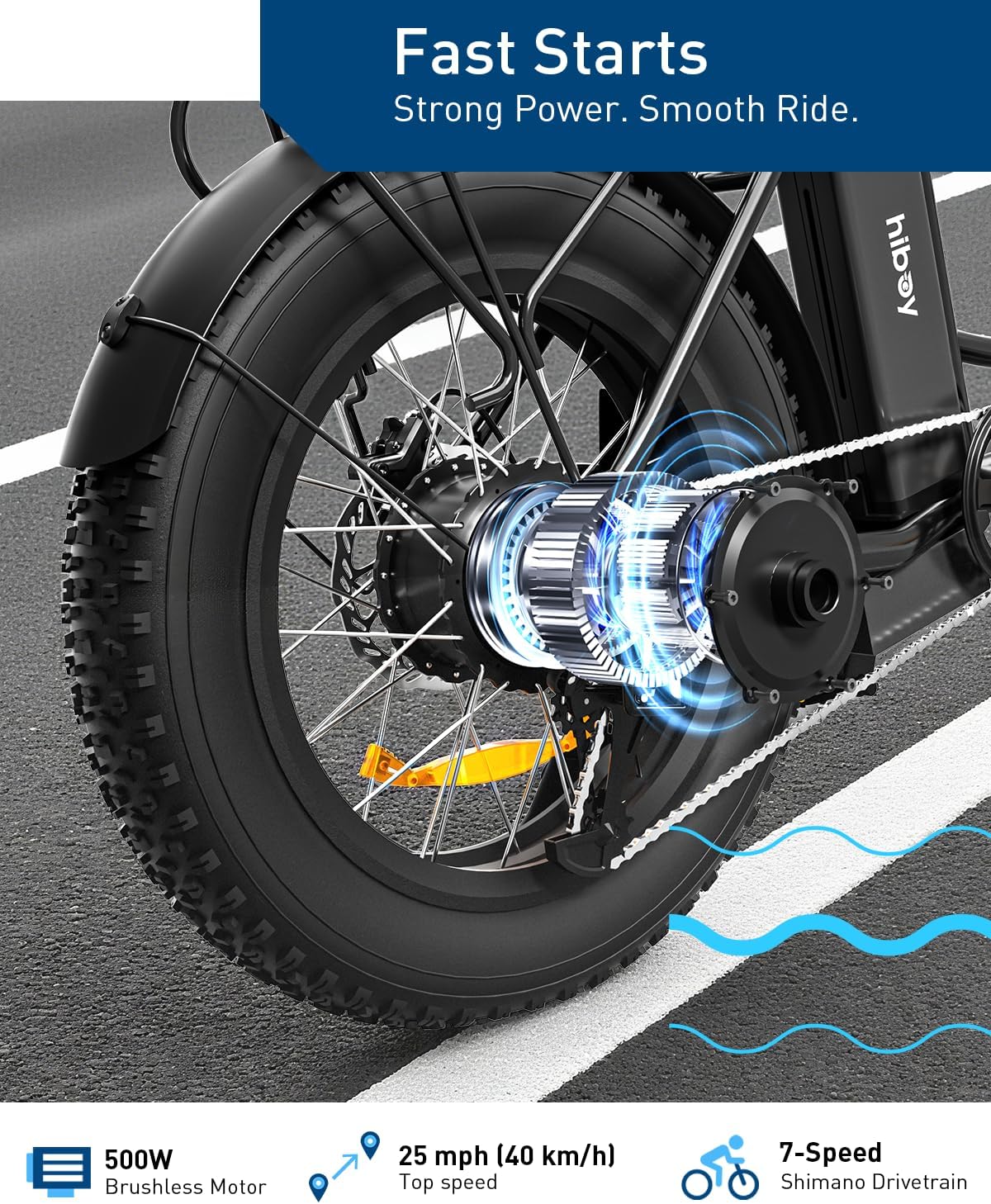

Image: Close-up of the Hiboy EX6 rear wheel and motor, illustrating the 500W brushless motor, 25 mph top speed, and 7-speed Shimano drivetrain.

۳.۱ حالت‌های سواری

The Hiboy EX6 offers three distinct riding modes:

• Pure Electric Mode (Throttle): Engage the throttle for motor-powered propulsion without pedaling.
• حالت پدال کمکی: The motor provides assistance as you pedal, making riding easier, especially on inclines.
• حالت دستی: مانند یک دوچرخه سنتی، فقط با استفاده از نیروی پدال، دوچرخه را برانید.

3.4 نمایشگر LCD

The backlit LCD display provides real-time information including current speed, battery level, riding time, and distance traveled. This is visible day or night.

3.5 Shimano 7-Speed Gearing

The Shimano 7-speed gear system allows for smooth and precise shifting, adapting to various terrains and riding preferences.

۴.۴ سیستم ترمز

The bike features front and rear hydraulic disc brakes for reliable stopping power in diverse conditions.

Image: The Hiboy EX6 highlighting its night riding lighting system (bright front and red rear) and the front and rear dual hydraulic disc braking system.

3.7 Tires & Suspension

The 20"x4.0" all-terrain fat tires provide enhanced grip and stability across various surfaces, including snow, sand, mud, and gravel. The front suspension fork absorbs shocks, ensuring a smoother ride on rough roads and trails.

Image: Close-up of the Hiboy EX6 fat tires, showing their tread pattern and suitability for mountain roads, city roads, and snow fields.

Image: Diagram illustrating the function of the front suspension on the Hiboy EX6, demonstrating how it reduces bumpiness for a smoother ride.

۴.۴ طراحی ارگونومیک

The bike features an ergonomic design with adjustable handlebars and seat, accommodating riders between 5'5" and 6'1" (165–185 cm). The step-through frame allows for easy mounting and dismounting.

Image: The Hiboy EX6's ergonomic adjustable seat, showing its padded design and height adjustment range.

4. تعمیر و نگهداری

• بررسی های منظم: Periodically inspect tires for proper inflation and wear, check brake function, and ensure all bolts and fasteners are tight.
• مراقبت از باتری: Store the battery in a cool, dry place. If storing for an extended period, charge it to 50-70% and recharge every 1-2 months to maintain battery health.
• تمیز کردن: دوچرخه را با d تمیز کنیدamp از استفاده مستقیم جت‌های آب پرفشار روی قطعات الکتریکی خودداری کنید.

5 عیب یابی

If you encounter issues with your Hiboy EX6, consider the following:

• بدون برق: Check if the battery is properly seated and charged. Ensure the power button on the battery and display are turned on.
• موتور کمکی نمی‌کند: Verify that pedal-assist mode is selected and the pedals are rotating. Check for any error codes on the LCD display.
• Brake Issues: Inspect brake pads for wear and ensure cables (if mechanical) or fluid levels (if hydraulic) are adequate. Adjust as needed or consult a professional.

For more complex issues or repairs, please contact Hiboy customer support.

6. مشخصات

7. ضمانت و پشتیبانی

The Hiboy EX6 Electric Bike comes with a warranty for various parts:

• نوع گارانتی: 12-Month or 6-Month Assurance for Different Parts.

For any questions, technical assistance, or warranty claims, please contact Hiboy customer support. Refer to the contact information provided in your included user manual or visit the official Hiboy webسایت
