VEVOR Pilates Reformer Cadillac Machine User Manual

1. مقدمه

This manual provides essential instructions for the safe and effective assembly, operation, and maintenance of your VEVOR Pilates Reformer Cadillac Machine. Please read this manual thoroughly before using the equipment and retain it for future reference. Proper understanding and adherence to these guidelines will ensure optimal performance and longevity of your machine.

Figure 1: VEVOR Pilates Reformer Cadillac Machine, a comprehensive home gym solution.

2. اطلاعات ایمنی مهم

Before using the Pilates Reformer Cadillac Machine, please observe the following safety precautions:

• قبل از شروع هر برنامه ورزشی جدید، با پزشک مشورت کنید.
• Ensure all components are securely assembled and tightened before each use.
• کودکان و حیوانات خانگی را در حین کار از دستگاه دور نگه دارید.
• Use the machine on a stable, level surface.
• Inspect the machine for any signs of wear or damage before each use. Do not use if damaged.
• از حداکثر ظرفیت وزنی ۱۱۰.۰ پوند (۵۰.۰ کیلوگرم) تجاوز نکنید.
• لباس و کفش ورزشی مناسب بپوشید.
• Perform exercises slowly and with control. Avoid sudden or jerky movements.

3. Components Overview

Your VEVOR Pilates Reformer Cadillac Machine includes the following main components:

• Main Reformer Frame (Maple Wood)
• Cadillac Tower (Metal)
• Carriage with Microfiber Leather Padding
• Adjustable Footbar
• بالشتک های شانه
• پشت سر
• Springs (2 Strong Red, 2 Medium Green, 2 Light Yellow)
• Pulleys and Ropes
• تخته پرش
• Pilates Box
• Push-Through Bar
• نوار رول کردن
• Fuzzy Straps
• زنجیر ایمنی

Figure 2: All included components for the Pilates Reformer Cadillac Machine.

4. راه اندازی و مونتاژ

The VEVOR Pilates Reformer Cadillac Machine requires assembly. Follow the steps below carefully. It is recommended to have at least two people for assembly due to the size and weight of some components.

4.1 باز کردن بسته بندی

Carefully remove all components from the packaging. Lay them out on a clean, flat surface and verify all parts are present against the packing list. Keep all packaging materials until assembly is complete.

۳.۳ مجموعه قاب اصلی

1. Attach the footbar support brackets to the main frame using the provided hardware. Ensure they are securely tightened.
2. Install the adjustable footbar into the support brackets.
3. Place the carriage onto the rails of the main frame. Ensure it glides smoothly.

4.3 Cadillac Tower Assembly

The Cadillac Tower consists of several metal poles and connectors. Refer to the video for detailed visual guidance.

1. Connect the vertical support poles to the main reformer frame using the designated attachment points and screws.
2. Assemble the horizontal bars of the tower, ensuring all connection points are secure.
3. Attach the top frame of the Cadillac Tower to the vertical poles.
4. Secure all connections with the provided screws and tools.

4.4 اتصال لوازم جانبی

1. Attach the springs to the spring bar and the carriage. The set includes 2 strong (red), 2 medium (green), and 2 light (yellow) springs for varied resistance.
2. Install the pulleys and ropes. Ensure the ropes run smoothly through the pulleys.
3. Attach the hand straps and foot straps to the ropes.
4. Place the shoulder pads and headrest on the carriage.
5. Attach the Push-Through Bar and Roll-Down Bar to the Cadillac Tower using the appropriate hooks and safety chains.
6. Position the Jump Board and Pilates Box as needed for your exercises.

For a visual guide on assembly, please watch the following video:

Figure 3: Close-up of the 6 silent springs, offering varied resistance levels.

5. دستورالعمل های عملیاتی

The VEVOR Pilates Reformer Cadillac Machine offers a versatile workout experience. Familiarize yourself with its adjustable features to customize your routine.

5.1 تنظیم مقاومت

The machine is equipped with 6 high-quality piano steel springs: 2 strong (red), 2 medium (green), and 2 light (yellow). Adjust the resistance by attaching or detaching springs from the spring bar to the carriage. Experiment with different combinations to find the appropriate challenge for each exercise.

5.2 Footbar Adjustment

The footbar is 4-level adjustable. To adjust, release the locking mechanism, move the footbar to the desired position, and re-engage the lock. Ensure it is securely in place before use.

5.3 Using the Cadillac Tower

The Cadillac Tower provides additional exercise options. Utilize the Push-Through Bar, Roll-Down Bar, and various spring attachment points for a full-body workout. Always ensure bars and springs are securely attached before applying pressure.

Figure 4: Demonstrating the multi-functional capabilities of the Pilates Reformer Cadillac.

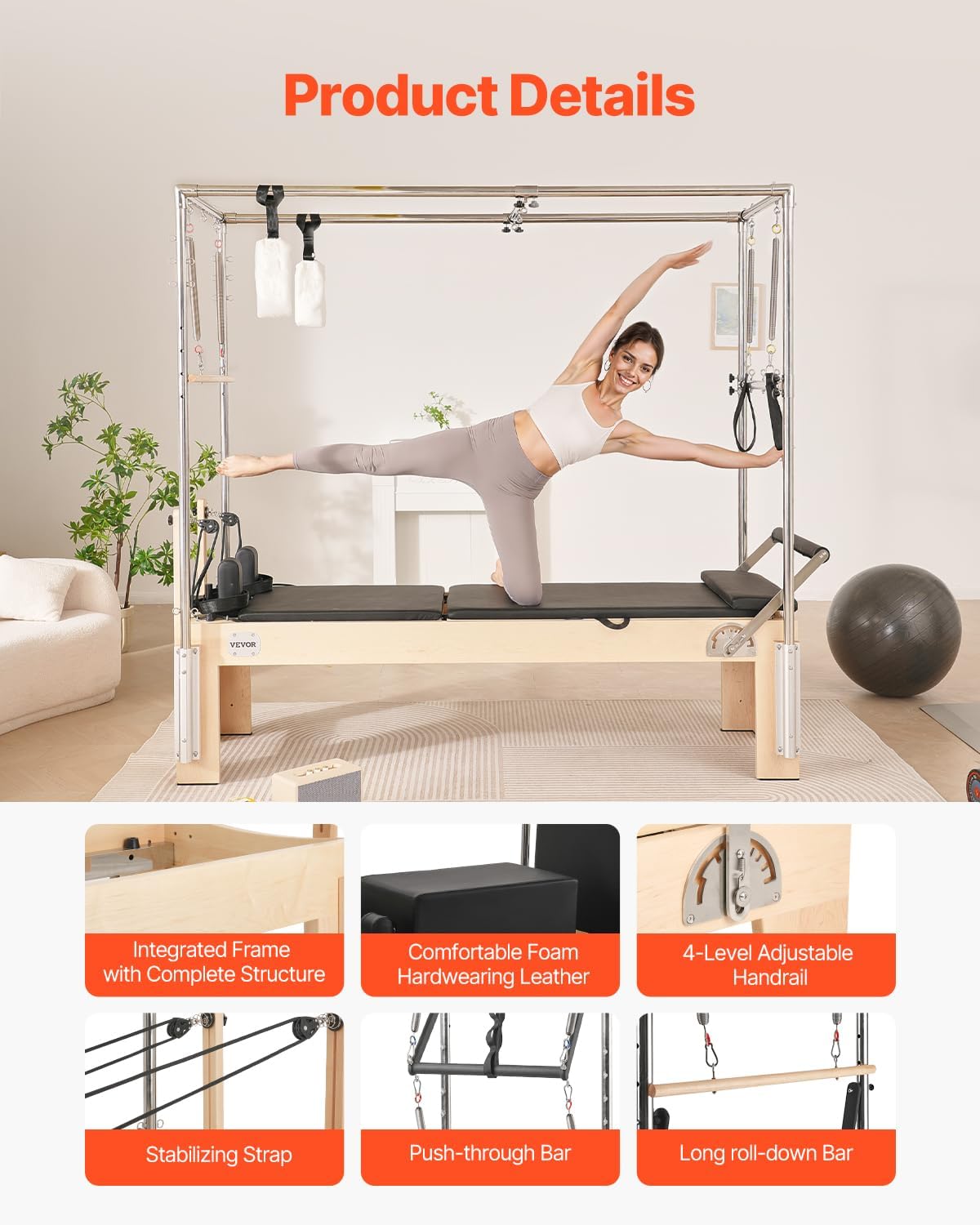

Figure 5: Key features including integrated frame, comfortable foam, adjustable handrail, stabilizing strap, push-through bar, and long roll-down bar.

6. تعمیر و نگهداری

Regular maintenance ensures the safety and longevity of your Pilates Reformer Cadillac Machine.

• تمیز کردن: قاب و روکش را با چسب پاک کنیدamp cloth after each use. For the microfiber leather, use a mild soap solution if necessary, then wipe dry. Avoid harsh chemicals.
• بازرسی: Periodically check all nuts, bolts, and connections for tightness. Ensure springs are free from rust or damage. Inspect ropes and pulleys for fraying or wear.
• روغن کاری: Apply a silicone-based lubricant to the carriage wheels and rails every few months or as needed to maintain smooth operation.
• ذخیره سازی: Store the machine in a dry, temperate environment away from direct sunlight or extreme temperatures.

7 عیب یابی

If you encounter any issues with your Pilates Reformer Cadillac Machine, refer to the following common problems and solutions:

• صدای جیرجیر: Check all connections for tightness. Lubricate carriage wheels and rails with silicone spray. Ensure springs are properly attached and not rubbing against each other.
• Carriage Not Moving Smoothly: Inspect the rails for debris and clean if necessary. Lubricate the rails and wheels. Check for any obstructions.
• اجزای شل: Regularly check and tighten all bolts and screws. If a part is consistently loosening, apply thread locker (e.g., Loctite) to the threads before re-tightening.
• Springs Not Providing Consistent Resistance: Ensure springs are correctly attached. If a spring appears stretched or damaged, replace it immediately.

اگر پس از امتحان کردن این راه‌حل‌ها مشکل همچنان ادامه داشت، لطفاً با پشتیبانی مشتری VEVOR تماس بگیرید.

8. مشخصات

Figure 6: Detailed dimensions of the Pilates Reformer Cadillac Machine.

9. گارانتی و پشتیبانی

محصولات VEVOR برای دوام و عملکرد بالا طراحی شده‌اند. برای جزئیات گارانتی خاص، لطفاً به کارت گارانتی ارائه شده همراه محصول خود مراجعه کنید یا از وب‌سایت رسمی VEVOR دیدن کنید. website. If you require technical assistance, have questions about product operation, or need to report a defect, please contact VEVOR customer support through their official channels. Provide your model number (S700-F-B) and UPC (197988671787) for faster service.

برای اطلاعات بیشتر می‌توانید به فروشگاه VEVOR مراجعه کنید: فروشگاه وِوور
