HAKINAKU HD13 5-in-1 Natural Gas, Smoke & Carbon Monoxide Detector User Manual

1. مقدمه

The HAKINAKU HD13 is a versatile 5-in-1 detector designed to enhance safety in your home, hotel, or travel environment. It integrates sensors for carbon monoxide (CO), smoke, natural gas, temperature, and humidity, providing real-time monitoring and alerts.

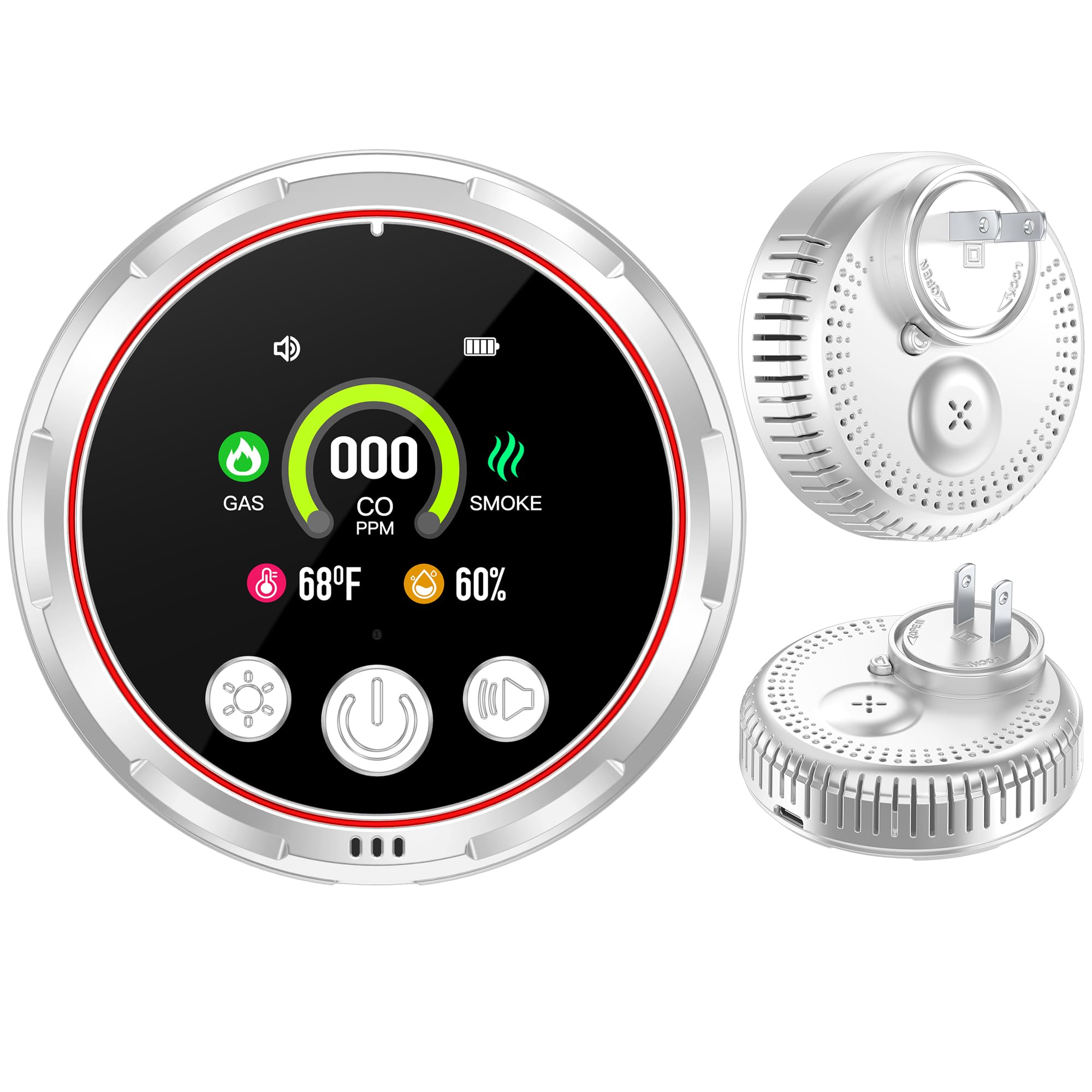

Figure 1: HAKINAKU HD13 5-in-1 Natural Gas, Smoke & Carbon Monoxide Detector.

This manual provides essential information for the proper installation, operation, and maintenance of your detector. Please read it thoroughly before use and keep it for future reference.

Figure 2: The HAKINAKU HD13 detector is suitable for various indoor environments, including homes, hotels, and RVs.

2. ویژگی های کلیدی

• تشخیص ۳ در ۱: Integrated carbon monoxide, smoke, natural gas, temperature, and humidity sensors for comprehensive environmental monitoring.
• Plug-in & Play Design: Compatible with 110-240V US standard outlets for easy installation.
• Built-in 1000mAh Backup Battery: Provides 10-14 hours of operation during power outages, ensuring continuous protection.
• Visible & Audible Alerts: HD screen displays real-time data (CO ppm, smoke/gas icons, humidity, temperature) and emits an 85dB alarm when concentrations exceed safe levels.
• سنسورهای با دقت بالا: Equipped with independent CO, natural gas, and smoke sensors for accurate and stable detection.

Figure 3: The detector's display provides real-time monitoring of various environmental factors.

Figure 4: Illustration of the high-precision electrochemical and photoelectric sensors within the device.

3. اطلاعات ایمنی

Please observe the following safety precautions to ensure proper operation and prevent damage or injury:

• Do not paint the detector. Paint can clog the openings and interfere with sensor operation.
• منافذ تهویه روی دستگاه را مسدود نکنید.
• Do not install in areas with high humidity (e.g., bathrooms directly above showers) or extreme temperatures.
• Keep the detector away from direct sunlight, heat sources, and strong air currents.
• این دستگاه فقط برای استفاده در محیط داخلی طراحی شده است.
• آشکارساز را مرتباً طبق دستورالعمل‌های این دفترچه راهنما آزمایش کنید.
• In case of an alarm, follow your emergency plan immediately. Do not ignore alarms.

4. راه اندازی

4.1 باز کردن بسته بندی

Carefully remove the detector from its packaging. Ensure all components, including the detector, testing guide, and manual, are present.

4.2 نصب

The HAKINAKU HD13 detector features a plug-in design for easy installation. Simply plug the device into a standard 110-240V AC US outlet. The device will automatically power on and begin monitoring.

• Choose an outlet that is not obstructed and allows for proper air circulation.
• Avoid placing the detector near windows, doors, or ventilation fans that could interfere with accurate readings.
• Ensure the outlet is easily accessible for maintenance and testing.
• The plug is designed to rotate for optimal positioning. Twist the plug to lock it in place after inserting into the outlet.

Figure 5: The detector plugs directly into a standard wall outlet, allowing the other outlet to remain usable.

5. عملیات

5.1 نمایش بیش از حدview

The HD color screen provides real-time information at a glance. Key indicators include:

• گاز: Indicates natural gas detection status.
• CO PPM: غلظت مونوکسید کربن را بر حسب قسمت در میلیون نشان می‌دهد.
• دود: Indicates smoke detection status.
• دما: Shows the ambient room temperature.
• رطوبت: Displays the relative humidity level.
• نشانگر باتری: Shows the backup battery level and charging status.
• وضعیت هشدار: Indicates if the audible alarm is active or muted.

Figure 6: The Ultra HD color screen provides clear and dynamic display of all monitored data.

Figure 7: Real-time monitoring of combustible gas, CO concentration, temperature, and humidity.

5.2 توابع دکمه

The device features intuitive buttons for control:

• دکمه نور: Adjusts the brightness of the display or turns it off. Press once for dim, twice for bright, third time for off.
• دکمه پاور: Used to power on/off the device (if not plugged in) or to activate the display if it's off.
• Alarm Mute Button: Temporarily mutes the audible alarm. The visual indicators will remain active.

5.3 باتری پشتیبان

The built-in 1000mAh lithium polymer battery provides continuous operation for 10-14 hours during power outages. When plugged into an outlet, the battery automatically recharges.

Figure 8: The detector features a 1000mAh high-capacity battery for extended backup power.

6. تعمیر و نگهداری

Regular maintenance ensures the longevity and accuracy of your HAKINAKU HD13 detector.

• تمیز کردن: قسمت بیرونی آشکارساز را به آرامی با یک پارچه نرم و لطیف پاک کنید.amp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no liquid enters the device openings.
• تست کردن: It is recommended to test the detector weekly. Press and hold the test button (usually the power button or a dedicated test button, refer to the device for exact marking) until the alarm sounds. This confirms the alarm and sensors are functioning correctly.
• بررسی باتری: The display will show the battery status. Ensure it is charging when plugged in and holds a charge when unplugged.

7 عیب یابی

If you encounter issues with your detector, refer to the following table for common problems and solutions.

Figure 9: The detector provides both sound and light alarms to alert users to potential dangers.

8. مشخصات

9. ضمانت و پشتیبانی

گارانتی: The HAKINAKU HD13 detector comes with a 2-year warranty covering quality issues, offering free exchange for eligible defects.

پشتیبانی مشتری: For any questions, technical assistance, or warranty claims, please contact HAKINAKU customer support through the retailer where the product was purchased or refer to the contact information provided in the product packaging.
