مقدمه
This manual provides essential instructions for the safe operation, assembly, maintenance, and troubleshooting of your Hiboy C1 Electric Bike. Please read this manual thoroughly before your first ride to ensure proper usage and to maximize your riding experience.
Figure 1: Hiboy C1 Electric Bike (Black)
This image displays the Hiboy C1 Electric Bike in its unfolded state, showcasing its compact design, 14-inch wheels, and integrated components like the front light and disc brake.
دستورالعمل های ایمنی
Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Adhere to all local traffic laws and regulations. The Hiboy C1 Electric Bike is UL 2849 Certified, and its battery is UL 2271 Certified, ensuring compliance with safety standards.
- قبل از هر بار استفاده، یک بازرسی قبل از سواری انجام دهید.
- Ensure all bolts and quick releases are securely tightened.
- Check tire pressure and brake functionality.
- تحت تأثیر الکل یا مواد مخدر سوار نشوید.
- از محیط اطراف خود و خطرات احتمالی آگاه باشید.
- از دوچرخهسواری در شرایط نامساعد جوی خودداری کنید.
Figure 2: Riders demonstrating safe operation with front lights and rear reflectors.
This image shows two individuals riding Hiboy C1 electric bikes, highlighting the importance of safety features like bright front lights and rear reflectors for visibility.
راهاندازی و مونتاژ اولیه
Your Hiboy C1 Electric Bike comes partially assembled. Follow these steps for initial setup:
- باز کردن دوچرخه: Carefully unfold the frame and handlebar stem until they lock into place. Ensure all quick-release levers are securely fastened.
- Handlebar Connection: Before installing the bicycle handlebar, connect the electrical cables between the controller and the instrument display. This is crucial for the electric functions to operate.
- نصب فرمان: Securely attach the handlebars to the stem.
- تنظیم صندلی: Adjust the seat height to a comfortable and safe position, ensuring your feet can touch the ground when stopped.
- نصب پدال: Install the pedals, ensuring they are tightened correctly.
- باد لاستیک: لاستیکها را تا فشار توصیهشده که روی دیواره جانبی لاستیک نشان داده شده است، باد کنید.
- شارژ اولیه: Fully charge the battery before your first ride. The battery requires 5-6 hours for a full charge.

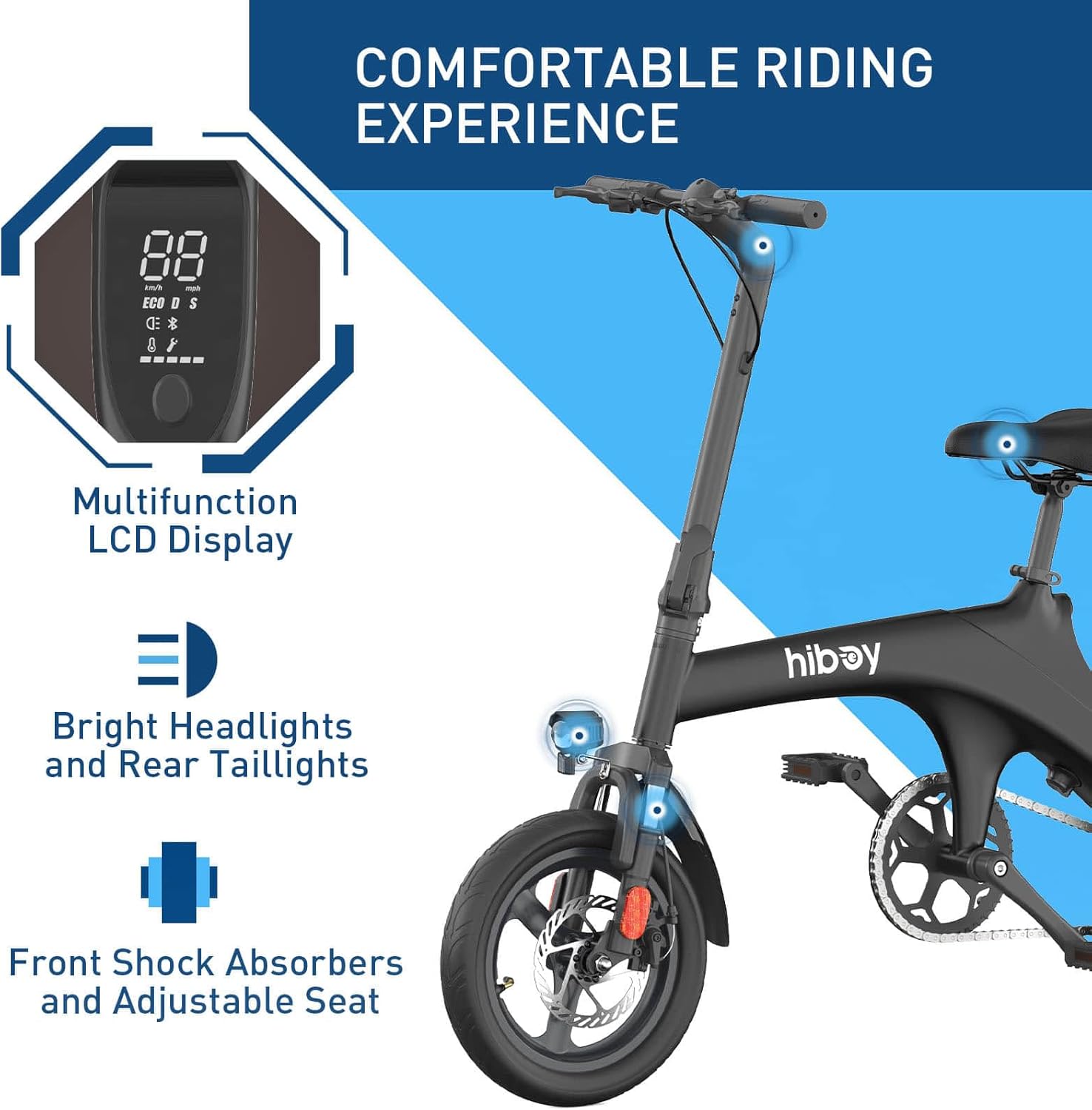

Figure 3: Multifunction LCD Display and Front Suspension.
این تصویر جزئیات دقیقی را ارائه میدهد view of the bike's multifunction LCD display, bright headlights, and front shock absorbers, which contribute to a comfortable riding experience.
دستورالعمل های عملیاتی
روشن کردن و نمایش
Press the power button on the display to turn on the bike. The clear LCD display shows key information such as current speed, riding mode, light status, remaining range, and battery life.
حالت های سواری
The Hiboy C1 offers three distinct riding modes:
- ECO Mode (Energy-Saving): Approximately 9.3 MPH. Ideal for conserving battery and relaxed riding.
- D Mode (Comfort): Approximately 15.5 MPH. A balanced mode for comfortable commuting.
- S Mode (Sport): Up to 20 MPH. Provides maximum power for faster travel.
Switch between modes using the controls on the handlebar. For new riders, it is recommended to start with ECO mode.
Figure 4: Demonstrating the three riding speeds of the Hiboy C1.
This image shows a rider on the Hiboy C1 electric bike, visually representing the availability of three distinct riding speeds for different preferences and conditions.
Pedal Assist Function
The bike features a pedal-assist function that provides motor power as you pedal, making riding easier, especially uphill. The maximum driving range with pedal-assist is approximately 43.5 miles.
Figure 5: Pedal Assist Function in action.
This close-up image focuses on the pedal and crank of the Hiboy C1 electric bike, illustrating the pedal assist function that aids the rider while pedaling.
Hiboy App Integration
Connect your Hiboy C1 to the Hiboy App via Bluetooth for enhanced control and monitoring. The app allows you to:
- Lock and unlock your bike.
- Change speed modes.
- Adjust speed units.
- View real-time speed, battery power, and riding time.
Figure 6: Hiboy App Interface.
This image displays a smartphone screen running the Hiboy App, showcasing its features for locking the bike, changing speed modes, and monitoring ride data.
تعمیر و نگهداری
Regular maintenance ensures the longevity and safe operation of your Hiboy C1 Electric Bike.
- تمیز کردن: دوچرخه را با تبلیغات پاک کنیدamp از استفاده مستقیم جتهای آب پرفشار روی قطعات الکتریکی خودداری کنید.
- لاستیک: Regularly check tire pressure and inspect for wear or damage.
- ترمز: Ensure brake levers are responsive and brake pads are not excessively worn. Adjust as needed. The bike features a dual disc brake system for reliable stopping power.
- زنجیر: برای جلوگیری از زنگ زدگی و اطمینان از عملکرد روان، زنجیر را تمیز و روغن کاری کنید.
- مراقبت از باتری: Charge the battery regularly, even if not in use, to maintain its health. Store the battery in a cool, dry place.
- اتصال دهنده ها: Periodically check and tighten all bolts, nuts, and quick-release mechanisms.
Figure 7: Dual Braking System.
This image shows two Hiboy C1 electric bikes, drawing attention to the dual braking system which provides enhanced stopping power and safety.
عیب یابی
This section addresses common issues you might encounter with your Hiboy C1 Electric Bike.
| مشکل | علت احتمالی | راه حل |
|---|---|---|
| دوچرخه روشن نمیشود. | Battery not charged, loose battery connection, power button issue, disconnected display cables. | Ensure battery is fully charged and properly seated. Check all electrical connections, especially the display cables mentioned in setup. |
| موتور کمکی نمیکند. | Low battery, incorrect riding mode, sensor issue. | Check battery level. Ensure you are in a pedal-assist mode (ECO, D, or S). If issue persists, contact customer support. |
| ترمزها ضعیف به نظر میرسند. | Worn brake pads, loose brake cable, air in hydraulic system (if applicable). | Inspect brake pads for wear and replace if necessary. Check brake cable tension and adjust. For hydraulic systems, professional service may be required. |
| صداهای غیرمعمول در حین کار | Loose components, dry chain, foreign object. | Inspect the bike for any loose parts and tighten them. Lubricate the chain. Check for any debris caught in the wheels or drivetrain. |
For issues not covered here, please refer to the support section or contact Hiboy customer service.
مشخصات
| ویژگی | جزئیات |
|---|---|
| نام مدل | C1 |
| نوع دوچرخه | دوچرخه برقی |
| محدوده سنی | بالغ |
| موتور | 350W (500W Peak) Hub Motor |
| باتری | 36V 7.8Ah (280.8 Watt Hours), Removable |
| حداکثر سرعت | 20 مایل در ساعت |
| حداکثر برد (الکتریکی خالص) | 21.7 مایل |
| Max Range (Pedal-Assist) | 43.5 مایل |
| زمان شارژ | 5-6 ساعت |
| اندازه چرخ | 14 اینچ |
| مواد قاب | فولاد پر کربن |
| نوع تعلیق | جلو |
| سبک ترمز | Disc (Dual Disc Brake System) |
| ویژگی های خاص | LCD Display, Foldable Design, Smart App Connectivity |
| گواهینامه ها | UL 2849 Certified (Bike), UL 2271 Certified (Battery) |
| طراحی تاشو | Yes, foldable handlebar |
Figure 8: Key Performance Specifications.
This image highlights the Hiboy C1's performance metrics, including its 20 MPH top speed, 21.7-mile max range, and 350W motor (500W peak).
اطلاعات گارانتی
The Hiboy C1 Electric Bike comes with a limited 1 سال گارانتی از تاریخ خرید. این گارانتی شامل نقصهای تولیدی در مواد و نحوه ساخت میشود. لطفاً فاکتور خرید خود را برای موارد گارانتی نگه دارید.
Extended protection plans may be available for purchase separately. Refer to your retailer for details on additional coverage options.
پشتیبانی مشتری
For further assistance, technical support, or warranty inquiries, please contact Hiboy customer service. You can find more information and contact details on the official Hiboy store page:
Visit the Hiboy Store on Amazon
When contacting support, please have your model name (C1) and purchase information readily available.
