1. مقدمه
This manual provides essential information for the assembly, operation, and maintenance of your Vente-unique DULENI Chesterfield Storage Bed, including the accompanying AMBRACIE Classic Mattress. Please read these instructions carefully before proceeding with assembly and use to ensure proper functionality and longevity of your product.
2. اطلاعات ایمنی
- Always follow assembly instructions precisely. Incorrect assembly can lead to instability and potential injury.
- قبل از استفاده، مطمئن شوید که همه بستها محکم بسته شدهاند. به صورت دورهای بررسی کنید و در صورت لزوم دوباره سفت کنید.
- Do not exceed the maximum weight capacity of 300 kg for the bed.
- قطعات کوچک و مواد بسته بندی را از کودکان دور نگه دارید تا از خطر خفگی جلوگیری شود.
- When operating the storage mechanism, ensure hands and fingers are clear of moving parts to avoid pinching.
- Place the bed on a level surface to prevent wobbling and ensure stability.
3. محتویات بسته
قبل از شروع مونتاژ، از وجود همه قطعات اطمینان حاصل کنید. در صورت مفقود شدن یا آسیب دیدن هر قطعه، با پشتیبانی مشتری تماس بگیرید.
- 1 x DULENI Chesterfield Storage Bed Frame (160 x 200 cm)
- 1 x AMBRACIE Classic Mattress (160 x 200 cm)
- کیت سخت افزار مونتاژ
- Detailed Assembly Instructions (refer to the separate document included in the packaging)
4. راه اندازی و مونتاژ
The DULENI storage bed requires assembly. For detailed, step-by-step instructions, please refer to the dedicated assembly manual provided in your product packaging. The general assembly process involves:
- باز کردن بسته بندی: تمام قطعات را با دقت از بستهبندی خارج کرده و آنها را روی یک سطح تمیز و نرم قرار دهید تا از خراشیدگی جلوگیری شود.
- مونتاژ قاب: Assemble the main bed frame components (headboard, footboard, side rails) using the provided hardware. Ensure all connections are secure.
- Storage Mechanism Installation: Attach the storage lift mechanism to the bed frame according to the instructions. This typically involves securing the metal frame and gas lift pistons.
- Slat Frame Placement: Position the slat frame onto the bed frame and secure it. The bed features a slat frame with 24 slats for mattress support.
- محل قرارگیری تشک: Once the bed frame is fully assembled and stable, place the AMBRACIE Classic Mattress onto the slat frame.
Image 4.1: The DULENI storage bed with its storage compartment open, revealing the slat frame and ample internal storage.

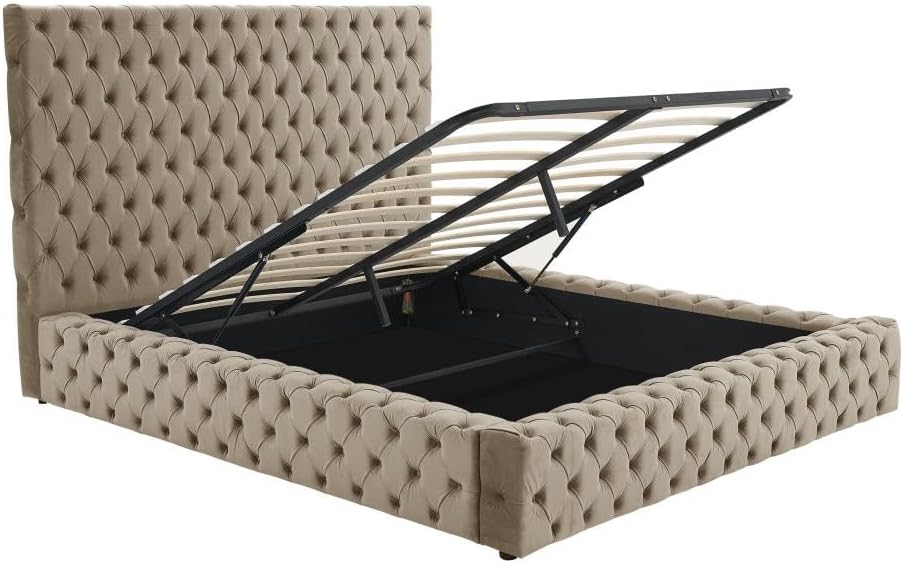

Image 4.2: Close-up of the bed's lift mechanism, highlighting the gas pistons for smooth operation.

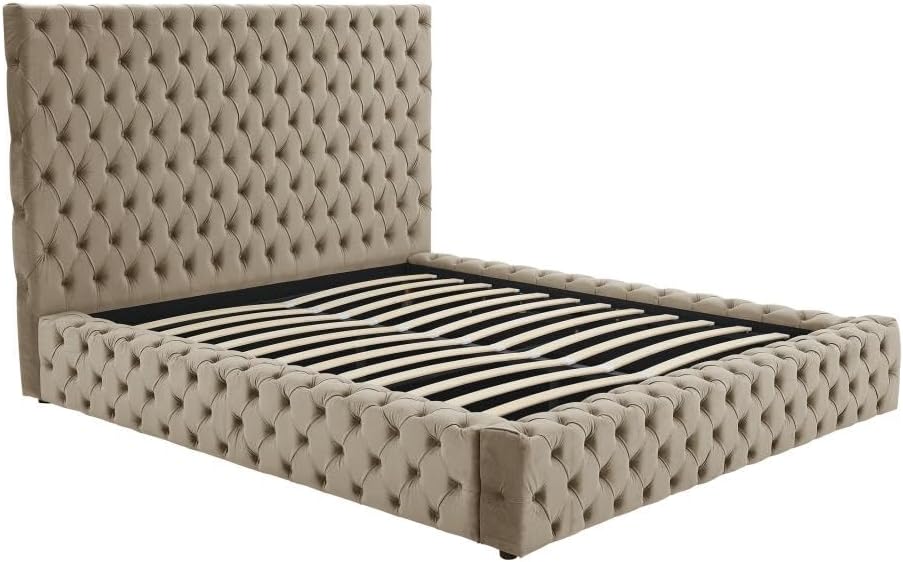

Image 4.3: Detail of the bed's slat frame, providing robust mattress support.
5. دستورالعمل های عملیاتی
5.1 Using the Storage Compartment
The DULENI bed features an integrated storage compartment beneath the mattress. To access it:
- Remove any bedding or pillows from the bed surface.
- Grasp the handle or edge of the mattress support frame.
- Gently lift the mattress support frame upwards. The gas lift mechanism will assist in raising and holding the frame in an open position.
- To close, firmly pull the mattress support frame downwards until it rests securely on the bed frame. Ensure it locks into place if applicable.
Caution: Ensure no objects or body parts are in the path of the moving frame when opening or closing the storage compartment.

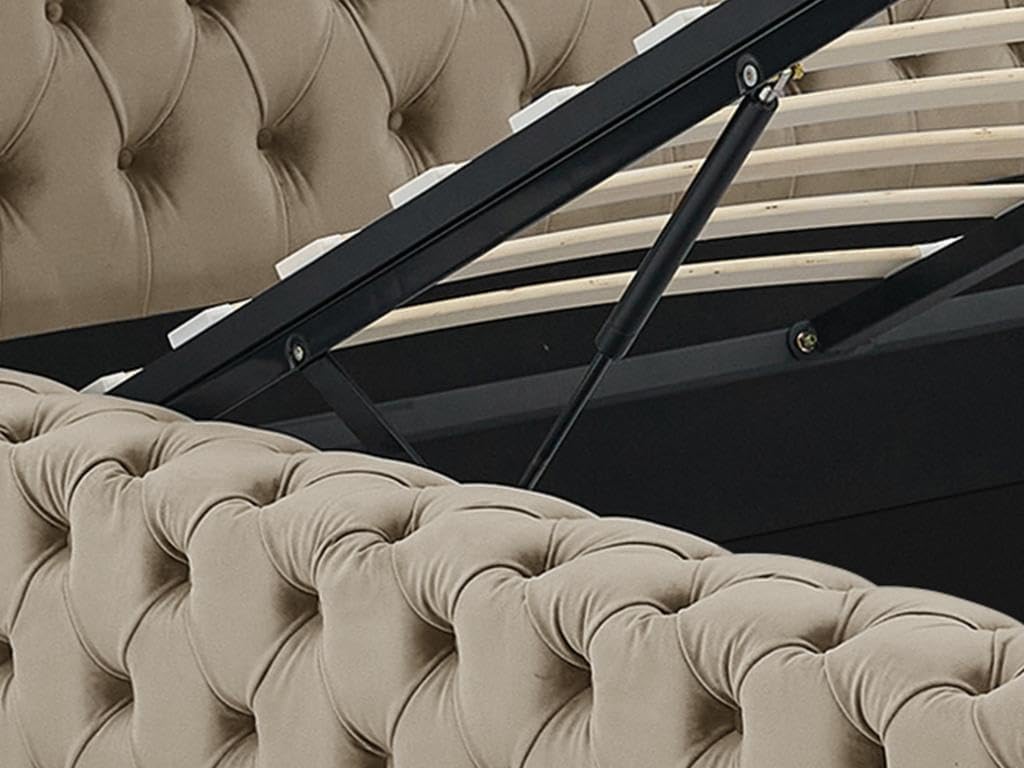

Image 5.1: Detail of the gas lift piston, facilitating easy access to the storage.
6. تعمیر و نگهداری
6.1 Bed Frame Care
- روکش مخمل: The bed is upholstered in 100% polyester velvet. For general cleaning, gently vacuum with a soft brush attachment to remove dust and debris.
- For spills, blot immediately with a clean, dry cloth. Avoid rubbing, which can spread the stain. For stubborn stains, consult a professional upholstery cleaner.
- Avoid direct sunlight exposure to prevent fading of the velvet fabric.
- برای حفظ یکپارچگی سازه، به صورت دورهای تمام پیچها و مهرهها را بررسی و محکم کنید.

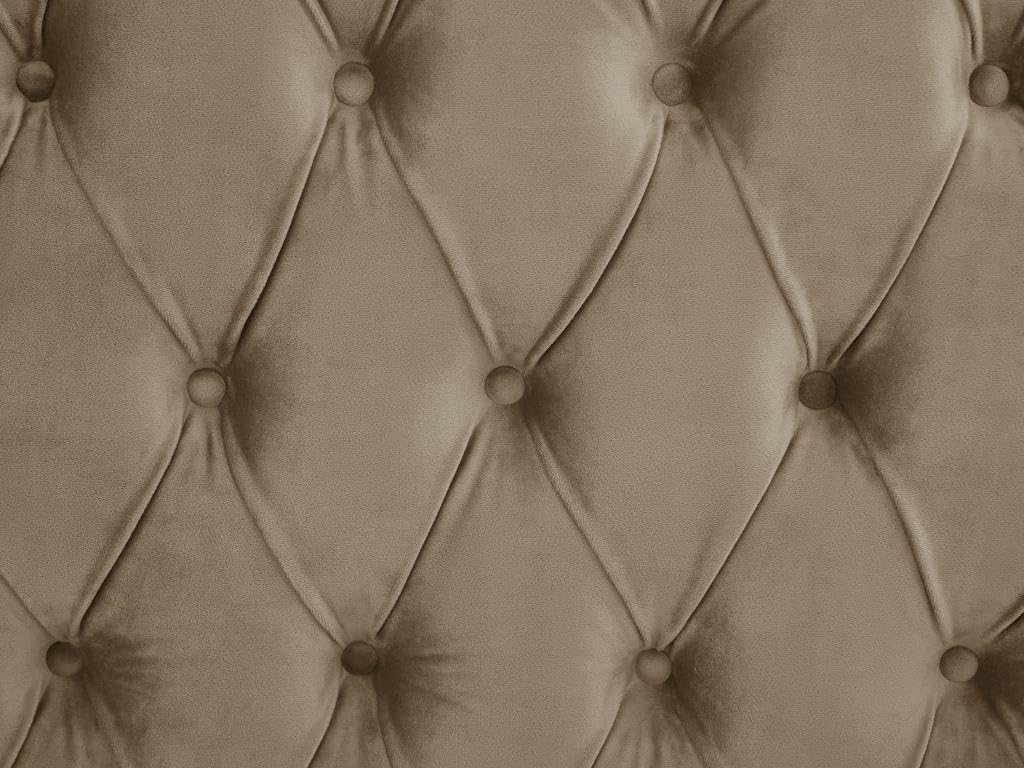

Image 6.1: Close-up of the velvet upholstery and tufted design.
۵.۲ مراقبت از تشک
- The AMBRACIE Classic Mattress is reversible (summer/winter side). Rotate and flip the mattress every 3-6 months to ensure even wear and extend its lifespan.
- Use a mattress protector to shield against spills and stains.
- Vacuum the mattress regularly to remove dust mites and allergens.
- Allow the mattress to air out periodically by removing bedding.
7 عیب یابی
| مشکل | علت احتمالی | راه حل |
|---|---|---|
| Bed is wobbly or unstable | بستهای شل؛ کف ناهموار | تمام پیچها و مهرهها را بررسی و محکم کنید. مطمئن شوید که تخت روی سطح صافی قرار دارد. |
| Storage mechanism is difficult to lift or close | Gas lift pistons not installed correctly; mechanism obstructed | Refer to assembly instructions to verify correct installation of gas lift pistons. Ensure no items are obstructing the mechanism. |
| صداهای جیرجیر | Loose connections; friction between parts | Tighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to contact points if necessary, avoiding fabric. |
8. مشخصات
- نام محصول: DULENI Chesterfield Storage Bed with Mattress
- برند: ونته منحصر به فرد
- Bed Dimensions (Overall): ۹۰ سانتیمتر (طول) × ۱۸.۶ سانتیمتر (عمق) × ۵۶.۵ سانتیمتر (ارتفاع)
- Resting Height: 33 سانتی متر
- Storage Box Dimensions: ۹۰ سانتیمتر (طول) × ۱۸.۶ سانتیمتر (عمق) × ۵۶.۵ سانتیمتر (ارتفاع)
- ابعاد تشک: 160 در 200 سانتی متر
- مواد تخت: 100% Polyester Velvet upholstery, Particle board, Plywood structure, Polyurethane foam padding
- Slat Type: Slat frame with 24 slats
- نوع تشک: Pocket springs, Comfort foam (23 kg/m³ density), Polyester fiber padding, Stretch fabric cover
- رنگ: مایل به قرمز
- حداکثر بار پشتیبانی شده: 300 کیلوگرم
- وزن محصول: 111.2 کیلوگرم
9. گارانتی و پشتیبانی
Your Vente-unique DULENI Chesterfield Storage Bed is covered by a return policy allowing returns within 30 days of receipt. For any questions, concerns, or assistance with your product, please contact Vente-unique Italia's specialized customer support. Details for contacting support can typically be found on the Vente-unique webسایت یا مستندات خرید شما.
