1. مقدمه

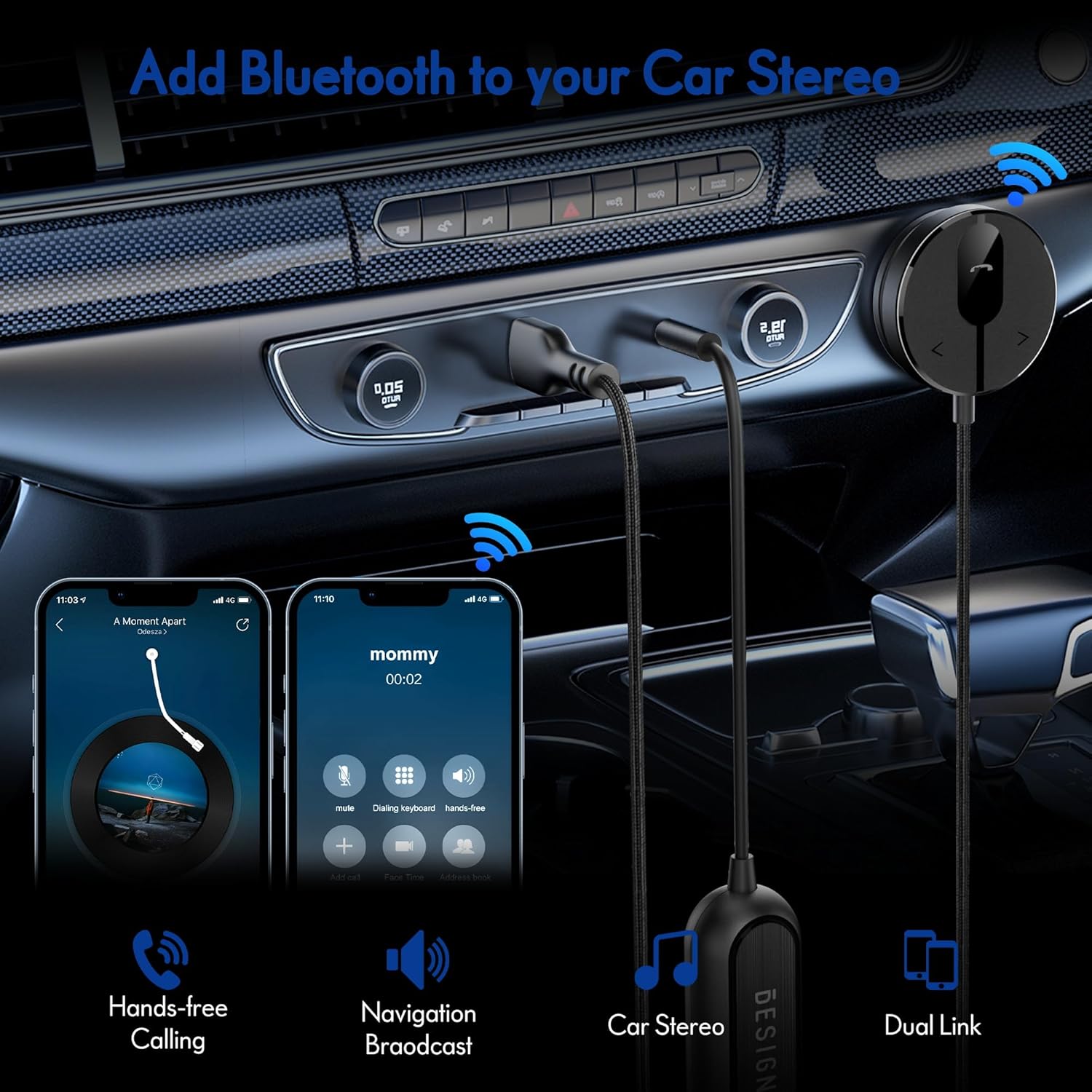

The BESIGN BK01 Bluetooth Car Kit is designed to enhance your driving experience by adding Bluetooth 5.3 connectivity to your car's audio system. This device allows for wireless music streaming, hands-free calling, and navigation broadcast through your car speakers, utilizing your vehicle's 3.5mm Aux input and USB power port. It includes a ground loop noise isolator to ensure clear audio quality.
2. محصول تمام شدview
Familiarize yourself with the components of your BESIGN BK01 Bluetooth Car Kit.
کیت شامل:
- Bluetooth Receiver Unit: Main control unit with Multi-Function Button (MFB), LED indicator, microphone, and track control buttons.
- Magnetic Mounting Disc: For secure placement of the receiver unit.
- Ground Loop Noise Isolator: Reduces buzzing noise in the audio.
- 3.5mm Auxiliary Out Cable: Connects to your car's Aux input.
- پورت برق USB: Connects to a USB power source in your car.
وضعیت نشانگر LED
| نشانگر LED | وضعیت |
|---|---|
| Flashing Red And Blue | حالت جفت شدن |
| آبی جامد | متصل شد |
3. مشخصات
- شماره مدل: BK01
- نسخه بلوتوث: 5.3
- فناوری اتصال: بلوتوث
- منبع تغذیه: Car Cigarette USB power supply
- ویژگی های خاص: Automatic On/Off, Built-In Microphone, Hands-Free Calls, Noise Cancellation
- وزن مورد: 3.84 اونس
- ابعاد بسته بندی: 4.13 x 3.11 x 1.77 اینچ
۱. دستورالعملهای راهاندازی
Follow these steps to install and connect your BESIGN BK01 Bluetooth Car Kit.
- Connect Power and Audio:
- Plug the USB power port of the BK01 into a USB power source in your car (e.g., a car charger or a built-in USB port).
- Connect the 3.5mm Aux cable from the BK01 to your car's 3.5mm Aux input port.
- If experiencing buzzing noise, connect the included ground loop noise isolator between the BK01's 3.5mm Aux cable and your car's Aux input.
- گیرنده را نصب کنید:
- Choose a convenient location on your dashboard or console for the magnetic mounting disc. Ensure the surface is clean and dry.
- Peel off the adhesive backing from the magnetic mounting disc and firmly press it onto the chosen surface.
- Attach the Bluetooth receiver unit to the magnetic disc.
- روشن و جفت شدن:
- Once connected to power, the BK01 will automatically power on. The LED indicator will flash red and blue, indicating it is in pairing mode.
- On your smartphone or other Bluetooth device, go to the Bluetooth settings and search for available devices.
- Select "BK01" from the list to pair. If prompted for a PIN, enter "0000".
- پس از جفت شدن موفقیتآمیز، نشانگر LED به رنگ آبی ثابت در خواهد آمد.
- اتصال خودکار: The BK01 is designed to automatically power on and connect to the last paired device when your car starts (ensure your phone's Bluetooth is active). If it doesn't connect automatically, a short press on the Multi-Function Button (MFB) can initiate reconnection.
5. دستورالعمل های عملیاتی
5.1. پخش موسیقی
- پخش/مکث: دکمه چند منظوره (MFB) را یک بار فشار دهید.
- آهنگ بعدی: Press the ">" button once.
- آهنگ قبلی: Press the "<" button once.
5.2. تماس بدون دست
- پاسخ به تماس: دکمه چند منظوره (MFB) را یک بار فشار دهید.
- پایان تماس: Press the Multi-Function Button (MFB) once during a call.
- رد تماس: دکمه چند منظوره (MFB) را به مدت 2 ثانیه فشار داده و نگه دارید.
- شماره گیری مجدد آخرین شماره: Double-press the Multi-Function Button (MFB).
۳. فعالسازی دستیار صوتی
Press and hold the ">" button to activate your smartphone's voice assistant (e.g., Siri for iPhone, Google Assistant for Android).
5.4. Dual Phone Connection
The BK01 supports connecting to two phones simultaneously. It will manage calls from both devices and mute music if a call comes in on the other phone.
6 عیب یابی
- Buzzing Noise (Ground Loop Noise): If you experience a buzzing or humming noise, especially when music is paused, connect the included ground loop noise isolator. This device is specifically designed to eliminate such electrical interference.
- No Power/No Connection:
- Ensure the USB power port is securely plugged into a working power source.
- Verify your car's USB port or cigarette lighter adapter is providing power.
- Check that your phone's Bluetooth is enabled and within range.
- If the device does not auto-connect, press the MFB button to manually initiate connection.
- کیفیت صدای ضعیف:
- Ensure the 3.5mm Aux cable is fully inserted into both the BK01 and your car's Aux input.
- Adjust the volume on both your phone and car stereo.
- If using the ground loop noise isolator, ensure it is correctly connected.
- Microphone Volume Low During Calls: This can sometimes occur with Bluetooth devices. Ensure the microphone on the BK01 receiver unit is not obstructed and is positioned optimally. Adjust call volume on your phone.
7. تعمیر و نگهداری
- دستگاه را با پاک کردن آن با یک پارچه نرم و خشک تمیز نگه دارید.
- از قرار دادن دستگاه در معرض دمای شدید، نور مستقیم خورشید یا رطوبت خودداری کنید.
- Do not attempt to disassemble or repair the device yourself, as this will void any potential warranty.
8. اطلاعات ایمنی
- دستگاه را طوری کار نکنید که حواس شما را از رانندگی پرت کند. همیشه ایمنی جاده را در اولویت قرار دهید.
- دستگاه و اجزای آن را دور از دسترس کودکان نگه دارید.
- Do not dispose of batteries (if applicable) in fire.
9. گارانتی و پشتیبانی
For warranty information or technical support, please refer to the product packaging or contact BESIGN customer service directly through their official webسایت یا خرده فروشی که محصول از آنجا خریداری شده است.
