Delton F75 Foldable Bluetooth Keyboard with Touchpad User Manual

1. مقدمه

The Delton F75 Foldable Bluetooth Keyboard with Touchpad is designed for portability and convenience, offering a full-sized typing experience in a compact form factor. This manual provides detailed instructions for setting up, operating, and maintaining your keyboard to ensure optimal performance across various devices.

2. محتویات بسته

لطفا بسته را از نظر وجود موارد زیر بررسی کنید:

• 1 x Delton F75 Foldable Bluetooth Keyboard with Touchpad
• 1 عدد کابل شارژ USB-C
• ۱ عدد دفترچه راهنمای کاربر (این سند)

3. محصول تمام شدview

Familiarize yourself with the key components of your Delton F75 keyboard.

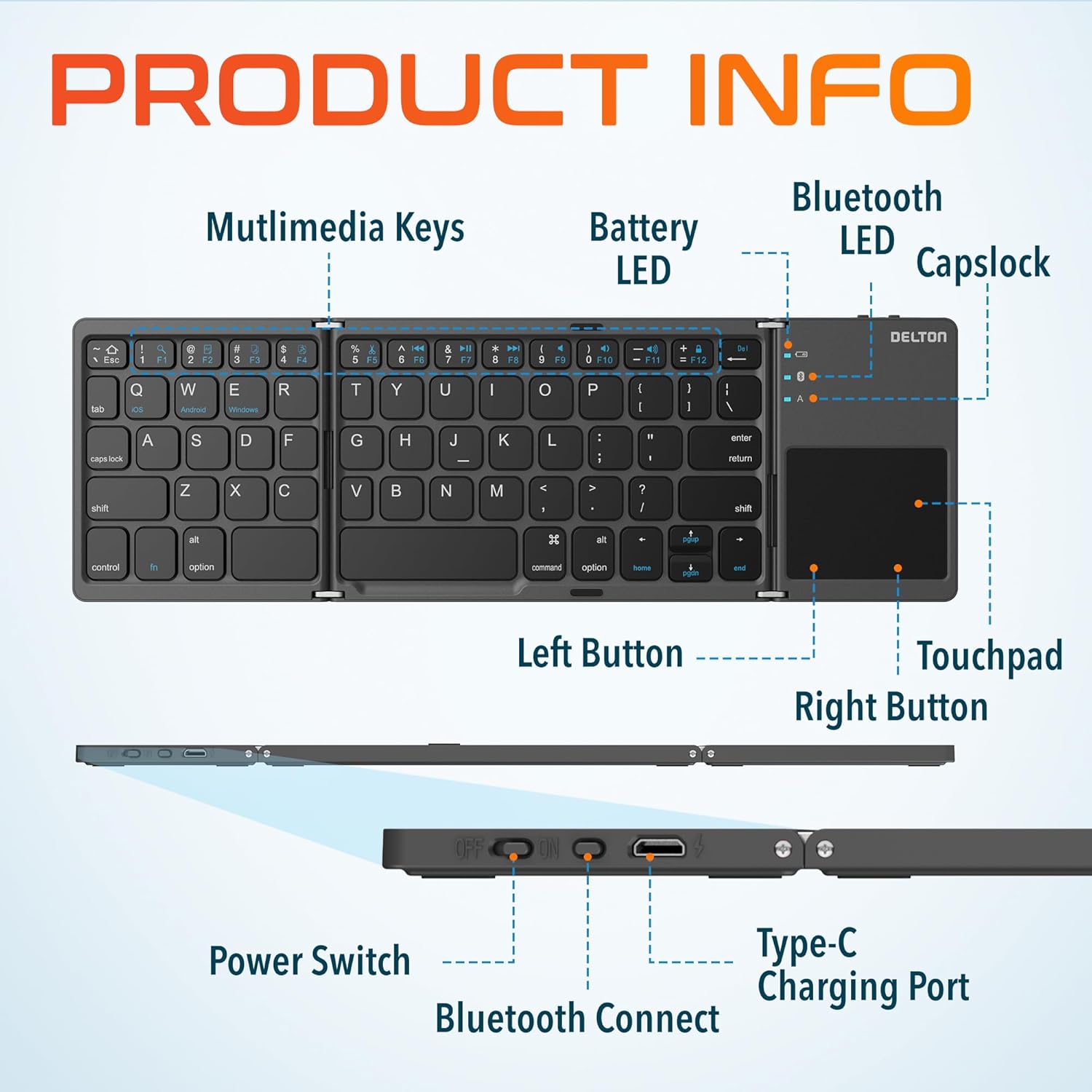

Image: Diagram showing multimedia keys, battery LED, Bluetooth LED, Capslock, Left/Right Touchpad Buttons, Touchpad, Power Switch, Bluetooth Connect button, and Type-C Charging Port.

• کلیدهای چند رسانه ای: Access various functions like volume control, media playback, and more.
• LED باتری: وضعیت باتری را نشان می دهد.
• LED بلوتوث: وضعیت اتصال بلوتوث را نشان می دهد.
• Capslock Indicator: Shows when Caps Lock is active.
• پد لمسی: For navigation and gesture control.
• Left/Right Touchpad Buttons: Function as mouse clicks.
• سوئیچ قدرت: صفحه کلید را روشن یا خاموش می‌کند.
• دکمه اتصال بلوتوث: حالت جفت‌سازی بلوتوث را آغاز می‌کند.
• پورت شارژ Type-C: For recharging the keyboard's internal battery.

4. راه اندازی و اتصال

4.1 شارژ اولیه

Before first use, fully charge the keyboard. Connect the provided USB-C charging cable to the keyboard's Type-C port and the other end to a USB power source (e.g., computer, wall adapter). The Battery LED will indicate charging status.

4.2 روشن/خاموش کردن

To power on the keyboard, slide the Power Switch to the "ON" position. To power off, slide it to the "OFF" position.

4.3 جفت شدن بلوتوث

1. Unfold the keyboard completely. This action often automatically powers on the device.
2. را فشار دهید دکمه اتصال بلوتوث (usually indicated by a Bluetooth icon) to enter pairing mode. The Bluetooth LED will blink, indicating it is discoverable.
3. On your device (PC, laptop, tablet, smartphone), go to Bluetooth settings.
4. جستجو برای available Bluetooth devices and select "Delton F75" (or similar name).
5. Follow any on-screen prompts to complete the pairing process. The Bluetooth LED will stop blinking and remain solid once connected.

The keyboard supports seamless integration across Windows, macOS, iOS, and Android operating systems.

Image: Visual representation of the Delton F75 keyboard's compatibility with various tablets, phones, and laptops/PCs, including iPad, Galaxy Tab, iPhone, Galaxy, Google Pixel, OnePlus, iMac, Macbook, Dell, and HP, and operating systems like Windows, macOS, and iOS.

5. دستورالعمل های عملیاتی

۵.۱ تایپ کردن

The Delton F75 features an optimized key layout and scissor switch keys for comfortable and precise typing. The quiet keys minimize disturbance, making it suitable for various environments.

۵.۲ استفاده از تاچ‌پد

The integrated touchpad supports full gesture functions, eliminating the need for an additional mouse. It includes left and right-click buttons for standard mouse operations.

Image: Close-up of the Delton F75 keyboard's sensitive touchpad, highlighting its gesture control capabilities with a finger touching the pad.

Refer to your device's operating system documentation for specific touchpad gestures supported.

5.3 کلیدهای چندرسانه ای

The keyboard includes dedicated multimedia keys. These keys often require pressing the Fn (Function) key simultaneously with the desired multimedia key to activate their secondary functions (e.g., volume up/down, play/pause).

۷. شارژ و عمر باتری

The Delton F75 keyboard is equipped with a rechargeable battery that provides up to 50 hours of continuous use on a single charge. When the battery is low, the Battery LED will indicate this status. Connect the keyboard to a power source using the USB-C cable for recharging.

7. تعمیر و نگهداری

• صفحه کلید را با پاک کردن آن با یک پارچه نرم و خشک تمیز نگه دارید.
• از قرار دادن کیبورد در معرض دمای شدید، رطوبت یا نور مستقیم خورشید خودداری کنید.
• از مواد شیمیایی خشن یا پاک کننده های ساینده استفاده نکنید.
• Store the keyboard in its folded, compact state when not in use to protect the keys and touchpad.

8 عیب یابی

• کیبورد از طریق بلوتوث وصل نمی‌شود: Ensure the keyboard is charged and powered on. Make sure Bluetooth is enabled on your device and the keyboard is in pairing mode (Bluetooth LED blinking). Try unpairing and re-pairing the device.
• کلیدها پاسخ نمی‌دهند: Check if the keyboard is powered on and connected. Ensure the battery is not depleted.
• صفحه لمسی کار نمی‌کند: Verify the keyboard is connected. Some devices may require specific settings for external touchpads.
• اتصال متناوب: Ensure there are no obstructions between the keyboard and your device. Move closer to your device. Avoid strong electromagnetic interference.
• Typing lag: This can sometimes be due to interference or a low battery. Try recharging the keyboard or moving closer to your device.

9. مشخصات

10. گارانتی و پشتیبانی

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official Delton webسایت. فاکتور خرید خود را برای موارد گارانتی نگه دارید.
