Joyhill Coffee Scale with Timer

مقدمه

Thank you for choosing the Joyhill Coffee Scale with Timer. This digital scale is designed for high-precision measurements, ideal for brewing coffee, baking, cooking, and more. With its dual LED display, automatic and manual timing functions, and multiple unit options, it provides a seamless and accurate weighing experience. Please read this manual thoroughly before use to ensure proper operation and maintenance.

دستورالعمل های ایمنی

• Do not immerse the scale in water or other liquids. The scale is water-resistant but not waterproof.
• Avoid placing the scale on uneven or unstable surfaces to ensure accurate readings.
• Do not overload the scale beyond its maximum capacity of 3kg (6.6lb).
• ترازو را از دمای شدید و نور مستقیم خورشید دور نگه دارید.
• Use only the provided Type-C charging cable. Avoid using fast chargers that may damage the battery.
• ترازو را با نرم، دamp cloth. Do not use abrasive cleaners or chemicals.

محتویات بسته

• Joyhill Coffee Scale
• پد محافظ سیلیکونی
• کابل شارژ USB Type-C
• راهنمای کاربر (این سند)

ویژگی های محصول

• High-Precision Measurement: Equipped with upgraded high-precision single sensors, offering accuracy of 0.1g/0.005oz and a maximum weighing capacity of 3kg/6.6LB.
• نمایشگر LED دوگانه: Easy-to-read display for simultaneous control of time and weight.
• توابع زمان‌بندی: Features both automatic and manual timing modes for precise brewing control.
• تبدیل واحد: Supports switching between grams (g), milliliters (ml), ounces (oz), pounds (lb), pounds:ounces (lb:oz), and fluid ounces (fl'oz).
• پد سیلیکونی: Heat-insulated, waterproof, and non-slip silicone pad for enhanced stability and protection.
• دکمه های کنترل را لمس کنید: Four sensitive touch buttons for power/tare, unit selection, timing mode selection, and timer start/stop/reset.
• خاموش شدن خودکار: Automatically turns off after 5 minutes of inactivity to conserve energy.
• Beep Selection: Option to turn the operation beep sound on or off.

The Joyhill Coffee Scale offers high accuracy for precise measurements.

This multifunctional digital scale is suitable for a variety of kitchen weighing needs.

راه اندازی

شارژ اولیه

Before first use, fully charge the scale using the provided Type-C USB charging cable. Connect the cable to the scale's charging port and a compatible USB power source. The display will indicate charging status.

Placing the Silicone Pad

Place the silicone protective pad on the weighing platform. This pad is designed to be heat-insulated, waterproof, and non-slip, protecting the scale and ensuring stability during use.

The scale comes with a silicone pad and a Type-C charging cable for convenience.

دستورالعمل های عملیاتی

Power On/Off and Tare Function (Ʉ / T button)

• روشن کردن: Short press the Ʉ / T button to turn on the scale.
• تره: While the scale is on, short press the Ʉ / T button to reset the display to zero (tare function). This is useful for weighing ingredients in a container.
• خاموش: Long press the Ʉ / T button to turn off the scale.

Unit Conversion (UNIT button)

Short press the UNIT button to cycle through the available weighing units: grams (g) > milliliters (ml) > ounces (oz) > pounds (lb) > pounds:ounces (lb:oz) > fluid ounces (fl'oz).

Timing Modes (MODE button and Timer button)

• تغییر حالت ها: Short press the MODE button to switch between manual timing mode and automatic timing mode.
• زمان بندی دستی: In manual mode, short press the Timer button (clock icon) to start or stop the timer. Long press the Timer button to reset the timer to zero.
• Automatic Timing: In automatic mode, the timer will automatically start when weight is detected on the scale (e.g., when you start pouring water for coffee). The timer will automatically stop when the weight stabilizes after pouring.
• Beep Sound On/Off: Long press the MODE button to activate or deactivate the button voice function (beep sound).

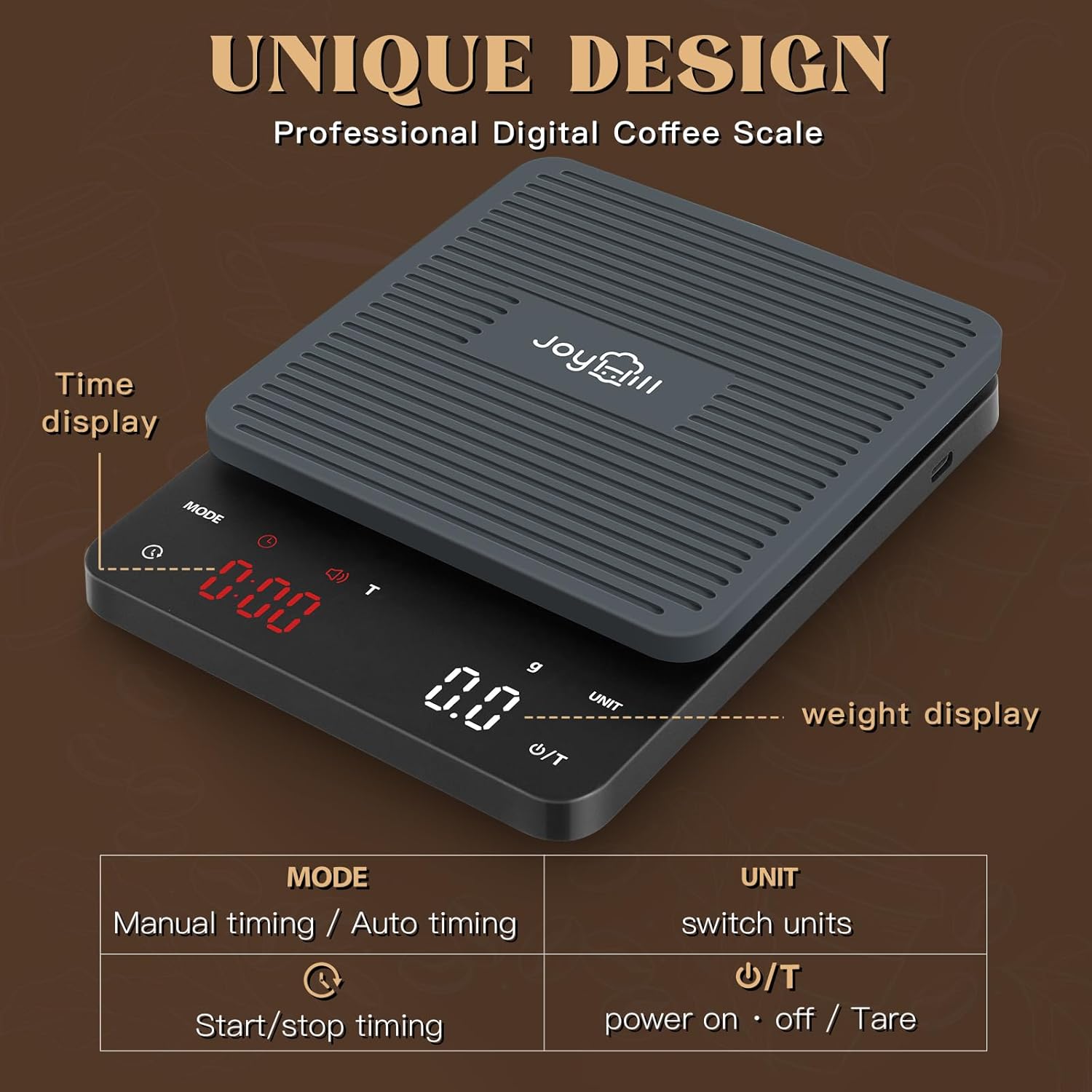

تمام شدview of the scale's display and touch control buttons.

Instructions for using the tare and automatic timing features.

Demonstration of the Joyhill Coffee Scale's unit conversion and timing functions.

نگهداری و مراقبت

• تمیز کردن: Wipe the scale surface and silicone pad with a soft, damp cloth. Do not use harsh chemicals, abrasive cleaners, or immerse the scale in water.
• ذخیره سازی: Store the scale in a cool, dry place. The compact size (6.7''x5.0'') makes it easy to store in drawers or cabinets.
• مراقبت از باتری: Charge the scale regularly, especially if it will not be used for an extended period. Avoid completely draining the battery frequently.

Regular cleaning helps maintain the scale's appearance and functionality.

عیب یابی

مشخصات

گارانتی و پشتیبانی

For warranty information and customer support, please refer to the documentation included with your product or visit the official JOYHILL website. If you have any questions or encounter issues not covered in this manual, please contact JOYHILL customer service for assistance.
