Godox XProII-C TTL Wireless Flash Trigger Transmitter for Canon Cameras

1. مقدمه

The Godox XProII-C is an advanced TTL wireless flash trigger transmitter designed for Canon cameras. It offers a robust 2.4G wireless system, supporting 1/8000s High-Speed Sync (HSS), TTL autoflash, multi-flash, and manual flash modes. With Bluetooth connectivity, users can conveniently control flash parameters via the GodoxPhoto App on their mobile devices. The XProII-C features an intuitive interface, a quick-release lock, and compatibility with Sekonic L-858 light meters for a streamlined photography workflow.

This instruction manual will guide you through the setup, operation, and advanced features of your XProII-C trigger to help you achieve professional lighting results.

2. محصول تمام شدview

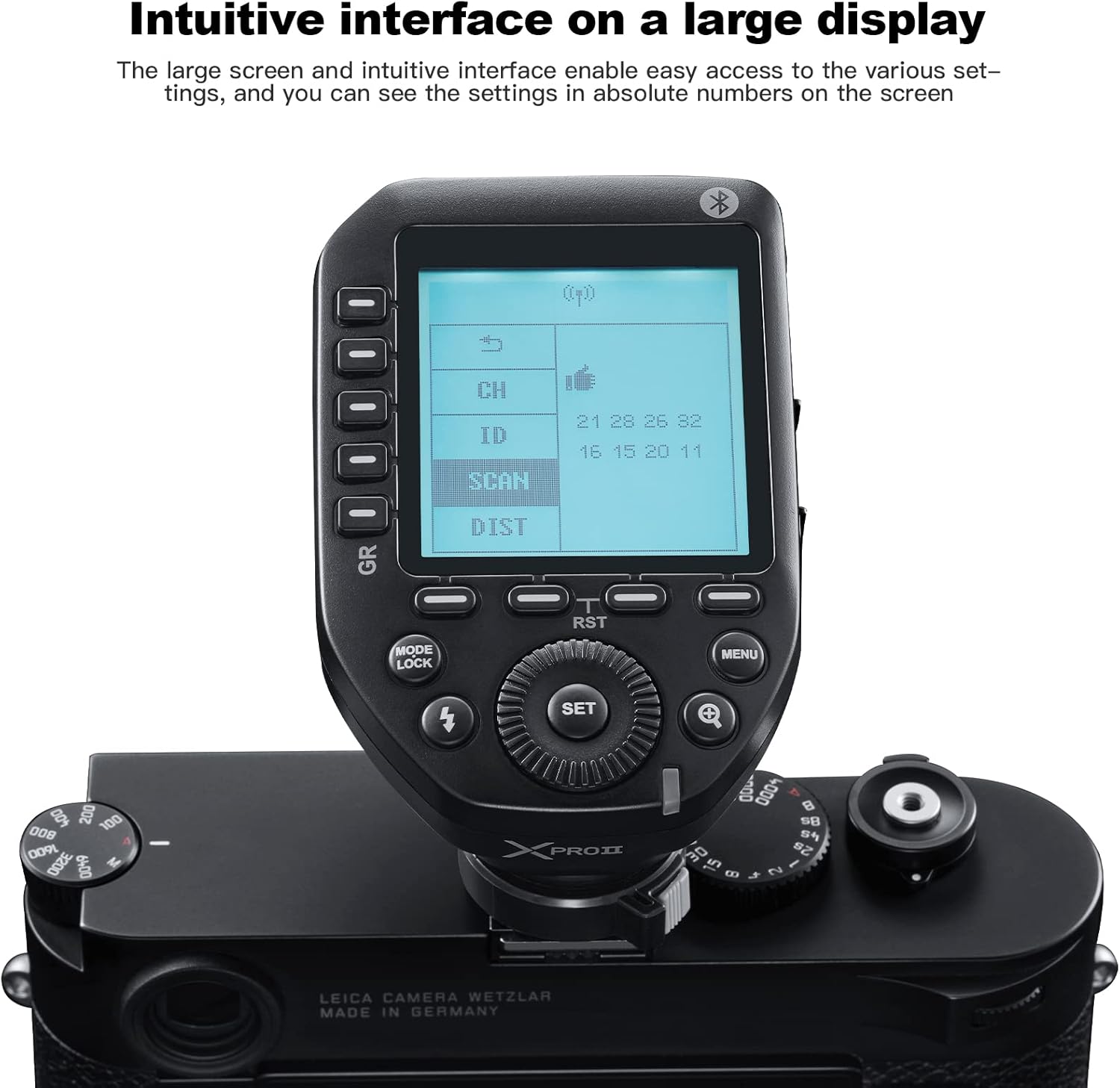

شکل 2.1: The XProII-C features an intuitive interface on a large LCD screen for easy access to settings.

The XProII-C is equipped with a large, intuitive LCD display and clearly labeled buttons for easy navigation and control. Key components include:

• صفحه نمایش LCD بزرگ: Provides real-time display of flash settings.
• Control Dial & Buttons: For adjusting parameters, navigating menus, and selecting groups.
• کفشک گرم: For mounting the trigger onto your camera.
• Quick-Release Lock: Ensures secure attachment and easy detachment from the camera.
• پورت USB-C: برای به روز رسانی سیستم عامل
• 2.5mm Sync Cord Jack: برای تریگر کردن سیمی.

3. نصب و راه اندازی

3.1 نصب باتری

1. Locate the battery compartment on the underside of the trigger.
2. درپوش محفظه باتری را باز کنید.
3. دو باتری قلمی (AA) را وارد کنید و از قطبیت صحیح (+/-) اطمینان حاصل کنید.
4. درپوش محفظه باتری را محکم ببندید.

۳.۲ نصب روی دوربین

شکل 3.1: The quick-release lock ensures secure mounting of the XProII-C on your camera's hotshoe.

1. مطمئن شوید که دوربین شما خاموش است.
2. Slide the XProII-C's hotshoe into your camera's hotshoe.
3. Engage the quick-release lock lever to secure the trigger firmly in place.

3.3 روشن/خاموش

1. To power on, slide the power switch to the 'ON' position. The LCD screen will illuminate.
2. برای خاموش کردن، کلید پاور را در موقعیت «خاموش» قرار دهید.

4. عملیات پایه

۶.۱ پیمایش رابط کاربری

The XProII-C features a user-friendly interface with a large LCD screen and dedicated buttons for various functions.

• استفاده کنید شماره گیری کنترل to scroll through options and adjust values.
• را فشار دهید تنظیم کنید را فشار دهید تا انتخاب ها را تأیید کنید.
• استفاده کنید Group Buttons (A-E) on the left side to select and activate individual flash groups.
• را حالت button cycles through TTL, Manual, and Multi-Flash modes.
• را MENU button accesses additional settings and custom functions.

4.2 Adjusting Flash Parameters

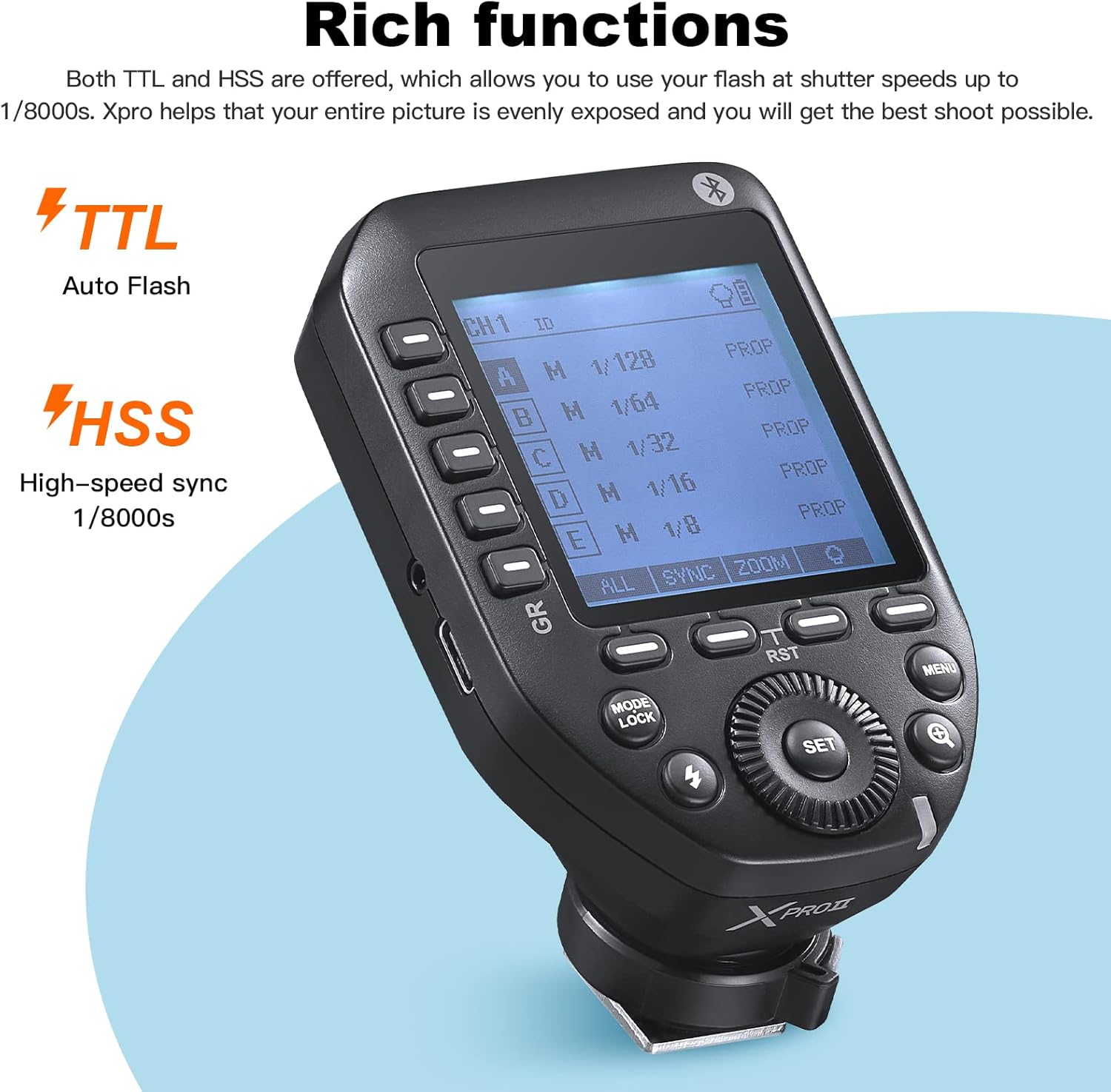

شکل 4.1: The XProII-C supports TTL Autoflash and High-Speed Sync up to 1/8000s.

After selecting a group, you can adjust its flash mode and power output:

• فلاش خودکار TTL: The trigger automatically adjusts flash output for correct exposure. Use the control dial to apply Flash Exposure Compensation (FEC).
• فلاش دستی: Manually set the flash power output (e.g., 1/1 to 1/128).
• Multi-Flash (Stroboscopic): Set the flash frequency and number of flashes for creative effects.

۵.۲ تنظیمات گروه و کانال

The XProII-C supports 16 groups and 32 channels, along with 01 to 99 Wireless ID settings, for flexible multi-flash setups.

• استفاده کنید GR button to cycle through groups or select multiple groups.
• Access the menu to change the کانال (CH) و شناسه بی سیم برای جلوگیری از تداخل
• جدید اسکن function allows you to quickly find the least intrusive channel in complex environments.

5. ویژگی های پیشرفته

5.1 قابلیت اتصال بلوتوث

شکل 5.1: Control your XProII-C remotely using the GodoxPhoto App via Bluetooth.

The XProII-C features built-in Bluetooth for remote control via the GodoxPhoto App:

1. دانلود کنید GodoxPhoto App از فروشگاه برنامه دستگاه شما.
2. Enable Bluetooth on your mobile device and the XProII-C.
3. Open the app and connect to your XProII-C trigger.
4. Adjust flash parameters, group settings, and more directly from your phone or tablet.

5.2 Sekonic L-858 Light Meter Integration

شکل 5.2: Adjust flash values directly through the Sekonic L-858 light meter when used with the XProII-C.

When paired with a Sekonic L-858 light meter that has a built-in Godox 2.4G module, you can directly adjust flash values through the light meter, saving time and streamlining your exposure setup.

5.3 Multi-Shooting Mode

شکل 5.3: The multi-shooting mode allows for collaborative photography by sharing fixed light setups.

The multi-shooting feature enables you to share a set of fixed lights with others. The XProII-C sends the flash value you set to the light, and the flash operates according to that value, facilitating creative collaboration.

6. مشخصات

۲. چه چیزهایی در جعبه است؟

• 1x Godox XProII-C Trigger

8 عیب یابی

If you encounter issues with your XProII-C trigger, please refer to the following common troubleshooting steps:

• فلاش فعال نمی‌شود: Ensure batteries are correctly inserted and charged. Verify that the trigger and flash units are set to the same channel and ID. Check the flash unit's power and readiness indicator.
• تداخل: Use the SCAN function to find a clear channel. Change the Wireless ID if necessary.
• مشکلات اتصال بلوتوث: Ensure Bluetooth is enabled on both the trigger and your mobile device. Restart the GodoxPhoto App and the trigger.
• نوردهی نادرست: Check flash mode (TTL/Manual) and adjust power output or Flash Exposure Compensation (FEC) as needed. Ensure camera and flash settings are compatible.

9. تعمیر و نگهداری

Proper care and maintenance will extend the life of your Godox XProII-C trigger:

• تمیز کردن: Use a soft, dry cloth to clean the exterior of the trigger. Avoid using harsh chemicals or abrasive materials.
• ذخیره سازی: Store the trigger in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods to prevent leakage.
• مراقبت از باتری: Use high-quality AA batteries. Replace batteries promptly when low to ensure consistent performance.
• به روز رسانی سیستم عامل: Periodically check the Godox official website for firmware updates to ensure optimal performance and access to new features. Use the USB-C port for updates.

10. ضمانت و پشتیبانی

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. Godox offers customer support for product inquiries and technical assistance. Please visit the official Godox webسایت برای اطلاعات تماس و منابع بیشتر.
