1. مقدمه
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your new Giantex Storage Cabinet Model GX10780-VJ. Designed with both functionality and aesthetics in mind, this cabinet features three drawers, a side cabinet with an adjustable shelf, and sturdy wooden legs. Please read this manual thoroughly before assembly and use to ensure proper installation and safe operation.
تصویر 1.1: جلو view of the assembled Giantex Storage Cabinet.
2. اطلاعات ایمنی
برای جلوگیری از آسیب یا جراحت به محصول، لطفاً نکات ایمنی زیر را رعایت کنید:
- برای جلوگیری از خراش، همیشه محصول را روی یک سطح نرم و تمیز مونتاژ کنید.
- قبل از استفاده، مطمئن شوید که تمام پیچها و بستها محکم بسته شدهاند.
- Do not exceed the maximum weight capacity of 150 lbs (68 kg) for the top surface.
- To prevent tipping, especially in households with children, always install the anti-tipping device provided.
- قطعات کوچک و مواد بسته بندی را از دسترس کودکان دور نگه دارید.

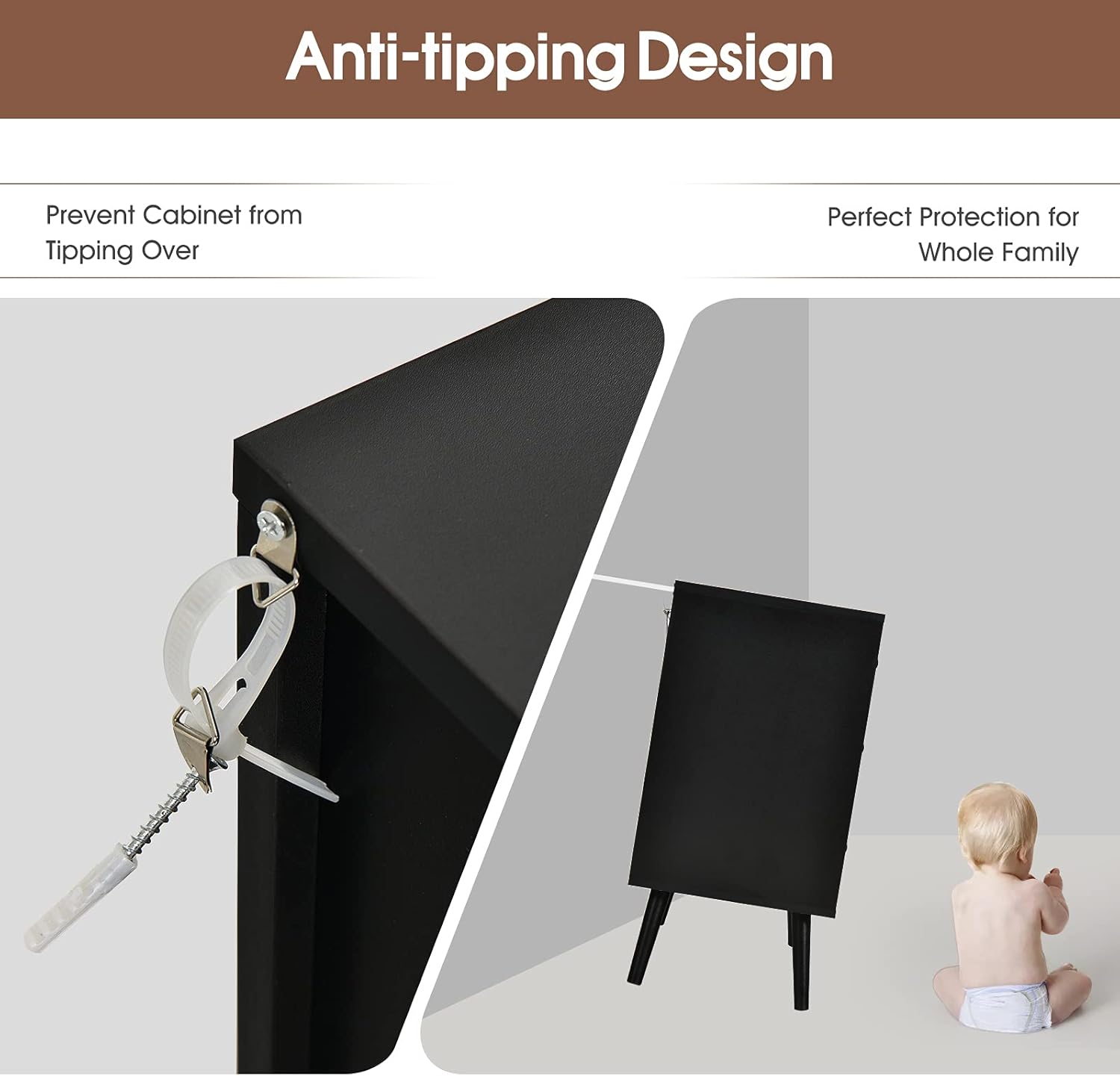

Image 2.1: Illustration of the anti-tipping device installation for enhanced safety.
3. محتویات بسته
قبل از شروع مونتاژ، بررسی کنید که تمام قطعات ذکر شده در زیر وجود داشته و آسیب ندیده باشند. در صورت مفقود شدن یا آسیب دیدن هر قطعه، لطفاً با پشتیبانی مشتری تماس بگیرید.
- 1 x Storage Cabinet (unassembled components)
- 1 x کتابچه راهنمای دستورالعمل
- All necessary hardware for assembly (screws, dowels, anti-tipping kit, etc.)
4. ویژگی ها
The Giantex Storage Cabinet is designed with several key features to enhance its utility and aesthetic appeal:
- طراحی به سبک رترو: Features a unique wood grain finish in brown and black, blending industrial and retro aesthetics.
- Ampفضای ذخیرهسازی: Includes three large drawers for private storage and a side cabinet with an adjustable shelf.
- قفسه قابل تنظیم: The shelf within the side cabinet can be adjusted to three different heights to accommodate various item sizes.
- ساخت و ساز بادوام: Made from high-quality engineered wood and supported by four sturdy rubber wood legs.
- تعمیر و نگهداری آسان: The smooth surface is designed for simple cleaning and long-term durability.
- دستگاه ضد واژگونی: Equipped with a safety device to prevent accidental tipping.
Image 4.1: Detail of the adjustable shelf in the side cabinet.
Image 4.2: Details of the cabinet's components, including knobs, surface, drawer sliders, and legs.
5. مشخصات محصول
| مشخصات | جزئیات |
|---|---|
| نام تجاری | جیانتکس |
| نام مدل | GX10780-VJ |
| رنگ | قهوه ای و مشکی |
| مواد | Engineered Wood, Rubber Wood |
| ابعاد محصول (L x W x H) | ۴۶.۴۵ اینچ در ۸.۴۶ اینچ در ۲.۳۶ اینچ (۱۱۸ سانتیمتر در ۲۱.۵ سانتیمتر در ۶ سانتیمتر) |
| ابعاد کشو (طول x عرض x ارتفاع) | 13" x 13" x 3.5"/5"/5" (for each of the three drawers) |
| وزن خالص | 55 پوند (25 کیلوگرم) |
| Max Weight Capacity (Top Surface) | 150 پوند (68 کیلوگرم) |
| مونتاژ مورد نیاز است | بله |
| نوع نصب | مستقل |
Image 5.1: Detailed dimensions and weight capacity of the storage cabinet.
6. دستورالعمل مونتاژ
Assembly of the Giantex Storage Cabinet is required. Please follow the step-by-step instructions and diagrams provided in the separate assembly manual included in your package. Ensure all parts are correctly identified and installed as per the instructions. It is recommended to have a second person assist with assembly for ease and safety.
مهم: Do not overtighten screws during assembly. Once the cabinet is fully assembled, install the anti-tipping device as described in Section 2.
7. دستورالعمل های عملیاتی
Your Giantex Storage Cabinet is designed for straightforward use:
- کشوها: The three drawers are equipped with smooth sliders for easy opening and closing. Pull the round knobs to open and push to close.
- Side Cabinet: Open the side cabinet door by pulling the knob. The internal shelf can be adjusted to three different heights. To adjust, remove the shelf, reposition the shelf pins to the desired height, and reinsert the shelf.
- قرار دادن: This versatile cabinet can be used in various rooms such as the dining room, living room, entryway, or office for storage and display.
Video 7.1: Demonstration of the cabinet's functionality, including opening drawers and the side cabinet, and showcasing its use in a room setting.

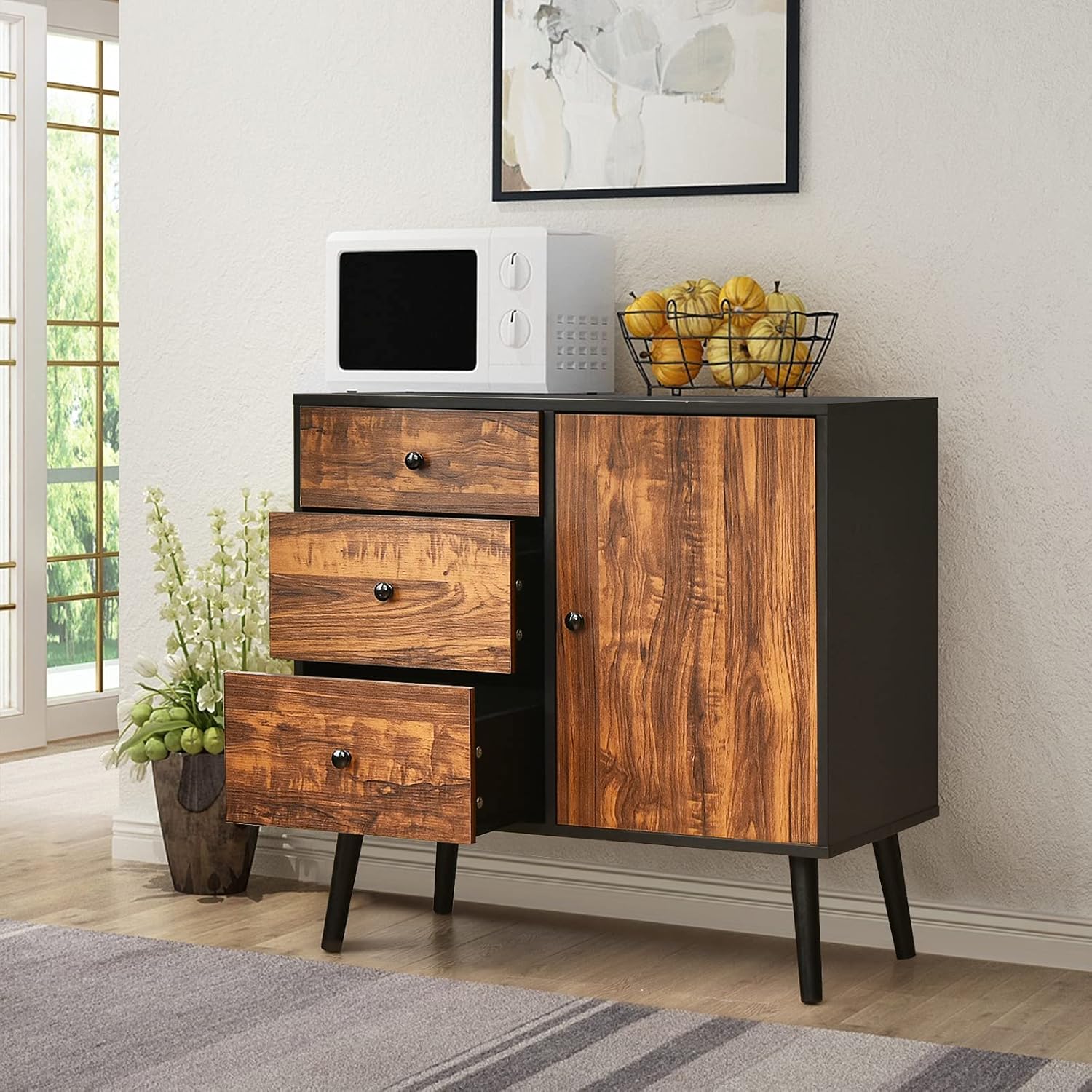

تصویر ۴.۲: مثالample of the cabinet used as a microwave stand in a kitchen setting.
8. نگهداری و مراقبت
To maintain the appearance and longevity of your storage cabinet, follow these simple care instructions:
- سطح را مرتباً با یک پارچه نرم و لطیف پاک کنید.amp پارچه
- از استفاده از مواد شیمیایی قوی یا پاککنندههای ساینده خودداری کنید، زیرا این مواد میتوانند به روکش آسیب بزنند.
- برای جلوگیری از لکه شدن یا آسیب ناشی از آب، فوراً هرگونه نشتی را پاک کنید.
- Keep the cabinet away from direct sunlight and extreme temperature changes to prevent warping or fading.
- به طور دورهای تمام بستها را بررسی کنید و در صورت لزوم آنها را محکم کنید تا از پایداری آنها اطمینان حاصل شود.
9 عیب یابی
If you encounter any issues with your Giantex Storage Cabinet, consider the following general troubleshooting steps:
- کابینت لق: Ensure all screws are tightened. Verify that the anti-tipping device is correctly installed and secured to a wall stud. Adjust the leveling feet (if present) on the bottom of the legs to stabilize the unit on uneven floors.
- کشوها به راحتی باز نمیشوند: Check for any obstructions in the drawer slides. Ensure the drawer slides are properly aligned and lubricated if necessary.
- قطعات آسیب دیده: If any part is damaged during shipping or assembly, do not attempt to force it. Contact customer support for replacement parts.
برای اطلاعات بیشتر، لطفاً به اطلاعات تماس در بخش گارانتی و پشتیبانی مراجعه کنید.
10. گارانتی و پشتیبانی
Giantex is committed to providing high-quality products. For any questions, concerns, or to report missing/damaged parts, please contact the seller directly through your purchase platform or refer to the contact information provided with your product packaging.
Additional protection plans may be available for purchase separately. Please check your purchase details for more information on extended warranty options.
Manufacturer: Giantex
Date First Available: July 14, 2021
