Selvim WiFi Mini Projector Instruction Manual

1. مقدمه

Thank you for choosing the Selvim WiFi Mini Projector. This portable movie projector offers 1080P compatibility, a large 200-inch display, Bluetooth audio, and a 60,000-hour LED lamp life. It is designed for versatile connectivity with devices such as TV sticks, HDMI, USB, laptops, PS4, and iOS/Android smartphones. This manual provides detailed instructions for setup, operation, and maintenance to ensure you get the best experience from your projector.

2. محتویات بسته

لطفا موارد زیر را در کادر مربوطه تیک بزنید:

• Selvim WiFi Mini Projector
• کنترل از راه دور (باتری شامل نمی شود)
• کابل برق
• کابل HDMI
• AV Cable (3-in-1 RCA to 3.5mm jack)
• پارچه تمیز کردن لنز
• پیچ پایی قابل تنظیم
• راهنمای کاربر

3. محصول تمام شدview

The Selvim Mini Projector features a compact design with multiple connectivity options and user-friendly controls.

3.1 جلو و عقب View

تصویر: جلو و عقب view of the Selvim Mini Projector, highlighting its compact design and various ports.

۳.۲ پورت‌ها و کنترل‌ها

• گیرنده IR: برای سیگنال‌های کنترل از راه دور.
• پورت HDMI: Connect to HDMI-enabled devices (laptops, game consoles, TV sticks).
• USB1/USB2 Ports: Connect USB storage devices or power compatible streaming sticks.
• AV/AUX Input: دستگاه‌ها را با استفاده از کابل AV موجود متصل کنید.
• پورت VGA: Connect to computers with VGA output.
• خروجی صدا (۳.۵ میلی‌متری): بلندگوهای خارجی یا هدفون را وصل کنید.
• ورودی برق: کابل برق را وصل کنید.
• حلقه کانونی: Adjust for image clarity.
• تصحیح کیستون: Adjust image shape (±15 degrees).
• On-device Control Buttons: Navigate menus and adjust settings directly on the projector.

Image: The rear panel of the Selvim Mini Projector, clearly showing the HDMI, USB, AV, AUX, and VGA ports for multi-device connectivity.

4. راه اندازی

۴.۳ محل قرارگیری و اندازه صفحه نمایش

Position the projector on a stable surface or mount it using a tripod or ceiling mount. The recommended projection distance is 2-5 meters (approximately 6.5-16.4 feet) for a screen size of 50-200 inches.

Image: A diagram illustrating recommended projection distances (1.5m for 50", 2.15m for 72", 2.95m for 100", 3.95m for 120", 5.0m for 200") for various screen sizes.

4.2 اتصال برق

Connect the power cable to the projector's power input and then to a power outlet.

۳.۳ تنظیم فوکوس و کیستون

After powering on, adjust the focus ring on the lens until the image is clear. Use the keystone correction dial to correct any trapezoidal distortion, ensuring the projected image is rectangular.

Image: A visual representation of how focus and keystone adjustments affect the projected image, showing a blurry image being sharpened by focus and a trapezoidal image being corrected to a rectangle by keystone.

۳.۱ گزینه‌های اتصال

The projector supports various wired and wireless connections:

• HDMI: Connect your laptop, game console, or streaming device via an HDMI cable.
• USB: برای پخش رسانه، یک فلش درایو USB وارد کنید fileمستقیما
• AV/VGA: Use the provided AV cable or a VGA cable for older devices.
• بلوتوث 5.0: برای افزایش کیفیت صدا، بلندگوهای بلوتوث خارجی یا هدفون را وصل کنید.
• اتصال وای فای: For screen mirroring from iOS and Android devices.

Image: The Selvim Mini Projector connected wirelessly to Bluetooth 5.0 headphones and earbuds, illustrating stable signal transmission and a superior stereo experience.

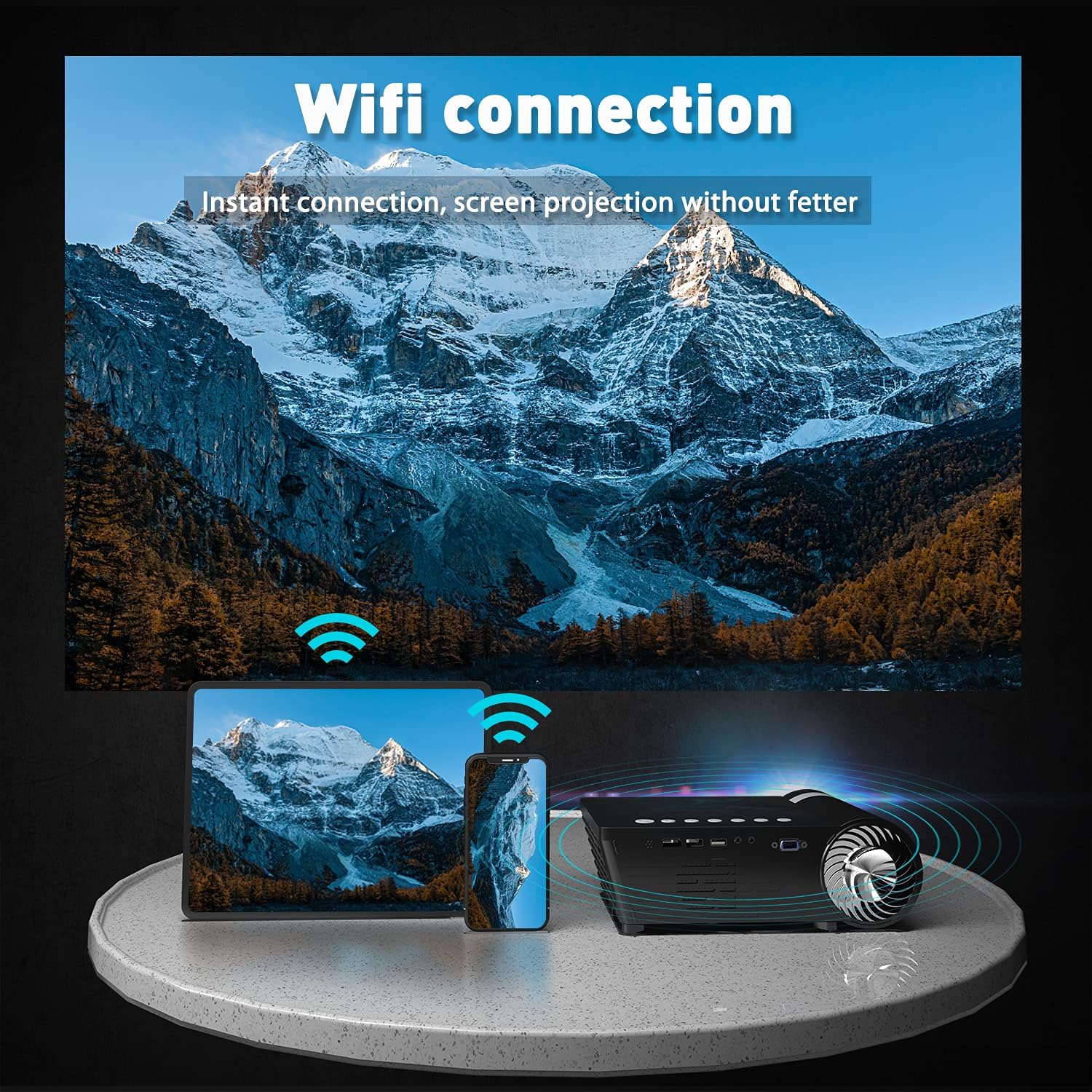

Image: The Selvim Mini Projector demonstrating WiFi connection for instant screen projection from a smartphone and tablet.

5. دستورالعمل های عملیاتی

5.1 کنترل های اساسی

Use the included remote control or the buttons on top of the projector to navigate the menu, select input sources, and adjust settings.

Image: A four-panel image showing the projector's main menu, remote control interaction, and options for iOS and Android screen mirroring.

۵.۲ انتخاب منبع ورودی

From the main menu, select the desired input source (HDMI, USB, AV, VGA, or Miracast for screen mirroring) using the remote or projector buttons.

۴.۴ نمایش بی‌سیم صفحه نمایش (iOS/Android)

برای آینه کردن صفحه نمایش گوشی هوشمند یا تبلت خود:

1. Select 'Miracast' or 'iOS Display' / 'Android Display' from the projector's main menu.
2. On your mobile device, go to WiFi settings and connect to the projector's WiFi network (e.g., 'PROJECTOR-XXXX').
3. a را باز کنید web browser on your mobile device and enter the IP address displayed on the projector screen (e.g., 192.168.49.1).
4. در webpage, select 'WiFi AP' and then 'Scan' to find your home WiFi network.
5. Connect your mobile device to your home WiFi network.
6. Ensure your mobile device is connected to the same WiFi network as the projector.
7. For iOS, activate 'Screen Mirroring' from your Control Center and select the projector. For Android, use the 'Screen Cast' or 'Wireless Display' function.

Image: A detailed eight-step visual guide demonstrating how to connect an iOS device to the Selvim Mini Projector for screen mirroring via WiFi.

۶.۳ جفت‌سازی صوتی بلوتوث

To pair with a Bluetooth audio device:

1. مطمئن شوید که بلندگو یا هدفون بلوتوث شما در حالت جفت شدن (pairing mode) قرار دارد.
2. On the projector, navigate to the 'Sound' settings menu.
3. Select 'Bluetooth On' and then 'Scan Device'.
4. Choose your Bluetooth device from the list to pair.

6. تعمیر و نگهداری

۵.۲ تمیز کردن لنز

Regularly clean the projector lens using the provided cleaning cloth or a soft, lint-free cloth. Avoid abrasive materials that could scratch the lens.

Image: A cutaway diagram showing the multi-layer glass lens of the Selvim Mini Projector, emphasizing its optical quality.

6.2 سیستم خنک کننده

The projector features an efficient cooling system with multiple fans to dissipate heat and ensure a long lamp life. Ensure the ventilation vents are not blocked during operation.

Image: An internal diagram of the Selvim Mini Projector showing the airflow and cooling system, designed to maintain optimal operating temperature.

6.3 LED Lamp زندگی

The projector utilizes an LED lamp with an impressive lifespan of up to 60,000 hours, providing years of reliable use.

7 عیب یابی

• بدون تصویر: Check power connection, input source selection, and cable connections. Ensure the lens cap is removed.
• تصویر تار: Adjust the focus ring. If edges are blurry, adjust keystone correction. Ensure the projection distance is within the recommended range.
• بدون صدا: Check volume settings on both the projector and the source device. Ensure external speakers are properly connected or Bluetooth is paired correctly.
• مشکلات مربوط به انعکاس صفحه نمایش: Ensure both the projector and your mobile device are connected to the same WiFi network. For iOS, verify Screen Mirroring is active. For Android, check 'Screen Cast' or 'Wireless Display' settings. Some apps or content may be protected and not allow mirroring.
• گرمای بیش از حد: Ensure ventilation vents are clear and not obstructed. Operate the projector in a well-ventilated area.

8. مشخصات

9. گارانتی و پشتیبانی

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Selvim webرسید خرید خود را به عنوان مدرک خرید برای درخواست‌های گارانتی نگه دارید.
