Lionelo Julie One Stroller User Manual

1. اطلاعات ایمنی مهم

Please read these instructions carefully before use and keep them for future reference. Failure to follow these instructions may result in serious injury to your child.

• هشدار: این محصول برای دویدن یا اسکیت مناسب نیست.
• همیشه از سیستم مهار استفاده کنید.
• قبل از استفاده مطمئن شوید که همه دستگاه های قفل درگیر هستند.
• کودک را بدون مراقبت رها نکنید.
• هر باری که به دسته متصل شود، بر پایداری کالسکه تأثیر می گذارد.
• This product is suitable for children from birth up to 22 kg or 4 years, whichever comes first.
• دستگاه پارکینگ باید هنگام بارگیری و تخلیه کودکان درگیر شود.
• کالسکه فقط برای یک کودک طراحی شده است.
• از لوازم جانبی که توسط سازنده تایید نشده استفاده نکنید.
• Ensure that the child is clear of any moving parts if you adjust the stroller.

محصول تمام شده استview

The Lionelo Julie One is a lightweight, compact stroller designed for ease of use and travel. It features a durable aluminum frame, adjustable components, and a comprehensive safety system.

This image illustrates the Lionelo Julie One stroller with a child, highlighting its suitability for children up to 22 kg and from 0 to 48 months.

2. محتویات بسته

The Lionelo Julie One stroller package includes the following components:

• Stroller Chassis
• چرخ های عقب (2)
• چرخ های جلو (2)
• Safety Bar (Bumper Bar)
• جا لیوان
• پشه بند
• Footmuff (Leg Warmer)
• کیف حمل

This image displays the various accessories included with the Lionelo Julie One stroller, such as the mosquito net, cup holder, and footmuff.

3. راه اندازی و مونتاژ

Follow these steps to assemble your Lionelo Julie One stroller:

۴.۱ باز کردن کالسکه

1. Unlock the safety hook located on the side of the stroller frame.
2. Grasp the handle and lift it upwards to begin unfolding the stroller.
3. Continue to straighten the frame until you hear a distinct click, indicating that the frame is securely locked in the unfolded position.

۳.۲ اتصال چرخ‌ها

This image shows the stroller's wheels, highlighting the rear brake and the damping system for a smooth ride.

1. چرخهای عقب: Slide each rear wheel onto the rear axle until it clicks into place. Ensure they are firmly attached.
2. چرخ های جلو: Slide each front wheel into the designated slots on the front of the stroller frame until they click into place.

3.3 Installing the Safety Bar

1. Insert the safety bar (bumper bar) into the adapters located on both sides of the stroller seat until it clicks securely into place.
2. If desired, attach the additional crotch strap to the safety bar using the snap fasteners.

3.4 Installing the Cup Holder

1. Place the cup holder onto the designated hook on the stroller handle until it clicks into place.

راهنمای ویدیویی مونتاژ

This video provides a detailed step-by-step guide for assembling the Lionelo Julie One stroller, including attaching wheels, the safety bar, and other components.

4. دستورالعمل های عملیاتی

4.1 Adjusting the Backrest and Footrest

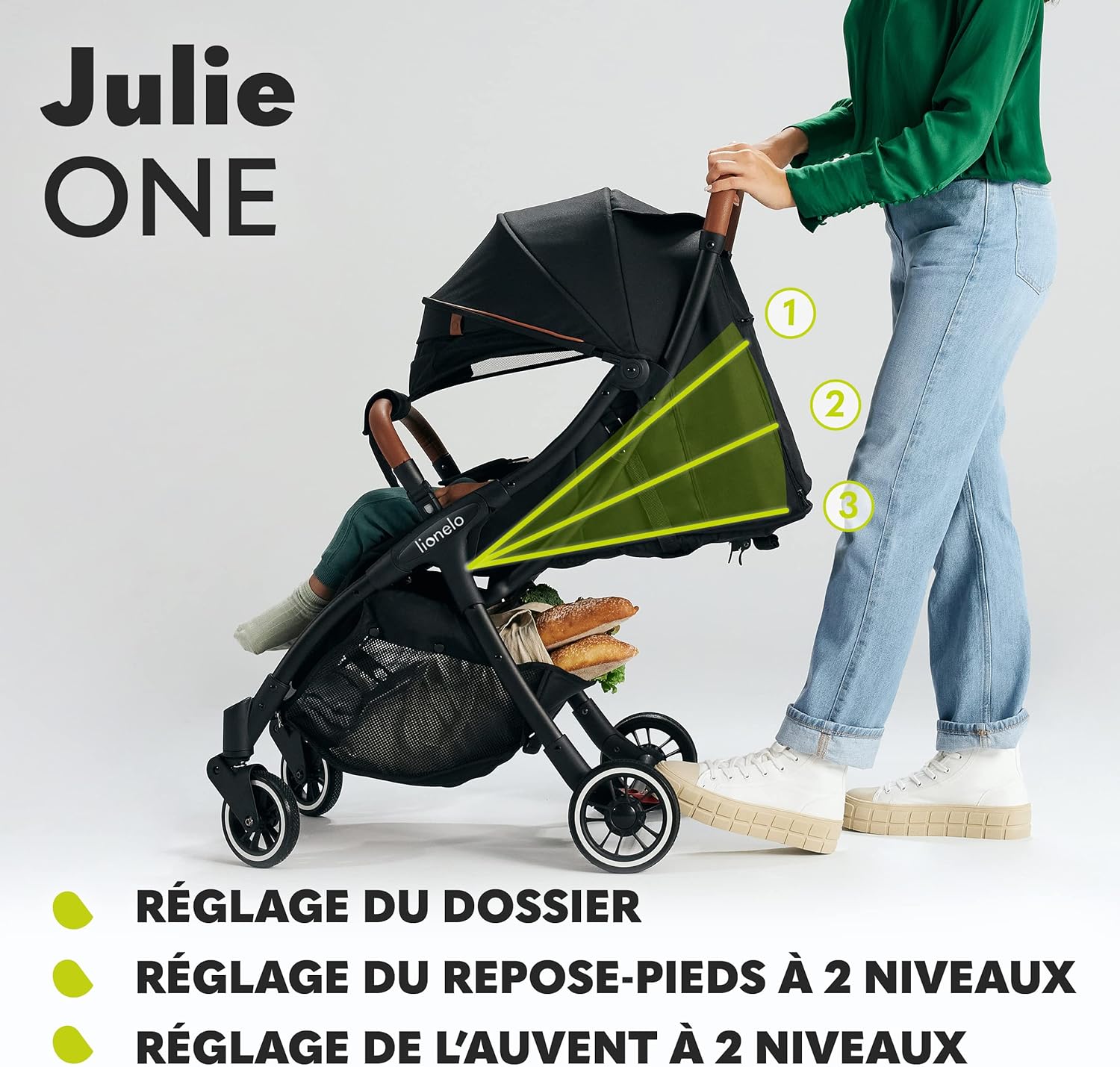

This image highlights the adjustable features of the stroller, including the backrest, footrest, and canopy, for optimal child comfort.

1. پشتی: To adjust the backrest, press the button located at the back of the seat. Raise or lower the backrest to the desired position, then release the button to lock it.
2. زیرپایی: To adjust the footrest, press the lever located underneath the footrest. Raise or lower the footrest to the desired position.

4.2 Using the 5-Point Safety Harness

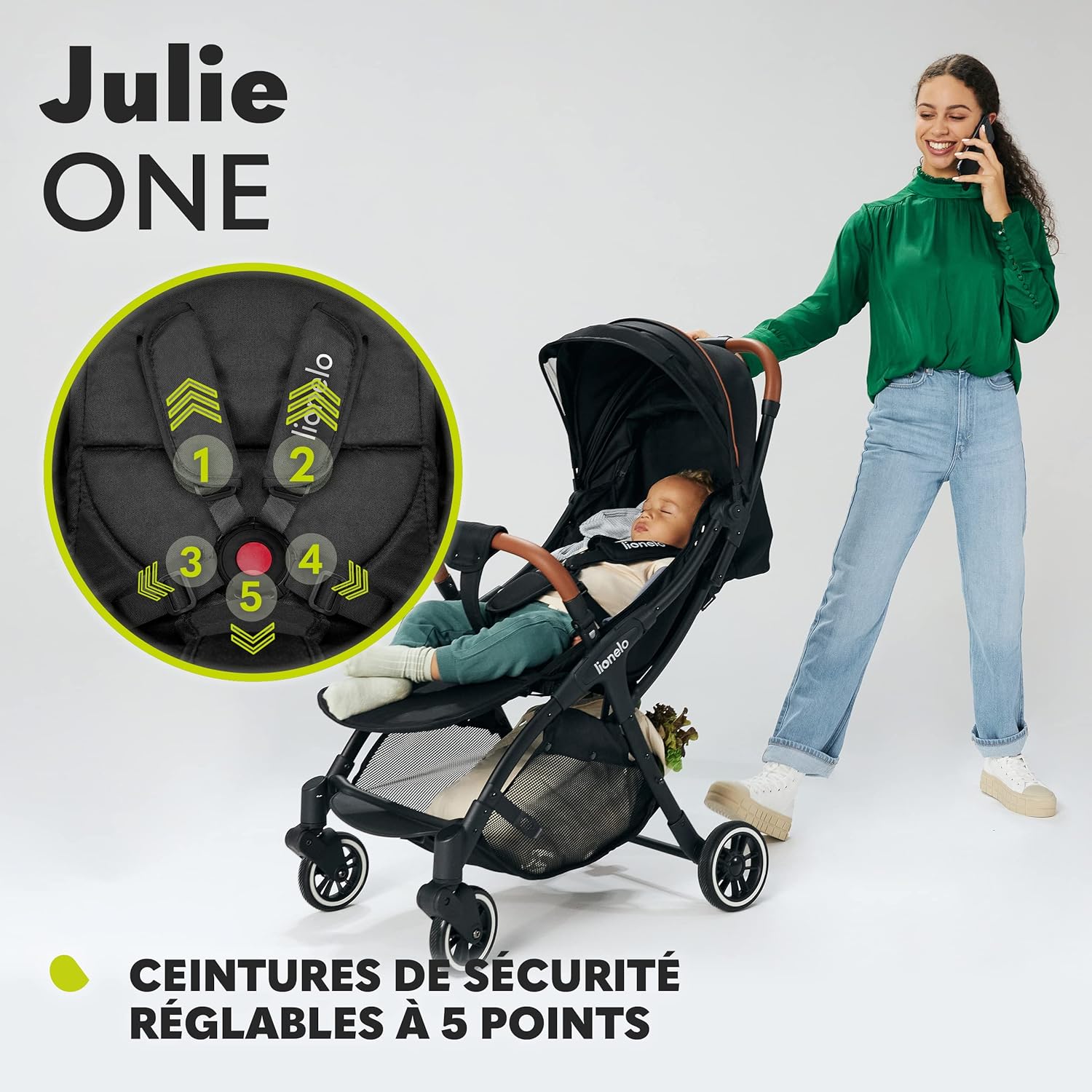

این تصویر نمای نزدیکی را ارائه می‌دهد view of the 5-point adjustable safety harness, ensuring your child's security.

1. To open the harness, press the red button on the buckle.
2. فرزندتان را روی صندلی قرار دهید.
3. Insert the shoulder and waist straps into the central buckle until they click.
4. Adjust the length of the shoulder straps for a snug and secure fit.

4.3 Adjusting the Canopy

1. To fold the canopy, push it towards the back of the stroller.
2. To unfold the canopy, pull it towards the safety bar.
3. For additional sun protection, pull down the extra sun visor from the front edge of the canopy.
4. To open the ventilation panel, unzip the zippers at the back of the canopy and roll up the fabric. Secure the rolled fabric with the elastic band.

4.4 استفاده از ترمز

1. To engage the brake, press down on the red brake pedal located on the rear wheel axle.
2. برای آزاد کردن ترمز، پدال را به سمت بالا فشار دهید.

۶. تا کردن کالسکه

The Lionelo Julie One stroller is designed for compact folding, making it ideal for travel and storage.

This image shows the stroller being folded, emphasizing its lightweight design and easy one-hand folding mechanism.

1. Ensure the backrest is in a reclined position.
2. Slide the button on the handle to the left and press it. The stroller frame will begin to fold automatically.
3. If the stroller does not lock automatically in the folded position, secure it using the special clasp on the side of the frame.

Quick Folding Overview

This short video demonstrates the quick and easy folding and unfolding process of the Lionelo Julie One stroller.

6. نصب لوازم جانبی

6.1 Attaching the Footmuff

1. Place the footmuff over the footrest.
2. Secure the upper part of the footmuff to the stroller's handles using the elastic loops.
3. Attach the lower part of the footmuff to the stroller frame using the Velcro straps.

6.2 Attaching the Mosquito Net

This image showcases the Lionelo Julie One stroller equipped with its included accessories: the mosquito net, footmuff, and cup holder.

1. Place the mosquito net over the footrest.
2. Pull the top of the mosquito net over the stroller's canopy.
3. Ensure the sides of the mosquito net cover the sides of the stroller frame for complete protection.

7. تعمیر و نگهداری

7.1 دستورالعمل تمیز کردن

• اجزای پارچه: Machine wash at a low temperature. Tumble dry at a low temperature. Iron at a low temperature if necessary.
• قاب: قاب را با تبلیغات پاک کنیدamp پارچه و صابون ملایم. کاملاً خشک کنید.
• چرخ ها: Regularly clean the wheels to remove dirt and debris. Lubricate moving parts as needed.

7.2 ذخیره سازی

• کالسکه را در جای خشک و تمیز و دور از نور مستقیم خورشید و دمای بسیار بالا نگهداری کنید.
• When storing for extended periods, ensure the stroller is clean and dry to prevent mold or mildew.
• Use the provided carry bag for convenient and protected storage, especially during travel.

8 عیب یابی

If you encounter any issues with your Lionelo Julie One stroller, please refer to the following common solutions:

• کالسکه به راحتی باز و بسته نمی‌شود: Ensure all locking mechanisms are disengaged before unfolding. For folding, ensure the backrest is reclined and the handle button is pressed correctly. Check for any obstructions in the folding mechanism.
• چرخ‌ها روان نمی‌چرخند: Check for debris caught in the wheels or axles. Clean and lubricate as necessary. Ensure wheels are correctly installed and locked.
• Harness not securing: Ensure all buckle components are correctly aligned and fully inserted until a click is heard. Adjust strap lengths for a snug fit.
• ترمز درگیر/خلاص نمی‌شود: Check for obstructions around the brake pedal and wheel mechanism. Ensure the pedal is fully pressed or lifted.

If the problem persists, please contact Lionelo customer support for assistance.

9. مشخصات

This diagram provides detailed dimensions of the Lionelo Julie One stroller in both unfolded and folded states.

10. گارانتی و پشتیبانی

Lionelo products are covered by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Lionelo webسایت

For technical support, spare parts, or any questions regarding your Lionelo Julie One stroller, please contact Lionelo customer service:

• Webسایت: www.lionelo.com
• ایمیل: Refer to your product documentation for specific contact email.
• تلفن: Refer to your product documentation for specific contact number.

Please have your model number (LO-JULIE ONE) and purchase date ready when contacting support.
