Denon DNP-800NE Network Audio Player Instruction Manual

مقدمه

This manual provides detailed instructions for the setup, operation, and maintenance of your Denon DNP-800NE Network Audio Player. The DNP-800NE is designed to deliver high-resolution audio playback and versatile music streaming capabilities, integrating seamlessly into your home audio system. Please read this manual thoroughly to ensure proper use and to maximize your listening experience.

آنچه در جعبه است

تمام اجزا را با دقت از بسته‌بندی خارج کنید و مطمئن شوید که موارد زیر را دارید:

• Network audio player (Denon DNP-800NE)
• کنترل از راه دور (RC-1224)
• باتری (2 باتری قلمی)
• Bluetooth/WiFi antennas (2 units)
• Stereo RCA cable (42 inches)
• Mono-minijack cables (Two 39-inch units)

راه اندازی

۲.۲ اتصالات فیزیکی

Before connecting the unit to power, ensure all audio connections are made correctly. The DNP-800NE can be connected to an amplifier or receiver using the provided stereo RCA cable. For digital audio sources, use the optical or coaxial digital inputs on your ampزنده تر

تصویر: Front panel of the Denon DNP-800NE, showing the display, power button, USB port, headphone jack, and volume knob.

تصویر: Rear panel of the Denon DNP-800NE, illustrating the audio output (fixed and variable), digital audio inputs (optical, coaxial), network port, and antenna connections.

2. نصب آنتن

Attach the two provided Bluetooth/WiFi antennas to the corresponding connectors on the rear panel of the DNP-800NE. Ensure they are securely tightened and positioned vertically for optimal signal reception.

3. اتصال برق

Connect the power cord to the AC inlet on the rear of the unit and then to a wall outlet. The unit is now ready for initial power-on.

4. پیکربندی شبکه

The DNP-800NE supports both wired and wireless network connections. For a wired connection, connect an Ethernet cable from your router to the NETWORK port on the rear panel. For a wireless connection, follow the on-screen prompts after powering on the unit to connect to your Wi-Fi network. The HEOS app (available for iOS and Android) is recommended for simplified network setup and control.

دستورالعمل های عملیاتی

1. روشن/خاموش

برای روشن یا خاموش کردن دستگاه، دکمه پاور روی پنل جلویی یا کنترل از راه دور را فشار دهید.

2. انتخاب منبع

Use the 'Source' button on the front panel or the remote control to cycle through available input sources such as Network, USB, Bluetooth, and Digital Inputs.

3. Network Audio Streaming (HEOS, Wi-Fi, AirPlay 2, Bluetooth)

The DNP-800NE offers multiple ways to stream music:

• HEOS: Download the HEOS app to your smartphone or tablet. Use the app to access various music services (e.g., Spotify, Pandora, Amazon Music) and control playback. HEOS also enables multi-room audio.
• پخش هوایی 2: For Apple device users, stream audio directly from your iPhone, iPad, or Mac to the DNP-800NE via AirPlay 2.
• بلوتوث: Pair your Bluetooth-enabled device with the DNP-800NE to stream audio wirelessly. Select 'Bluetooth' as the source and follow your device's pairing instructions.
• پخش بدون شکاف: The unit supports gapless playback for high-resolution audio files, ensuring a seamless listening experience for albums with continuous tracks.

4. پخش USB

Insert a USB storage device (e.g., USB flash drive) into the front USB port. The unit will automatically detect the device, and you can navigate and play high-resolution audio files (FLAC, WAV, AIFF, ALAC, DSD) using the remote control or HEOS app.

5. خروجی هدفون

Connect your headphones to the 6.3mm headphone jack on the front panel. The DNP-800NE features a dedicated headphone amplifier with three gain settings (High/Mid/Low) for optimal performance with various headphone impedances. Adjust the gain setting via the unit's menu to match your headphones.

6. Advanced AL32 Processing Plus

The DNP-800NE incorporates Denon's Advanced AL32 Processing Plus, which up-samples digital audio signals to 32-bit, 384 kHz, restoring lost data during digital recording to reproduce sound closest to the original. This technology enhances clarity, detail, and dynamic range across all digital sources.

7. Remote Control (RC-1224)

The included remote control provides full functionality for operating the DNP-800NE. Insert the two AA batteries into the remote control before use.

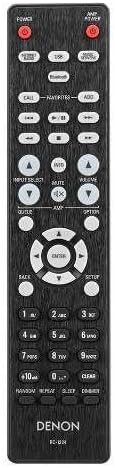

تصویر: The RC-1224 remote control for the Denon DNP-800NE, showing various buttons for power, source selection, playback, and menu navigation.

۹. ویدیوی رسمی محصول

برای مشاهده‌ی تصویری کامل، این ویدیوی رسمی را تماشا کنید.view of the Denon 800NE Series, highlighting key features and connectivity options.

تعمیر و نگهداری

To ensure the longevity and optimal performance of your DNP-800NE, follow these maintenance guidelines:

• تمیز کردن: Use a soft, dry cloth to wipe the exterior of the unit. Avoid using abrasive cleaners, solvents, or chemical cloths, as they may damage the finish.
• تهویه: Ensure adequate ventilation around the unit. Do not block ventilation openings or place the unit in an enclosed space without proper airflow.
• خاموش: وقتی برای مدت طولانی از دستگاه استفاده نمی‌کنید، سیم برق را از پریز برق جدا کنید.

عیب یابی

If you encounter issues with your DNP-800NE, refer to the following common troubleshooting steps:

For more detailed troubleshooting or persistent issues, please contact Denon customer support.

مشخصات

اطلاعات گارانتی

Denon products are manufactured to the highest quality standards. This product is covered by a limited warranty. For specific warranty terms and conditions, including duration and coverage details, please refer to the warranty card included with your product or visit the official Denon webلطفاً رسید خرید خود را برای استفاده در گارانتی نگه دارید.

پشتیبانی مشتری

برای دریافت کمک فنی، سوالات مربوط به محصول یا درخواست خدمات، لطفاً با پشتیبانی مشتری دنون تماس بگیرید. می‌توانید اطلاعات تماس، سوالات متداول و منابع بیشتر را در وب‌سایت رسمی دنون بیابید. webسایت:

www.denon.com/en-us/support

Please have your model number (DNP-800NE) and serial number ready when contacting support.
