Glideaway Premium Heavy Duty 7-Leg Bed Frame Instruction Manual (Full Size)

1. اطلاعات ایمنی

لطفاً قبل از مونتاژ و استفاده، تمام دستورالعمل‌ها را با دقت مطالعه کنید. عدم رعایت این دستورالعمل‌ها ممکن است منجر به آسیب یا جراحت به محصول شود.

• برای جلوگیری از ناپایداری یا فروریختگی، همیشه دستورالعمل‌های مونتاژ را با دقت دنبال کنید.
• Be cautious around sharp edges during handling and assembly.
• Do not exceed the maximum weight capacity of 500 pounds for this bed frame.
• If using with a waterbed, ensure proper support and maintenance to prevent leaks or structural damage.
• قطعات کوچک را از کودکان دور نگه دارید تا از خطر خفگی جلوگیری شود.

2. محتویات بسته

قبل از شروع مونتاژ، از وجود همه قطعات اطمینان حاصل کنید. در صورت مفقود شدن یا آسیب دیدن هر قطعه، با پشتیبانی مشتری تماس بگیرید.

• ریل های جانبی (2)
• Center Cross Supports (3)
• Legs with Glides (7)
• Headboard Mounting Plates (2)
• بسته‌ی یراق‌آلات (پیچ، مهره، واشر)

Tools required for assembly (not included): Screwdriver, Pliers.

3. راه اندازی و مونتاژ

Follow these steps for quick and easy assembly of your Glideaway bed frame.

1. باز کردن قطعات: تمام قطعات را با دقت از بسته بندی خارج کرده و آنها را روی یک سطح تمیز و صاف قرار دهید.
2. پایه‌ها را به نرده‌های کناری وصل کنید: Each side rail has pre-drilled holes for leg attachment. The T-shaped leg interlocks above and below the side rail for maximum strength. Secure each of the seven legs firmly. Ensure the wide glide foot is oriented correctly to distribute weight evenly.

Image: Frame corner with leg attachment. The wide glide foot is designed for optimal weight distribution.

3. ریل‌های کناری را وصل کنید: Position the two side rails parallel to each other, at the desired width for your Full size mattress.
4. Install Center Cross Supports: Attach the three center cross supports between the side rails. These supports provide additional stability and strength for your box spring and mattress.

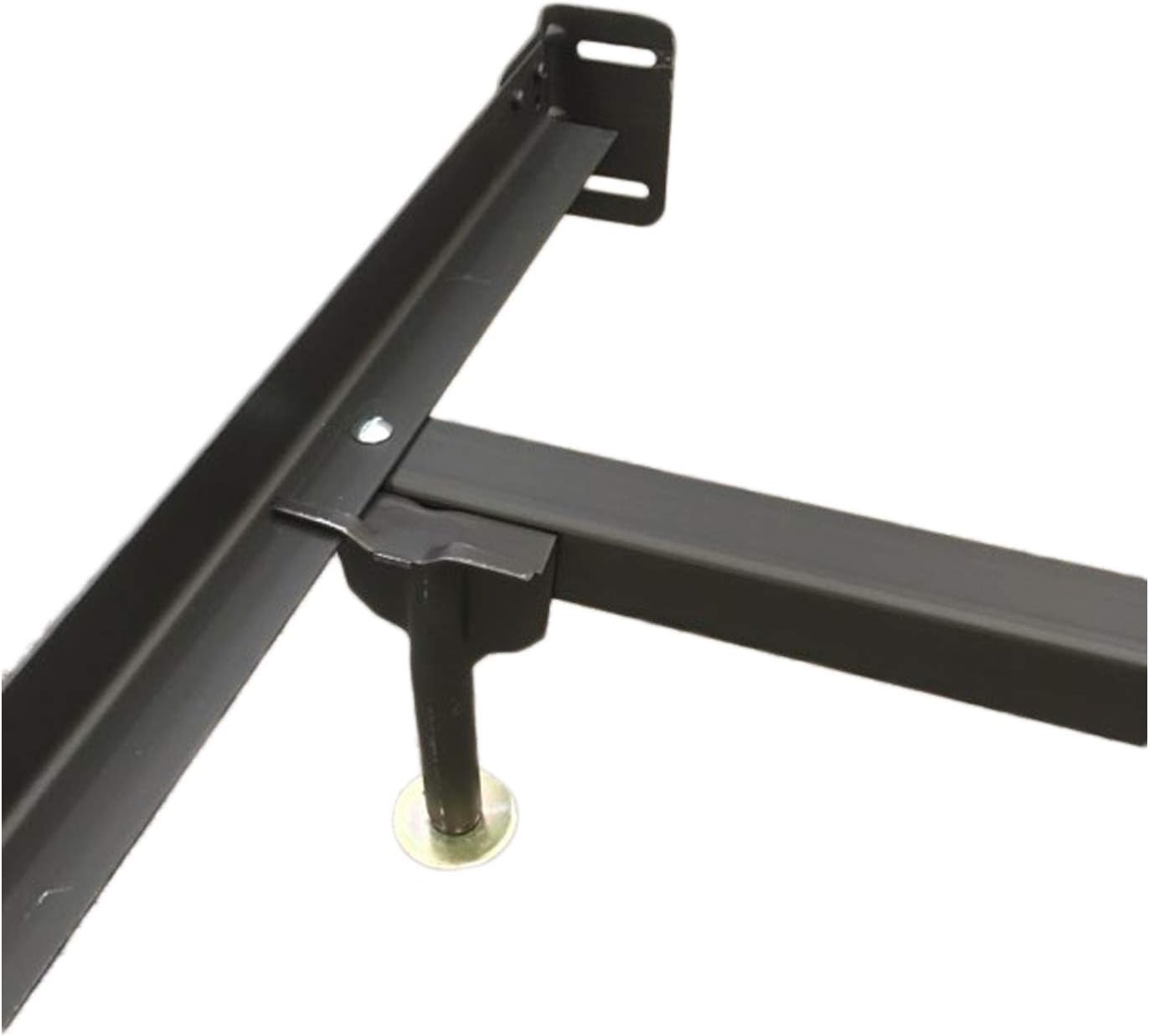

Image: Center cross support with leg. This component enhances the frame's overall stability.

5. Attach Headboard Mounting Plates: If you are using a bolt-on style headboard, attach the included headboard mounting plates to the designated holes at one end of the frame using the provided hardware.

Image: Headboard mounting plate. Use this to securely attach a bolt-on headboard.

6. سفت شدن نهایی: Once all components are in place, ensure all bolts and connections are securely tightened using a screwdriver and pliers. Do not overtighten.

Image: Fully assembled Glideaway Premium Heavy Duty 7-Leg Bed Frame.

۵. عملکرد (نحوه استفاده)

This bed frame is designed for use with a Full size box spring and mattress set. It is constructed from high-carbon, recycled railroad steel for exceptional durability and strength.

• Place your Full size box spring directly onto the assembled bed frame.
• Position your Full size mattress on top of the box spring.
• The frame is compatible with bolt-on style headboards only.
• Designed to support heavy applications, including waterbeds and for use by plus-size individuals, within the specified weight capacity.

5. تعمیر و نگهداری

Regular maintenance ensures the longevity and safety of your bed frame.

• Periodically inspect all bolts and connections to ensure they remain tight. Retighten as necessary.
• Check the legs and glides for any signs of wear or damage. Replace if needed.
• قاب را با تبلیغات تمیز کنیدamp در صورت نیاز از پارچه استفاده کنید. از مواد شیمیایی قوی که ممکن است به روکش آسیب بزنند، خودداری کنید.

6 عیب یابی

اگر با هر مشکلی در مورد چارچوب تخت خود مواجه شدید، به راه‌حل‌های رایج زیر مراجعه کنید:

• صداهای جیرجیر: Squeaking often indicates loose connections. Inspect all bolts and retighten them. Ensure the legs are securely interlocked with the side rails.
• بی‌ثباتی/لرزش: Verify that all legs are making full contact with the floor and that all connections are tight. Ensure the frame is assembled on a level surface.
• Difficulty Attaching Headboard: Confirm that you are using a bolt-on style headboard and that the headboard mounting plates are correctly installed and aligned.

7. مشخصات

8. گارانتی

This Glideaway bed frame is backed by a گارانتی مادام العمر محدود. For specific details regarding warranty coverage and claims, please refer to the warranty documentation included with your purchase or contact Glideaway customer support.

9. پشتیبانی

For further assistance, technical support, or to inquire about replacement parts, please contact Glideaway customer service through their official webسایت یا اطلاعات تماس ارائه شده همراه با بسته‌بندی محصول شما.

You can also visit the official Glideaway store on Amazon for more product information: Glideaway Store
