NuWave 6.5 Quart Stainless Steel Pressure Cooker Model 31201 User Manual

1. مقدمه

Thank you for choosing the NuWave 6.5 Quart Stainless Steel Pressure Cooker. This manual provides essential information for the safe and effective use of your appliance. Please read all instructions carefully before first use and retain for future reference.

اطلاعات مهم ایمنی

• همیشه قبل از کار، از بسته بودن صحیح درب دستگاه اطمینان حاصل کنید.
• Do not overfill the pressure cooker.
• Never force the lid open while the cooker is pressurized.
• Allow pressure to release completely before opening.
• Keep hands and face away from the steam release valve during operation and pressure release.
• هنگام کار با سطوح داغ احتیاط کنید.
• این دستگاه برای استفاده توسط افرادی با توانایی های جسمی، حسی یا ذهنی کاهش یافته در نظر گرفته نشده است مگر اینکه تحت نظارت باشد.

2. محصول تمام شدview و اجزاء

The NuWave 6.5 Quart Stainless Steel Pressure Cooker is designed for efficient cooking. Familiarize yourself with its main components:

شکل 2.1: The NuWave 6.5 Quart Stainless Steel Pressure Cooker, showcasing its main body and lid.

اجزای کلیدی:

• گلدان اصلی: ساخت فولاد ضد زنگ.
• درب: Features a sealing gasket, pressure indicator, and steam release valve.
• دسته اصلی: Ergonomic handle for safe handling and lid locking mechanism.
• دسته کمکی: For two-handed lifting.
• شیر آزاد کننده فشار: Controls steam release and pressure levels.
• نشانگر فشار: Visual cue for internal pressure status.

شکل 2.2: Close-up of the lid handles and the red locking button, which secures the lid to the pot.

شکل 2.3: بالا view of the pressure release valve, showing settings for steam release and pressure levels (1 and 2).

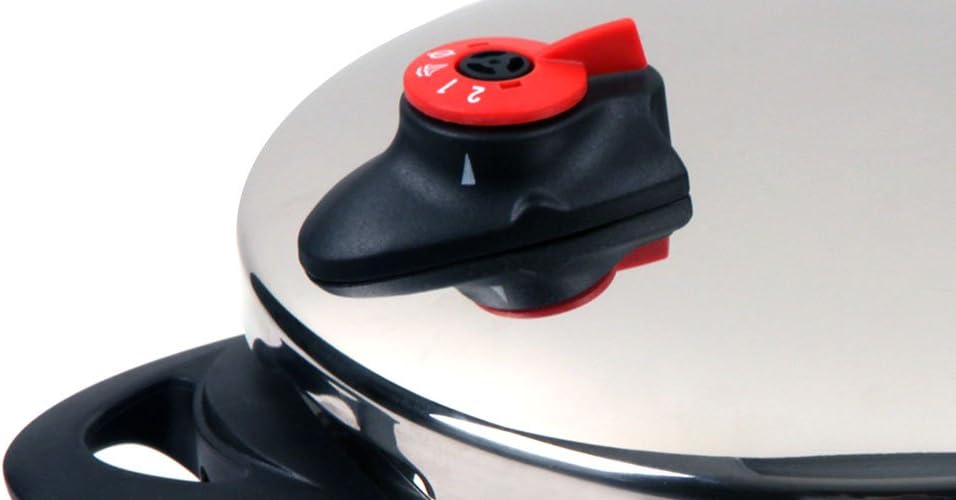

شکل 2.4: سمت view of the pressure release valve, indicating its position on the lid.

۴. راه‌اندازی و اولین استفاده

۳.۱ باز کردن بسته‌بندی و تمیز کردن اولیه

1. Remove all packaging materials and labels from the pressure cooker.
2. Wash the pot, lid, and all removable parts (sealing gasket, pressure release valve) with warm, soapy water.
3. Rinse thoroughly and dry completely before assembly.

۴.۲ مونتاژ درب

• Ensure the sealing gasket is correctly seated inside the lid rim.
• Place the pressure release valve onto its designated post on the lid, ensuring it is securely fitted.

4. دستورالعمل های عملیاتی

۴.۱ پر کردن زودپز

• Add ingredients and liquid to the pot. Do not fill more than 2/3 full for most foods, and no more than 1/2 full for foods that expand (e.g., rice, beans).
• Ensure there is always a minimum amount of liquid (typically 1 cup) to generate steam.

شکل 4.1: Example of the pressure cooker filled with ingredients such as seafood and vegetables, ready for cooking.

شکل 4.2: The pressure cooker containing various types of rice, demonstrating its capacity for different food preparations.

4.2 Sealing the Lid

1. Align the lid with the pot, ensuring the handles are offset.
2. Lower the lid onto the pot and rotate the main handle until it locks securely into place with the auxiliary handle. You should hear a click.
3. Ensure the pressure release valve is set to the desired pressure setting (e.g., 1 or 2) or to the sealed position, as per your recipe.

۴.۳ پخت تحت فشار

1. Place the pressure cooker on a suitable heat source (induction, gas, or electric stovetop).
2. Heat on high until the pressure indicator rises and steam begins to escape from the valve.
3. Reduce heat to maintain a steady, gentle stream of steam or a consistent wobble of the pressure regulator.
4. Begin timing your recipe once full pressure is reached.

۴.۵ ریلیasinفشار g

دو روش اصلی برای انتشار وجود داردasinفشار گرم:

• انتشار طبیعی: Remove the cooker from heat and allow it to cool down naturally. The pressure indicator will drop on its own. This method is suitable for foods that benefit from additional cooking time, such as stews and roasts.
• انتشار سریع: Carefully turn the pressure release valve to the "steam release" position. Steam will rapidly escape. This method is suitable for delicate foods like vegetables to prevent overcooking. Exercise extreme caution to avoid steam burns.

Only open the lid once the pressure indicator has fully dropped and no steam is escaping.

5. نگهداری و تمیز کردن

5.1 تمیز کردن روزانه

• After each use, wash the pot and lid with warm, soapy water.
• Remove the sealing gasket and wash it separately. Inspect for cracks or damage.
• Clean the pressure release valve and pressure indicator thoroughly to ensure no food particles obstruct them.
• The pot is dishwasher safe. Hand washing is recommended for the lid and its components to prolong their lifespan.
• قبل از ذخیره سازی تمام قسمت ها را کاملا خشک کنید.

5.2 ذخیره سازی

زودپز را با درب وارونه یا کمی نیمه باز نگهداری کنید تا گردش هوا برقرار باشد و از ایجاد بو جلوگیری شود.

6 عیب یابی

7. مشخصات

• مدل: 31201
• ظرفیت: 6.5 کوارت
• مواد: فولاد ضد زنگ
• رنگ: نقره ای
• ابعاد: 18 x 16 x 10 اینچ
• وزن مورد: 9.48 پوند
• سازگاری: Electric Stovetop, Gas Stovetop, Induction Compatible Base
• قابل شستشو در ماشین ظرفشویی: Pot only (hand wash lid components)

8. گارانتی و پشتیبانی

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official NuWave webسایت. فاکتور خرید خود را برای موارد گارانتی نگه دارید.
