زیمنس Q280 80-Amp دفترچه راهنمای کلید قطع کننده مدار QP نوع دو قطب

1. مقدمه

The SIEMENS Q280 is an 80-Amp Double Pole Type QP Circuit Breaker designed for overload and short-circuit protection within your electrical system. This breaker provides easy plug-in connections and features a 10,000 AIC interrupting rating. It is compatible with Siemens PL and ES series load centers, ensuring reliable performance and safety for your electrical installations.

2. اطلاعات ایمنی

WARNING: Electrical shock hazard. Installation and service of this circuit breaker must be performed by a qualified electrician. Always turn off the main power supply at the service panel before working on electrical circuits. Failure to follow these instructions can result in serious injury or death.

To ensure the warranty on a Siemens panel is not voided, the use of Siemens breakers is required. Siemens strongly recommends against the use of "used" breakers. The installation of used breakers in a Siemens panel will void the warranty on the panel.

3. محصول تمام شدview

The SIEMENS Q280 is a thermal-magnetic circuit breaker. It is a double pole, 80 Amp, 240V Type QP circuit breaker with a 10,000 AIC interrupting rating. It features time-saving Insta-Wire connections for easy installation in compatible Siemens PL and ES series load centers. This breaker is designed to protect your electrical system from high temperatures caused by excess current, which can lead to electrical fires or damage.

شکل 1: جلو view از SIEMENS Q280 80-Amp Double Pole Type QP Circuit Breaker, showing the '80' amp rating on both switches.

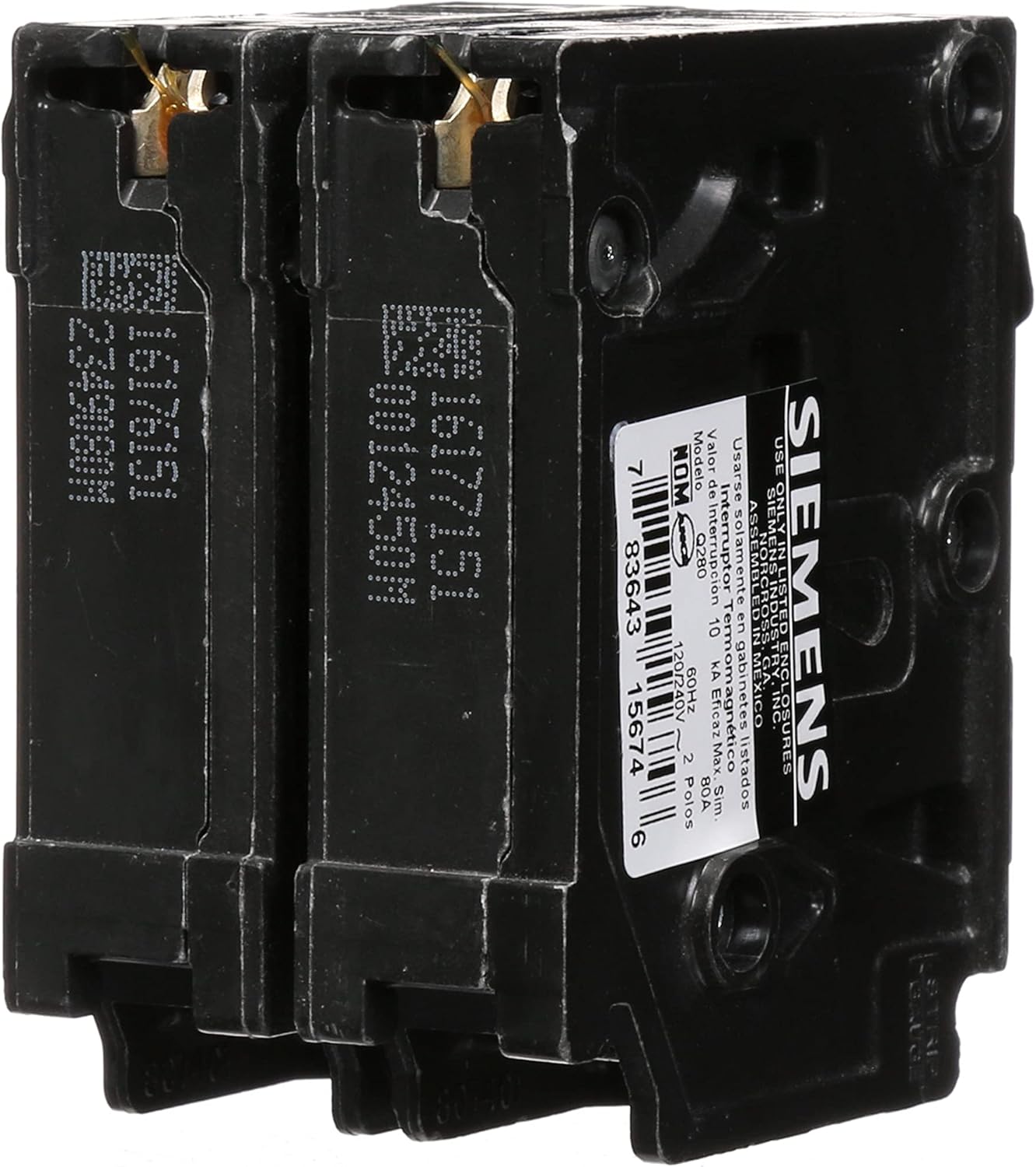

شکل 2: پشت view از SIEMENS Q280 80-Amp Double Pole Type QP Circuit Breaker, displaying the Siemens product label and specifications.

4. راه اندازی و نصب

Installation of this circuit breaker should only be performed by a qualified electrician to ensure safety and compliance with local electrical codes.

1. مطمئن شوید که برق قطع است: Before beginning any work, turn off the main power to your electrical panel at the main service disconnect. Verify power is off using a voltagتستر الکترونیکی
2. شناسایی اسلات: Locate an available slot in your Siemens PL or ES series load center. The Q280 is a double pole breaker and requires two adjacent slots.
3. نصب فیلترشکن: Align the breaker with the bus bar stabs in the load center. Press firmly until the breaker snaps securely into place. Ensure both poles are properly seated.
4. اتصالات سیمی: Connect the load wires to the screw terminals on the breaker. For an 80-Amp breaker, ensure you are using appropriate wire gauge (e.g., AWG 6-4 or 3/0-2/0 CU-AL 75°C wire, as indicated on the breaker). Tighten screws to the specified torque (e.g., 45 lb-in / 5.1 Nm).
5. بررسی اتصالات: تمام اتصالات سیم را از نظر سفتی و قرارگیری صحیح بررسی کنید.
6. بازیابی برق: Once installation is complete and verified, close the electrical panel cover. Turn the main power supply back on. Switch the circuit breaker to the 'ON' position.

5. عملیات

Operating the SIEMENS Q280 circuit breaker is straightforward:

• روشن کردن: To turn a circuit ON, push the breaker handle firmly to the 'ON' position.
• خاموش کردن: To turn a circuit OFF, push the breaker handle firmly to the 'OFF' position.
• تنظیم مجدد کلید قطع شده: If the circuit breaker trips (moves to a center or 'TRIPPED' position), it indicates an overload or short circuit. To reset, first move the handle completely to the 'OFF' position, then firmly push it to the 'ON' position.

6. تعمیر و نگهداری

Circuit breakers generally require no routine maintenance. However, periodic inspection is recommended:

• به صورت دوره‌ای، کلید برق را از نظر هرگونه علائم آسیب فیزیکی، تغییر رنگ یا اتصالات شل بررسی کنید.
• Ensure the area around the circuit breaker is clean and free from dust or debris.
• If any issues are observed, or if the breaker appears to be malfunctioning, consult a qualified electrician immediately. Do not attempt repairs yourself.

7 عیب یابی

If you encounter issues with your SIEMENS Q280 circuit breaker, consider the following:

• قطع مکرر مدارشکن: This usually indicates an overload or a short circuit on the connected circuit. Disconnect some appliances or devices from the circuit to reduce the load. If it continues to trip, there may be a fault in the wiring or a defective appliance. Consult a qualified electrician.
• بریکر ریست نمی‌شود: If the breaker does not stay in the 'ON' position after being reset, it indicates a persistent fault (overload or short circuit). Do not force the breaker. Investigate the cause of the fault or consult a qualified electrician.
• No Power to Circuit: If the breaker is in the 'ON' position but there is no power to the circuit, check for loose connections at the breaker terminals or within the circuit wiring. If the issue persists, professional electrical inspection is required.

8. مشخصات

9. گارانتی و پشتیبانی

گارانتی: This product comes with a 1-Year Warranty. For detailed warranty information, please refer to the official Siemens documentation or contact Siemens customer support.

پشتیبانی: For additional support, product information, or to explore other Siemens products, visit the SIEMENS Store.
