Sarrera
Thank you for choosing the Garvee 15 ft Rectangular Patio Umbrella. This manual provides essential information for the safe assembly, operation, and maintenance of your new patio umbrella. Please read these instructions carefully before use and retain them for future reference.
This large rectangular umbrella is designed to provide extensive shade for your outdoor spaces, such as patios, backyards, and pool areas. It features a robust frame, a user-friendly crank system, and a durable, UV-protective canopy.
Segurtasun Informazioa
- Always close the umbrella during strong winds, heavy rain, or other severe weather conditions to prevent damage to the umbrella and potential injury.
- Ensure the umbrella base is adequately weighted and stable before opening the canopy. Sandbags are included for this purpose.
- Do not use the umbrella near open flames or heat sources.
- Mantendu haurrak eta maskotak aterkitik urrun ireki eta ixteko eragiketetan.
- Aldian-aldian ikuskatu pieza guztiak higadura, kalte edo konexio solterik dagoen ikusteko. Ez erabili piezaren bat kaltetuta badago.
- Do not hang objects from the umbrella ribs or pole.
Paketearen edukia
Mesedez, egiaztatu osagai guztiak daudela muntaketa hasi aurretik:
- Umbrella Canopy with Frame
- Main Pole (Upper and Lower sections, if applicable)
- Gurutze Basea
- Hondarrezko poltsak (2 unitate)
- Oinarrizko estalkia
- Biradera heldulekua
- Hardware paketea (torlojuak, arandelak, azkoinak)
Konfigurazio Argibideak
- Deskonprimitu osagaiak: Carefully remove all parts from the packaging and lay them out on a clean, flat surface. Check against the package contents list.
- Muntatu gurutze-oinarria: Connect the sections of the cross base using the provided hardware. Ensure all bolts are tightened securely.
- Prepare Sandbags: Fill each of the two included sandbags with approximately 60-70 lbs (27-32 kg) of sand. (Note: Sand is not included.) Seal the sandbags properly.
- Oinarri segurua: Place the filled sandbags onto the assembled cross base. Position the base cover over the sandbags and base for a neat appearance and added protection.
- Txertatu aterki-makila: Carefully insert the lower section of the umbrella pole into the center opening of the weighted base. Ensure it is fully seated and stable.
- Attach Umbrella Canopy: If the pole is in two sections, connect the upper canopy section to the lower pole section. Then, insert the assembled pole into the base. Secure the pole to the base using any provided locking mechanisms or tightening screws.
Funtzionamendu-argibideak
Aterkia irekitzea:
- Ensure the umbrella is positioned correctly and the base is stable.
- Locate the crank handle on the umbrella pole.
- Turn the crank handle clockwise to slowly open the umbrella canopy. Continue cranking until the canopy is fully extended and taut. Do not over-crank.
Aterkia ixtea:
- Turn the crank handle counter-clockwise to slowly retract the umbrella canopy.
- Once the canopy is fully closed, it is recommended to secure it with a tie strap (if included) to prevent it from opening unexpectedly in windy conditions.
Mantentzea
Kanopia garbitzea:
- To clean the polyester canopy, use a mild soap solution and lukewarm water.
- Gently scrub with a soft brush or cloth.
- Rinse thoroughly with clean water and allow the canopy to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
Markoa garbitzea:
- Garbitu metalezko markoa iragarkiarekinamp oihala eta xaboi leuna.
- Ondo lehortu herdoila saihesteko.
Biltegiratzea:
- When not in use for extended periods, or during off-season and harsh weather, it is recommended to close the umbrella, secure it, and store it in a dry, protected area.
- Using an umbrella cover can help protect the canopy from dirt, dust, and UV exposure, prolonging its lifespan.
Arazoak konpontzea
| Arazoa | Kausa posiblea | Irtenbidea |
|---|---|---|
| Umbrella won't open/close smoothly. | Obstruction in the mechanism; crank system needs lubrication; fabric caught. | Check for any obstructions. Apply silicone spray to moving parts of the crank mechanism. Ensure fabric is not caught in the ribs. |
| Aterkia ezegonkorra da edo kulunkatzen da. | Insufficient base weight; pole not securely fastened; uneven ground. | Ensure sandbags are filled to the recommended weight. Tighten all connections on the pole and base. Move to a level surface. |
| Canopy appears faded or stained. | Prolonged exposure to sun/elements; dirt accumulation. | Clean canopy as per maintenance instructions. Use an umbrella cover when not in use to minimize exposure. Fading is natural over time. |
Zehaztapenak
| Ezaugarri | Xehetasuna |
|---|---|

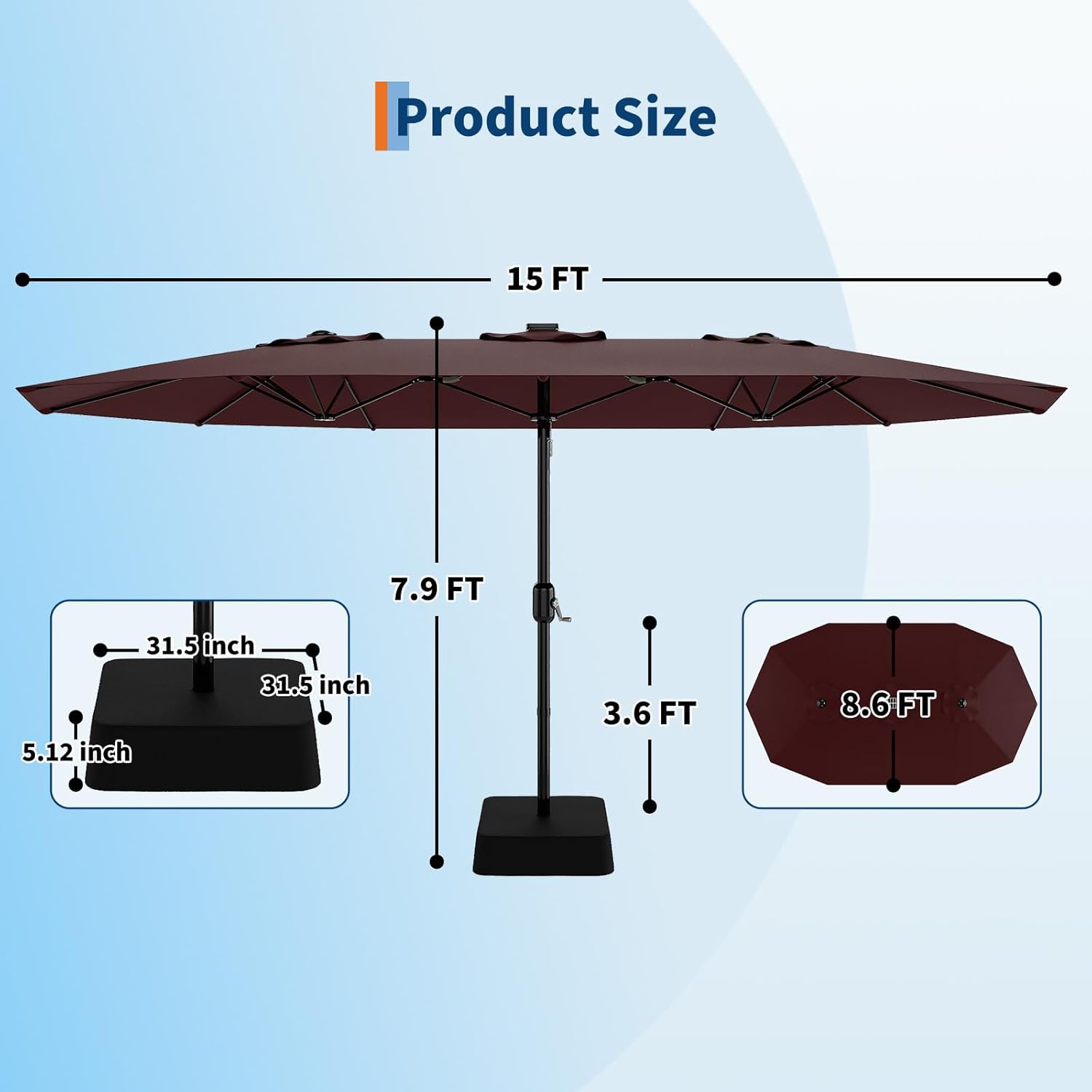

| Produktuaren neurriak | 103.94 x 103.94 x 96.46 inches (15 ft x 9 ft canopy) |
| Elementuaren pisua | 39.4 kilo |
| Modelo zenbakia | GV-15STJHS-FS |
| Marka | Garvee |
| Kolorea | Borgoina |
| Forma | Laukizuzena |
| Kanopiaren materiala | Premium Polyester (UPF50+, Water-Resistant, Fade-Resistant) |
| Markoaren materiala | Metal (Alloy Steel Shaft) |
| Ezaugarri bereziak | Crank Lift System, Double Layer Vent Design, Reinforced 5+2+5 Steel Rib Structure, Sandbag Base Included |
| Gomendatutako Erabilerak | Patio, Pool, Outdoor Market, Backyard |
Bermea eta Laguntza
Garvee products are manufactured to high-quality standards. For any questions, concerns, or warranty inquiries regarding your Garvee 15 ft Rectangular Patio Umbrella, please contact our customer support team. Please have your model number (GV-15STJHS-FS) and purchase information ready when contacting support.
Harremanetarako informazioa normalean dendariaren webgunean aurki daiteke. webgunean edo produktuaren ontzian.
