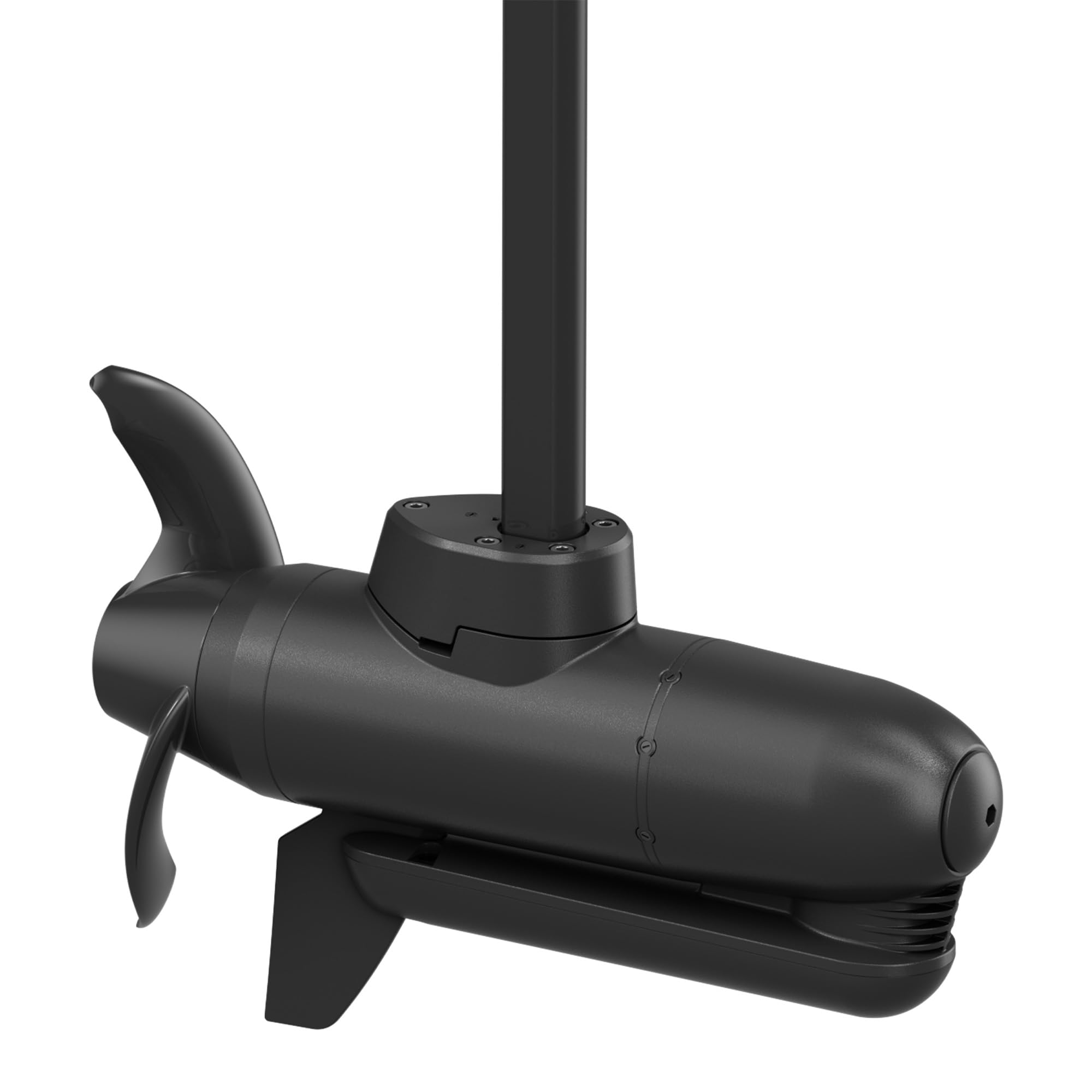

Lowrance Recon Active Imaging 3-in-1 Nosecone

1. Sissejuhatus

The Lowrance 000-16353-001 Recon Active Imaging 3-in-1 Nosecone is designed to enhance your trolling motor's fish-finding capabilities. This nosecone integrates CHIRP sonar, SideScan, and DownScan Imaging into a single transducer, providing a comprehensive view of the underwater environment. It supports multiple frequencies for versatile scanning and is built for durability in both freshwater and saltwater conditions.

2. Põhiomadused

• Advanced Sonar Integration: Combines CHIRP, SideScan, and DownScan Imaging into one transducer for comprehensive underwater views.
• Multiple Frequency Support: Operates at 83/200/455/800kHz for versatile fish-finding and structure scanning.
• Designed for Recon Trolling Motors: Custom-fit nosecone ensures seamless installation and optimal sonar performance.
• Kõrge eraldusvõimega pildistamine: Delivers superb clarity, target separation, and FishReveal technology for pinpoint accuracy.
• Freshwater & Saltwater Ready: Constructed with durable, corrosion-resistant materials for performance in various aquatic environments.

3. Mis on karbis

The package for your Lowrance Recon Active Imaging 3-in-1 Nosecone includes the following components:

• Lowrance Recon Active Imaging 3-in-1 Nosecone Transducer
• Katteplaat
• Kinnitusdetailid (kruvid, seibid jne)
• Anduri kaabel
• Kasutusjuhend ja dokumentatsioon

4. Seadistamine ja installimine

The Recon Active Imaging 3-in-1 Nosecone is designed for straightforward installation on compatible Recon trolling motors. Refer to the included instruction manual for detailed, step-by-step mounting procedures. Ensure all connections are secure and waterproof before operating the device.

The transducer unit attaches to the provided mounting bracket, which then secures to your trolling motor. The long transducer cable allows for flexible routing to your fish-finding unit.

5. Kasutusjuhised

Once installed and connected to a compatible Lowrance or Simrad fish finder, the Recon Active Imaging 3-in-1 Nosecone provides advanced sonar capabilities:

• CHIRP sonar: Pakub traditsioonilist sonarit viewsuurepärase sihtmärkide eraldatuse ja selgusega.
• Külgvaate pildistamine: Pakub laia ja kõrge eraldusvõimega ekraani viewkonstruktsiooni ja kalade asukoht paadi külgedel.
• DownScani pildindus: Pakub pildilaadset viewkonstruktsiooni ja kalade vahel otse teie paadi all.
• FishReveal Technology: Integrates CHIRP sonar fish targets with high-resolution DownScan Imaging views, making fish easier to identify.

Adjust your fish finder settings to optimize performance based on water depth, clarity, and target species. Experiment with different frequencies (83/200/455/800kHz) to achieve the best results for your specific fishing conditions.

6. Hooldus

To ensure the longevity and optimal performance of your Recon Active Imaging 3-in-1 Nosecone, follow these general maintenance guidelines:

• Regularly inspect the transducer for any signs of damage, cracks, or marine growth.
• Clean the transducer surface with fresh water after each use, especially in saltwater environments, to prevent salt buildup.
• Avoid using abrasive cleaners or tools that could scratch the transducer surface.
• Check all cable connections for tightness and ensure they are free from corrosion.
• Store the unit in a protected area when not in use to prevent accidental damage.

7. Veaotsing

If you encounter issues with your Recon Active Imaging 3-in-1 Nosecone, consider the following common troubleshooting steps:

• Sonari näidud puuduvad: Check all power and transducer cable connections. Ensure the fish finder unit is powered on and correctly configured for the transducer.
• Kehv pildikvaliteet: Verify the transducer is properly submerged and free from obstructions or marine growth. Adjust sensitivity and frequency settings on your fish finder. Ensure the transducer is mounted correctly and not experiencing excessive turbulence.
• Vahelduvad lugemised: Inspect cables for damage or loose connections. Check for electrical interference from other boat electronics.

For more detailed troubleshooting or persistent issues, consult the full product manual or contact Lowrance customer support.

8. Tehnilised andmed

9. Garantii ja tugi

The Lowrance Recon Active Imaging 3-in-1 Nosecone comes with a 1-aastane garantii. For warranty claims, technical support, or additional product information, please visit the official Lowrance webveebisaidilt või võtke ühendust nende klienditeenindusega. Hoidke ostutõend garantii kehtivuse tagamiseks alles.
