OFFNOVA mütsi kuumpressi kasutusjuhend

1. Sissejuhatus

Thank you for choosing the OFFNOVA Hat Heat Press Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new heat press. Designed for both sublimation and HTV iron-on projects, this machine offers precise temperature and time control, ensuring consistent and professional results for various cap styles.

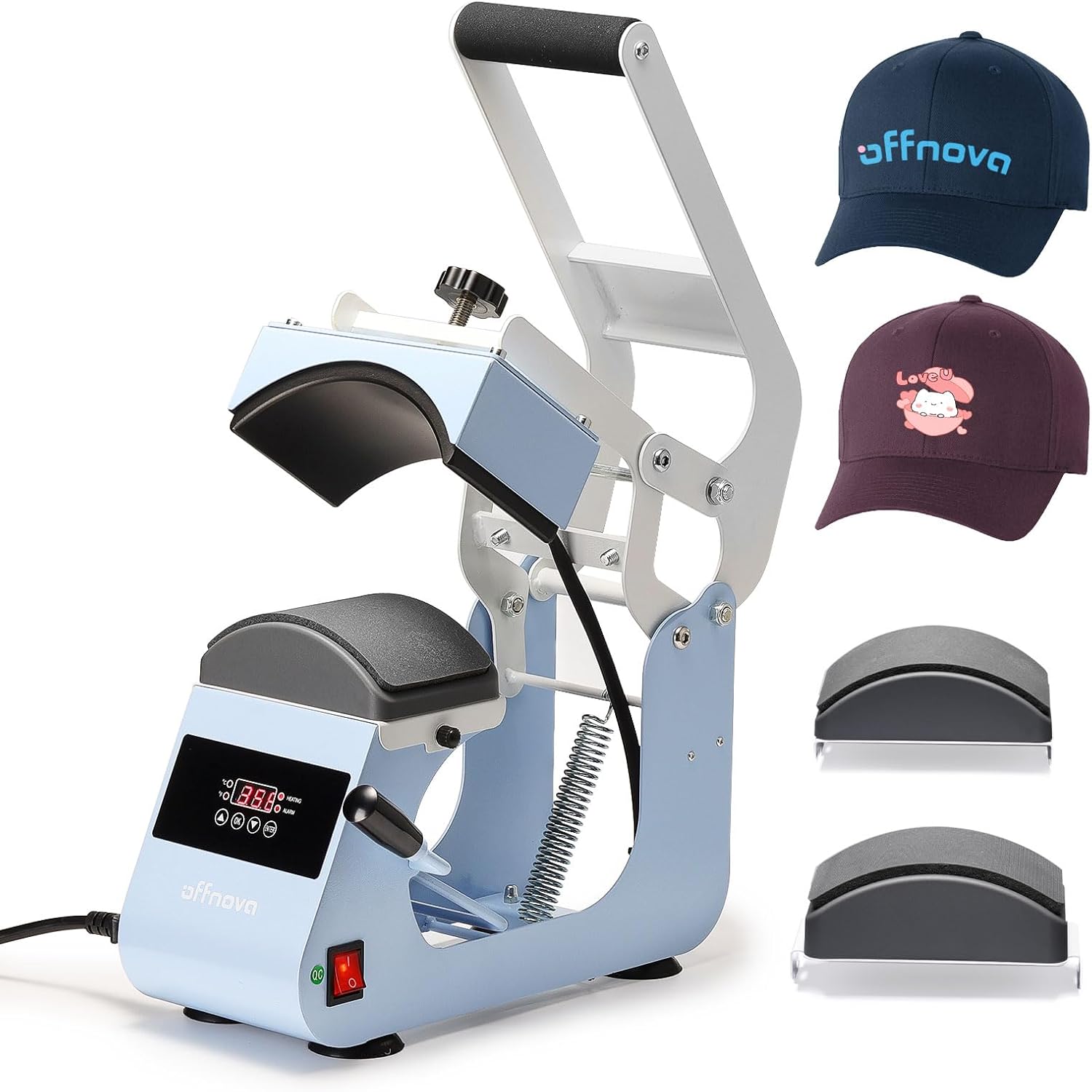

Figure 1.1: OFFNOVA Hat Heat Press Machine (Handle-Blue) with example hats.

Peamised omadused:

• Rapid & Even Heating: One-piece cast aluminum heating plate with Teflon coating for uniform heat distribution up to 400°F (204°C).
• Easy & Stable Operation: Ergonomic handle and four-bar linkage system, combined with anti-slip silicone suction cups for stability.
• Dual Cap Platens: Includes 2 interchangeable hat bases with different curvatures to fit 99% of cap styles, plus a built-in hat stretcher.
• Reguleeritav rõhukontroll: Easy-to-turn pressure knob for fine-tuning pressing force.
• Smart Auto Countdown: Automatic timing initiation upon handle pull-down and audible alert upon completion.

2. Components and Setup

2.1 Lahtipakkimine ja ülevaatus

Carefully remove all components from the packaging. Inspect the machine for any signs of damage during transit. Retain the original packaging for future storage or shipping.

2.2 Komponentide identifitseerimine

Familiarize yourself with the main parts of your heat press machine:

• Heating Platen (Upper)
• Lower Platen (Interchangeable)
• Control Panel (Digital Display, Temp/Time Buttons)
• Rõhu reguleerimise nupp
• Käepide
• Toitelüliti
• Toitejuhtme sisend

Figure 2.1: Machine dimensions and interchangeable platens (4x3 inch and 5.5x3.7 inch).

2.3 Algseadistus

1. Place the heat press on a stable, heat-resistant surface. Ensure adequate ventilation around the machine.
2. Connect the power cord to the machine's power inlet and then to a grounded electrical outlet (AC110V/60Hz).
3. Enne vooluvõrku ühendamist veenduge, et toitelüliti on asendis OFF.
4. Select and install the appropriate lower platen for your cap size. The machine comes with two interchangeable platens to accommodate various cap styles.

3. Kasutusjuhised

3.1 Juhtpaneel üleview

Figure 3.1: Digital Control Panel for Temperature and Time.

• Digitaalne kuva: Näitab praegust temperatuuri ja seatud aega.
• Temperatuuri kontroll: Adjustable from 0-400°F (0-204°C).
• Ajakontroll: Adjustable from 0-999 seconds.
• Võimsus: 500W.
• Voltage: AC110V/60Hz.
• Time Up Alarm: Alerts when the set time is complete.
• Automaatne loendur: Initiates automatically when the handle is pressed down.

3.2 Rõhu reguleerimine

The pressure adjustment knob, located on top of the heating platen, allows you to fine-tune the pressing force. Turn clockwise to increase pressure and counter-clockwise to decrease pressure. Adjust based on the thickness of the cap and transfer material for optimal results.

3.3 Samm-sammult toimimine

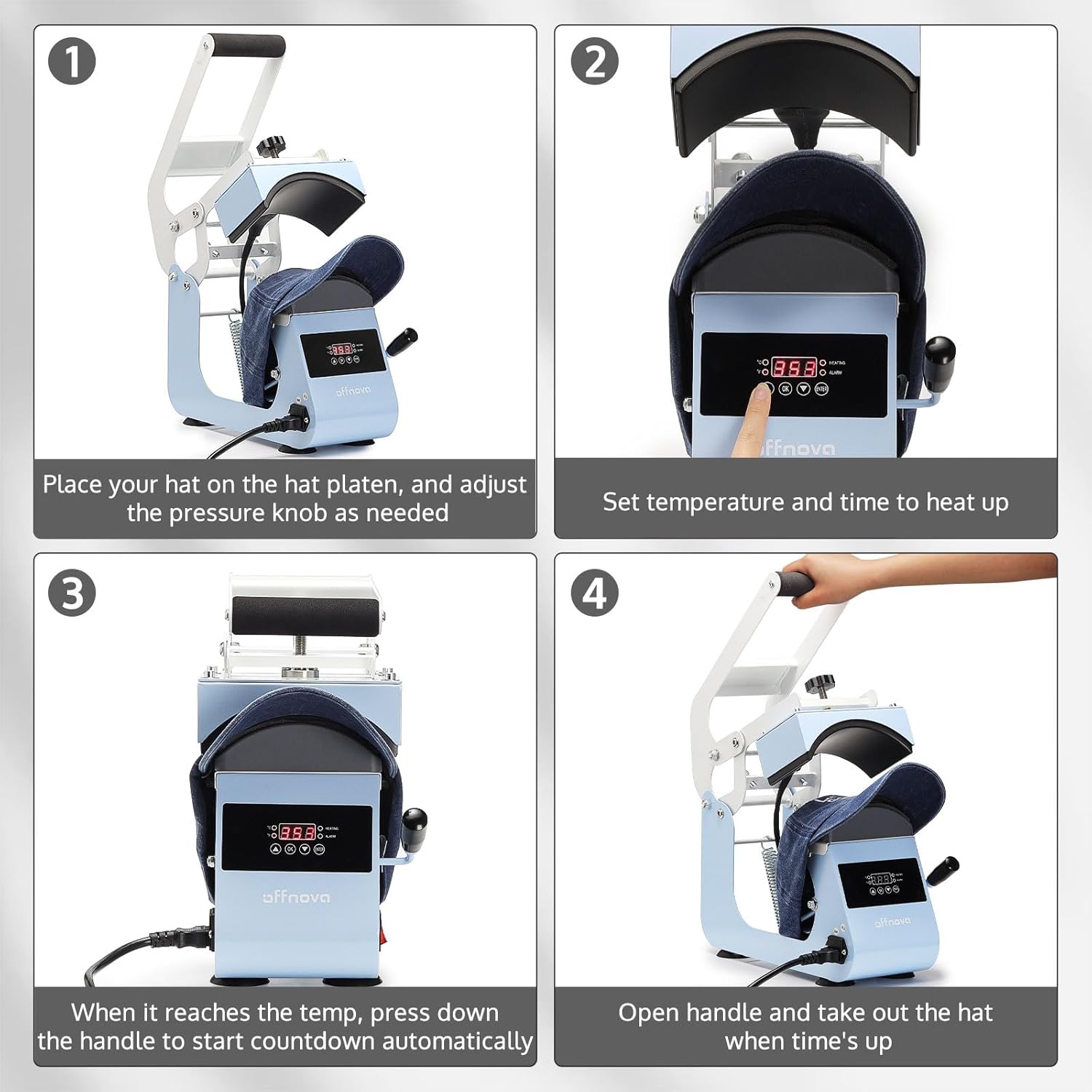

Figure 3.2: Four-step operation guide.

1. Prepare the Hat: Place your hat on the lower platen. Adjust the pressure knob as needed to ensure a snug fit and even contact.
2. Seadke temperatuur ja aeg: Turn on the power switch. Use the control panel to set your desired temperature and time according to your transfer material's specifications. The machine will begin to heat up.
3. Initiate Pressing: Once the machine reaches the set temperature, place your transfer design on the hat. Pull the operating handle down firmly to engage the heating platen. The automatic countdown will begin.
4. Täielik ülekanne: When the set time expires, an alarm will sound. Release the handle and carefully remove the hat. Allow the transfer to cool if required by the material's instructions.

Figure 3.3: Machine in use, demonstrating versatile application.

4. Hooldus

4.1 Puhastamine

• Enne puhastamist eemaldage masin alati vooluvõrgust ja laske sel täielikult jahtuda.
• Pühkige teflonkattega kuumutusplaati pehme lapigaamp cloth. Do not use abrasive cleaners or harsh chemicals, as they can damage the coating.
• Clean the lower platen and exterior surfaces with a damp riie.
• Ensure no liquids enter the control panel or electrical components.

4.2 Säilitamine

Store the heat press in a dry, dust-free environment. If possible, use the original packaging for protection. Keep out of reach of children.

5. Veaotsing

Selles jaotises käsitletakse levinud probleeme, millega võite kokku puutuda. Probleemide korral, mida siin ei ole loetletud, võtke ühendust klienditoega.

6. Tehnilised andmed

7. Garantii teave

The OFFNOVA Hat Heat Press Machine (Model HPM-H0) comes with a 1-aastane garantii alates ostukuupäevast. See garantii katab tootmisdefektid ja normaalse kasutamise korral esinevad talitlushäired. Palun hoidke oma ostutõend garantiinõuete esitamiseks alles.

For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official OFFNOVA websaidile.

8. Klienditugi

If you have any questions, require technical assistance, or need to report an issue with your OFFNOVA Hat Heat Press Machine, please contact our customer support team.

Please have your model number (HPM-H0) and purchase information ready when contacting support to expedite assistance.

Lisateabe ja ressursside saamiseks võite külastada OFFNOVA Store on Amazon.
