Introducción
This manual provides instructions for the NiteRider Swift 700 Front Bike Light and Vmax+ 180 Rear Bike Light Combo. This system is designed to enhance visibility and illumination for various cycling conditions, including urban commutes, rural roads, and night riding. Please read these instructions thoroughly before use to ensure proper installation, operation, and maintenance.

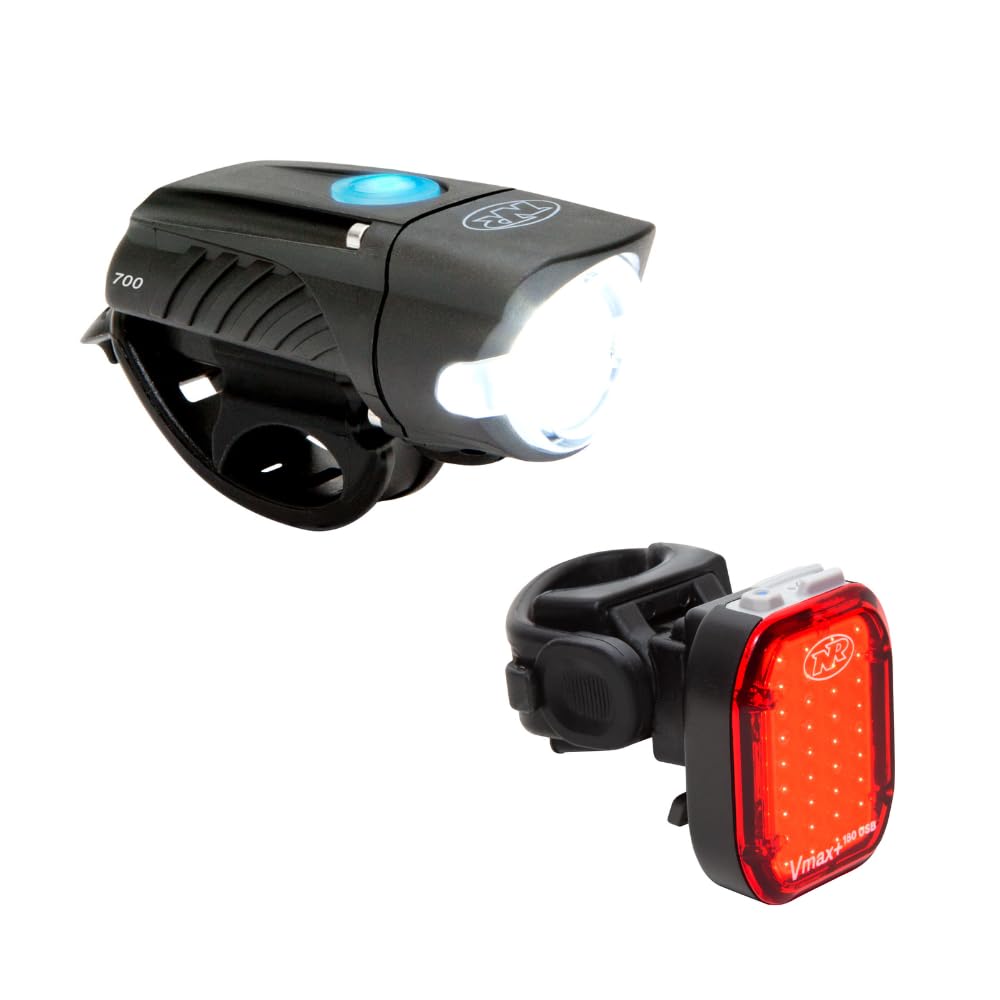

Image: NiteRider Swift 700 Front Bike Light and Vmax+ 180 Rear Bike Light Combo, showing both lights.
¿Qué hay en la caja?
- Headlight with integrated mount
- Luz trasera
- Montaje de tija de sillín
- Cable de carga USB-C
Configuración
Instalación
The Swift 700 front bike light installs quickly and easily using its integrated rubber strap mount. Wrap the strap around your handlebar and secure it firmly.
Image: NiteRider Swift 700 Front Light mounted on a bicycle handlebar, highlighting its compact size and USB-C charging capability.
The Vmax+ 180 rear bike light features a clothing clip for attachment to bags or jerseys, and a rubber seat post mount to fit sizes 15.8mm-31.6mm. Ensure the light is securely attached and visible from the rear.

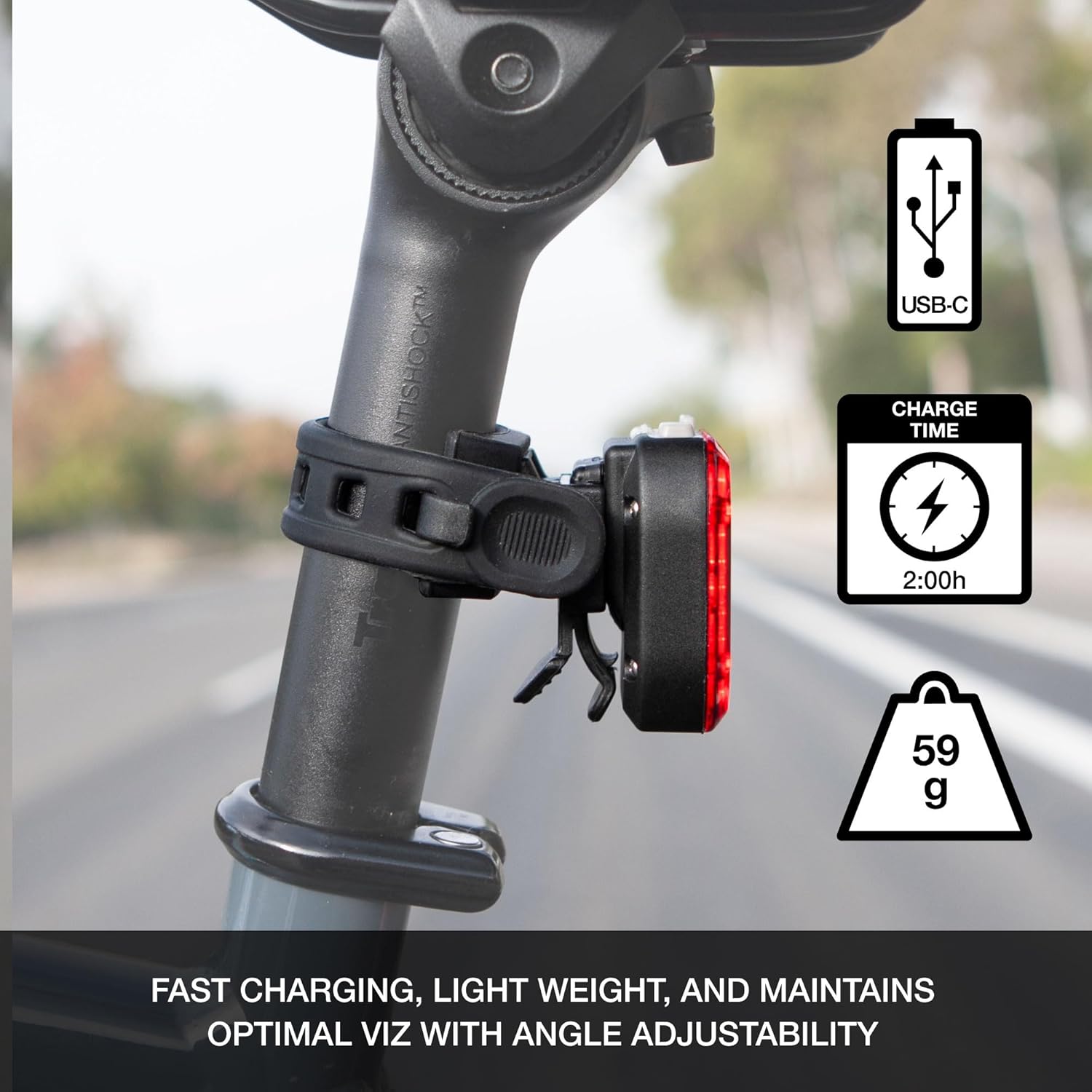

Image: NiteRider Vmax+ 180 Rear Light mounted on a bicycle seatpost, showing its adjustable angle and USB-C charging port.
Instrucciones de funcionamiento
Cargando
Both the Swift 700 and Vmax+ 180 lights are USB-C rechargeable. Connect the provided USB-C charging cable to the light and a 2A charger. A full recharge can take as little as 2 hours. The LED power button on the Swift 700 doubles as a low battery indicator, turning red when the charge is below 20%.
Modos de luz
The Swift 700 front light offers 5 modes: 4 steady modes and 1 flash mode. The Vmax+ 180 taillight includes 7 modes: 2 steady modes and 5 safety-focused flash modes (Fast/Slow, Pulse, Economy, Disco). The Vmax+ 180 features a Memory Mode, which will power the light back on at the last setting used.
Image: Table detailing the 5 modes of the Swift 700 front light, including lumen output and approximate run times.
Image: Table detailing the 7 modes of the Vmax+ 180 rear light, including flash patterns and approximate run times.
Modo de bloqueo de viaje
To prevent accidental activation during transport or storage, the Swift 700 features a Travel Lock Mode. To unlock, press and hold the power button for 8-10 seconds until the light activates. This feature conserves battery life when the light is not in use.
Mantenimiento
Both lights are IP64 rated for water and dust resistance. To maintain optimal performance, regularly clean the lights with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials. Ensure the USB-C port cover is securely closed when not charging to maintain water resistance. Store the lights in a cool, dry place when not in use.
Solución de problemas
La luz no se enciende
If the light does not turn on, ensure it is not in Travel Lock Mode. Press and hold the power button for 8-10 seconds to exit Travel Lock Mode. Also, check the battery level and recharge the light if necessary. If the issue persists, refer to the warranty information for support.
Presupuesto
| Característica | Detalle |
|---|---|
| Marca | NiteRider |
| Número de modelo | 6817 |
| Color | Negro / Rojo |
| Material | Nylon, Rubber |
| Fuente de poder | Funciona con pilas |
| Nivel de resistencia al agua | IP64 (resistente al agua) |
| Peso del artículo | 8.48 onzas |
| Tipo de montaje | Handlebar Mount / Seatpost Mount |
| Número de configuraciones | 12 (5 for Swift 700, 7 for Vmax+ 180) |
| Light Output Maximum (Front) | 700 lúmenes |
| Light Output Maximum (Rear) | 180 lúmenes |
Garantía y soporte
NiteRider provides the following warranty coverage:
- 1 año de garantía: Rechargeable battery cells.
- 2 año de garantía: Printed circuit boards, switches, and AC adapters.
- Garantía limitada de por vida: Cubre cualquier defecto en componentes mecánicos (carcasas, cubiertas, soportes y sujetadores) y LED.
Para obtener más ayuda o para view more NiteRider products, please visit the NiteRider Store.
