iWALK 10000mAh Slim Portable Charger

1. Introducción

The iWALK 10000mAh Slim Portable Charger (Model LPR003C) is designed to provide convenient and fast power to your devices on the go. Featuring a compact, ultra-slim design, this power bank integrates a retractable USB-C cable and offers 30W Power Delivery (PD) for rapid charging. Its versatile ports allow for charging multiple devices, making it an essential accessory for various electronic gadgets.

2. Contenido del paquete

• 10,000mAh 30W iWALK Power Bank (with 1.97 feet Retractable USB-C Cable) x 1
• Cable USB C a USB C x 1
• Manual de instrucciones x 1

3. Producto terminadoview

The iWALK LPR003C portable charger combines a sleek form factor with powerful charging capabilities. Its ultra-slim profile, measuring just 0.7 inches thick, ensures easy portability. The device features a 10,000mAh battery capacity, a built-in retractable USB-C cable, and multiple output ports for broad compatibility.

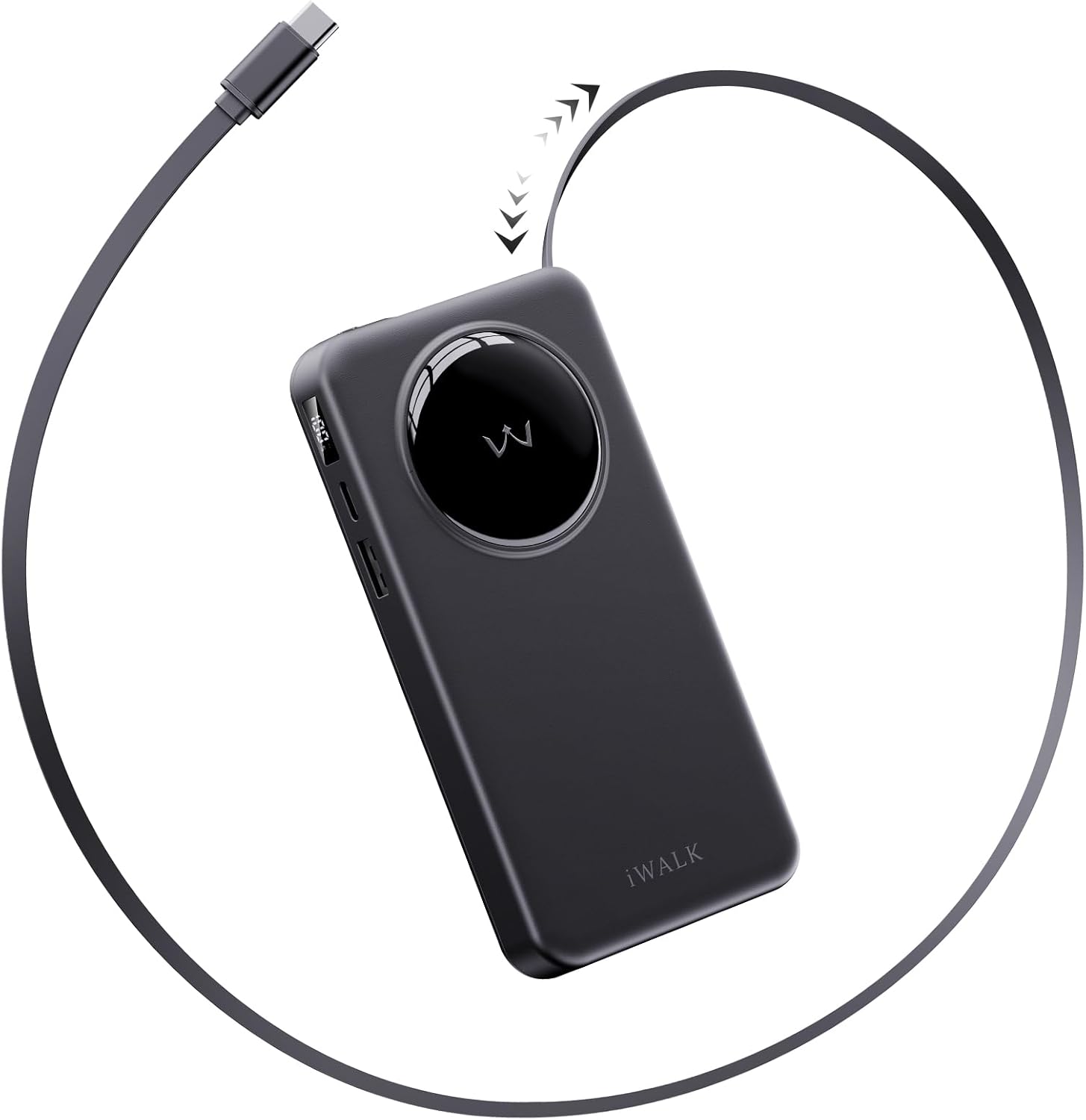

Figura 1: Frente view of the iWALK 10000mAh Slim Portable Charger, showcasing su diseño compacto y cable USB-C retráctil integrado.

3.1 Características principales

• Diseño ultradelgado: At only 0.7 inches (18mm) thick, it easily fits into pockets or bags.
• Capacidad de 10,000 mAh: Provides substantial power for multiple device charges.
• Cable USB-C retráctil incorporado: A 1.97 ft (23.6 inches) integrated cable for tangle-free charging.
• 30W PD Bi-Directional Fast Charging: Admite carga rápida tanto para el banco de energía como para los dispositivos conectados.
• Pantalla digital: Una pantalla LED indica el porcentaje de batería restante.tage.
• Múltiples puertos de salida: Includes a USB-C Input/Output port and a USB-A Output port.

Figura 2: Lado view illustrating the ultra-slim 0.7-inch thickness and 10,000mAh capacity, with approximate charge counts for various phone models.

Figure 3: Demonstrates the convenience of the built-in 1.97 ft retractable USB-C cable, highlighting its durability and ease of storage.

4. Configuración

4.1 Carga del banco de energía

Before initial use, fully charge your iWALK portable charger. Connect the provided USB-C to USB-C cable to the power bank's USB-C Input/Output port and a compatible wall adapter. The digital display will show the charging progress. The power bank supports 30W PD fast charging, allowing it to reach 50% charge in approximately 45 minutes.

Figure 4: Illustrates the 30W PD bi-directional fast charging capability, showing rapid charging for both the power bank and connected devices.

4.2 Uso inicial

Once fully charged, the power bank is ready for use. Press the power button on the side to activate the digital display and check the battery level.

5. Instrucciones de funcionamiento

5.1 Dispositivos de carga

To charge your device, select one of the following methods:

• Cable USB-C retráctil incorporado: Gently pull the integrated USB-C cable from its housing to the desired length. Connect the USB-C end to your compatible device. To retract, pull the cable slightly further, then release to allow it to coil back into the power bank.
• Puerto de entrada/salida USB-C: Use your device's USB-C cable to connect it to the power bank's USB-C Input/Output port.
• Puerto de salida USB-A: Use your device's USB-A cable to connect it to the power bank's USB-A Output port.

The power bank supports simultaneous charging of multiple devices, but for optimal fast charging performance, single device charging is recommended.

Figure 5: Illustrates the capability to charge three devices simultaneously using the built-in USB-C cable, USB-C port, and USB-A port.

5.2 Pantalla digital

La pantalla LED integrada muestra el porcentaje de batería restante.tage del banco de energía, lo que le permite controlar su nivel de carga de un vistazo.

6. Compatibilidad

The iWALK LPR003C is widely compatible with various devices, including:

• Serie iPhone 16/15
• Samsung Galaxy 25/24 Series
• Google Pixel devices
• MacBook Air
• AirPods, AirPods Max
• Visión Pro
• Interruptor de Nintendo
• DJI Mavic 3 and other USB-C compatible devices.

Figure 6: Visual representation of the wide range of devices compatible with the iWALK portable charger, including various smartphones, tablets, and other gadgets.

7. Mantenimiento

To ensure the longevity and optimal performance of your iWALK portable charger, follow these maintenance guidelines:

• Mantenga el dispositivo limpio y seco. Evite la exposición a la humedad, el polvo y las temperaturas extremas.
• No desmonte ni intente reparar el dispositivo usted mismo. Esto podría anular la garantía y causar daños.
• Guarde el banco de energía en un lugar fresco y seco cuando no esté en uso.
• Evite dejar caer o someter el dispositivo a impactos fuertes.

8. Solución de problemas

If you encounter issues with your iWALK portable charger, refer to the following common troubleshooting steps:

• El dispositivo no se carga: Ensure the power bank is sufficiently charged. Check all cable connections to ensure they are secure. Try using a different cable or device to isolate the issue.
• El banco de energía no carga: Verify that the wall adapter and USB-C cable used for recharging are functional. Ensure the USB-C cable is properly connected to the power bank's Input/Output port.
• Carga lenta: Ensure your device and cables support fast charging. If charging multiple devices simultaneously, the charging speed may be reduced.
• La pantalla digital no funciona: Press the power button to activate the display. If it remains unresponsive, the power bank may be fully depleted or require service.

For further assistance, please contact iWALK customer support.

9. Especificaciones

10. Garantía y soporte

iWALK products come with a manufacturer's warranty. For detailed warranty information, product support, or service inquiries, please refer to the warranty card included in your package or visit the official iWALK website. You can also contact iWALK customer service directly for assistance.

11. Información de seguridad

Lea y siga todas las instrucciones de seguridad para evitar lesiones o daños al dispositivo:

• No exponga el banco de energía al fuego, al agua ni a temperaturas extremas.
• No utilice el banco de energía si ha sido dañado o modificado.
• Mantener fuera del alcance de los niños.
• Deseche el banco de energía de forma responsable de acuerdo con las regulaciones locales.

12. Vídeos oficiales del producto
