1. Introducción
Producto terminadoview

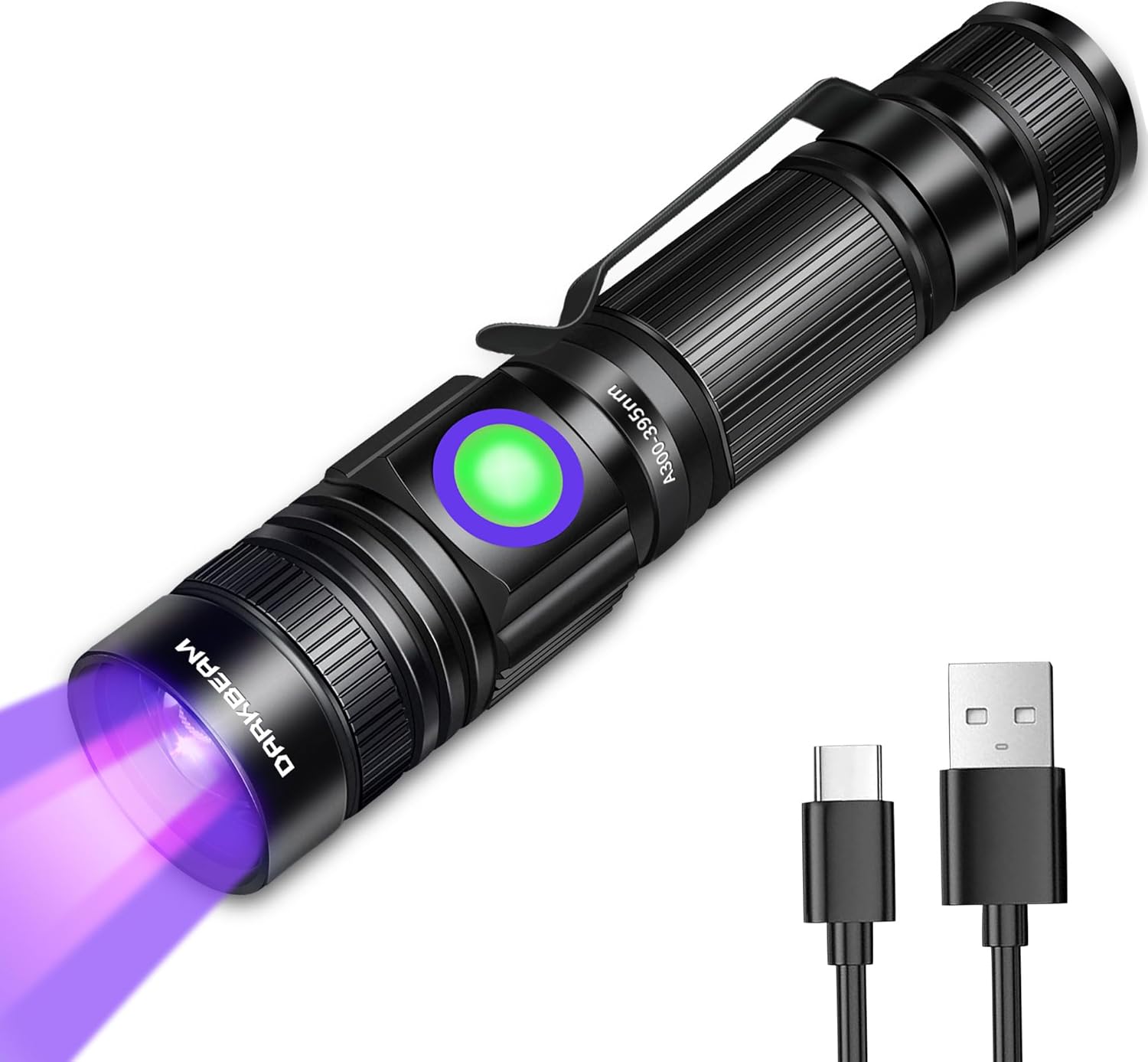

The DARKBEAM A300 UV Black Light Flashlight is a versatile and powerful ultraviolet LED device designed for various detection and curing applications. Featuring a 395nm wavelength, it is effective for identifying pet urine stains, curing UV resin, illuminating fluorescent materials, and verifying currency.
- 395nm UV Wavelength: Optimized for detecting dried pet urine stains, curing UV resin, and illuminating UV-reactive items.
- Recargable por USB: Includes a long-lasting rechargeable battery, fully charged in approximately 3 hours via any 5V 2A USB device.
- Lente con zoom: Adjust the light beam from wide to narrow for versatile application, from broad area scanning to focused inspection.
- Single Lighting Mode: Simple one-click operation for ease of use.
- Compacto y portátil: Tiny, lightweight design with a pocket clip for easy carrying.
- Durable y resistente al agua: IPX4 water-resistant aluminum body ensures durability against splashes and impacts.
2. Configuración
Carga inicial de la batería
- Unscrew and Reconnect Tail Cap: Before first use, unscrew the tail cap of the flashlight. This disconnects the battery. Reconnect the battery and firmly tighten the tail cap. This ensures proper electrical contact.
- Conectarse a la energía: Use the provided Micro USB charging cable to connect the flashlight to any 5V 2A USB power source (e.g., wall adapter, computer USB port).
- Indicador de carga del monitor: The power indicator button will show a luz roja during charging. Once fully charged, the indicator will turn verde.
- Tiempo de carga: Una carga completa suele tardar aproximadamente 3 horas.
3. Instrucciones de funcionamiento
Encendido/apagado
The DARKBEAM A300 features a simple single-mode operation:
- To turn the UV light ON, presione el botón de encendido una vez.
- To turn the UV light APAGADO, presione el botón de encendido nuevamente.
Función de zoom
The flashlight is equipped with a zoomable lens to adjust the beam focus:
- Para lograr un haz ancho, pull the head of the flashlight outwards. This is useful for scanning larger areas.
- Para lograr un narrow beam, push the head of the flashlight inwards. This focuses the UV light for precise inspection of smaller areas.
4. Aplicaciones
Detección de orina de mascotas
The 395nm UV light is highly effective at revealing dried pet urine stains that are invisible to the naked eye. Use the wide beam to scan carpets, upholstery, and floors, then narrow the beam to pinpoint specific areas for cleaning.
Resin Curing & Mineral Identification
The UV light can be used for curing UV-sensitive resins and 3D resin prints. It also effectively illuminates fluorescent minerals and rocks, making it a valuable tool for geology enthusiasts and collectors.
Stain Detection & Authenticity Verification
Beyond pet stains, the flashlight can help detect fluorescent agents, hidden dirt, and other residues on various surfaces in your home. It can also be used to verify the authenticity of currency, passports, and other documents with UV security features.
5. Mantenimiento
Limpieza
- Limpie el cuerpo de la linterna con un paño suave.amp paño.
- Do not use abrasive cleaners or solvents, as these can damage the finish or lens.
- Mantenga la lente limpia para una salida de luz óptima.
Almacenamiento
- Guarde la linterna en un lugar fresco y seco, alejado de la luz solar directa.
- If storing for extended periods, ensure the battery is partially charged (around 50%) and recharge every 3-6 months to maintain battery health.
6. Solución de problemas
| Problema | Posible causa | Solución |
|---|---|---|
| La linterna no se enciende. | Battery is not connected or is low/dead. | Ensure the tail cap is tightly screwed on. Charge the battery fully. |
| La luz es tenue. | Batería baja. Lente sucia. | Recargue la batería. Limpie la lente con un paño suave. |
| La función de zoom es rígida. | Suciedad o residuos en el mecanismo. | Limpie con cuidado las piezas deslizantes. Evite forzar el mecanismo. |
| El indicador de carga no funciona. | Cable o fuente de alimentación defectuoso. | Pruebe con un cable USB y un adaptador de corriente diferentes. |
7. Especificaciones
| Característica | Detalle |
|---|---|
| Longitud de onda | 395 nm |
| Fuente de poder | Funciona con pilas recargables. |
| Tipo de fuente de luz | LED UV |
| Material | Aluminio |
| Características especiales | Cat Pee Detector, Gem and Mineral Identification, Mini with Pocket Clip, Pet Dog / Cat Urine Detection, USB Rechargeable & Zoomable |
| Resistencia al agua | IPX4 (Water splashes and impacts) |
8. Garantía y soporte
For warranty information, technical support, or any inquiries regarding your DARKBEAM A300 UV Black Light Flashlight, please refer to the product packaging or contact DARKBEAM customer service through their official channels. Keep your purchase receipt for warranty claims.
