Manual de usuario de la guitarra electroacústica de 12 cuerdas Deviser L-12X

1. Introducción

Thank you for choosing the Deviser L-12X 12-String Electro-Acoustic Guitar. This instrument is designed for both enthusiasts and professionals, offering a rich acoustic tone and the versatility of amplification. This manual provides essential information for the proper setup, operation, and maintenance of your new guitar to ensure optimal performance and longevity.

2. Producto terminadoview

The Deviser L-12X is a 41-inch electro-acoustic guitar featuring a 12-string configuration for a full, resonant sound. It combines traditional acoustic craftsmanship with modern electronic capabilities.

Características principales:

• Material del cuerpo: Spruce top, Sapele back and sides.
• Material del mástil: Mahogany neck with a Rosewood fretboard.
• Electrónica: Integrated KLT-17A preamp with tuner, volume, bass, middle, and treble controls.
• String Configuration: 12-string setup for enhanced harmonic richness.
• Accesorio incluido: Protective gig bag.

Figura 2.1: Frente view of the Deviser L-12X 12-String Electro-Acoustic Guitar, showcasing its black finish and 12-string headstock.

Figura 2.2: Posterior view of the Deviser L-12X 12-String Electro-Acoustic Guitar, highlighting the smooth black finish of the body and neck.

3. Configuración

3.1 Inspección inicial

Upon unboxing, carefully inspect the guitar for any signs of damage. Ensure all strings are properly seated and the tuning pegs are functional. The guitar comes with a protective gig bag for transport and storage.

3.2 Afinación de la guitarra

The Deviser L-12X features an integrated KLT-17A preamp with a built-in tuner. To tune your guitar:

1. Press the 'TUNER' button on the preamp Para activar el sintonizador. La pantalla se iluminará.
2. Toca cada cuerda individualmente. La pantalla mostrará la nota que se está tocando e indicará si es sostenida o bemol.
3. Adjust the corresponding tuning peg until the display indicates the correct pitch.
4. Repeat for all 12 strings. For a 12-string guitar, strings are typically tuned in pairs, with one string in each pair tuned to the standard pitch and the other an octave higher (for the lower strings) or in unison (for the higher strings).
5. Press the 'TUNER' button again to deactivate the tuner.

3.3 Conexión a un Ampmás vivaz

To utilize the electro-acoustic capabilities of your guitar:

1. Asegúrese de que su ampEl amplificador está apagado y su volumen está configurado al mínimo.
2. Connect a standard 1/4-inch instrument cable from the guitar's output jack (located at the bottom of the guitar) to the input of your ampmás duradero.
3. Enciende tu amplifier and slowly increase its volume to a desired level.
4. Adjust the guitar's onboard preamp controles según sea necesario.

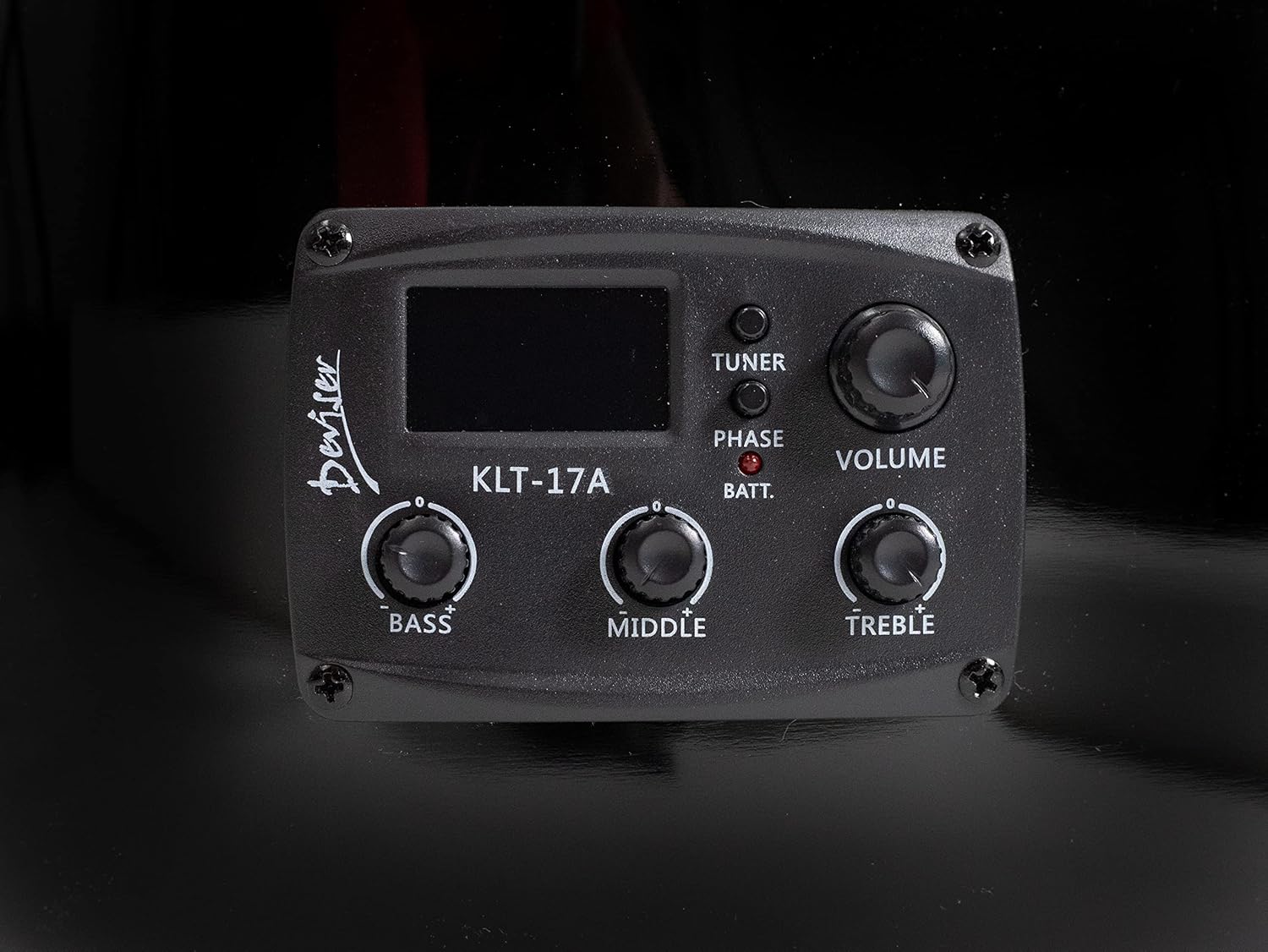

Figura 3.1: Primer plano view of the KLT-17A preamp controls, showing the Tuner, Phase, Volume, Bass, Middle, and Treble knobs, along with the battery indicator.

4. Instrucciones de funcionamiento

4.1 Using the Onboard Preamp (KLT-17A)

The KLT-17A preamp Te permite darle forma a tu guitarra. amplified tone. It includes the following controls:

• VOLUMEN: Controla el nivel de salida general del ampseñal lificada.
• BAJO: Adjusts the low-frequency response for warmth and depth.
• MEDIO: Adjusts the mid-frequency response for presence and clarity.
• TRIPLICAR: Adjusts the high-frequency response for brightness and sparkle.
• SINTONIZADOR: Activa el afinador cromático incorporado.
• FASE: A phase switch can help reduce feedback in amplified settings, especially at high volumes. Experiment with this switch to find the optimal setting for your environment.
• BATT. (Battery Indicator): Se ilumina cuando el nivel de la batería está bajo, lo que indica que es momento de reemplazarla.

4.2 Reemplazo de batería

El preamp is powered by a 9V alkaline battery. When the BATT. indicator lights up, replace the battery:

1. Localice el compartimento de la batería en el lateral de la guitarra, cerca del preamplificador.amp controles
2. Abra el compartimento y retire la batería vieja.
3. Inserte una nueva batería alcalina de 9 V, asegurándose de la polaridad correcta.
4. Cierre bien el compartimento de la batería.

5. Mantenimiento

5.1 Limpieza

Regular cleaning helps preserve the finish and playability of your guitar:

• Limpie el cuerpo, el mástil y las cuerdas con un paño suave que no suelte pelusa después de cada uso para eliminar el sudor y los aceites.
• For a deeper clean, use guitar-specific cleaning and polishing products. Avoid harsh chemicals or abrasive materials.
• Limpie el diapasón periódicamente con un acondicionador de diapasón adecuado para evitar que se seque y se agriete.

5.2 Reemplazo de cuerdas

Strings should be replaced regularly, as old strings can lose their tone and intonation. For a 12-string guitar, it is often recommended to replace all strings at once to maintain balanced tension and tone. Refer to a guitar technician or online resources for detailed 12-string restringing instructions.

5.3 Almacenamiento

Proper storage is crucial for the longevity of your instrument:

• Store the guitar in its included gig bag when not in use to protect it from dust, scratches, and minor impacts.
• Avoid exposing the guitar to extreme temperatures or humidity fluctuations, which can cause wood warping or cracking.
• Do not store the guitar near heat sources or in direct sunlight.

Figure 5.1: The Deviser L-12X 12-String Electro-Acoustic Guitar partially enclosed in its black gig bag, demonstrating proper storage and transport.

6. Solución de problemas

6.1 No hay sonido cuando Amplificado

• Compruebe si el cable del instrumento está conectado de forma segura tanto a la guitarra como al ampmás duradero.
• Asegúrese de que ampEl amplificador está encendido y su volumen no está en cero.
• Verify that the guitar's VOLUME knob on the preamp se enciende.
• Compruebe la batería en el preamplificador.amp. If the BATT. indicator is lit, replace the battery.
• Test with a different instrument cable or amplifier to rule out faulty equipment.

6.2 Poor Sound Quality / Feedback

• Adjust the BASS, MIDDLE, and TREBLE controls on the preamp to find a balanced tone.
• Try engaging or disengaging the PHASE switch on the preamp to reduce feedback, especially in loud environments.
• Ensure the strings are clean and not worn out. Old strings can produce dull or muddy tones.
• If feedback persists, try moving further away from the amplifier or reducing the volume.

6.3 Inestabilidad de sintonización

• Asegúrese de que las cuerdas estén correctamente estiradas después del reemplazo.
• Check that the tuning pegs are tight and not slipping.
• Extreme temperature changes can affect tuning stability. Allow the guitar to acclimate to its environment.

7. Especificaciones

8. Garantía y soporte

Para obtener información sobre la garantía y asistencia técnica, consulte la documentación proporcionada al momento de la compra o póngase en contacto con su distribuidor. Conserve el comprobante de compra para cualquier reclamación de garantía.
