Manual del usuario del entrenador y corrector de postura inteligente hipee P1

1. Producto terminadoview

The hipee P1 Smart Posture Trainer & Corrector is designed to help users improve their posture through intelligent vibration reminders and real-time tracking via a dedicated mobile application. This device promotes natural muscle training for sustained posture correction.

Las características principales incluyen:

Smart vibration reminders for posture correction.
App control for personalized settings and real-time posture analysis.
Lightweight and strapless design for comfortable wear.
Recargable por USB con batería de larga duración.
Skin-friendly silicone material.

hipee P1 Smart Posture Trainer in use with app — Image 1.1: The hipee P1 Smart Posture Trainer being worn by individuals, demonstrating its discreet design and integration with the mobile application for real-time posture monitoring.

2. ¿Qué hay en la caja?

Upon unpacking your hipee P1 Smart Posture Trainer, please ensure all items are present:

1 x hipee P1 Posture Corrector
1 x cable de carga USB
1 x Manual de usuario (este documento)

Contents of hipee P1 Smart Posture Trainer packaging — Image 2.1: The hipee P1 Posture Corrector, USB charging cable, and user manual as included in the product packaging.

3. Guía de configuración

3.1 Carga inicial

Before first use, fully charge the hipee P1 device. Insufficient battery power may prevent the device from turning on.

Locate the charging port: The charging port is discreetly hidden. Gently detach the sensor module from the neck loop to reveal the Type-C charging port on its side.
Connect the USB charging cable to the device and a suitable USB power source.
The indicator light will turn blue once fully charged. Charging typically takes approximately 1.5 hours.

Detaching sensor for charging — Image 3.1: Illustration of detaching the sensor module from the neck loop to access the hidden Type-C charging port.

3.2 Instalación de la aplicación y emparejamiento Bluetooth

The hipee P1 operates optimally with the dedicated mobile application for real-time tracking and personalized settings.

Download the "POSTURE UP" app from the Apple App Store or Google Play Store.
Asegúrese de que el Bluetooth de su teléfono esté habilitado.
Open the app and follow the on-screen instructions to pair your hipee P1 device. The device number for pairing will follow the format: Hi-JZ-xxxxxxxxxxx.

QR codes for downloading the POSTURE UP app — Image 3.2: QR codes provided for convenient download of the "POSTURE UP" application from app stores.

3.3 Uso del dispositivo

The hipee P1 is designed to be worn comfortably around the neck.

Place the device around your neck.
Position the sensor module at the back, between your shoulder blades. For optimal performance, the sensor should ideally touch your skin directly. Wearing it over thin clothing is also acceptable.
Ensure the device is comfortable and does not restrict movement.

hipee P1 device dimensions and wearing position — Image 3.3: The hipee P1 device showing its dimensions and how it rests on the back of the neck, with the sensor positioned between the shoulder blades.

3.4 Calibración

Calibration is a one-time process required during the first use to establish your correct posture baseline.

After wearing the device and connecting it to the app, follow the startup animation within the app to complete the calibration process.
Stand or sit in your ideal posture during calibration.

Diagram illustrating the setup steps for hipee P1 — Image 3.4: A visual guide detailing the four steps for setting up the hipee P1: turning on, wearing, calibrating, and starting tracking.

4. Instrucciones de funcionamiento

4.1 Encendido / Apagado

To power on: Long press the button on the sensor module for 3 seconds. The blue indicator will flash, and a single vibration will occur.
To power off: Long press the button on the sensor module until the device powers down.

Close-up of hipee P1 indicator light — Imagen 4.1: Un primer plano view of the hipee P1 sensor module, highlighting the indicator light for power and status.

4.2 Posture Monitoring and Reminders

Once calibrated and powered on, the hipee P1 will monitor your posture and provide vibration reminders when you deviate from your set posture.

Vibration Reminders: The device will gently vibrate when it detects that your back is leaning forward beyond the set trigger angle.
Seguimiento en tiempo real: The "POSTURE UP" app provides real-time analysis of your posture, allowing you to track progress and identify areas for improvement.

hipee P1 app interface for posture tracking and analysis — Image 4.2: Screenshots of the "POSTURE UP" app interface, displaying real-time posture data, analysis, and daily challenges.

4.3 Configuración y personalización de la aplicación

The "POSTURE UP" app allows you to customize various settings to suit your needs:

Reminder Angle: Adjust the angle (5-30°) at which the device triggers a vibration reminder.
Tiempo de retraso: Set a delay (0-20 seconds) for reminders, preventing vibrations for brief posture deviations.
Intelligent Filtering Mode: This mode, enabled by default, cancels unnecessary reminders during activities like sitting, standing up, bending over, or tying shoelaces. You can disable this feature in the app if desired (Me > Device Management > Personalized Reminder Settings > Intelligent Filtering Reminder Scene > Switch OFF).

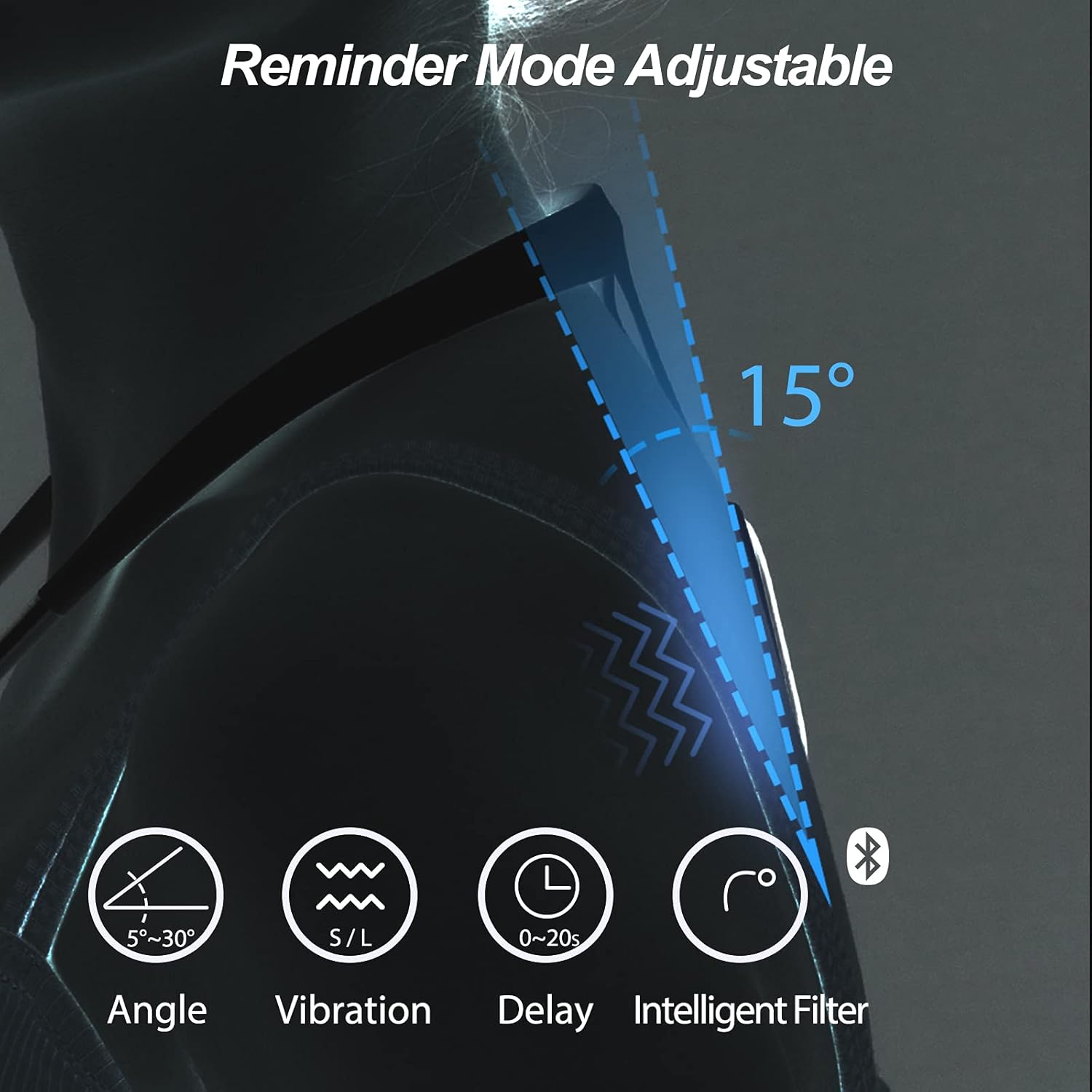

hipee P1 adjustable reminder settings — Image 4.3: Visual representation of the adjustable reminder settings, including angle, vibration intensity, delay time, and intelligent filter.

5. Mantenimiento

5.1 Carga

The hipee P1 features a rechargeable lithium battery. A full charge provides approximately 50 hours of use.

Recharge the device when the indicator light turns red, signaling low battery.
Utilice el cable de carga USB proporcionado.

5.2 Limpieza

The device is made with skin-friendly silicone. To maintain hygiene:

Wipe the device gently with a soft, damp paño.
No utilice productos químicos agresivos ni limpiadores abrasivos.
Asegúrese de que el dispositivo esté completamente seco antes de cargarlo o guardarlo.

6. Solución de problemas

Problema	Posible causa	Solución
El dispositivo no se puede encender.	Carga de batería insuficiente.	Fully charge the device for approximately 1.5 hours. The indicator light will turn blue when fully charged.
La luz indicadora es roja.	Batería baja.	Recarga el dispositivo.
Cannot find the charging port.	The charging port is hidden.	Disassemble the sensor module from the neck loop to access the Type-C charging port on its side.
Trigger angle settings from the app do not take effect.	Bluetooth pairing issue.	Ensure your phone's Bluetooth is enabled and correctly paired with the device (device number format: Hi-JZ-xxxxxxxxxxx).
No reminders when bending over.	Intelligent Filtering Mode is enabled.	This mode is designed to cancel unnecessary reminders during common movements. If you wish to receive reminders for these actions, disable Intelligent Filtering Mode in the app: Me > Device Management > Personalized Reminder Settings > Intelligent Filtering Reminder Scene > Switch OFF.
Bluetooth connection issues with the app.	Incorrect pairing or Bluetooth interference.	Ensure Bluetooth is active on your phone. Forget the device in your phone's Bluetooth settings and re-pair through the "POSTURE UP" app. Ensure no other devices are interfering.

hipee P1 troubleshooting tips and app settings — Image 6.1: A summary of common hipee P1 tips, including suitable neck circumference, Bluetooth checks, intelligent filtering, and locating the charging port.

7. Especificaciones

Característica	Detalle
Modelo	P1
Marca	hipee
Dimensiones del producto	6.57 x 5.39 x 4.72 pulgadas (167 mm x 137 mm)
Peso	2.2 ounces (4.66 ounces packaged)
Neck Circumference (Recommended)	13.39 - 16.93 pulgadas
Tipo de batería	1 batería de iones de litio (incluida)
Tiempo de carga	Aproximadamente 1.5 horas
Duración de la batería	Hasta 50 horas con una carga completa
Conectividad	Bluetooth
Adjustable Reminder Angle	5° - 30°
Tiempo de retardo ajustable	0 - 20 segundos
Material	Skin-friendly silicone
Certificaciones	CMA, SRRC, FCC
Rango de edad recomendado	Adults and adolescents (neck circumference 13.39-16.93 inches)

Detallado view of hipee P1 components and certifications — Imagen 7.1: Una explosión view of the hipee P1 sensor, highlighting internal components, material details, charging port, and product certifications.

8. Garantía y soporte

The hipee P1 Smart Posture Trainer is designed for durability and performance. For any questions or assistance during use, please contact hipee customer support.

Please refer to the product packaging or the official hipee webSitio para conocer los términos de garantía específicos y la información de contacto.
