Manual de instrucciones de la olla arrocera al vacío IH de 5.5 tazas TOSHIBA RC-10VRR

1. Introducción

Gracias por la compraasing the TOSHIBA RC-10VRR 5.5-Cup Vacuum IH Rice Cooker. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read this manual thoroughly before use and keep it for future reference.

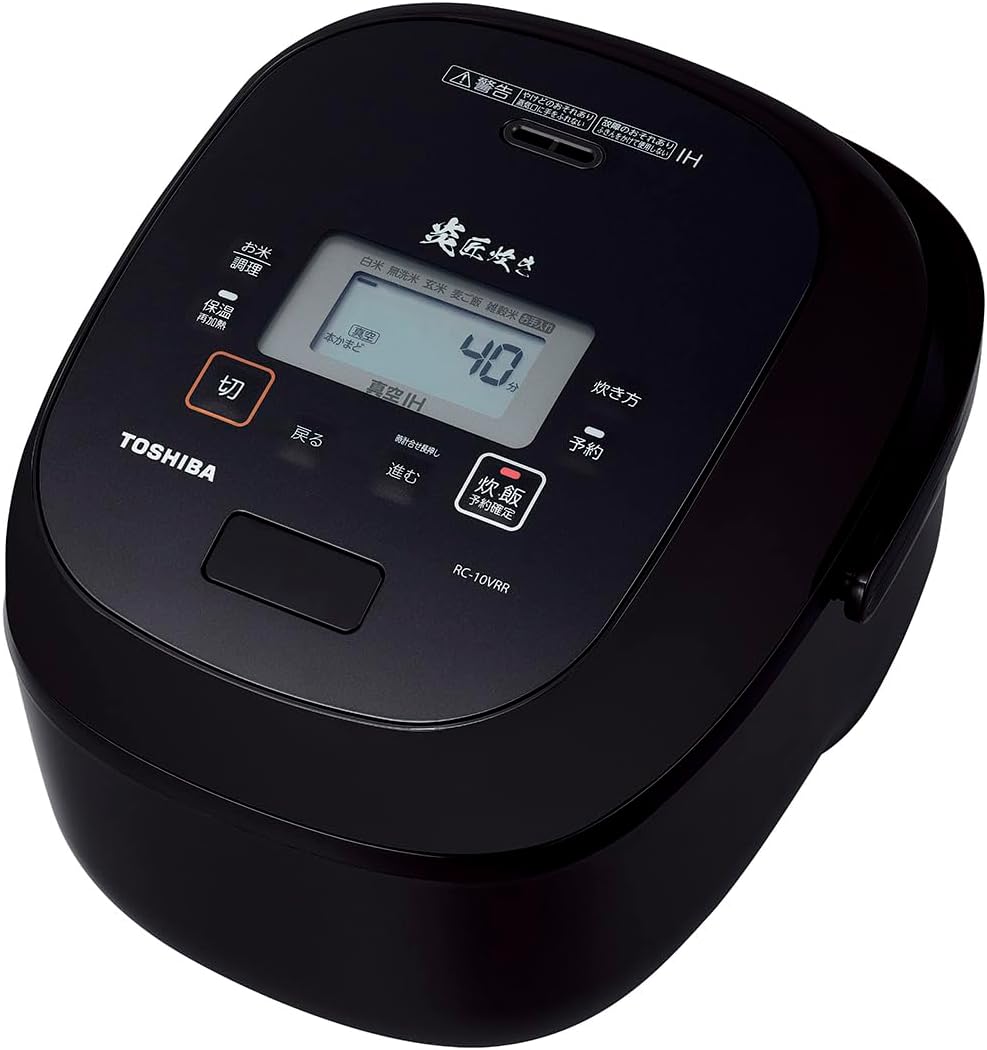

Figure 1: TOSHIBA RC-10VRR 5.5-Cup Vacuum IH Rice Cooker.

2. Precauciones de seguridad

Para garantizar un funcionamiento seguro y evitar daños al aparato o lesiones a usted o a otras personas, tenga en cuenta las siguientes precauciones de seguridad:

• Conecte siempre la olla arrocera a una toma de corriente con conexión a tierra.
• No sumerja la unidad principal en agua u otros líquidos.
• Mantener fuera del alcance de los niños.
• No utilice el aparato si el cable de alimentación o el enchufe están dañados.
• Asegúrese de que el respiradero de vapor esté despejado durante el funcionamiento para evitar bloqueos.
• Avoid touching hot surfaces during and immediately after cooking. Use oven mitts if necessary.
• Desenchufe el aparato antes de limpiarlo o cuando no esté en uso.

3. Producto terminadoview

The TOSHIBA RC-10VRR is a 5.5-cup (1.0 liter) Vacuum IH rice cooker designed to deliver perfectly cooked rice with enhanced flavor and texture. Key features include:

• Vacuum IH Technology: Utilizes vacuum pressure to quickly absorb water into the rice grains, ensuring thorough cooking and enhanced sweetness.
• Flame Craft Cooking: Precise heat control from cooking to steaming optimizes the rice's natural sweetness and results in fluffy, separated grains.
• Multiple Cooking Options: Offers various texture settings (hard, balanced, soft) and specialized courses like Sweet Cooking, Bento, Brown Rice, and Mixed Grains.
• Fácil mantenimiento: Features a flat top panel for easy wiping and a simple two-part inner lid and inner pot design for quick cleaning.
• Forged Kamado Copper Pot: A thick, durable inner pot designed for optimal heat convection, mimicking traditional kamado cooking.

Figura 2: Frente view of the rice cooker with control panel.

3.1 Componentes

1. Unidad principal
2. Inner Pot (Forged Kamado Copper Pot)
3. Tapa interior
4. Taza medidora
5. Cuchara de arroz
6. Cable de alimentación

4. Configuración

Antes del primer uso, siga estos pasos:

1. Deshacer: Retire con cuidado la olla arrocera y todos los accesorios del embalaje.
2. Limpio: Wash the inner pot, inner lid, measuring cup, and rice scoop with mild detergent and warm water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp paño.
3. Colocación: Coloque la arrocera sobre una superficie estable, plana y resistente al calor, alejada de la luz solar directa y de fuentes de calor. Asegúrese de que haya una ventilación adecuada alrededor de la unidad.
4. Conecte la electricidad: Insert the power cord securely into the rice cooker's power inlet, then plug it into a grounded electrical outlet.

5. Instrucciones de funcionamiento

5.1 Cocción básica del arroz

1. Medir el arroz: Utilice la taza medidora provista para medir la cantidad deseada de arroz.
2. Lavar el arroz: Enjuague bien el arroz hasta que el agua salga clara.
3. Agregar agua: Place the washed rice into the inner pot. Add water up to the corresponding water level mark for the type and quantity of rice.
4. Coloque la olla interior: Ensure the outer surface of the inner pot is dry, then place it into the main unit. Close the outer lid securely.
5. Seleccionar modo: Press the 'Menu' button to select your desired rice type (e.g., White Rice, Brown Rice) and cooking texture (e.g., Honkamado, Hard, Balanced, Soft).
6. Empezar a cocinar: Pulse el botón "Inicio" para iniciar la cocción. La pantalla mostrará el tiempo restante.
7. Mantener caliente: Una vez finalizada la cocción, la olla arrocera cambiará automáticamente al modo “Mantener caliente”.

Figure 3: Honkamado cooking options for different rice textures.

5.2 Vacuum IH Technology

The unique Vacuum IH technology creates a vacuum inside the inner pot, allowing water to be absorbed quickly and deeply into the core of each rice grain. This process enhances the sweetness and flavor of the rice, resulting in a superior texture.

Figure 4: Illustration of Vacuum IH technology.

5.3 Specialized Cooking Courses

The RC-10VRR offers various specialized courses to cater to different preferences and dietary needs:

• Sweet Cooking: Adjusts soaking temperature and time to maximize the natural sweetness of the rice.
• Curso de Bento: Designed to keep rice fluffy and delicious even when cold, ideal for packed lunches.
• Brown Rice / Mixed Grains: Optimizes cooking for healthier grain varieties, ensuring a pleasant texture.
• Eco Cooking: Energy-saving mode for standard white rice.
• Cocción rápida: For faster rice preparation.
• Gachas de avena: For cooking soft, creamy porridge.
• Cake / Hot Spring Egg: Special modes for non-rice cooking applications.

Figura 5: Example of rice cooked with the Bento Course.

6. Mantenimiento y limpieza

La limpieza regular garantiza un rendimiento óptimo y la longevidad de su olla arrocera.

1. Desenchufar: Always unplug the rice cooker from the power outlet before cleaning.
2. Enfriarse: Deje que el aparato se enfríe completamente antes de desmontarlo o limpiarlo.
3. Olla interior y tapa interior: Remove the inner pot and inner lid. Wash them with warm water and mild dish soap using a soft sponge. Rinse thoroughly and dry completely. The inner lid is designed with minimal irregularities for easy cleaning.
4. Exterior de la unidad principal: Wipe the exterior of the main unit, including the flat top panel, with a soft, damp Paño. No utilice limpiadores abrasivos ni sumerja la unidad principal en agua.
5. Ventilación de vapor: Revise y limpie periódicamente el respiradero de vapor para asegurarse de que esté libre de obstrucciones.

Figure 6: Easy cleaning features of the RC-10VRR.

6.1 Forged Kamado Copper Pot Care

The inner pot features a durable coating. To maintain its condition:

• Use only the provided plastic rice scoop or other non-metallic utensils to avoid scratching the non-stick coating.
• Avoid harsh scrubbing pads or abrasive cleaners.

Figure 7: Forged Kamado Copper Pot design.

7. Solución de problemas

Si tiene problemas con su olla arrocera, consulte los siguientes problemas y soluciones comunes:

Si el problema persiste después de probar estas soluciones, comuníquese con el servicio de atención al cliente.

8. Especificaciones

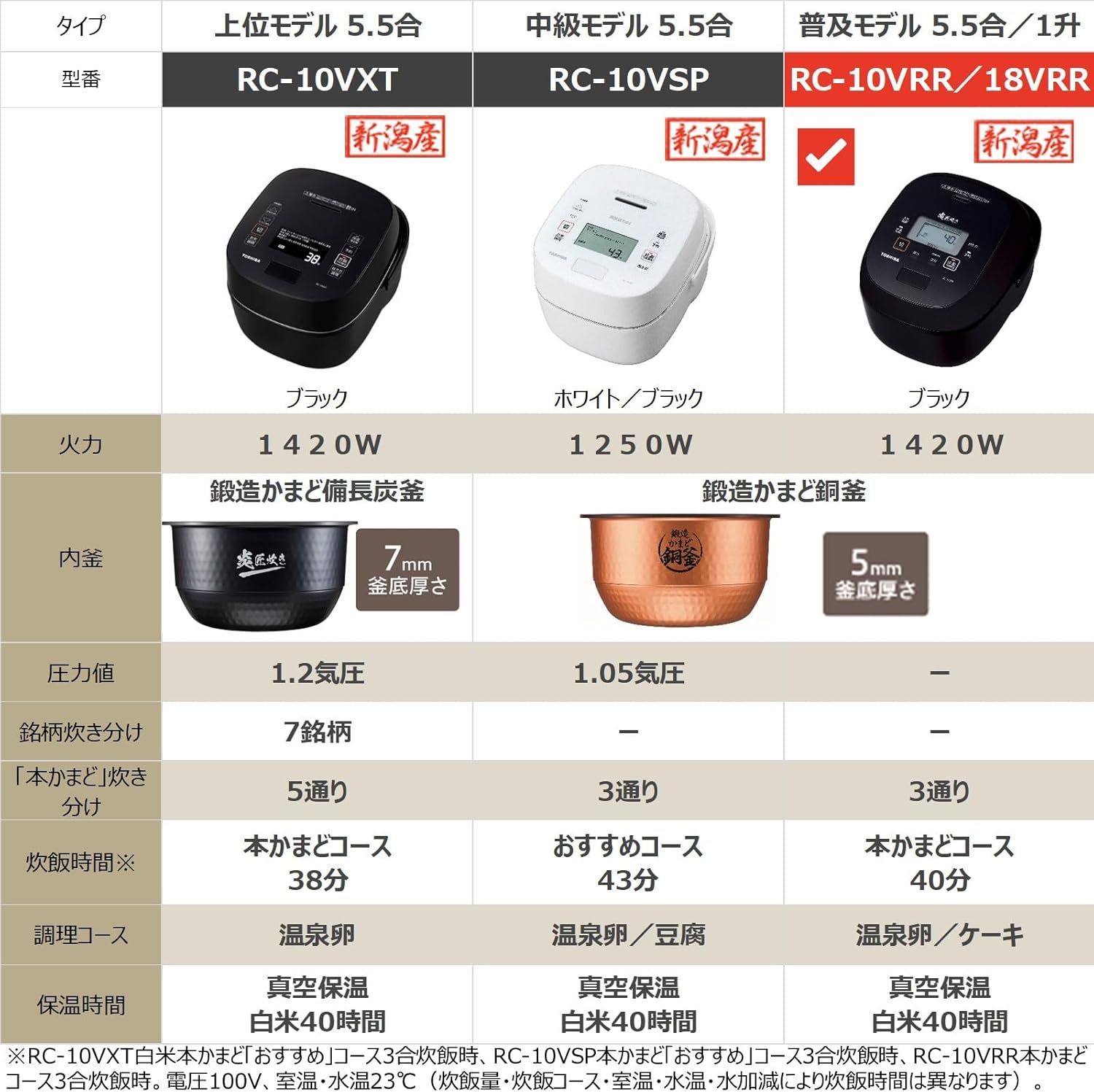

Figure 8: Model comparison and key specifications.

9. Garantía y soporte

This TOSHIBA RC-10VRR rice cooker comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including the warranty period and coverage details. The inner pot's coating is typically covered by a 3-year warranty.

9.1 Atención al cliente

For technical assistance, warranty claims, or general inquiries, please contact TOSHIBA customer support. Contact information can usually be found on the official TOSHIBA websitio o en la documentación proporcionada con su producto.

When contacting support, please have your model number (RC-10VRR) and purchase date ready.
