LAMPAOUS Smart Under Cabinet Lighting System User Manual

1. Introducción

Thank you for choosing the LAMPAOUS Smart Under Cabinet Lighting System. This product is designed to provide versatile and intelligent illumination for your home, offering both functional white light and vibrant RGB colors. With smart control features, you can easily manage your lighting experience via a smartphone application or voice commands through compatible smart assistants.

2. Producto terminadoview Y componentes

El lAMPAOUS Smart Under Cabinet Lighting System (6 Lights Bar Kit) includes the following components:

• 6 x LED Light Bars (12"L x 1.5"W x 0.35"H each)
• 1 x adaptador de corriente
• 1 x Smart Control Box
• Cables de extensión (varias longitudes)
• Mounting Hardware (adhesive tape and screws/clips)

3. Configuración

3.1 Conexión inicial

1. Connect the LED light bars to the Smart Control Box using the provided cables. Ensure all connections are secure.
2. Connect the Power Adapter to the Smart Control Box.
3. Plug the Power Adapter into a standard electrical outlet. The lights should illuminate.

3.2 Instalación y emparejamiento de la aplicación

1. Download the 'Smart Life' application from your smartphone's app store (available on iOS and Android).
2. Regístrese o inicie sesión en su cuenta Smart Life.
3. In the app, tap '+' to add a new device. Follow the on-screen instructions to put the lighting system into pairing mode (usually by cycling power or pressing a button on the control box).
4. Select the lighting device from the app's discovery list and complete the pairing process. Ensure your Wi-Fi network is 2.4GHz, as the device may not support 5GHz networks.

4. Instrucciones de funcionamiento

4.1 Control de aplicaciones

The Smart Life app allows comprehensive control over your lighting system from anywhere. You can manage individual lights or group them for synchronized control.

• Encendido/apagado: Toggle the power for the lights.
• Ajuste de brillo: Ajuste la intensidad de la luz del 0% al 100%.
• Selección de colores: Choose from over 16 million RGB colors.
• Temperatura de color: Ajuste la luz blanca de 2700K (blanco cálido) a 6500K (blanco frío).
• Modos de escena: Select pre-set lighting scenes or create custom ones.
• Programación: Set timers for lights to turn on/off at specific times.

4.2 Control de voz

The lighting system is compatible with Amazon Alexa and Google Assistant, allowing for hands-free control.

• Enlace: Link your Smart Life account to your Alexa or Google Home app.
• Comandos: Use voice commands such as "Alexa, turn on kitchen lights" or "Hey Google, set cabinet lights to blue."

4.3 Ajuste de color y brillo

The RGBCW design allows for both rich colored lighting and high-quality white light. The white light is produced by dedicated white LEDs (CRI > 85), not a mix of RGB colors, ensuring accurate and bright illumination.

4.4 Music Sync & Timer Mode

Enhance your environment with dynamic lighting effects that respond to music or automate your lighting schedule.

• Sincronización musical: The lights can change color and flash in sync with the rhythm of music played nearby or through the app.
• Modo temporizador: Program your lights to turn on or off at specific times, providing convenience and energy savings.

5. Instalación

The lighting bars can be installed using either adhesive tape or screws and clips, offering flexibility for various surfaces.

5.1 opciones de montaje

• Cinta adhesiva: For smooth, clean surfaces, use the pre-applied adhesive tape on the back of each light bar. Ensure the surface is dry and free of dust or grease before application for optimal adhesion.
• Tornillos y clips: For a more permanent installation or uneven surfaces, use the provided screws and clips. Mark the desired positions, drill pilot holes if necessary, and secure the clips before snapping the light bars into place.

5.2 Placement and Expansion

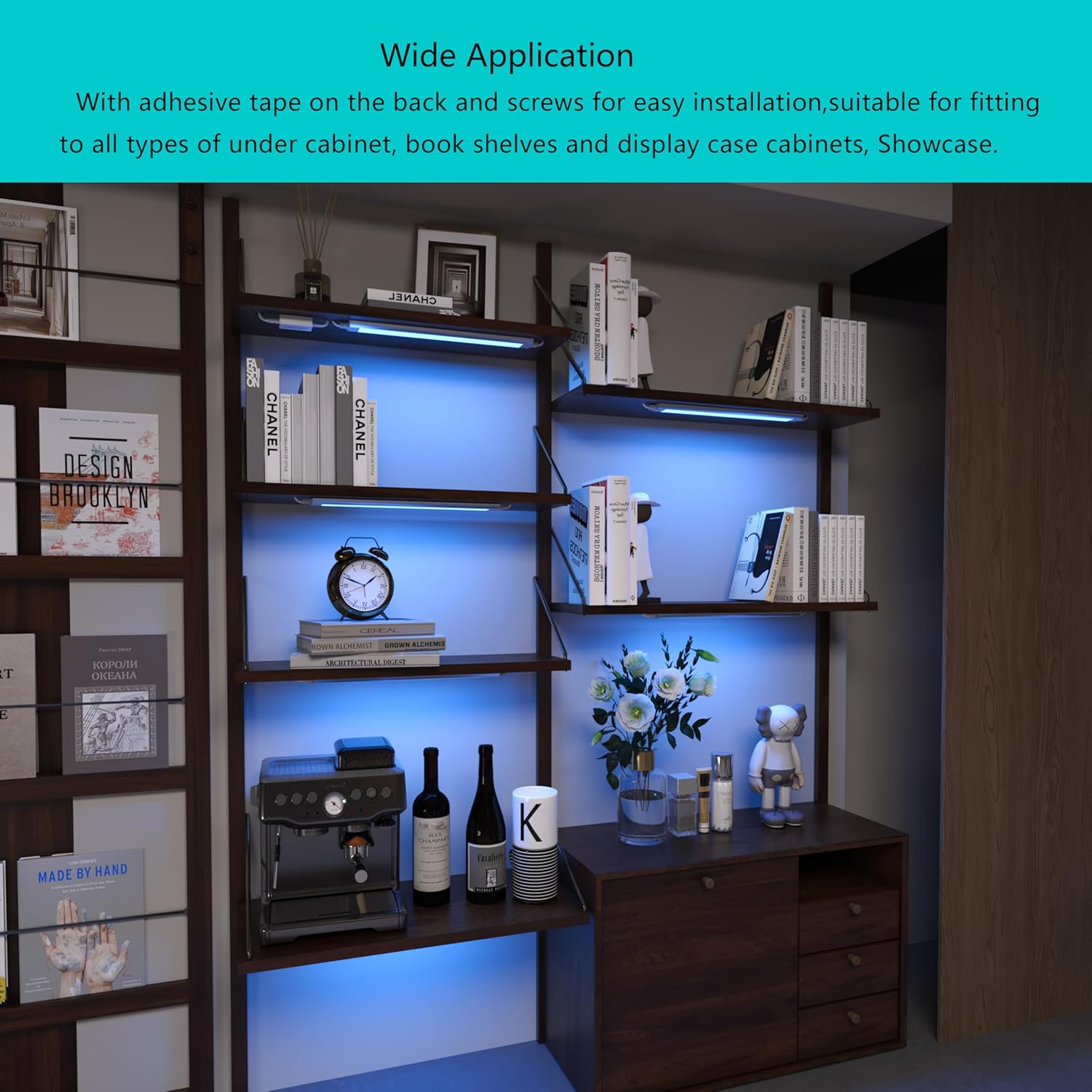

The LED light bars are linkable and expandable, allowing for flexible layouts to suit your specific needs, whether for cabinets, bookshelves, or display cases.

6. Mantenimiento

To ensure the longevity and optimal performance of your LAMPAOUS Smart Under Cabinet Lighting System, follow these simple maintenance guidelines:

• Limpieza: Gently wipe the light bars with a soft, dry cloth to remove dust. For stubborn marks, a slightly damp cloth can be used, but ensure the lights are unplugged and completely dry before reconnecting power.
• Evite los productos químicos agresivos: No utilice limpiadores abrasivos, solventes o productos químicos agresivos, ya que pueden dañar el acabado o los componentes electrónicos.
• Inspeccionar las conexiones: Periodically check all cable connections to ensure they remain secure and free from damage.
• Condiciones ambientales: This product is designed for indoor use only and is not water resistant. Avoid exposure to excessive moisture or extreme temperatures.

7. Solución de problemas

If you encounter issues with your lighting system, please refer to the following common troubleshooting steps:

• Las luces no se encienden:
  • Check if the power adapter is securely plugged into both the control box and the wall outlet.
  • Ensure all light bar connections to the control box are firm.
  • Verifique que el tomacorriente de pared funcione enchufando otro dispositivo.
• Las luces no responden a la aplicación/control de voz:
  • Confirm your smartphone or smart assistant device is connected to the internet.
  • Check if the lighting system is still connected to your Wi-Fi network (2.4GHz recommended).
  • Reinicie la aplicación Smart Life.
  • Unplug the lighting system from power for 10 seconds, then plug it back in to reset.
  • If the issue persists, try re-pairing the device with the Smart Life app.
• Incorrect Colors or Flickering:
  • Asegúrese de que la aplicación esté actualizada a la última versión.
  • Check for any loose connections between the light bars and the control box.
  • Perform a power cycle (unplug and replug) to reset the system.
• Difficulty with Voice Assistant Integration:
  • Verify that the Smart Life skill/service is enabled in your Alexa or Google Home app.
  • Ensure the device names in Smart Life match those recognized by your voice assistant.
  • Intente volver a descubrir los dispositivos a través de su aplicación de asistente de voz.

If these steps do not resolve the issue, please contact LAMPAOUS customer support for further assistance.

8. Especificaciones

9. Garantía y soporte

LAMPAOUS products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or replacement parts, please refer to the contact information provided with your product packaging or visit the official LAMPAOUS website. Please have your model number (YF-P-CA-06) and purchase details ready when contacting support.
