Sony FX30 Digital Cinema Camera (ILME-FX30B) User Manual

Enkonduko

This manual provides essential instructions for the safe and effective use of your Sony FX30 Digital Cinema Camera. The Sony FX30 is designed for content creators and filmmakers, featuring an APS-C sensor for cinematic capture. Please read this manual thoroughly before operating the camera and retain it for future reference.

Enhavo de Pako

Kontrolu, ke ĉiuj sube listigitaj eroj estas inkluzivitaj en via pakaĵo. Se iuj eroj mankas aŭ estas difektitaj, bonvolu kontakti vian vendiston.

Image: The Sony FX30 Digital Cinema Camera body with various accessories including a memory card, LED light, microphone, and stabilization grip.

Sony Manufacturer Items:

• Sony FX30 Digital Cinema Camera Body
• Sony NP-FZ100 Rechargeable Lithium-Ion Battery
• Sony AC Adapter
• Sony ALC-B1EM Korpoĉapo por E-Monturaj Fotiloj
• Sony Multi Interface Ŝuo-Ĉapo
• USB-A to USB-C Cable (USB 3.2)

Bundled Items:

• SanDisk 128GB High Speed Extreme Pro SD Memory Card
• High Power LED Light with Diffusers
• Ĉaspafilo Mikrofono
• Padded Deluxe Camera Bag
• U-Stabilization Grip
• Extra Replacement Battery (Compatible with NP-FZ100)
• Pistol Hand Grip
• Photo & Video Editing Software (1 Year Digital Download)
• USB Memory Card Reader
• Camera Hand Grip Strap
• Lens Pen
• Lensoblovilo
• Camera Starter Kit (Microfiber Cloth, Memory Card Case, Buds)

Agordi

1. Bateria Instalado

Insert the provided Sony NP-FZ100 battery into the battery compartment located at the bottom of the camera. Ensure it clicks into place securely. Charge the battery fully before first use using the supplied AC adapter and USB-A to USB-C cable.

2. Instalo de Memorkarto

The FX30 supports SD memory cards. Open the memory card slot cover, typically located on the side of the camera. Insert the SanDisk 128GB Extreme Pro SD card with the label facing the correct direction until it clicks into place. The camera features dual card slots for extended recording or backup.

Bildo: Malantaŭo view of the Sony FX30 showing the open memory card slots with two SD cards partially inserted.

3. Attaching the Body Cap

When no lens is attached, always keep the Sony ALC-B1EM Body Cap on the camera's E-mount to protect the sensor from dust and damage.

4. Unua Ŝaltado

Press the power button to turn on the camera. Follow any on-screen prompts for initial setup, such as language selection and date/time settings.

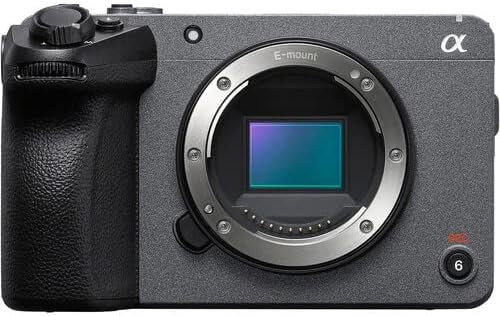

Bildo: Fronto view of the Sony FX30 camera body, showcasing the E-mount lens interface and grip.

5. Alkroĉante akcesoraĵojn

Attach the U-Stabilization Grip, Shotgun Microphone, and LED Light as needed for your shooting requirements. The camera features a Multi Interface Shoe for compatible accessories.

Funkciigante la Fotilon

Bazaj Kontroloj Superview

Familiarize yourself with the camera's main controls for efficient operation.

Bildo: Malantaŭo view of the Sony FX30, highlighting the LCD screen, MODE dial, MENU button, and various control buttons and dials.

• MODE Dial: Elektas fotajn reĝimojn.
• Butono MENU: Accesses camera settings and functions.
• FOCUS MAG: Magnifies the display for precise focusing.
• Butono Fn (Funkcio): Provizas rapidan aliron al ofte uzataj agordoj.
• Butono DISP (Ekrano): Changes the information displayed on the screen.
• Kontrola Rado: Navigates menus and adjusts settings.
• Zebra/Peaking: Assists with exposure and focus.

Bildo: Supre view of the Sony FX30, showing the Multi Interface Shoe, IRIS, WB, ISO buttons, and the REC button.

• IRIS Button: Adjusts aperture.
• WB (White Balance) Button: Sets white balance.
• ISO-Butono: Alĝustigas ISO-sentemon.
• Butono REC: Komencas kaj haltigas videoregistradon.

Operacio de Tuŝekrano

The FX30 features a touch-sensitive LCD screen for intuitive control. You can tap to select menu items, adjust focus, and navigate settings directly on the display.

Image: A hand interacting with the touch-sensitive LCD screen on the back of the Sony FX30 camera.

Registrado de Video

To begin recording, ensure a memory card is inserted and the battery is charged. Press the REC button to start recording. Press it again to stop. The camera supports video capture resolutions up to 4K and 1080p in MP4 format.

Konektebleco

The Sony FX30 supports Wi-Fi connectivity for remote control, file transfer, and other smart functions. Refer to the camera's on-screen menu for Wi-Fi setup instructions.

Prizorgado

• Purigado de la Fotila Korpo: Uzu molan, sekan tukon por viŝi la fotilan korpon. Por obstina malpuraĵo, iomete viŝu.ampLavu la tukon per akvo. Evitu uzi fortajn purigilojn.
• Purigado de la Lenso kaj Sensilo: Use a lens blower to remove dust from the lens and sensor. For smudges on the lens, use a lens pen or a specialized lens cleaning solution with a microfiber cloth. Sensor cleaning should be performed with extreme care or by a professional.
• Prizorgado de Bateria: Store batteries in a cool, dry place. Avoid fully discharging batteries frequently to prolong their lifespan.
• Stokado: When not in use, store the camera in a dry, dust-free environment, preferably in the padded deluxe camera bag provided.

Solvado de problemoj

This section addresses common issues you might encounter. For more detailed troubleshooting, refer to the official Sony support webretejo.

• Camera Does Not Power On: Ensure the battery is fully charged and correctly inserted. Try using the extra replacement battery.
• Eraro de Memorkarto: Reinsert the memory card. Ensure it is formatted correctly by the camera. Try a different memory card if the issue persists.
• Neniu Videoregistrado: Check if the memory card has sufficient free space. Verify that the camera is in a video recording mode.
• Problemoj pri Kvalito de Bildo: Check lens cleanliness. Ensure appropriate ISO, aperture, and shutter speed settings for your lighting conditions.

Specifoj

Garantio kaj Subteno

The Sony FX30 Digital Cinema Camera comes with a Limited 1-Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims.

For technical support, service, or further information, please visit the official Sony support webretejo aŭ kontaktu ilian klientan servon. Vi povas trovi pliajn informojn ĉe la Sony Subteno Webretejo.
