Lutron Maestro Occupancy/Vacancy Sensor Switch (MS-OPS6M2N-DV-WH) Instruction Manual

1. Produkto Finitaview

The Lutron Maestro MS-OPS6M2N-DV-WH is an advanced occupancy/vacancy sensor switch designed to automatically control lighting in a room. This device utilizes passive infrared (PIR) technology to detect human motion and presence, ensuring lights are only on when needed. It combines the functionality of a standard light switch with an integrated motion sensor, offering convenience and energy savings.

Ĉefaj Trajtoj:

• Passive infrared motion detection with Lutron XCT technology for fine motion sensing.
• 180-degree sensor field-of-view for comprehensive room coverage.
• Requires a neutral wire for installation.
• Occupancy version supports both auto-on/auto-off and manual-on/auto-off modes.
• Vacancy version is available to comply with CA Title 24 requirements.

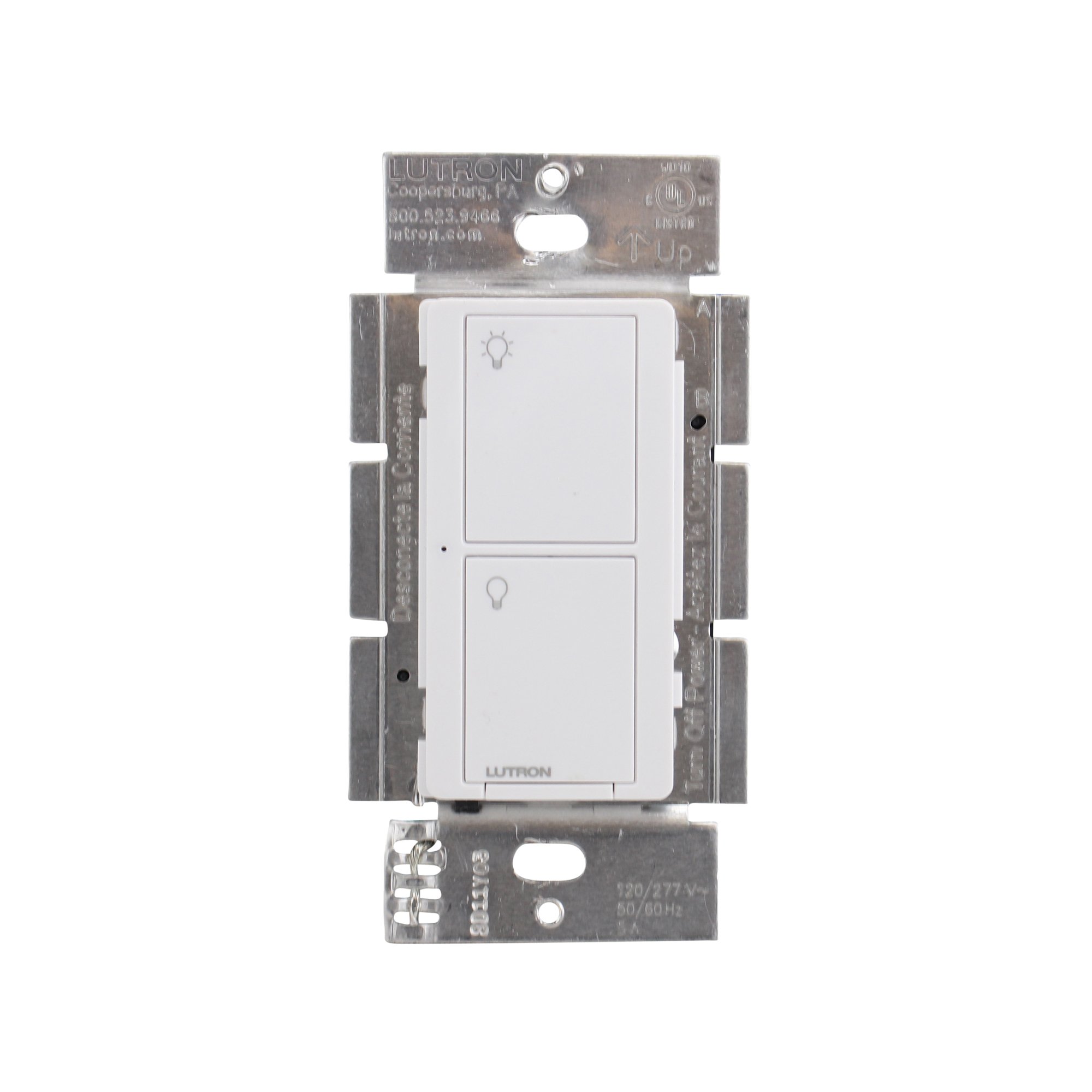

Figuro 1: Fronto view of the Lutron Maestro MS-OPS6M2N-DV-WH sensor switch.

2. Instalado kaj Instalado

Gravaj Sekurecaj Informoj: Before beginning installation, turn off power at the circuit breaker or fuse box. Incorrect installation can lead to electrical shock or fire. If you are unsure about any part of these instructions, consult a qualified electrician.

Iloj Bezonataj: Screwdriver (Phillips and flathead), wire strippers, electrical tape.

2.1 Elektraj Instrukcioj

1. Malŝalti potencon: Trovu la ŝaltilon, kiu regas la ŝaltilon, kiun vi anstataŭigas, kaj malŝaltu ĝin. Kontrolu, ke la elektro estas malŝaltita per voltimetro.tage testanto.
2. Forigi Ekzistantan Ŝaltilon: Carefully remove the wall plate and unscrew the existing switch from the wall box. Disconnect the wires from the old switch.
3. Identigu Dratojn:
   • Varma (Linia) Drato: Tipe nigra, alportas potencon de la ŝaltilo.
   • Ŝarĝo drato: Typically black, connects to the light fixture.
   • Neŭtrala drato: Typically white, required for this switch.
   • Terdrato: Tipe nuda kupro aŭ verda.

   Note: If you are replacing a 3-way switch, you will also have traveler wires. This model supports 3-way circuits. Refer to the detailed wiring diagram for 3-way installations.

4. Connect Wires to Maestro Switch:
   • Konektu la grunda drato from the wall box to the green ground wire on the Maestro switch.
   • Konektu la neŭtrala drato from the wall box to the white neutral wire on the Maestro switch.
   • Konektu la hot (line) wire kaj load wire from the wall box to the two black wires on the Maestro switch. If the light does not function correctly, swap these two black wires.
   • For 3-way applications, connect the traveler wires as per the specific 3-way wiring diagram provided with the product packaging.
5. Sekura Ŝaltilo: Carefully push the wired switch into the wall box, ensuring wires are not pinched. Screw the switch into place.
6. Instalu Muran Teleron: Attach the decorative wall plate.
7. Restarigu potencon: Reŝaltu la elektron ĉe la ŝaltilo.

Figuro 2: Ekzample wiring diagram for a single-pole installation. Consult the included manual for 3-way wiring.

3. Funkciaj Instrukcioj

The Maestro sensor switch offers flexible operation modes to suit various needs.

3.1 Reĝimoj de Operacio

• Occupancy Mode (Auto-On/Auto-Off): In this mode, the lights automatically turn ON when motion is detected and automatically turn OFF after a set time delay when no motion is detected. This is ideal for high-traffic areas where hands-free operation is desired.
• Vacancy Mode (Manual-On/Auto-Off): In this mode, the lights must be manually turned ON by pressing the switch button. They will then automatically turn OFF after a set time delay when no motion is detected. This mode is often used to meet energy codes and provides more control over when lights are initially activated.

3.2 Ĝustigante Agordojn

The Maestro sensor switch typically has small buttons or dip switches behind the wall plate for adjusting settings such as:

• Tempo Prokrasto: How long the lights remain on after the last detected motion (e.g., 1, 5, 15, 30 minutes).
• Sentemo: The level of motion required to trigger the sensor.
• Funkcia Reĝimo: Switching between Occupancy (Auto-On) and Vacancy (Manual-On) modes.

Refer to the detailed instructions included with your product for specific steps on how to access and adjust these settings.

4. Prizorgado

The Lutron Maestro sensor switch requires minimal maintenance to ensure optimal performance.

• Purigado: To clean the surface of the switch, use a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or internal components.
• Sensila Obstrukco: Ensure the sensor lens is not obstructed by furniture, curtains, or other objects that could block its field of view. A clear path to the sensor is crucial for accurate motion detection.
• Polvamasiĝo: Periodically wipe the sensor lens to prevent dust accumulation, which can reduce sensitivity.

5. Respondecaj problemoj

If you encounter issues with your Maestro sensor switch, refer to the following common troubleshooting steps:

• Lights do not turn ON automatically (Occupancy Mode):
  • Verify the sensor's field of view ne estas obstrukcita.
  • Check the sensitivity setting; it might be too low.
  • Ensure the switch is in Occupancy (Auto-On) mode.
  • Confirm power is supplied to the switch.
• Lights do not turn OFF:
  • Certigu, ke ne estas kontinua moviĝo ene de la atingodistanco de la sensilo.
  • Check the time delay setting; it might be set too long.
  • Verify the switch is correctly wired, especially the load wire.
• Lights flicker or behave erratically:
  • Confirm that a neutral wire is properly connected. This switch requires a neutral wire for stable operation.
  • Certigu, ke ĉiuj drataj konektoj estas sekuraj.
  • If in a 3-way setup, ensure compatible companion switches are used and wired correctly.
• Switch is unresponsive:
  • Turn off power at the circuit breaker for 15 seconds, then restore power. This can reset the switch.
  • Check all wiring connections for looseness or incorrect placement.

If these steps do not resolve the issue, contact Lutron customer support for further assistance.

6. Specifoj

7. Produktaj filmetoj

8. Garantiaj Informoj

Lutron products typically come with a limited warranty covering defects in materials and workmanship. For specific warranty terms and conditions applicable to your MS-OPS6M2N-DV-WH sensor switch, please refer to the warranty card included in the product packaging or visit the official Lutron webretejo. Konservu vian pruvon de aĉeto por garantiaj reklamoj.

9. Klienta Subteno

For technical assistance, troubleshooting, or product inquiries, please contact Lutron customer support. You can find contact information on the official Lutron webretejo aŭ ene de la produkta dokumentado.
