emotn DBRC13 BLE and Infrared Remote Control Instruction
Product Information
Specifications
- Product Name: BLE and Infrared Remote Control
- Compliance: FCC Part 15, IC RSS(s)
- RF Exposure: General FCC and IC requirements met
Installation
Make sure the receiver is properly connected before using the remote control. Consult a dealer or a radio/TV technician for assistance if needed.
Power On/Off
To power on/off the device, press the designated power button on
the remote control.
Functionality
Use the remote control to navigate through different functions and settings of the connected device. Refer to the device’s user manual for specific instructions on each function.
Range
Ensure the remote control is within the specified range of the receiver for optimal performance.
Frequently Asked Questions
Q: What should I do if the remote control is not working?
A: Check if the batteries are properly inserted and have sufficient power. Ensure there are no obstructions between the remote control and the receiver. If issues persist, contact customer support for further assistance.
Q: Can the remote control be used with multiple devices?
A: The compatibility of the remote control with multiple devices may vary. Refer to the user manual of each device to determine if the remote control can be used universally.

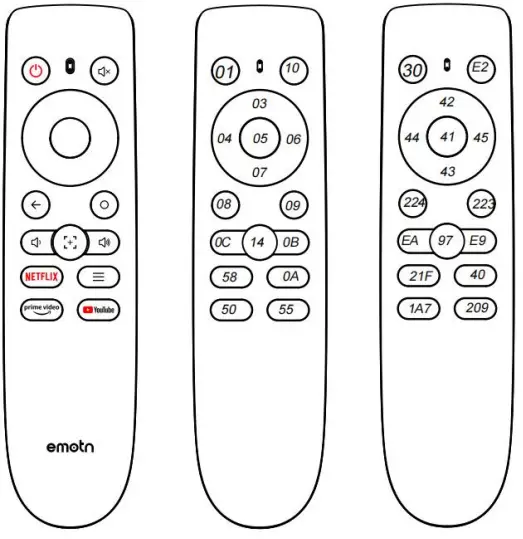

PRODUCT OVERVIEW
The remote control has two modes: infrared and bluetooth
- The indicator color of the remote control is Red
- When Bluetooth is not connected, the LED flashes once every time you press the button; For a long time, the LED still flickers once and then goes out;
- During Bluetooth pairing,LED flash slowly with a period of 500ms; If the connection is successful, steady on for about 3 seconds and then off
- When Bluetooth is connected, the LED does not blink when pressed
- Bluetooth pairing:Press the “right” and “Vol-” keys of the remote control at the same time, release when the LED blinks, the remote control will send the broadcast packet, and then operate on the host side for pairing.
- The name of Bluetooth device is Emton
FCC
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
The remote control has been evaluated to meet general FCC RF exposure requirements.
The remote control can be used in portable exposure conditions without restriction.
IC STATEMENT
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device
The remote control has been evaluated to meet the general requirements for IC RF exposure.
The remote control can be used in portable exposure condition without restriction
