eMoMo Remo4.2BLU Multi Function Audio System

Product Description

Bluetooth name: REMO4

Audio Function

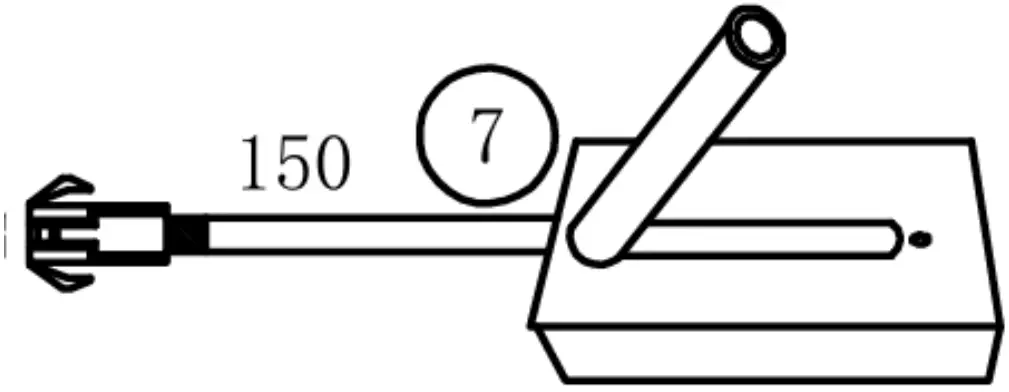

1. Connect the product according to the assembly drawing and power it on.
2. Upon powering on, the device enters Bluetooth search mode accompanied by a voice prompt.
3. Enable Bluetooth on your phone, search for the Bluetooth name: REMO4, and pair it. A voice prompt will indicate a successful pairing.
4. Open the music app on your phone and start playing music. You can control play/pause, previous track, next track, volume up, volume down, and Bluetooth disconnection from your phone. A voice prompt will indicate Bluetooth disconnection.

Usb Charging Function

1. USB-A : Supports charging mobile electronic devices with a standard USB-A interface data cable.
2. USB-C Supports charging mobile electronic devices with a standard USB-C interface data cable:

• Bedhead reading light function:

• Turn the switch upwards to turn it downwards:
• Light strip control function:


1. Short press for the first time: white
2. Short press the second time: red.
3. Short press for the third time: green.
4. Short press for the fourth time: blue.
5. Short press for the fifth time: blush.
6. Short press for the sixth time: Close.
   Such a cyclic switching.

Product Parameters

Power Input	15V6A
Sound power	7W*2+12W
USB Output	20W*2
Reading light Output	3W*2
LED Output	9W*2

Common Troubleshooting

Problem/Issue	Possible causes and solutions
No sound at all	The volume switch is on minimum; the unit is not set to the correct function; please contact with the store or customer service.
Bluetooth can not pair	Please close all other pairing machines and retry; Please wait a few seconds or restart the machine; Do not pair the devices behind a wall or in corner, please keep the working space within 8 meters; Pair the device named: REMO4

RF exposure statement

This equipment complies with the FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Fcc Warning

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:

1. This device may not cause harmful interference, and.
2. this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: That changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device. pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
A the following measures.

• Reorient or relocate the receiving antenna.
• increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Documents / Resources

eMoMo Remo4.2BLU Multi Function Audio System [pdf] Instruction Manual 2BHM7-REMO42, 2BHM7REMO42, Remo4.2BLU Multi Function Audio System, Remo4.2BLU, Multi Function Audio System, Function Audio System, Audio System, System
