Update Advisory Supervisory Control Platform
Firmware 2.21F01
Release Notes
2.21F01 Advisory Supervisory Control Platform Firmware
A new general release version of the Supervisory controller firmware version 2.21 F0r has been released and is available for customer upgrade. For more information, visit the Supervisory Control page on the Emerson website: https://climate.emerson.com/en-us/products/controls-monitoring-systems/facility-controls-electronics/facility-and-system-controls/lumity-supervisorycontrols-platform
IMPORTANT:
- Reset or power cycle an upgraded E3 approximately10 minutes after the upgrade is complete.
Who Should Update
Emerson recommends that all customers upgrade their Supervisory controllers and PCs running Connect+ to the latest version to take advantage of the latest fixes and enhancements listed in Table 3.
All customers who use any of the features below are advised to upgrade to Supervisory controller 2.21F01, and customers using any of the features listed in Table 3.
| Global Data | Time Schedules |
| XM Circuit Application | System Logs |
| Floor plans | CANbus |
| Smart Alarms | Enhanced Suction |
| System Backup | Connect+ |
| Online Help | Backup/Restore |
| BACnet | M400 Device |
| Offline Programming | |
CONNECT+ UPDATE RECOMMENDED
| Supervisory Controller Version | Recommended Connect+ Version |
| 2.21F01 | 1.5.4F01 |
Table 1 – Supervisory Controller and Connect+
Compatibility Matrix
It is recommended to upgrade to the latest Connect+ version. If you plan to upgrade Supervisory controllers and Connect+ at the same time, upgrade Connect+ to the latest version first, then update the Supervisory controllers. Contact Emerson for more information about upgrading.
CONTROLLER FIRMWARE COMPATIBILITY
| Firmware | Platform |

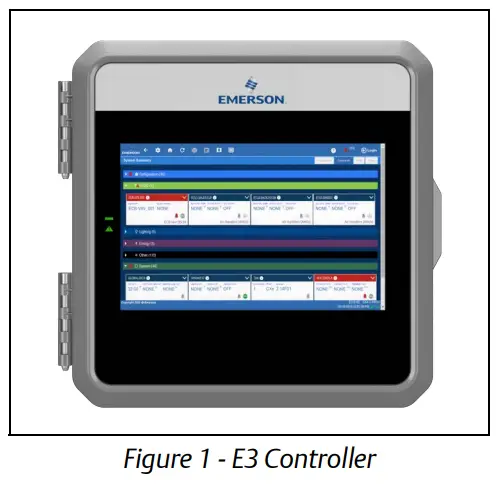

| E3_#.#####_ Display_Update | E3 only |
| E3_#.#####_ Firmware_Update | E3 and Site Supervisor |

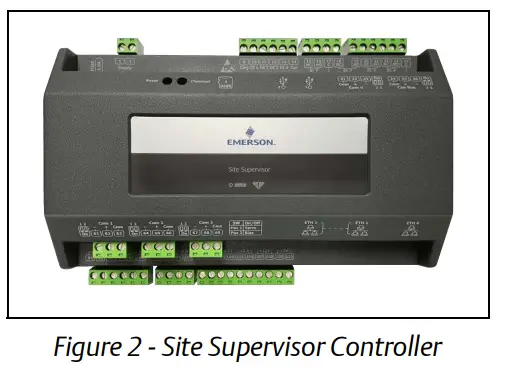

| SS_#.#####_ Firmware_Update | Site Supervisor only |
Table 2 – Firmware Platform Mapping
| Features and Fix Descriptions | Supported in Supervisory Controllers 2.21F01 |
| Features | |
| Smart Alarms > Smart Alarm function is now supported for CO2 and Enhanced Condenser applications. |
 |
| Calendar Enhancements for Schedules > Time options added and new Day and Holiday selections added for slave events. •Master Time – Schedule for the master event. •Overlap Time – Time of the slave event that is shared with the master schedule. •Reduced Time – Displayed with the slave event and scheduled to end before the master schedule event (may be based on relative or absolute time). •Slave Time – Event starts prior to master event and/or ends after master event schedule (based on relative time only). •Absolute Time – Time displayed in blue occurs before or after the master event start and end times (based on absolute time only). |
|
| Password Lockout > If an incorrect password is entered 10 times in a row, the user will be locked out for 30 minutes. A message will appear to show the number of remaining attempts. |
|
| Send To Tile Points > Source points can be sent to target users. Tile point changes to an application can be sent selectively to other applications of the same type. Tile point displays can be easily created for specific applications and users. |
|
| XM Circuit > Case Clean out support added. Enable from the Cleaning Switch parameter in the General tab of the XM Circuit application. Set the mode from the Cleaning Mode parameter and configure Failsafe time settings. |
|
| Sporlan Kelvin 2 Support added; license required. |
|
| Fixes | |
| Time Schedule > Two events can no longer be added to a slave schedule that conflict with each other (for example, events with the same parameters, with the exception that the first event has no OFF event.) A warning message will appear. |
|
| BACnet > BACnet IP Broadcast is now supported. > The unit number is now visible in the Audit Log and Service Log for the setpoint file. |
|
| Online Help • XM Circuit > Help text and links are now corrected. • System Summary Screen > Supported browsers added. • XEV22D 1.1 > Help support added. • M400 > Help support added. • CoreSense > Help support added. • IPX6, IPX15, IPX12 > Property and page level help for additional parameters. • Onboard IO > Property and page level help for additional parameters. • Discus > Missing help icons are now visible. |
|
| Backup File Name Configuration > The Backup file name in the USB/SD card is now consistent with that in the local PC. |
|
| M400 Device > The Decel and Accel Rate value in the Setpoints tab now shows correct values for min and max. |
|
| E3 Global Data Application > The “Processor Temperature” property has been added on the “Sys Data” tab in E3. > “Sunrise Time” and “Sunset Time” values are now correct in the Solar Time tab. |
|
| UI Enhancement > The controller unit number is now included in the footer in the lower right of the screen. |
|
| Offline Programming > Floor plan files exported from Offline Programming are now correct and can be installed. |
|
| Floor plans > Alarm status no longer displays in “Alarm High Limit” and “Alarm Low Limit” for an E2 unit. |
|
| System Logs > The unit number is now visible in the Audit Log and Service Log for the setpoint file. |
|
| Enhanced Suction > The “None” setting removed for “Dgtl Lower %” and “Dgtl Upper %” properties. |
|
| CANbus > When using the Connect+ function, “Obtain Controller Info” in the IPX device relays will no longer intermittently activate. |
|
Table 3 – Supervisory Controller 2.21F01 Feature and Fix Matrix
Update Supervisory Controller
Supported Browsers
- Microsoft Edge v88 and later
- Mozilla Firefox 11 and later
- Google Chrome 61.0 and later
- Apple Safari® on iOS10 (iPhone® 5C, iPad® 4) and later
- Webview on Android 5.0 (Samsung Galaxy S4) and later
For Emerson Digital Cold Chain Technical Support
Document Part # 026-4082 Rev 0
This document may be photocopied for personal use.
Visit our website at www.climate.emerson.com for the latest technical documentation and updates.
Join Emerson Technical Support on Facebook http://on.fb.me/WUQRnt
For Technical Support call 833-409-7505 or email ColdChain.TechnicalServices@Emerson.com
The contents of this publication are presented for informational purposes only and they are not to be construed as warranties or guarantees, express or implied, regarding the products or services
described herein or their use or applicability. Emerson reserves the right to modify the designs or specifications of such products at any time without notice. Responsibility for proper selection,
use and maintenance of any product remains solely with the purchaser and end-user. ©2022 Emerson is a trademark of Emerson Electric Co.
