CrowPanel-CM4
Display Pi Terminal
User Manual v1. 0
Overview
CM4 Display is a multi-functional embedded industrial control device designed based on the Raspberry Pi platform. Equipped with a 7-inch capacitive screen, it has multiple industrial interfaces and supports multiple wireless communication protocols. By using the CM4 as the main controller, it quickly handles real-time control tasks and monitors ongoing operations. Its industrial design allows it to withstand harsh environments.
The CM4 Display integrates with Node-RED, which compatible with the software running on the Raspberry Pi and pre-installed Rasbian system. Using an all-in-one design, it boasts a robust open-source ecosystem tailored for various industry applications.

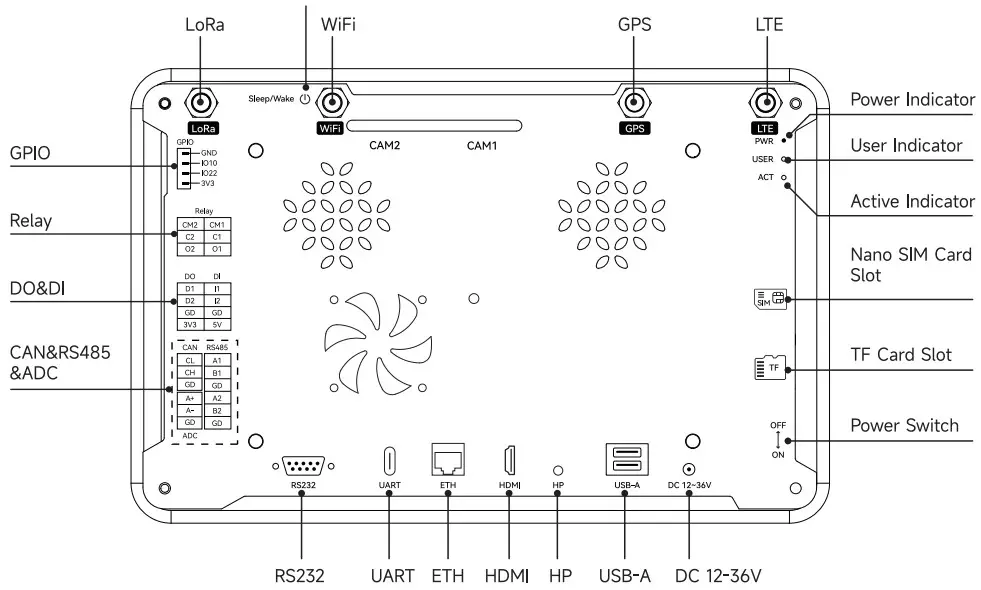

Interface
Note: The acrylic case needs to be purchased separately
Screen Backlight Control Key
Pin and Indicator Definition
PWR
CM4 Power Indicator
USER
User-defined Function Indicator
ACT CM4 Status Indicator
Specification-1
CM4 Processor
| CPU | Broadcom BCM2711, quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| Flash | 4GB |
| Storage | 64GB TF Card or SSD (Optional) |
| System | Raspbian (Compatible with Node-RED) |
Display
| Size | 7* |
| Resolution | 1024*600 |
| Luminance | 450 cd/m² |
| Touch Type | 5-point capacitive touch |
Wireless Communication
| WiFi | 2.4/5.0 GHz on CM4 |
| Bluetooth | BLE 5.0 on CM4 |
| LoRa | Mini-PCle socket (Optional) |
| LTE | Mini-PCle socket (Optional) |
Specification-2
Edge Interfaces
| 2″20Pin Header | Before referencing CM4 resources, please confirm whether the resources have been reused |
| CAM*2 | MIPI CS camera interface, compatible with all camera specifications of Raspberry Pi |
| GPIO | GND/GPIO10/GPIO22/3.3V, extend custom functions and connect to the button board to use custom functions |
| Relay | 2*3Pin, control the relay switch through high and low voltage levels |
| DO&DI | 2°4Pin, support two digital input and two digital output channels |
| CAN&RS485&ADC | 2*6Pin, RS485 occupies six pins, CAN occupies three pins, and ADC occupies three pins |
| RS232 | DBY interface, reserve external industrial non-isolated serial port |
| UART (Type-C) | USB2.0. USB to UART. Connect to USB device |
| ETH | RJ45 interface. 10/100/1000Mbps. Used for connecting to Ethernet or other local area networks |
Specification-3
Edge Interfaces
| HDMI | HDMI2.0. Used for video output. Support video output up to 4K @ 60 fps |
| HP | 3.5mm audio jack. Used for connecting headphone or microphone |
| USB-A*2 | USB-A 2.0. Used for connecting USB devices |
| DC 12-36V | Used for powering the device |
| TF Card Slot | 64GB TF card. Press the card to insert or eject it from the slot |
| Nano SIM Card Slot | Insert a Nano SIM card and pair it with a 4G module to provide 4G cellular data communication for the device |
| 2°4Pin Header | Used for expanding the USB interface |
Other Interfaces
| PoE | Power CM4 |
| Fan | Connect the fan to dissipate heat |
| SPK*2 | Connect the speakers for sound output |
Specification-4
Environmental Spec
| Front Panel IP Rating | P65 |
| Operating Temperature | -10~60°C |
| Storage Temperature | -20-70°C |
| Storage Temperature | 10-90% |
Parameters
| Front Glass Thickness | 1.8mm |
| With acrylic case | |
| Dimesion | 192*125*46mm |
| Net Weight | 6769 |
| Without acrylic case | |
| Dimesion | 182°115*29mm |
| Net Weight | 3899 |

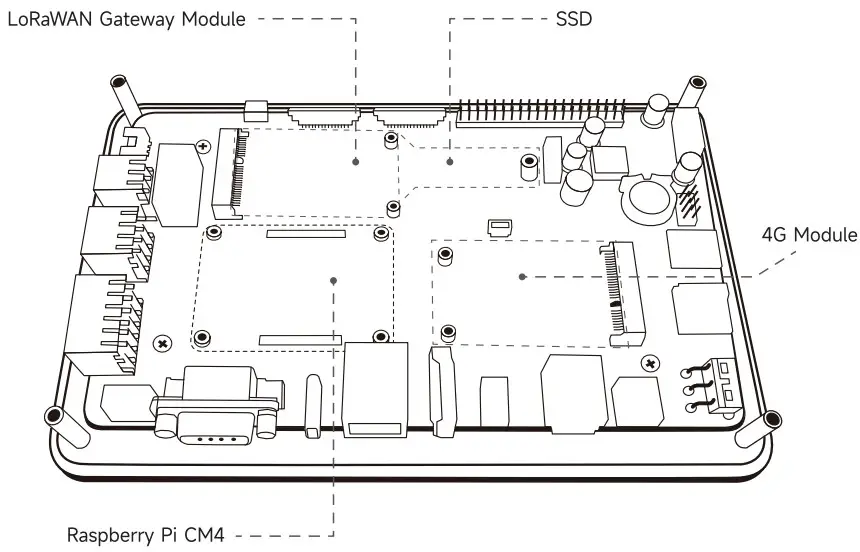

Installation-1
Installation-2

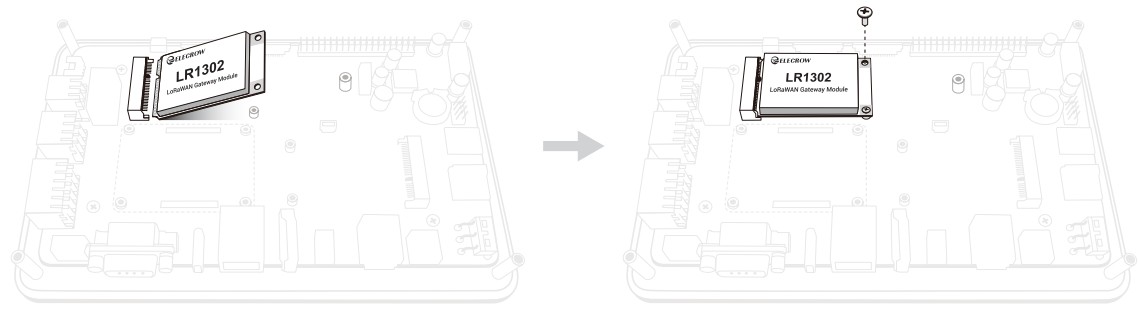

- Installation of LoRaWAN Gateway Module
- Installation of 4G Module
Please insert the modle at a 45° angle and then tighten the screws to lock it in place.
Installation-3

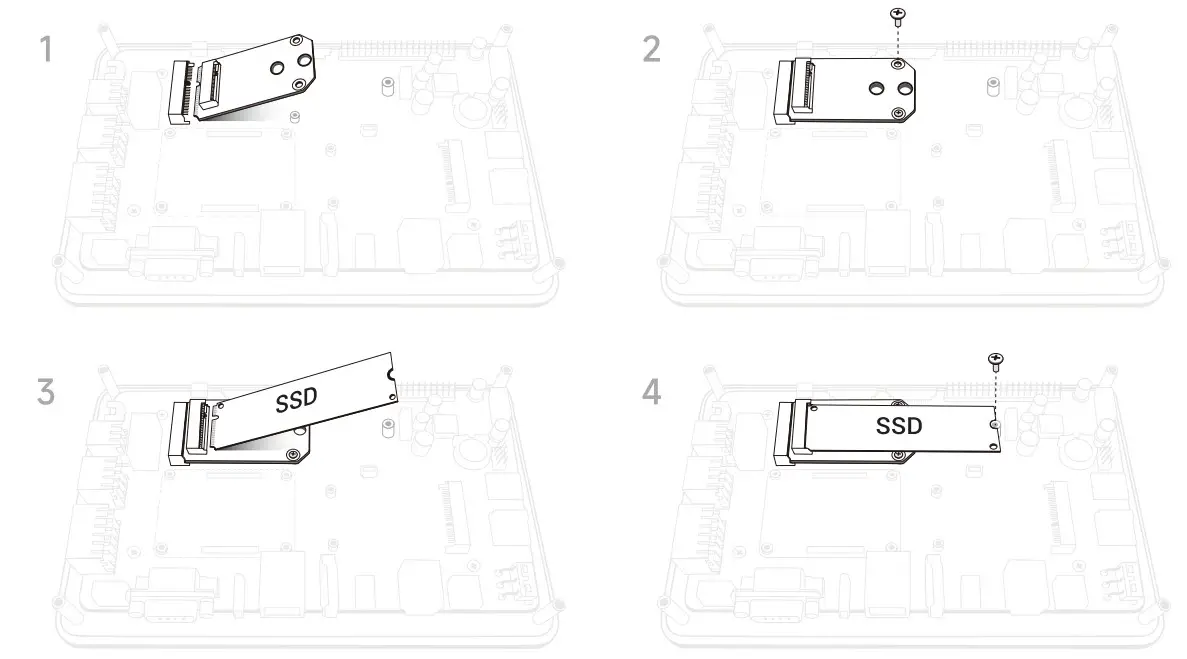

• Installation of SSD
Please insert the module at a 45° angle and tighten the screws to secure it
Package List
*Without Acrylic case
- CrowPanel-CM4 Display*1 (Optional Acryiic Case)
- Inserted 64GB TF Card”1 (image File Loaded)
- IPEX to SMA Female Adapter Cable”1
- 2*3Pin Phoenix Type Connector*l
- 2*4Pin Phoenix Type Connector*1
- 2*6Pin Phoenix Type Connector*1
- WiFi External Antenna*1
- 12V-2A Adapter’l
- User Manual’1
Customer Support
If you have any questions, customer support is always standing by.
info@elecrow.com techsupport@elecrow.com
For more technical details, please visit the relevant webpage.
