EATON B055-001-C NetDirector USB-C Server Interface Unit Owner’s Manual
Firmware Compatibility
Your KVM switch may require a firmware upgrade to work properly with a Server Interface Unit purchased prior to the KVM. Check your KVM switch’s owner’s manual for details.
NetDirector USB-C Server Interface Unit with Virtual Media Support (B064 Series), TAA

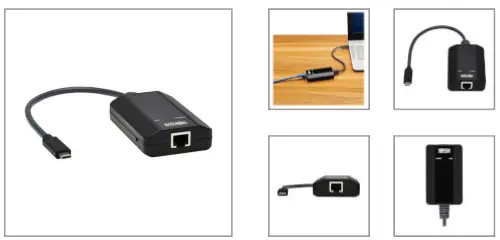

MODEL NUMBER: B055-001-C
Connects a Tripp Lite B064-Series KVM switch to the USB-C port on a computer or server via Cat5e cable.
Features
Convenient, Cost-Effective KVM Connection for Your Computer or Server
The B055-001-C NetDirector® USB-C Server Interface Unit (SIU) connects a server or computer with a USB-C port to a B064-Series KVM switch. This SIU supports hi-def video resolutions up to 1920 x 1200, including 1080p. Note: Your KVM switch must also support 1920 x 1200 to achieve maximum resolution.
No Need for Traditional Bulky KVM Cables
Allowing the server or computer to access the KVM switch’s Virtual Media functionality via Cat5e cable eliminates the need for bulky KVM cables. This allows Cat5e/6 cabling to run through conduit and other tight spaces, taking advantage of better ventilation and maximum flexibility when setting up your network application and saving space in your rack or network closet.
Convenient Plug-and-Play Setup
Get up and running right away. The B055-001-C requires no software or external power supply for operation. The unit’s compact, lightweight plastic housing is easy to handle and easy to set up. LEDs indicate power and link status.
TAA-Compliant for GSA Schedule Purchases
The B055-001-C is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Specifications
| OVERVIEW | |
| UPC Code | 037332272355 |
| Product Type | Server Interface Unit |
| Accessory Type | Server Interface Unit |
| Technology | Cat5/5e; USB; VGA/SVGA |
| Accessory Class | KVM Switch Accessories |
|
VIDEO |
|
| Supported Resolutions | 1920×1200 |
|
INPUT |
|
| Built-In Cable Length (ft.) | 0.82 |
| Built-In Cable Length (m) | 0.25 |
| Built-In Cable Length (in.) | 9.84 |
| Built-In Cable Length (cm) | 25 |
|
USER INTERFACE, ALERTS & CONTROLS |
|
| LED Indicators | Power (Orange); Link (Green) |
|
PHYSICAL |
|
| Color | Black |
| Material of Construction | PC (Plastic) |
| Cable Jacket Color | Black |
| Cable Jacket Material | PVC |
| Cable Jacket Rating | VW-1 |
| Cable Outer Diameter (OD) | 5.5 +/- 0.2 mm |
| Wire Gauge (AWG) | 30 |
| Unit Dimensions (hwd / in.) | 2.200 x 14.060 x 0.840 |
| Unit Dimensions (hwd / cm) | 5.6 x 35.7 x 2.14 |
| Unit Weight (lbs.) | 0.24 |
| Unit Weight (kg) | 0.11 |
|
ENVIRONMENTAL |
|
| Operating Temperature Range | 32° to 122°F (0° to 50°C) |
| Storage Temperature Range | -4° to 140°F (-20° to 60°C) |
| Relative Humidity | 0 to 80% RH, Non-Condensing |
|
CONNECTIONS |
|
| Side A – Connector 1 | RJ45 (FEMALE) |
| Side B – Connector 1 | USB C (MALE) |
|
STANDARDS & COMPLIANCE |
|
| Product Compliance | Trade Agreements Act (TAA) |
|
WARRANTY & SUPPORT |
|
| Product Warranty Period (Worldwide) |
3-year limited warranty |
1000 Eaton Boulevard
Cleveland, OH 44122 United States https://tripplite.eaton.com
