Dynamic Aqua Flusher

CHARGING INSTRUCTIONS

• THE AQUA FLUSHER MUST BE FULLY CHARGED BEFORE IT’S FIRST USE
• NEVER LEAVE UNATTENDED WHILST CHARGING
• MUST ONLY BE CHARGED USING THE SUPPLIED CHARGER AND CONNECTOR. WHEN CHARGING, A RED LIGHT IS SHOWN ON THE UNIT. WHEN FULLY CHARGED, THE LIGHT WILL TURN TO GREEN AND THE UNIT SHOULD BE UNPLUGGED
• CHARGING TIME: 9 HOURS.
• DO NOT USE IF THE CABLE OR CHARGER IS DAMAGED

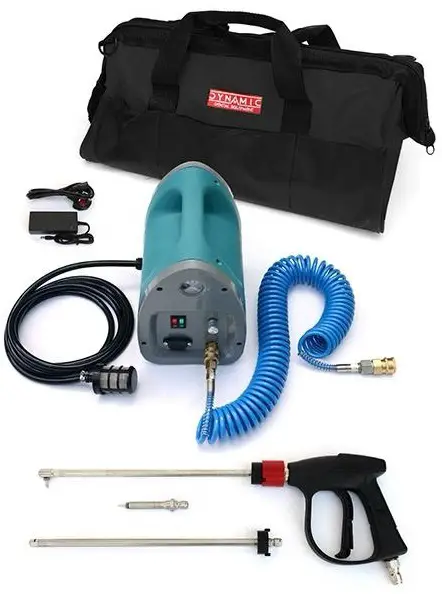

OVERVIEW

INSTRUCTIONS FOR USE

1. Lower the inlet pipe and filter into a bucket of clean water.
2. Connect the trigger handle by pulling back the spring loaded connector on the blue outlet pipe and insert the trigger handle male connector and you will hear it ‘click’ into place.
3. Connect the lance to the trigger handle in the same way.
4. To turn pump on:
   • Press the red button only if pressure regulation is required. Pressing the red and green buttons provides maximum power and water pressure. Pressure can be increased by turning the pressure regulator dial clockwise and decreased by turning the dial anti-clockwise.
5. The flusher is now ready for use.
6. IMPORTANT. Once finished, remove the inlet pipe from the water and whilst pressing the trigger for 5 seconds, all water should be pumped through and out of the lance.
7. To turn pthe ump off:
   • Both power buttons to off.
8. Disconnect the lance from the trigger handle. Gently shake any residual water off any parts. Clean and dry with a towel before putting away

TROUBLESHOOTING GUIDE

• PUMP STARTS, BUT NO WATER FLOWS OUT
  • Water filter blocked Unblock
  • Lance nozzle blocked Unblock
  • Low battery Re-charge
• PUMP WONT START OR RUN
  • Flat battery Re-charge
• PUMP STOP SUDDENLY
  • The pump has gotten too hot. Leave for 10 minutes to cool down. The unit will cut out automatically if the motor gets too hot.
  • Nozzle of the lance is blocked Unblock
• PUMP STARTS AND THEN STOPS
  • No water supply Check for blockages in pipes, filter and lance nozzle, unblock.
• PUMP DOES NOT REACH REQUIRED PRESSURE
  • Unit leaks Check for blockages and leakages
  • Battery is low. Recharge.

FOR ANY OTHER PROBLEMS, CONTACT YOUR DYNAMIC DENTAL EQUIPMENT SUPPLIER FOR FURTHER ASSISTANCE

MORE INFORMATION

Your local ‘Dynamic Service Centre’ is :

FAQs

• Q: How do I know when the Aqua Flusher is fully charged?
  • A: The red light on the unit will turn green when the Aqua Flusher is fully charged.
