1-B Motorized Cellular Shade with Dual Motor
Instruction Manual
DMCS1-B Motorized Cellular Shade with Dual Motor
| NO. | Item | Specification |
| 1 | Power Source | DMCS1-B: Li-ion Battery |
| 2 | Input | DMCS1-B: 24V, 1.5A Max |
| 3 | Output | DMCS1-B: 10.89V, 1.3A Max. |
| 4 | Radio type | 2.4G RF |
| 5 | Motor type | Brush DC motor |
| 6 | Charging type | Power Charger PB-01S Power Charger PB-02 |
| 7 | Charging Time | < 2 hours |
| 8 | Charging Temperature | 5°C — 35°C / 41°F — 95°F |
| 9 | Operating Temperature | 0°C — 40°C / 32°F — 104°F |
| 10 | Relative Humidity | 0% — 90% (Non-condensing) |
READING BEFORE INSTALLATION
WARNING! Important safety instructions. Follow all instructions since incorrect installation can lead to severe injury.
Before installing the device, remove any unnecessary cords or components and disable any equipment not needed for powered operation.
WARNING! The installation height will vary according to product type or installation situation and may exceed 98.43″ (2.5m).
WARNING! For the shade powered by battery (DMCS1-B), please turn on the shade AFTER installation. Press and hold the shade button for 3 seconds, and the green light will flash, which means the shade is powered on.
Reserve space before installation :
For Model# DMCS1-B：with built-in Li-ion battery pack and charging accessories.
IMPORTANT! For Model #DMCS1-B with built in Li-ion battery pack, please mount the headrail correctly. Make sure the headrail is level and that it doesn’t tilt forward. Improper installation may cause the charging wand to not make full contact with the charging port. The shade installation only allows up to 3° of deflection tolerance.
TOOLS YOU WILL NEED
- Level
- Measuring Tape
- Pencil
- Power Drill (6mm hex driver and drill bit)
- Screwdriver
You will need to use the following fasteners for your particular mounting surface.
| Wood | Fastener |
| Surface | Screws (Provided)  |
| Drywall/Plaster | Wall Anchors, Expansion Bolts (Not Provided)  |
| Metal | Sheet Metal Screws (Not Provided)  |
GETTING STARTED
Check Standard Components/Hardware:
Hardware Standard Quantity:
| Order Width (X) | Less or Equal to 64″ | Between 64-1/8″ and 112″ | Over 112″ |
| Installation Bracket | 2 | 3 | 4 |
| Installation Bracket Screw | 4 | 6 | 8 |
| Spacer Block (Optional) | Varies per order request: 1 pc / bracket or 2pcs/bracket | ||
| Hold Down Bracket (Optional) | 2 | 2 | 2 |
| Hold Down Bracket Screw (Optional) | 4 | 4 | 4 |
Check Components for DMCS1-B for Battery:
Charging Wand (Optional)
MOUNTING INSTALLATION BRACKETS
The installation bracket may be used for INSIDE or OUTSIDE mounts.
Mounting the brackets level is essential for proper operation of the shade.
Shim the brackets if necessary to achieve a level alignment. The bracket requirements and placement are the same for inside and outside mount. Measure 8” from both ends of the headrail. Mark the bracket location on the mounting surface. Proper alignment of brackets will make installation easier.
Inside Mount:
Allow a minimum of 1/16” distance from the front of brackets to the edge of window opening as shown in the drawing on the right. Use two installation screws to secure brackets. Use wall anchors for drywall or plaster wall.
* For shallow mounting, use 2 flat head screws to secure the bracket as shown in the drawing on the right.
Outside Mount:
Use 2 flat head screws to secure each bracket. Use wall anchors for drywall or plaster wall.
Note: If spacer block is provided, please follow this guide:

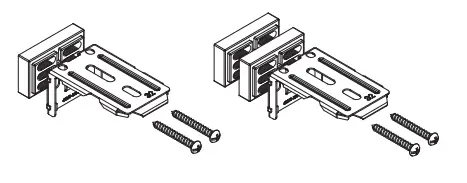

Please always make sure the raised side of the spacer block is against the bracket.
Install the Shade:
Position the head rail at an angle so that it is hooked to the front of the bracket. Then push it upward at the back to snap into the bracket.
Note: You will hear a click sound once the head rail is properly secured.
Install Hold Down Bracket (Optional):
A. For Hold Down Brackets. Use screw to secure each bracket.
B. For Magnetic Hold Down
Use M3x15mm screw to secure the magnet catch at the below location. Make sure the magnet catch align with the pre-installed magnet on shade bottom rail.
REMOVE THE SHADE
Fully raise the shade, and then gently remove the bracket off the headrail with a flat screwdriver. Remove the shade.
Congratulations!
You have finished installing the product.
To ensure a perfect user experience, we encourage you to follow the QR code below to browse additional resources, including how to operate, how to charge and troubleshooting guides. Please also note that for shades with rechargeable batteries, the current charge level of the batteries is about 50%.
FCC ID: Q3V-DMCS1
IC ID: 28542-DMCS1
CAN ICES-003 (B) / NMB-003(B)
https://www.nienmade.com/qrcode/GUD_DMCS%20Installation%20Instruction%20A4.pdf
