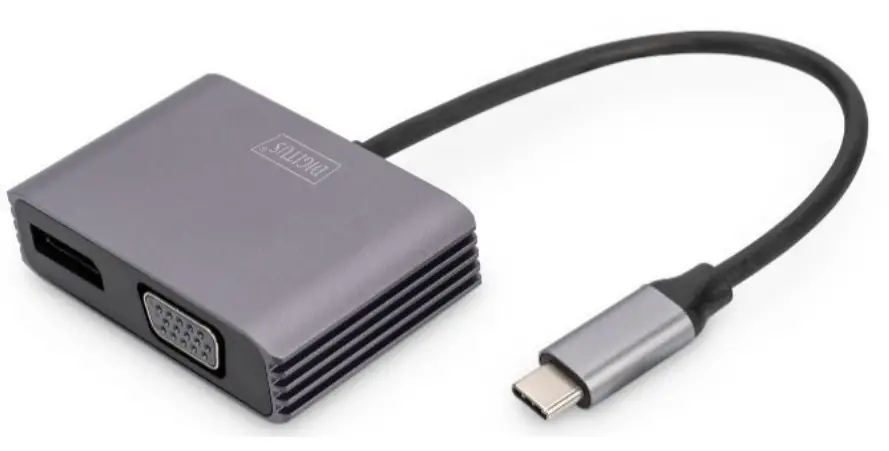

DA-70827 USB Type C 4K 2 In 1 DisplayPort + VGA Graphics Adapter
Installation Guide
Introduction
With the DIGITUS® USB-C™ to DisplayPort™ + VGA Adapter Cable, you can connect a monitor, projector or TV with DisplayPort™ or VGA connection to the USB-C™ connection of your notebook or tablet. No additional adapters are required. Depending on the source device, this cable supports resolutions of up to 4K / 30 Hz. Thanks to Plug and Play, you don’t have to install any drivers or change any settings – Just plug in and get started. You won’t need any additional adapters or converters. Simply use the DIGITUS® adapter cable USB-C™ to DisplayPort™ + VGA adapter cable.
Main Features
- Universal USB-C™ Graphics Adapter with DisplayPort™ and VGA Output
- Full 4K resolution at 30 Hz
- With integrated audio transmission for a Dolby Surround sound experience (except for VGA)
- High-quality aluminum housing
- The power supply is provided via the USB-C™ port
- Plug and Play – no driver installation required
Package Contents
- 1 x USB Type-C™ 4K 2-in-1 DisplayPort™ + VGA Graphics Adapter
- 1 x Quick installation guide
Specification
| Technical | |
| Video resolution | 4K Ultra HD (UHD) resolution with 4096 x 2160p / 30Hz |
| Power supply | The power supply is provided via the integrated USB-CTM interface on the adapter |
| Weight | 50 g |
| Color depth | 12 bit |
| Color | Black |
| Housing | High-quality aluminum housing |
| Length | 20 cm |
| Dimension (LxWxH) | 200 x 62 x 15.2 mm |
| Supports | HDCP 2.2 DisplayPortTM 1.4 HDMI® 1.4b Lip Sync (audio/video synchronization) 21:9 Cinemascope 8-channel LPCM, 192 kHz, 24-bit audio capability DTS EDID 1.6 (device recognition) |
| Supported operating systems | Android 10.0, Chrome OS 86.0, macOS 11.0.1, Windows 8.1, Linux 5.4, iPad Pro (3rd) or higher versions |
| Operating humidity | 20% – 80% RH |
| Operating temperature | -10°C ~ +50°C |
Manufacturer’s notice: The video output capabilities depend on your notebook’s graphic card and the connected monitor. Some screens also limit the available resolution. Your device equipped with USB-C™ must support the DisplayPort™ video mode (DP Alt Mode) in order to be compatible with this adapter/converter.
Hereby ASSMANN Electronic GmbH declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below-mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
