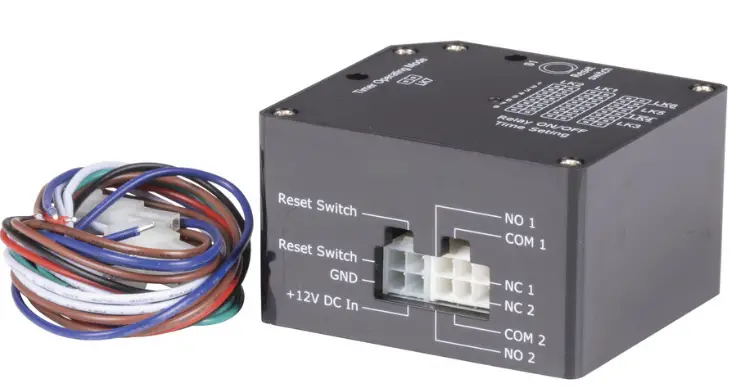

digitech AA0378 Programmable Interval 12V Timer Module
BEFORE FIRST USE
Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. Find a safe and convenient place to keep this instruction manual for future reference. Unpack the product but keep all packaging materials until you have made sure your new product is undamaged and in good working order. Ensure you have all accessories listed in this manual.
WARNING: Never get any part of the module wet. Never attempt to open, modify or repair any part of the module.
INSTRUCTIONS
- Set the jumpers to program the timer, according to the connection diagram and jumper settings table included.
- Plug in the supplied to the module, and the black and red cables to a power supply 12V.
- Connect the device you want to switch to the NO and NC for normally open function or NC and COM for normally closed function.
- Press the reset button to restart the selected timer 0 function.
UNDERSTANDING RELAYS
Before use, it should be understood how a relay works. If you’ve used relays before, you can skip this section A relay has a “COM” port, which can be thought of as an “input” which will then go to one of the two “Normally Open” and “Normally Closed” connections. Normally means when the power is off, as it is in its resting state.

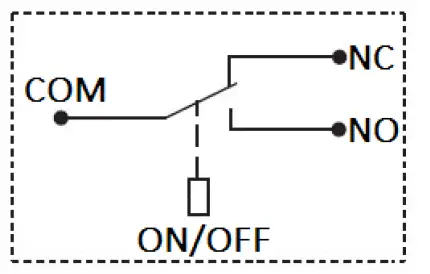

When power is applied, the relay will switch the connection from the Normally Closed NC position, to the Normally Open NO (ie: now closed). You can try this by putting multimeter leads on the common and NO connections, to see when there is a continuity measurement (set the multimeter to beeper) The AA0378 Programmable interval 12V timer module has one relay offering two connections like this, so it is a Double Pole Double Throw relay, or DPDT.
LINK JUMPER SETTINGS

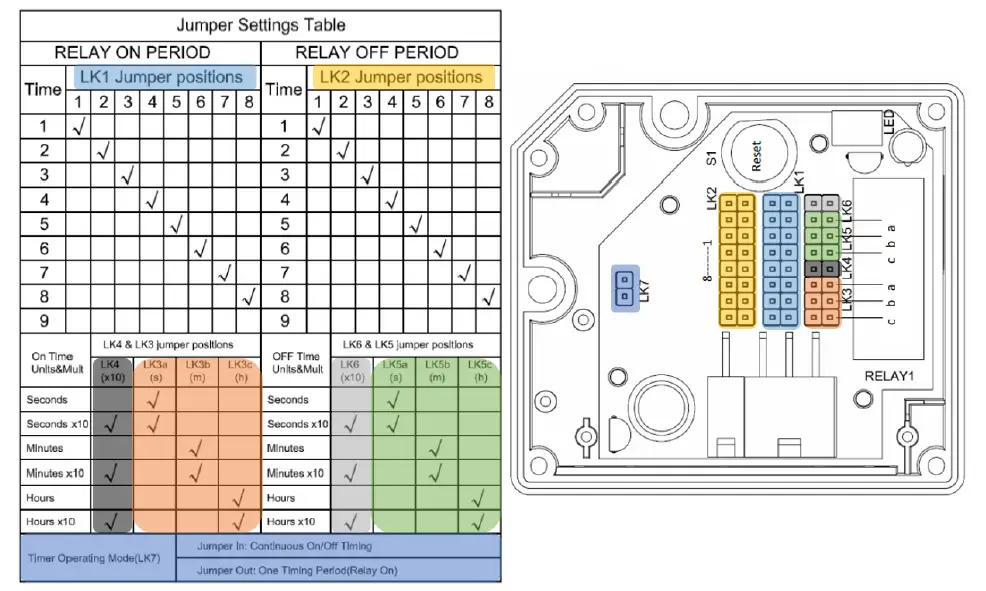

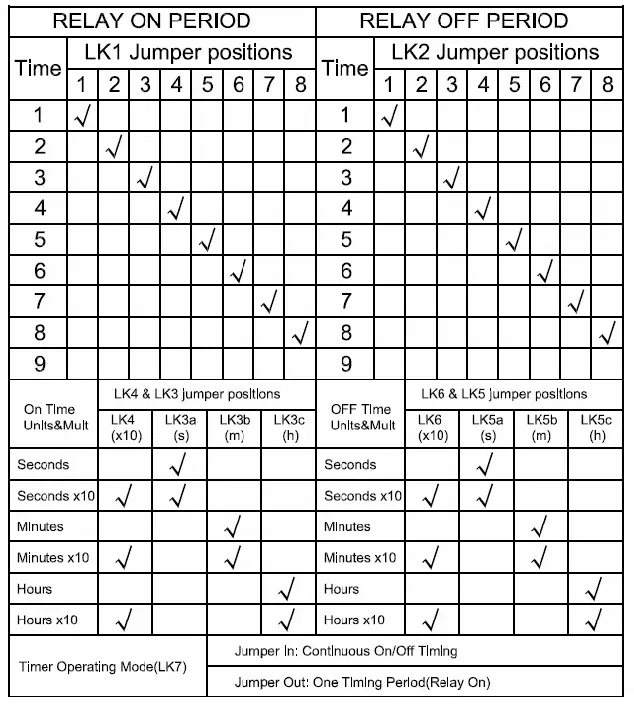

The link jumpers on this unit are used to program this unit. You can set the jumpers to your desired position according to this handy chart, which splits into two periods; the “ON” period where the relay is activated, and the “OFF” period.
You set the amount of time ON by selecting the correct jumper position, the unit, and the multiple, such as: (5) (minutes) (x10) Meaning 50 minutes. We’ve provided a few examples for you to look at in case of any confusion.
EXAMPLES
The linker positions are fairly easy to understand. Have a look at some examples:

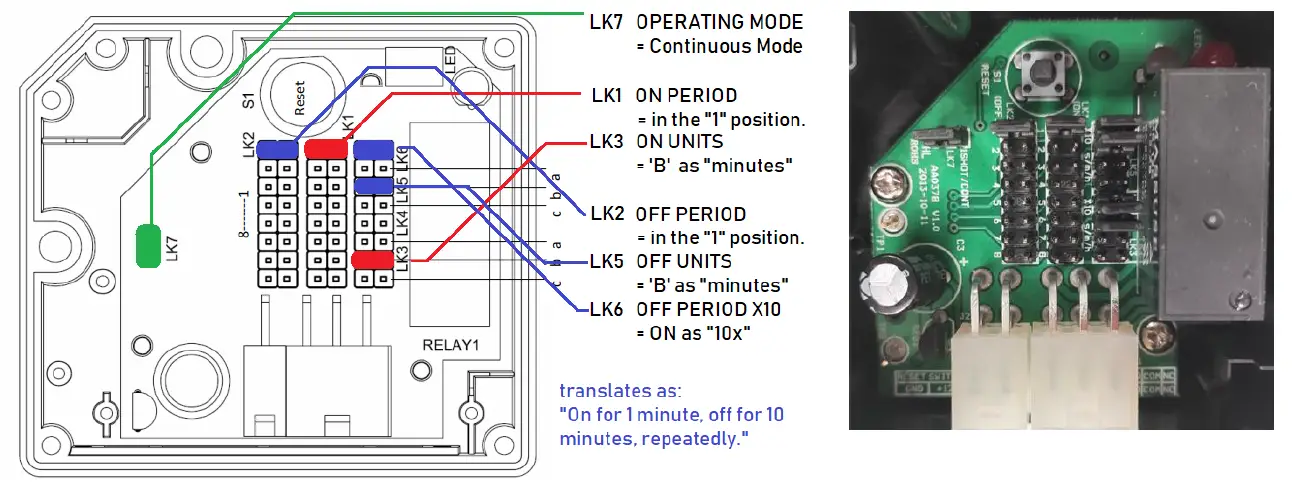

- On for 1 minute, off for 10, in a cycle:

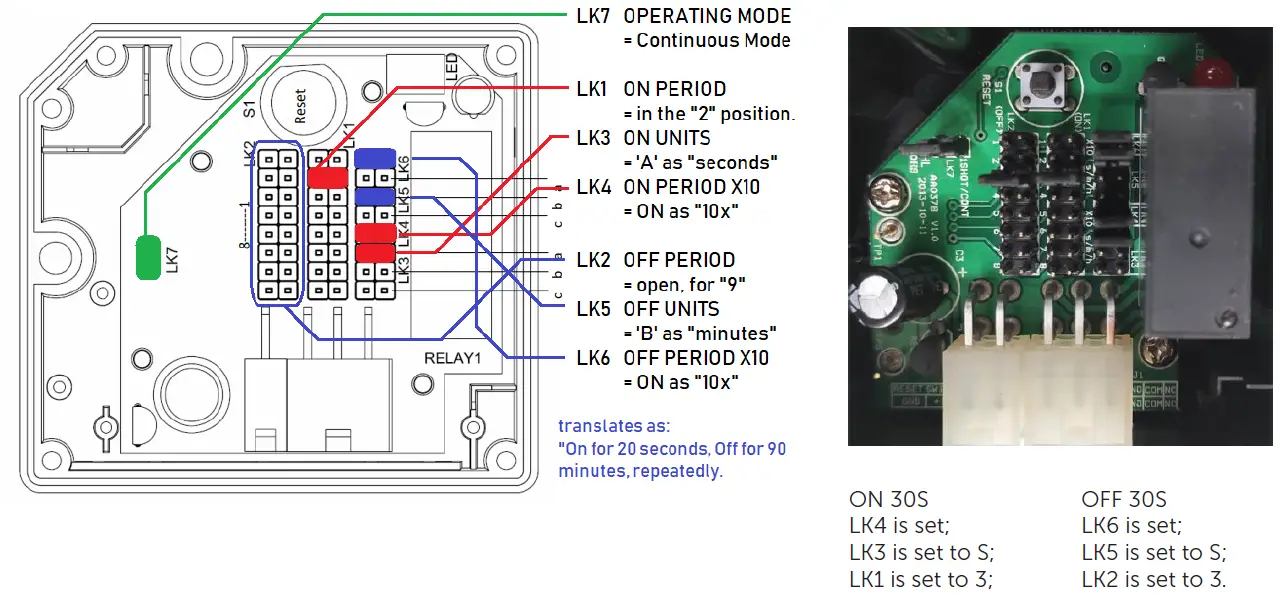

Note: Link 4 is missing, as we do not want to multiply ‘1’ by 10. - On for 20 seconds, off for 90 minutes, continuously
Note: Link 2 is missing, as “9” is with “no link” as per chart above. - On for 3 hours when RESET button is pressed.
Note: Link 7 is missing so this is configured in “one shot” mode. OFF settings have no effect, and it will not re-cycle itself. The device can be reset via the reset switch, cycling power, or by shorting the green wires from the wiring kit.
