EVERCROSS EM3 Mountain Bike User Manual

1. Einleitung

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your EVERCROSS EM3 Mountain Bike. Please read this manual thoroughly before your first ride and retain it for future reference. Proper understanding and adherence to these instructions will ensure a safe and enjoyable cycling experience.

2. Sicherheitshinweise

Ihre Sicherheit hat oberste Priorität. Bitte befolgen Sie stets diese Richtlinien:

• Trage einen Helm: Always wear a properly fitted and approved cycling helmet when riding.
• Check vor der Fahrt: Before each ride, inspect your bike for loose parts, proper tire pressure, functional brakes, and secure quick releases.
• Kennen Sie die Verkehrsregeln? Obey all local traffic laws, signals, and signs.
• Sichtweite: Verwenden Sie Lichter und reflektierende Kleidung, insbesondere bei Fahrten in schlechten Lichtverhältnissen.
• Gewichtsbeschränkung: The maximum load capacity for this bicycle is 150 kgDiese Grenze darf nicht überschritten werden.
• Wetterbedingungen: Exercise caution when riding in wet or slippery conditions, as braking distance will increase.
• Kinder: This bicycle is designed for adults. Ensure children do not operate the bicycle unsupervised.

3. Produktmerkmale

The EVERCROSS EM3 Mountain Bike is equipped with features designed for versatility and comfort:

3.1. 21-Speed Precision Gear System

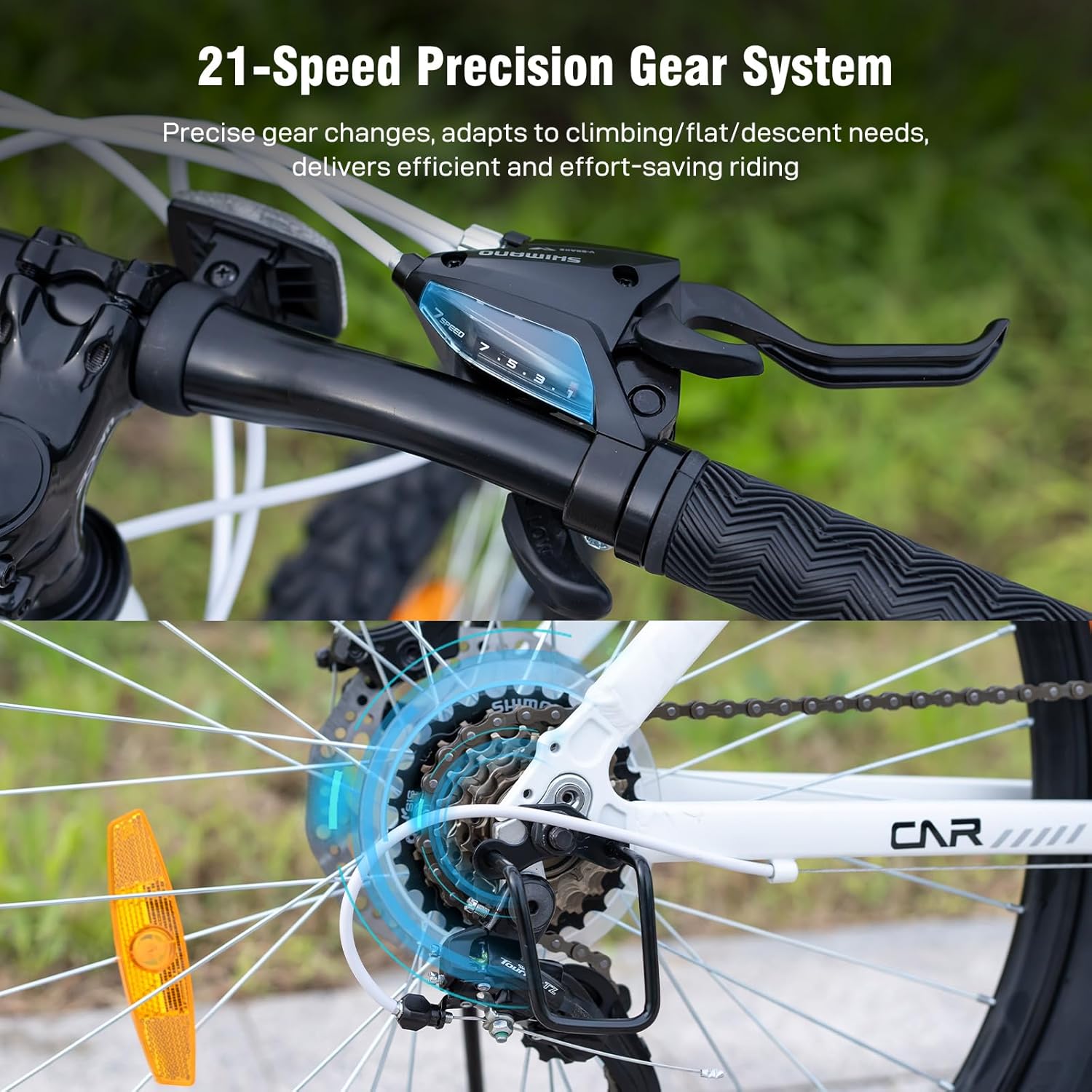

Image: The 21-speed gear system allows for efficient pedaling across various terrains, from flat roads to inclines.

The 21-speed transmission system provides a wide range of gear ratios, allowing for efficient and adaptable riding across urban environments, country roads, and moderate off-road trails. Smooth gear changes ensure optimal pedaling efficiency in diverse conditions.

3.2. Lightweight Aluminum Frame

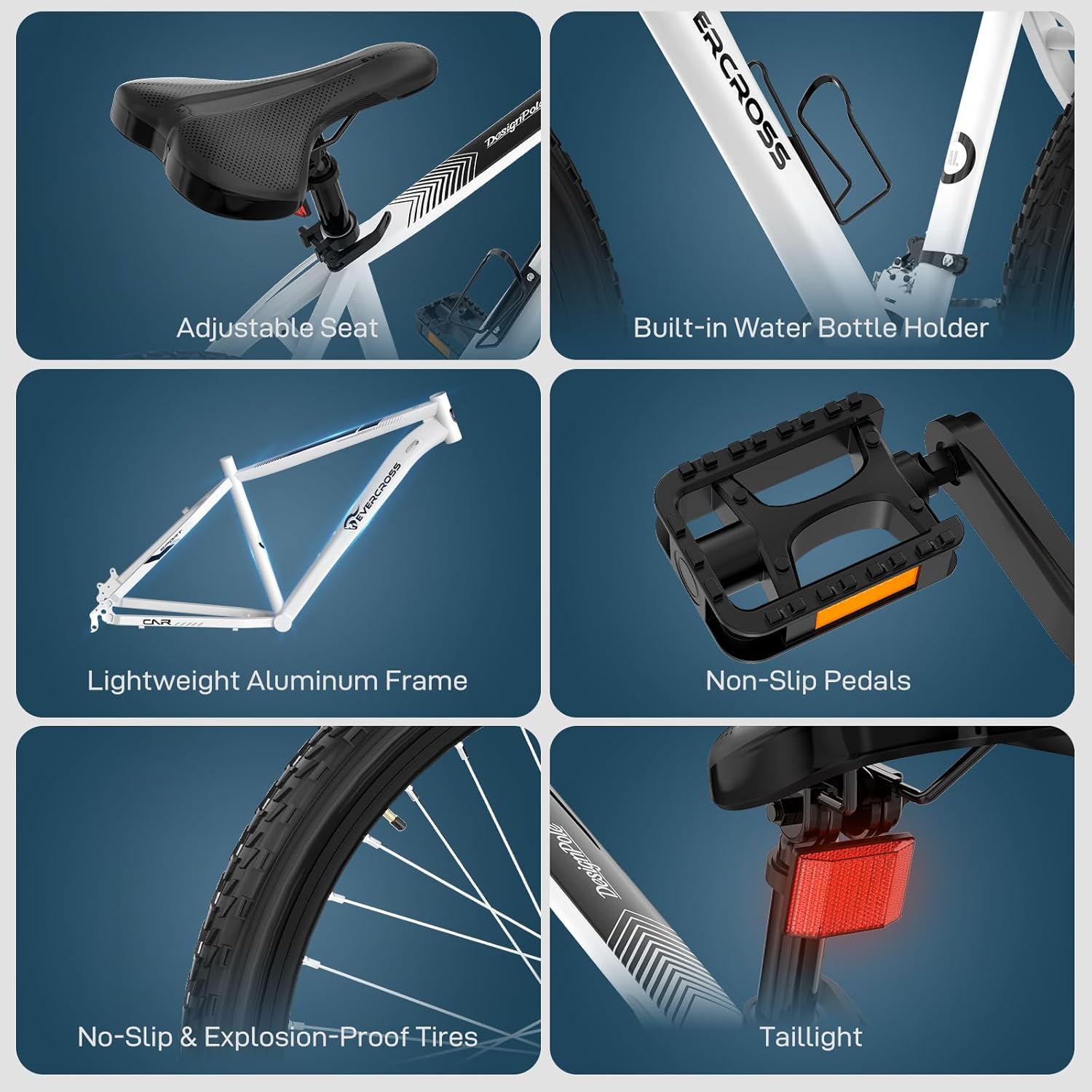

Image: The durable aluminum frame, designed for both lightness and strength, supporting various components.

Constructed from a durable aluminum alloy, the frame offers a balance of lightness and robustness. This design supports a maximum load of 150 kg, making it suitable for a wide range of adult riders.

3.3. Front Suspension for Enhanced Comfort

Image: The front suspension fork, designed to absorb shocks from uneven surfaces, enhancing ride comfort and stability.

The front suspension fork is engineered to reduce impacts from uneven surfaces, significantly improving comfort and stability when riding on gravel paths, forest trails, or poorly maintained roads.

3.4. Disc Brakes for Reliable Stopping Power

Image: The disc brakes provide consistent and reliable stopping power in various conditions.

Equipped with disc brakes, this bicycle delivers consistent and reliable braking performance in both dry and wet conditions. This feature ensures safer riding for daily commutes and outdoor adventures.

3.5. 26-Inch Pneumatic Tires for Varied Terrains

Image: The 26-inch pneumatic tires are designed for good grip and shock absorption on diverse surfaces.

The 26-inch pneumatic tires provide excellent grip and effective shock absorption on asphalt, gravel, and light trails. The integrated water bottle holder allows for easy hydration access during longer rides.

4. Aufbau und Montage

The EVERCROSS EM3 Mountain Bike requires some assembly. While specific tools are not listed, standard bicycle assembly tools (e.g., Allen keys, wrenches) may be necessary. It is recommended to have the assembly performed by a qualified bicycle mechanic if you are unsure.

4.1. Auspacken

• Entnehmen Sie vorsichtig alle Komponenten aus der Verpackung.
• Check for any damage during transit. Contact customer support immediately if damage is found.
• Verify all parts are present according to the packing list (not provided in this manual, refer to product packaging).

4.2. Lenkermontage

• Attach the handlebar to the stem, ensuring it is centered and the brake levers and shifters are in an ergonomic position.
• Ziehen Sie die Vorbauschrauben fest an.

4.3. Montage des Vorderrads

• Insert the front wheel into the fork dropouts, ensuring the disc brake rotor aligns correctly with the caliper.
• Sichern Sie das Rad mit dem Schnellspanner oder den Achsmuttern.

4.4. Pedalinstallation

• Identifizieren Sie das linke (L) und rechte (R) Pedal.
• Das rechte Pedal im Uhrzeigersinn in den rechten Kurbelarm einfädeln.
• Das linke Pedal gegen den Uhrzeigersinn in den linken Kurbelarm einfädeln.
• Ziehen Sie beide Pedale mit einem Schraubenschlüssel fest an.

4.5. Einstellung von Sattelstütze und Sattel

Image: The adjustable seat allows riders to find a comfortable and efficient pedaling position.

• Stecken Sie die Sattelstütze in das Sitzrohr des Rahmens.
• Stellen Sie die Sattelhöhe so ein, dass Ihr Bein leicht im Knie gebeugt ist, wenn sich das Pedal in seiner tiefsten Position befindet.
• Befestigen Sie die Sattelstütze mit dem Schnellspannhebel oder der Schraube.

4.6. Reifendruck

• Inflate tires to the recommended pressure indicated on the tire sidewall. Do not over-inflate.

5. Bedienungsanleitung

5.1. Gangschaltung

• The EVERCROSS EM3 features a 21-speed system (3 front gears, 7 rear gears).
• Use the left shifter for the front derailleur (larger gear changes for significant inclines/declines).
• Use the right shifter for the rear derailleur (smaller gear changes for fine-tuning speed and cadence).
• Shift gears smoothly while pedaling to avoid strain on the drivetrain. Avoid shifting under heavy load.

5.2. Bremsen

• Das Fahrrad ist mit Scheibenbremsen für zuverlässige Bremskraft ausgestattet.
• Der rechte Hebel steuert üblicherweise die Hinterradbremse, der linke Hebel die Vorderradbremse.
• Apply both brakes simultaneously for controlled stopping. Avoid sudden, hard application of the front brake, especially at high speeds, to prevent loss of control.

5.3. Riding Posture

• Maintain a comfortable and balanced posture. Keep your elbows slightly bent to absorb shocks.
• Adjust your body position for different terrains: lean forward slightly for climbs, shift weight back for descents.

6. Wartung

Regelmäßige Wartung verlängert die Lebensdauer Ihres Fahrrads und gewährleistet einen sicheren Betrieb.

6.1. Reinigung

• Reinigen Sie Ihr Fahrrad regelmäßig mit milder Seife und Wasser. Vermeiden Sie es, die Lager direkt mit einem Hochdruckreiniger zu reinigen.
• Trocknen Sie das Fahrrad nach dem Waschen gründlich ab.

6.2. Schmierung

• Schmieren Sie die Kette regelmäßig, insbesondere nach Fahrten bei Nässe. Verwenden Sie ein speziell für Fahrräder entwickeltes Kettenschmiermittel.
• Apply a small amount of grease to pivot points of derailleurs and brake levers as needed.

6.3. Bremseninspektion

• Regularly check brake pads for wear. Replace them when they are worn down.
• Ensure brake levers have proper tension and return smoothly. Adjust cable tension if necessary.
• Prüfen Sie die Bremsscheiben auf Beschädigungen oder Verformungen.

6.4. Reifendruck

• Prüfen Sie den Reifendruck vor jeder Fahrt. Halten Sie den Druck innerhalb des auf der Reifenflanke angegebenen Bereichs.

6.5. Anzugsmoment der Schrauben

• Periodically check all bolts and fasteners (e.g., stem, seat post, crank arms, wheel axles) for proper tightness. Do not overtighten.

7. Fehlerbehebung

This section addresses common issues you might encounter with your EVERCROSS EM3 Mountain Bike.

7.1. Gears Not Shifting Smoothly

• Überprüfen: Derailleur cable tension, chain lubrication, derailleur alignment.
• Lösung: Adjust cable tension using barrel adjusters on the shifters or derailleurs. Clean and lubricate the chain. If issues persist, consult a bike mechanic.

7.2. Brakes Squealing or Weak

• Überprüfen: Brake pad condition, rotor cleanliness, brake cable tension.
• Lösung: Clean rotors with disc brake cleaner. Check pads for wear and replace if necessary. Adjust cable tension. If squealing persists, pads may need bedding in or professional adjustment.

7.3. Platten

• Überprüfen: Puncture in inner tube or tire.
• Lösung: Remove the wheel, carefully remove the tire, inspect the inner tube for punctures, and patch or replace it. Inspect the tire for embedded objects before reassembly.

7.4. Lose Teile

• Überprüfen: All bolts and quick releases.
• Lösung: Identify the loose component and tighten it securely. Do not overtighten, as this can strip threads or damage parts.

8. Spezifikationen

Detailed specifications for the EVERCROSS EM3 Mountain Bike:

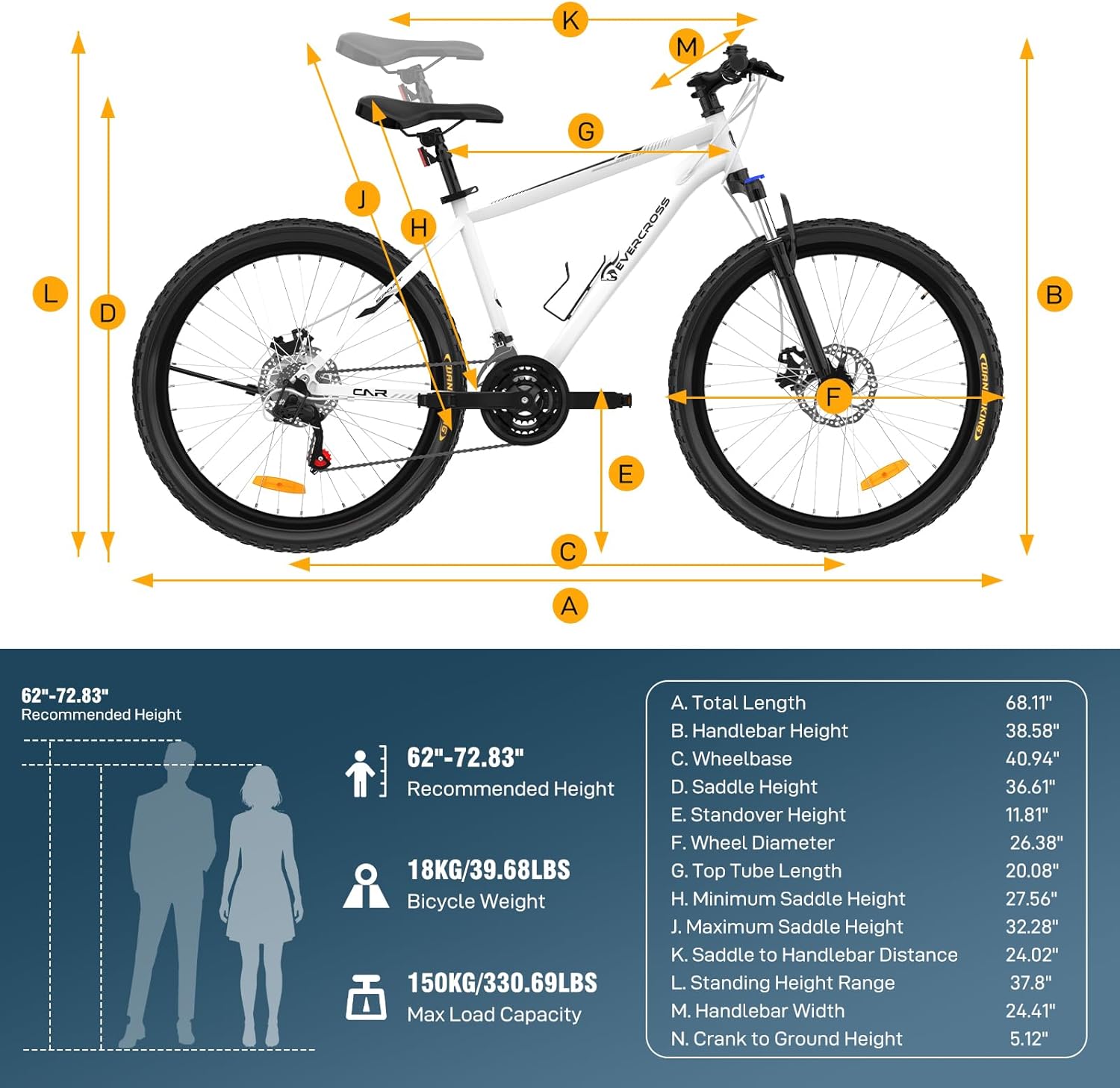

Image: Dimensional diagram of the EVERCROSS EM3 mountain bike, including total length, handlebar height, wheelbase, and other key measurements.

9. Garantie und Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. Typically, products are covered by a 30-day return policy. For any technical assistance or parts inquiries, reach out to the EVERCROSS customer service team.
