1. Einleitung
Welcome to your new AROEVE DH-CS17 Compact Dehumidifier. This manual provides essential information for safe and efficient operation of your device. Please read it thoroughly before first use and keep it for future reference.
2. Sicherheitshinweise
Um einen sicheren Betrieb zu gewährleisten, beachten Sie bitte die folgenden Vorsichtsmaßnahmen:
- Lesen Sie alle Anweisungen sorgfältig durch, bevor Sie das Gerät verwenden.
- Tauchen Sie das Gerät, das Netzkabel oder den Stecker nicht in Wasser oder andere Flüssigkeiten.
- Bewahren Sie den Luftentfeuchter außerhalb der Reichweite von Kindern und Haustieren auf.
- Operate the device only within the recommended temperature range of 15°C to 40°C (59°F to 104°F).
- Ensure there is adequate air circulation around the unit (at least 10 cm clearance on all sides).
- Always unplug the dehumidifier from the power outlet before cleaning or performing any maintenance.
- Do not block the air inlets or outlets of the device.
- Do not stand the product upside down during operation or storage.
- Wenn das Netzkabel beschädigt ist, muss es vom Hersteller, seinem Kundendienst oder einer ähnlich qualifizierten Person ersetzt werden, um Gefahren zu vermeiden.
3. Produktüberschreitungview
3.1 Komponenten
This image displays the main components of the AROEVE DH-CS17 dehumidifier, including the touch screen, display panel, air outlet, handle, air inlet, and water tank.
- Touch-Screen
- Anzeigefeld
- Wasser Outlet
- Handhaben
- Lufteinlass
- Wassertank
3.2 Systemsteuerung
The control panel features touch-sensitive buttons for Sleep Mode, Timer settings, Ambient Light control, and Power.
- Netzschalter: Kurzes Drücken schaltet das Gerät ein oder aus.
- Lichttaste: Short press to cycle through 7 ambient light colors or turn off the light.
- Timer-Taste: Short press to set the timer for 8 hours, 12 hours, or 24 hours.
- Sleep-Taste: Short press to activate sleep mode, which reduces fan speed and dims lights.
4. Einrichtung
Befolgen Sie diese Schritte für die Ersteinrichtung:
- Unpack the dehumidifier and all its accessories from the packaging.
- Place the dehumidifier on a flat, stable surface. Ensure there is adequate space (at least 10 cm) around the unit for proper air circulation.
- Connect the power adapter to the dehumidifier's power interface and then plug it into a suitable electrical outlet.
- Ensure the water tank is correctly inserted into the base of the unit.
The AROEVE DH-CS17 dehumidifier is shown in various room settings, illustrating its compact size and placement flexibility in areas like closets, kitchens, bathrooms, and RVs.
5. Bedienungsanleitung
5.1 Ein-/Ausschalten
Drücken Sie die Leistung button once to turn on the dehumidifier. The ambient light will gradually illuminate, and the dehumidification indicator will light up. Press the Leistung Drücken Sie die Taste erneut, um das Gerät auszuschalten.
5.2 Umgebungslichtsteuerung
Drücken Sie die Licht button to cycle through the 7 available ambient light colors. Each press will change the color. To turn off the ambient light, continue pressing the button until the light is off.
The dehumidifier displays its 7-color ambient light feature, enhancing the room's atmosphere.
5.3 Timer-Einstellung
Drücken Sie die Timer button to set the operating time. Each press cycles through 8 hours, 12 hours, and 24 hours. The corresponding indicator (8H, 12H, or 24H) will light up. Pressing it a fourth time will turn off the timer function.
5.4 Schlafmodus
Drücken Sie die Schlafen button to activate sleep mode. In this mode, the fan speed is reduced for quieter operation (approx. 28 dB), and the display lights are dimmed to avoid disturbance during sleep.
The dehumidifier is shown in a bedroom, emphasizing its ultra-quiet operation (28 dB) suitable for undisturbed sleep.
5.5 Automatische Abschaltung und Abtaufunktion
The dehumidifier is equipped with an automatic shut-off feature. When the water tank is full (990ml capacity), a red indicator light will illuminate, and the device will automatically turn off to prevent overflow.
The dehumidifier shows a red light, signaling that the water tank is full and the automatic shut-off function has activated.
It also features intelligent automatic defrosting. In cold conditions, the unit will automatically defrost to maintain optimal performance and prevent damage.
5.6 Videoanleitung
Produkt überview und Unboxing
Dieses Video bietet einen detaillierten Überblickview and unboxing of the AROEVE DH-CS17 dehumidifier, demonstrating its components and initial setup.
Produkt überview and Unboxing (Detailed)
A more in-depth video showcasing the product's features and the unboxing experience for the AROEVE DH-CS17 dehumidifier.
6. Wartung
6.1 Wassertank entleeren
When the water tank is full, the unit will automatically shut off and a red indicator light will appear. Follow these steps to empty it:
- Gently pull out the water tank from the base of the dehumidifier.
- Carefully pour out the collected water into a sink or drain.
- Reinsert the empty water tank back into the unit until it clicks securely into place.
The image illustrates the easy removal and emptying process of the water tank for the AROEVE DH-CS17 dehumidifier.
6.2 Reinigung
Regular cleaning helps maintain the performance and longevity of your dehumidifier:
- Clean the exterior of the dehumidifier with a soft, damp Mit einem Tuch abwischen. Keine Scheuermittel, Lösungsmittel oder aggressive Chemikalien verwenden.
- Clean the water tank periodically to prevent mold or bacterial growth. Rinse with clean water and dry thoroughly before reinserting it into the unit.
7. Fehlerbehebung
If you encounter any issues with your AROEVE DH-CS17 dehumidifier, please refer to the following table for common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Luftentfeuchter lässt sich nicht einschalten | No power supply; Water tank not correctly inserted. | Check power connection and ensure the adapter is securely plugged in; Ensure water tank is securely in place. |
| Kein Wasser gesammelt | Humidity level is too low; Room temperature is too low; Air inlets/outlets blocked. | Ensure room humidity is above 60% and temperature is above 15°C; Clear any obstructions around the unit. |
| Rote Kontrollleuchte an | Wassertank ist voll. | Leeren Sie den Wassertank und setzen Sie ihn wieder ordnungsgemäß ein. |
| Gerät ist laut | Gerät steht nicht auf ebener Fläche; Lüfter blockiert. | Place on a stable, flat surface; Check for and remove any obstructions. |
8. Spezifikationen
- Marke: AROEVE
- Modellnummer: DH-CS17
- Farbe: Schwarz
- Produktabmessungen (L x B x H): 14.5 x 12.6 x 21.35 cm (5.7 x 5.0 x 8.4 Zoll)
- Fassungsvermögen Wassertank: 990 Milliliter
- Daily Humidity Extraction: Bis zu 450 ml/Tag (bei 30 °C, 80 % relativer Luftfeuchtigkeit)
- Besondere Merkmale: Automatic Defrost, 7-Color Ambient Light, Automatic Shut-off (full tank)
- Artikelgewicht: 1.13 Kilogramm (2.49 Pfund)
- Empfohlener Versorgungsbereich: 5-15 m² (54-161 sq ft)
- Geräuschpegel: Ca. 28 dB

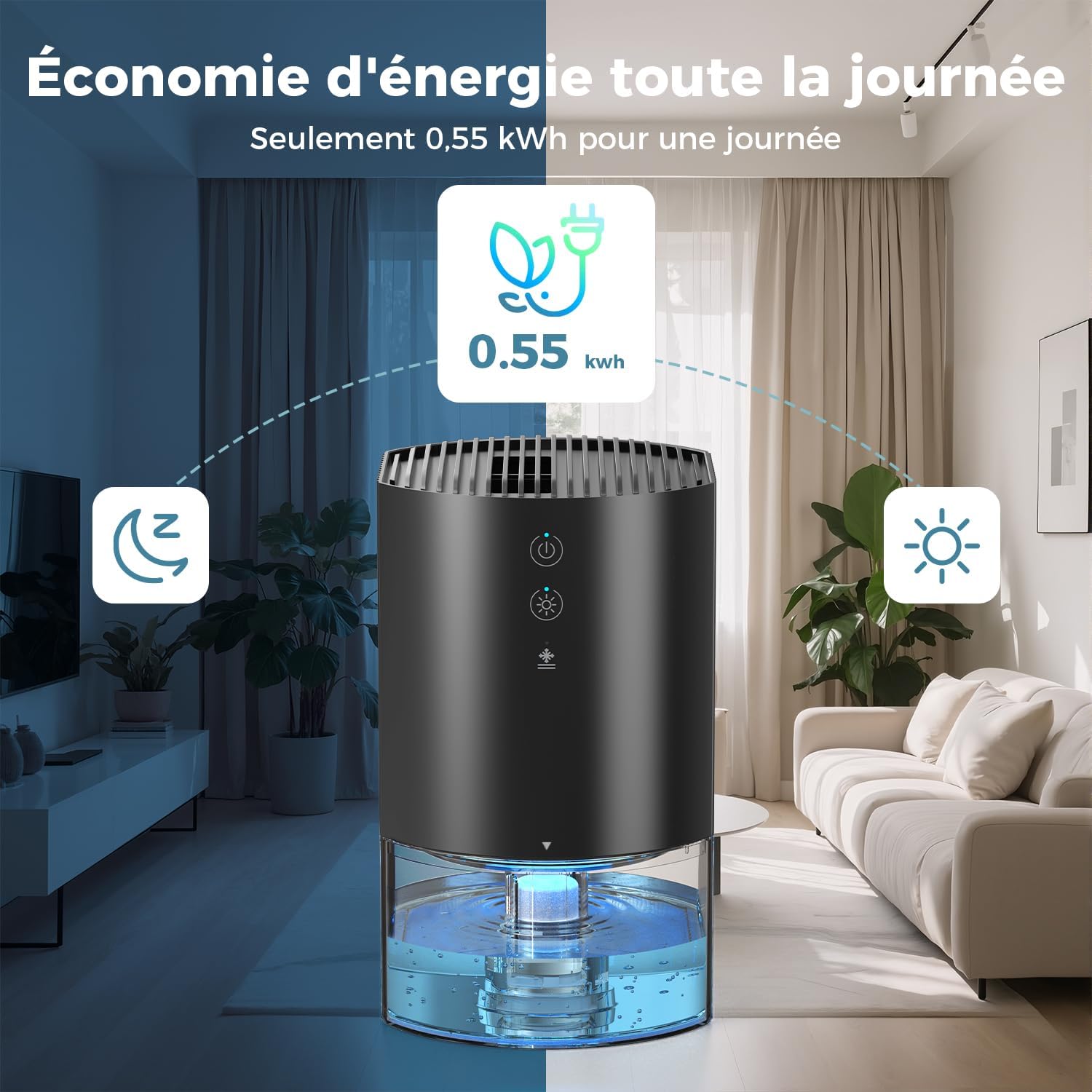

- Energieverbrauch: 23 W (approx. 0.55 kWh/day)
9. Garantie und Support
For detailed warranty information, product registration, or customer support, please refer to the documentation included with your purchase or visit the official AROEVE webBewahren Sie Ihren Kaufbeleg als Kaufnachweis für eventuelle Garantieansprüche auf.
