1. Einleitung
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your keepLiNK 5-Port Industrial Unmanaged Ethernet Switch. This device is designed for reliable network connectivity in harsh industrial environments, offering robust performance and ease of use.
2. Produktüberschreitungview
2.1 Hauptmerkmale
- 5 x 10/100Mbps Fast Ethernet Ports.
- 1Gbps Switching Capacity.
- IP40 Rated Protection: Resistant to dust and solid objects larger than 1mm.

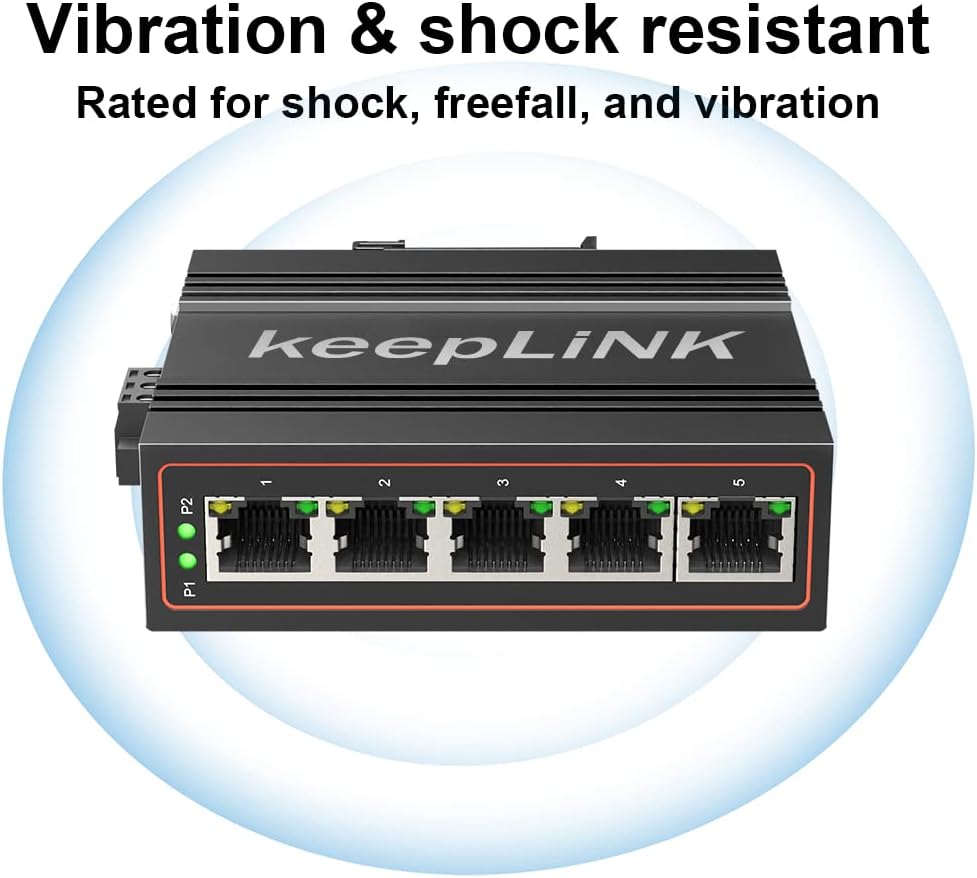

- Anti-vibration and Anti-static Interference design.
- 4KV Lightning Protection.

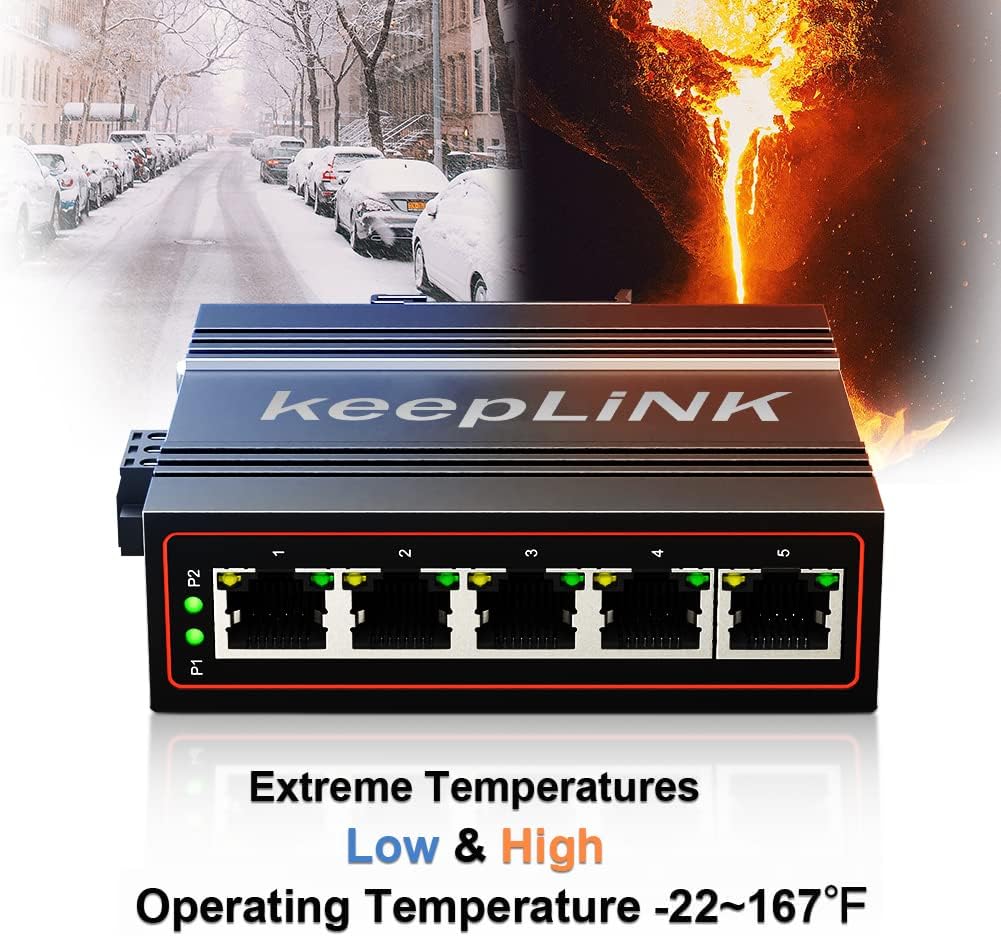

- Wide Operating Temperature Range: -30°C to 75°C (-22°F to 167°F).
- Dual Power Inputs (DC12V-58V) for redundant power with overload current protection.
- DIN-Rail Mountable for easy installation.
- Durable Aluminum Housing.
2.2 Packungsinhalt
- Industrieller Ethernet-Switch x 1
- Produkthandbuch x 1
Note: The power supply for this DIN-rail Ethernet Switch is sold separately.
2.3 Produkt View
3. Einrichtung
3.1 Stromanschluss
The switch supports dual redundant power inputs (PWR1 and PWR2) with a DC voltage range of 12V to 58V. Connect your external power supply to the terminal block on the side of the switch. Ensure correct polarity (P1+ and P1- for PWR1, P2+ and P2- for PWR2). The power supply is not included and must be purchased separately.
3.2 Netzwerkverbindung
Connect your Ethernet devices (e.g., computers, cameras, routers) to any of the five 10/100Mbps RJ45 ports using standard Ethernet cables. The switch is unmanaged, meaning no configuration is required for basic network operation.
3.3 DIN-Schienenmontage
The switch is designed for easy installation on a standard DIN-rail. Simply attach the integrated clip on the back of the switch to the DIN-rail until it clicks securely into place.
4. Bedienungsanleitung
4.1 Leistungsindikatoren
- P1/P2 LEDs: These indicators illuminate when power is supplied to the corresponding PWR1 or PWR2 input. If both are lit, both power sources are active.
4.2 Ethernet Port Indicators
- Each Ethernet port has two LEDs: a yellow/orange light and a green light.
- Yellow/Orange & Green Light ON: Weist auf eine 100-Mbit/s-Verbindung hin.
- Nur grünes Licht an: Weist auf eine 10-Mbit/s-Verbindung hin.
- Blinkende Lichter: Zeigt die Datenaktivität am Port an.
4.3 Unmanaged Operation
The keepLiNK Industrial Ethernet Switch is an unmanaged device. This means it operates automatically without requiring any software configuration. Simply connect your devices, and the switch will handle data forwarding.
5. Wartung
To ensure optimal performance and longevity of your industrial Ethernet switch, follow these maintenance guidelines:
- Reinigung: Reinigen Sie die Außenseite des Schalters regelmäßig mit einem weichen, trockenen Tuch. Verwenden Sie keine flüssigen oder Aerosolreiniger.
- Umgebungsbedingungen: Ensure the switch operates within its specified temperature range of -30°C to 75°C (-22°F to 167°F). While IP40 rated, avoid exposing the device to excessive moisture or direct water spray.
- Kabelmanagement: Keep network cables organized and free from kinks or excessive tension to prevent damage and ensure reliable connections.
- Überprüfung der Stromversorgung: Regularly inspect power connections for secure fit and any signs of wear or damage.
6. Fehlerbehebung
Sollten Sie Probleme mit Ihrem keepLiNK Industrial Ethernet Switch haben, beachten Sie bitte die folgenden gängigen Schritte zur Fehlerbehebung:
- Kein Strom: Check if the power supply is correctly connected and providing the required DC12V-58V. Verify that the P1/P2 LEDs on the switch are illuminated.
- Kein Link am Port: Ensure the Ethernet cable is securely connected to both the switch port and the connected device. Check the cable for damage. Verify the connected device is powered on and functioning correctly.
- Langsame Verbindungsgeschwindigkeit: Observe the port LEDs. If only the green light is on, the connection is 10Mbps. If both yellow/orange and green lights are on, it's 100Mbps. Ensure your connected device supports 100Mbps and that the cable is not faulty.
- Intermittierende Konnektivität: Check for loose cable connections. Ensure the operating environment is within the specified temperature range and free from excessive electromagnetic interference.
7. Spezifikationen
| Besonderheit | Beschreibung |
|---|---|
| Modellnummer | 5 Port Industrial |
| Ethernet-Anschlüsse | 5 x 10/100 Mbit/s RJ45 |
| Schaltkapazität | 1 Gbit/s |
| Datenübertragungsrate | 100 Megabyte pro Sekunde |
| Leistungsaufnahme | DC 12V-58V (Dual Redundant) |
| Schutzklasse | IP40 |
| Betriebstemperatur | -30 °C bis 75 °C (-22 °F bis 167 °F) |
| Gehäusematerial | Aluminium |
| Technische Daten | 3.74 Zoll L x 3.58 Zoll B x 1.22 Zoll H |
| Artikelgewicht | 0.3 Kilogramm (10.6 Unzen) |
| Montage | Hutschiene |
8. Weitere Informationen
8.1 Produktvideo
9. Garantie und Support
keepLiNK is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this document, we offer 24/7 customer service to assist you with any questions or concerns regarding your network switch. Please contact us for support, and we will provide a satisfactory solution within 24 hours.
