HUAWEI PixLab B5 Multifunction Laser Printer User Manual

1. Einleitung

This manual provides essential information for the safe and efficient use of your HUAWEI PixLab B5 Multifunction Laser Printer. Please read it thoroughly before operating the device and keep it for future reference.

The HUAWEI PixLab B5 is a versatile 3-in-1 device, offering high-speed printing, copying, and scanning functionalities. It features automatic duplex printing, a user-friendly one-step toner replacement system, and multiple connectivity options including USB, Wi-Fi, and LAN.

2. Sicherheitshinweise

Beachten Sie bei der Verwendung dieses Produkts stets die grundlegenden Sicherheitsvorkehrungen, um das Risiko von Bränden, Stromschlägen und Verletzungen zu verringern.

• Stellen Sie den Drucker nicht auf einen instabilen Wagen, Ständer oder Tisch.
• Do not block or cover the slots and openings in the printer.
• Use only the power cord and power source indicated in this manual.
• Führen Sie keine Reparaturen am Drucker selbst durch. Überlassen Sie alle Wartungsarbeiten qualifiziertem Servicepersonal.
• Halten Sie den Drucker von Wasser und Feuchtigkeit fern.
• Sorgen Sie für ausreichende Belüftung rund um den Drucker.

3. Packungsinhalt

Prüfen Sie, ob alle Artikel im Paket enthalten sind:

• HUAWEI PixLab B5 Multifunction Laser Printer
• Stromkabel
• USB-Kabel
• HUAWEI F-1500BZ Toner Cartridge
• HUAWEI X-15000BZ Drum Unit
• Benutzerhandbuch (dieses Dokument)

4. Produktüberschreitungview

Familiarize yourself with the main components of your HUAWEI PixLab B5 printer.

Abbildung 4.1: Front view of the HUAWEI PixLab B5 printer, showing the HUAWEI logo on the front panel.

Abbildung 4.2: Von oben nach unten view of the HUAWEI PixLab B5 printer, illustrating a document exiting the output tray after printing.

5. Einrichtung

5.1 Auspacken

1. Nehmen Sie den Drucker vorsichtig aus der Verpackung.
2. Entfernen Sie sämtliche Schutzbänder und Verpackungsmaterialien von der Außen- und Innenseite des Druckers.

5.2 Installation der Toner- und Trommeleinheit

The HUAWEI PixLab B5 features an innovative drawer-type toner cartridge for easy replacement.

Abbildung 5.1: The HUAWEI PixLab B5 printer shown alongside a replacement toner cartridge and a stack of paper, highlighting the separate components.

Abbildung 5.2: A diagram illustrating the toner cartridge detached from the drum unit, demonstrating the modular design for replacement.

1. Öffnen Sie die vordere Abdeckung des Druckers.
2. Gently pull out the toner cartridge drawer.
3. Insert the HUAWEI F-1500BZ toner cartridge into the HUAWEI X-15000BZ drum unit until it clicks into place.
4. Slide the assembled toner and drum unit back into the printer until it is securely seated.
5. Schließen Sie die vordere Abdeckung.

5.3 Papier einlegen

1. Öffnen Sie das Papierfach.
2. Adjust the paper guides to the correct paper size (e.g., A4).
3. Load paper into the tray, ensuring it is not overfilled (maximum capacity: 150 sheets).
4. Schließen Sie das Papierfach.

5.4 Stromanschluss

1. Connect the power cable to the printer's power port.
2. Stecken Sie das andere Ende des Stromkabels in eine geerdete Steckdose.
3. Drücken Sie den Netzschalter, um den Drucker einzuschalten.

5.5 Softwareinstallation und Konnektivität

The HUAWEI PixLab B5 supports multiple connection methods for seamless integration with various devices.

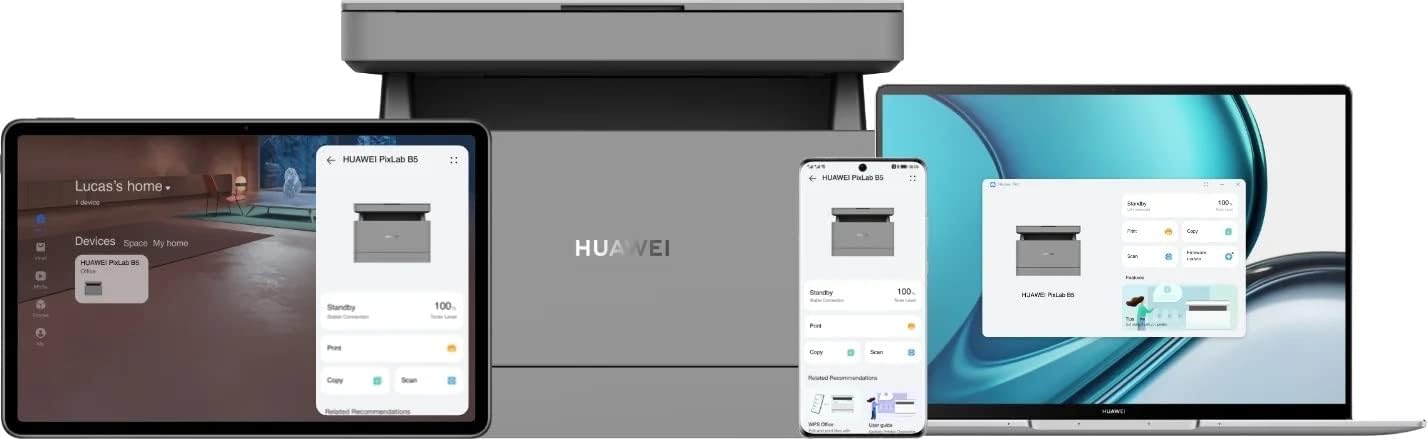

Abbildung 5.3: The HUAWEI PixLab B5 printer demonstrating its versatile connectivity by being linked to a tablet, a smartphone, and a laptop, all displaying the printer's interface.

Abbildung 5.4: An illustrative image depicting various devices such as a tablet, smartphone, and laptop connected to the printer, emphasizing multi-device compatibility.

Abbildung 5.5: Icons representing various connectivity options: USB, LAN, Wi-Fi, and Printer Hotspot.

1. USB-Verbindung: Connect the printer to your computer using the provided USB cable. The necessary drivers should install automatically.
2. LAN-Verbindung: Connect an Ethernet cable from your router or network switch to the LAN port on the printer.
3. Wi-Fi-Verbindung:
   • Download and install the HUAWEI AI Life app on your smartphone or tablet.
   • Folgen Sie den Anweisungen in der App, um Ihren Drucker mit Ihrem WLAN-Netzwerk zu verbinden.
   • For PC/laptop, ensure your device is on the same Wi-Fi network as the printer and add the printer through your operating system's printer settings.
4. NFC-Verbindung: For compatible devices, tap your device to the NFC tag on the printer to establish a quick connection.

6. Bedienungsanleitung

6.1 Drucken

The HUAWEI PixLab B5 offers high-speed monochrome printing at up to 30 pages per minute.

Abbildung 6.1: An image highlighting the printer's capability of printing 30 pages per minute for single-sided documents.

1. Open the document you wish to print on your connected device.
2. Wählen Sie die Druckoption (normalerweise File > Drucken).
3. Choose the HUAWEI PixLab B5 from the list of available printers.
4. Passen Sie die Druckeinstellungen nach Bedarf an:
   • Duplexdruck: The printer supports automatic double-sided printing. Select this option in your print settings to save paper.
   • Qualität: The printer uses Q14 grayscale for clear and layered black and white prints.
5. Klicken Sie auf „Drucken“.

6.2 Kopieren

The printer can make up to 100 copies in a single series.

Abbildung 6.2: A person placing a smart card on the scanner bed of the HUAWEI PixLab B5, demonstrating the Smart Card Copy function.

Abbildung 6.3: An image showing a user placing a card on the scanner glass, indicating the process for copying or scanning small items like ID cards.

1. Place the document face down on the scanner glass or face up in the automatic document feeder (if available).
2. Wählen Sie im Bedienfeld des Druckers die Funktion „Kopieren“.
3. Adjust settings such as number of copies, darkness, or paper size.
4. Smart Card Copy: This feature automatically corrects the position and orientation of cards for perfect copies, even if not perfectly aligned.
5. Drücken Sie die Taste „Start“, um den Kopiervorgang zu starten.

6.3-Scannen

The HUAWEI PixLab B5 functions as a photo and sheet-fed scanner.

1. Legen Sie das Dokument auf das Scannerglas oder in den Dokumenteneinzug.
2. On your connected computer or mobile device, open the scanning software (e.g., HUAWEI AI Life app or your operating system's scanning utility).
3. Select the HUAWEI PixLab B5 as your scanner.
4. Choose scan settings such as resolution, color mode (monochrome), and destination folder.
5. Starten Sie den Scan.

6.4 Ferndruck

The HUAWEI AI Life app allows for flexible remote printing.

Abbildung 6.4: The HUAWEI PixLab B5 printer positioned on a desk next to a computer monitor, which displays the printer's software interface, indicating remote management capabilities.

1. Ensure your HUAWEI PixLab B5 is connected to the internet via Wi-Fi or LAN.
2. Open the HUAWEI AI Life app on your smartphone or tablet.
3. Select your PixLab B5 printer from the device list.
4. You can now send print jobs to your printer remotely, even when you are away from your office.

7. Wartung

7.1 Tonerkartuschenwechsel

The HUAWEI PixLab B5 uses separate toner and drum units, allowing for independent replacement and cost savings.

Abbildung 7.1: An image displaying the maximum page yield for the drum cartridge (15,000 pages) and the toner cartridge (1,500 pages).

1. When the toner low indicator appears, prepare a new HUAWEI F-1500BZ toner cartridge.
2. Öffnen Sie die vordere Abdeckung des Druckers.
3. Pull out the toner cartridge drawer.
4. Remove the empty toner cartridge from the drum unit.
5. Unpack the new toner cartridge and insert it into the drum unit until it clicks.
6. Slide the assembled unit back into the printer and close the front cover.

7.2 Drum Unit Replacement

The HUAWEI X-15000BZ drum unit has a yield of up to 15,000 pages.

1. When the drum unit needs replacement, open the front cover of the printer.
2. Pull out the toner cartridge drawer, which contains the drum unit.
3. Remove the toner cartridge from the old drum unit.
4. Insert the toner cartridge into the new HUAWEI X-15000BZ drum unit.
5. Slide the new assembled unit back into the printer and close the front cover.

7.3 Reinigung

1. Schalten Sie den Drucker aus und ziehen Sie das Netzkabel ab.
2. Verwenden Sie ein weiches, fusselfreies Tuch dampened with water to wipe the exterior of the printer.
3. For the scanner glass, use a glass cleaner applied to a cloth (not directly to the glass) to clean any smudges or dust.
4. Keine Scheuer- oder Lösungsmittel verwenden.

8. Fehlerbehebung

This section addresses common issues you might encounter with your HUAWEI PixLab B5 printer.

8.1 Drucker reagiert nicht

• Check if the printer is powered on and the power cable is securely connected.
• Verify the USB, LAN, or Wi-Fi connection. For Wi-Fi, ensure the printer is connected to the correct network.
• Restart both the printer and your connected device.
• Stellen Sie sicher, dass die Druckertreiber korrekt installiert und auf dem neuesten Stand sind.

8.2 Probleme mit der Druckqualität

• Check the toner level and replace the toner cartridge if it is low.
• Ensure the drum unit is not worn out (check its page yield).
• Clean the printer's internal components as per the maintenance section.
• Use recommended paper types and ensure paper is loaded correctly.

8.3 Papierstaus

• Schalten Sie den Drucker aus und ziehen Sie den Stecker.
• Carefully open all covers and remove any jammed paper, pulling in the direction of the paper path.
• Achten Sie darauf, dass keine kleinen Papierstücke im Inneren zurückbleiben.
• Close all covers, plug in, and power on the printer.

9. Spezifikationen

10. Garantie und Support

Informationen zur Garantie und zum technischen Support finden Sie auf der offiziellen HUAWEI-Website. website or contact your local HUAWEI customer service center. Keep your purchase receipt as proof of purchase.

Informationen zur Verfügbarkeit von Ersatzteilen und garantierten Software-Updates sind derzeit nicht verfügbar.
