1. Einleitung
Thank you for choosing the LEXMAN LED Filament Globe Bulb. This bulb combines a vintage design with modern LED technology, offering energy efficiency and a long lifespan. It provides a powerful 1055 lumens of neutral white light (4000K), equivalent to a 75W incandescent bulb, while consuming only 7.8W. This manual provides important information for the safe and proper installation, operation, and maintenance of your new LED bulb.
2. Wichtige Sicherheitshinweise
- Lesen Sie vor der Installation alle Anweisungen.
- Stromschlaggefahr: Always disconnect power at the fuse box or circuit breaker before installing or replacing the bulb.
- Ensure the bulb is suitable for the fixture and socket type (E27).
- Do not use with dimmers unless explicitly stated on the product packaging or bulb itself. This bulb is not specified as dimmable.
- Die Glühbirne darf nicht auseinandergenommen oder verändert werden.
- Nicht in geschlossenen Leuchten verwenden, die die Luftzirkulation behindern, da dies die Lebensdauer der Glühbirne verkürzen kann.
- Vermeiden Sie es, die Glühbirne mit nassen Händen zu berühren.
- Diese Glühbirne ist für den Innenbereich in trockenen Räumen konzipiert.
3. Einrichtung und Installation
Follow these steps to install your LEXMAN LED Filament Globe Bulb:
- Strom ausschalten: Before attempting any installation, ensure the power supply to the light fixture is completely turned off at the main circuit breaker or fuse box.
- Allow existing bulb to cool: Wenn Sie eine alte Glühbirne austauschen, lassen Sie diese vollständig abkühlen, bevor Sie sie berühren.
- Remove old bulb: Die alte Glühbirne vorsichtig durch Drehen gegen den Uhrzeigersinn aus der Fassung schrauben.
- Überprüfen Sie die Steckdose: Check the light fixture's socket for any damage or corrosion. Ensure it is clean and dry.
- Neue Glühbirne einbauen: Gently screw the LEXMAN LED Filament Globe Bulb into the E27 socket by turning it clockwise until it is snug. Do not overtighten.
- Stromversorgung wiederherstellen: Once the bulb is securely installed, restore power to the light fixture at the circuit breaker or fuse box.
- Prüfen: Schalten Sie den Lichtschalter ein, um zu überprüfen, ob die Glühbirne ordnungsgemäß funktioniert.
Bild 3.1: Dimensions of the LEXMAN LED Globe Bulb. The bulb has a diameter of 95mm and a total height of 140mm, suitable for E27 sockets.

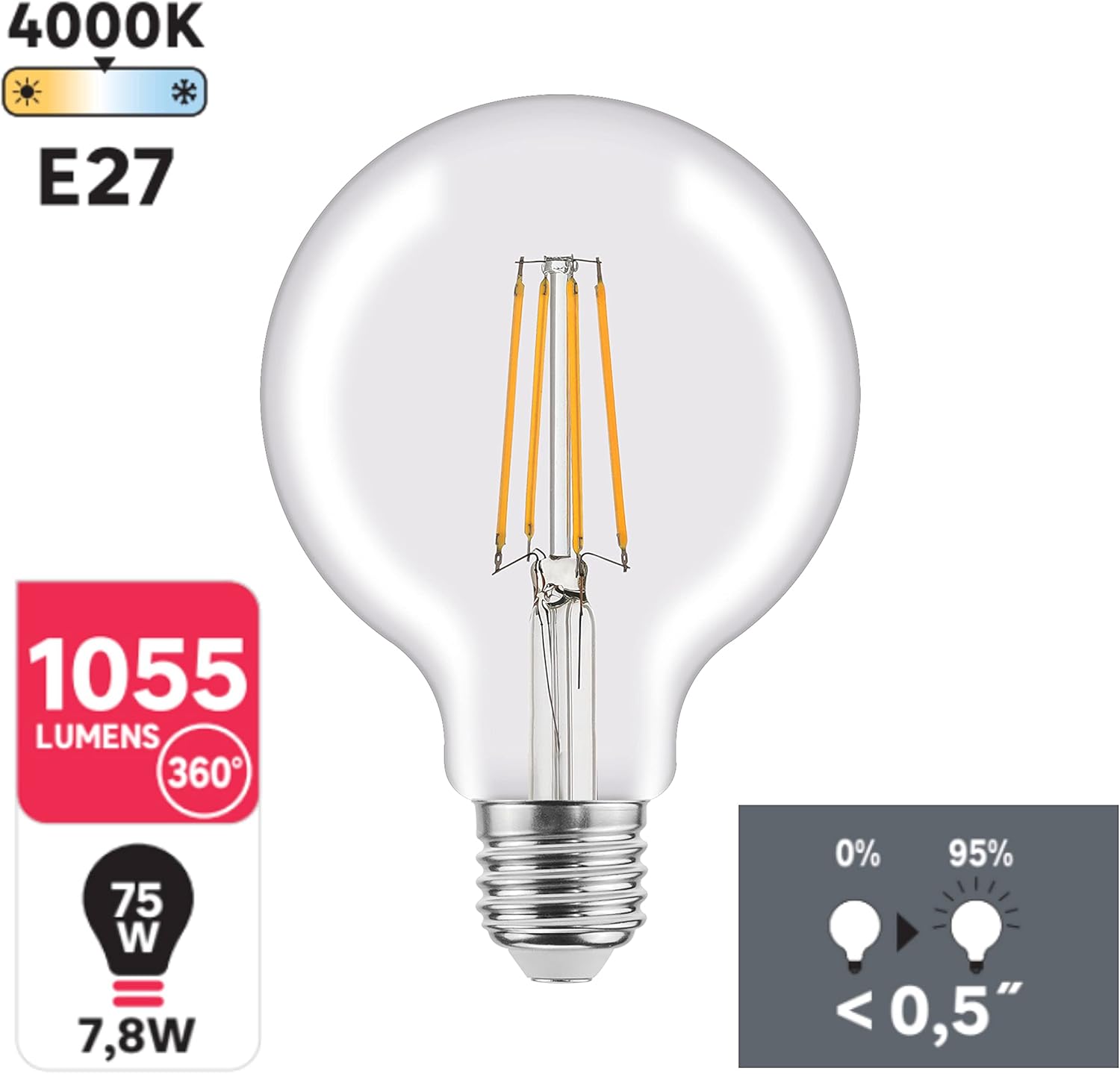

Bild 3.2: Front view of the LEXMAN LED Filament Globe Bulb highlighting its key specifications: 4000K neutral white light, E27 base, 1055 lumens output, 7.8W power consumption (equivalent to 75W incandescent), and an instant-on feature (95% intensity in less than 0.5 seconds).
4. Bedienungsanleitung
Operating your LEXMAN LED Filament Globe Bulb is straightforward:
- Once installed in a compatible E27 fixture and power is restored, simply use the wall switch or fixture switch to turn the light on or off.
- The bulb provides instant full brightness (95% intensity in less than 0.5 seconds) with its 4000K neutral white light, offering optimal visual comfort.
Bild 4.1: The LEXMAN LED Globe Bulb providing neutral white illumination in a living room setting, demonstrating its application in a floor lamp.
Bild 4.2: Visual representation of various light temperatures. The top-left quadrant, marked with a check, illustrates the 4000K neutral white light output of this LEXMAN bulb, which is dynamic and close to daylight.
5. Wartung
The LEXMAN LED Filament Globe Bulb requires minimal maintenance:
- Reinigung: Ensure the power is off and the bulb is cool before cleaning. Wipe the bulb gently with a soft, dry, lint-free cloth. Do not use liquid cleaners or abrasive materials, as they may damage the bulb.
- Lagerung: If storing the bulb, keep it in its original packaging in a cool, dry place away from direct sunlight and extreme temperatures.
6. Fehlerbehebung
If your LEXMAN LED Filament Globe Bulb is not functioning as expected, try the following:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Glühbirne leuchtet nicht. | Kein Strom am Gerät. | Check the circuit breaker or fuse. Ensure the light switch is on. |
| Die Glühbirne ist nicht richtig eingeschraubt. | Turn off power, then carefully re-screw the bulb into the socket until snug. | |
| Defekte Glühbirne oder Fassung. | Test the bulb in another working fixture. If it still doesn't light, the bulb may be faulty. If other bulbs work in the fixture, the fixture may be faulty. | |
| Birne flackert. | Inkompatibler Dimmerschalter. | This bulb is not designed for dimming. Remove the dimmer switch or replace it with a standard switch. |
| Wackelkontakt. | Turn off power, then carefully re-screw the bulb into the socket. |
Wenn das Problem nach dem Ausprobieren dieser Lösungen weiterhin besteht, wenden Sie sich bitte an den Kundensupport.
7. Spezifikationen
| Besonderheit | Spezifikation |
|---|---|
| Marke | Lexman |
| Modellnummer | 3276007280630 |
| Hersteller | ADEO |
| Produktabmessungen (L x B x H) | 10 x 9.5 x 14 cm |
| Artikelgewicht | 110 Gramm |
| Menge | 1 |
| Lichtfarbe | Neutralweiß (4000K) |
| Form | Globus (G95) |
| Bandtage | 240 Volt |
| Kappentyp | E27 |
| Lichtstrom | 1055 Lumen |
| LED-Watttage | 7.8 Watt |
| Glühlampenäquivalent | 75 Watt |
| Durchschnittliche Lebensdauer | 15,000 Stunden |
| Sofort ein | 95% intensity in <0.5 seconds |
| Dimmbar | No (not specified as dimmable) |
| Batterien erforderlich | NEIN |

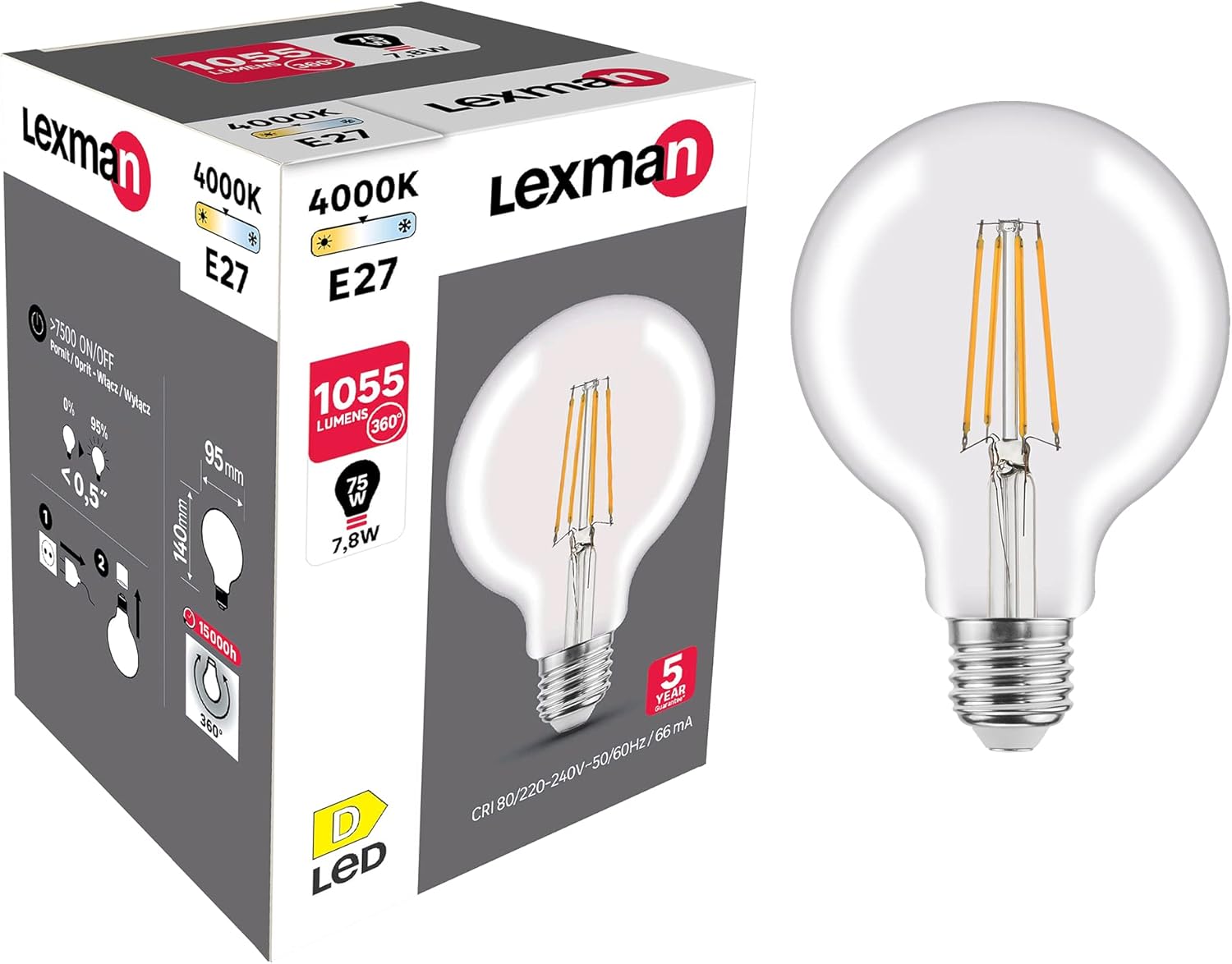

Bild 7.1: Product packaging for the LEXMAN LED Filament Globe Bulb, displaying specifications such as 4000K, E27, 1055 lumens, 7.8W (75W equivalent), 15,000 hours lifespan, and a 5-year warranty.
8. Garantie und Support
Garantie: This LEXMAN LED Filament Globe Bulb comes with a 5 Jahr Garantie, ensuring its quality and durability. The average lifespan of the bulb is rated at 15,000 hours, which translates to over 13 years of use based on approximately 3 hours per day.
Kundendienst: For technical assistance, warranty claims, or any questions regarding your LEXMAN product, please refer to the contact information provided on your purchase receipt or the official LEXMAN webBitte halten Sie Ihre Modellnummer (3276007280630) und den Kaufbeleg bereit, wenn Sie sich an den Support wenden.
