1. Einleitung
This manual provides detailed instructions for the safe and proper installation and operation of your LEADZM TMW798 TV Wall Mount. This wall mount is designed to securely hold televisions ranging from 32 to 70 inches, with a maximum load capacity of 110 lbs (50 kg). Please read this manual thoroughly before installation and retain it for future reference.
Image 1.1: The LEADZM TMW798 TV Wall Mount, highlighting its compatibility for 32-70 inch TVs, VESA 600x400mm, and support for up to 110 lbs.
2. Sicherheitshinweise
Improper installation or use of this product can result in serious injury or damage. Please observe the following safety guidelines:
- Stellen Sie sicher, dass die Montagefläche das Gesamtgewicht der Halterung und des Fernsehers sicher tragen kann.
- Überschreiten Sie nicht die maximale Tragfähigkeit von 110 kg.
- Verwenden Sie stets geeignetes Werkzeug und befolgen Sie alle Installationsschritte sorgfältig.
- Wenn Sie sich bei irgendeinem Teil des Installationsprozesses unsicher sind, konsultieren Sie einen qualifizierten Fachmann.
- Halten Sie Kinder und Haustiere während der Installation vom Arbeitsbereich fern.
Wandtypkompatibilität
Diese Halterung ist für die Montage an folgenden Orten vorgesehen:
- Wood stud walls
- Solid brick walls
- Massive Betonwände
WARNUNG: Do not mount this product on drywall alone. Anchors are required for brick and concrete walls.
Image 2.1: Illustration of compatible wall types: wood stud, brick, and concrete. Mounting on drywall alone is not supported.
3. Packungsinhalt
Please verify that all components are present and undamaged before beginning installation. The package includes the TV wall mount and a standard hardware kit. Refer to the accessory information table below for a detailed list of included hardware.
Image 3.1: Detailed table listing all included hardware accessories, their sizes, and quantities.
Image 3.2: A comprehensive layout of all screws, washers, spacers, wall anchors, and the spirit level included in the mounting hardware kit.
4. Spezifikationen
The following table outlines the technical specifications for the LEADZM TMW798 TV Wall Mount:
| Spezifikation | Wert |
|---|---|
| Marke | LEADZM |
| Modell | TMW798 |
| Typ | Wandhalterung |
| Unterstützte Bildschirmgröße | 32-70 Zoll (81.82-177.8 cm) |
| Neigungsbereich | 0-10° |
| Maximales VESA-Montagemuster | 600 x 400 mm |
| Abstand zwischen Fernseher und Wand | 25 mm |
| Tragfähigkeit | 110 kg |
| Material | Cold Rolled Plate (Alloy Steel) |
| Oberfläche | High Temperature Paint Piano (Black) |
Image 4.1: A diagram illustrating the dimensions and tilt range of the TV wall mount, including measurements for VESA compatibility and wall distance.
5. Einrichtung und Installation
Follow these general steps for installing your TV wall mount. Always refer to the specific instructions provided with your hardware kit for detailed diagrams and safety warnings.
- Bereiten Sie den Fernseher vor: Attach the vertical TV brackets to the back of your television using the appropriate screws, washers, and spacers from the hardware kit. Ensure the brackets are securely fastened and centered. The VESA mounting pattern on your TV should match the mount's compatibility (up to 600x400mm).
- Montageposition ermitteln: Determine the desired height and position for your TV on the wall. Use a stud finder to locate wood studs if mounting on a wood stud wall. For brick or concrete walls, mark the drilling points.
- Pilotlöcher bohren: Carefully drill pilot holes at the marked locations. The size of the drill bit will depend on the type of wall and the anchors/lag bolts being used.
- Wandplatte anbringen: Secure the main wall plate to the wall using the provided lag bolts and washers. Use the included spirit level to ensure the wall plate is perfectly horizontal before tightening all fasteners.
- Den Fernseher aufhängen: With assistance, carefully lift the television and hook the attached TV brackets onto the wall plate. Ensure the TV is securely seated on the wall plate.
- Sichern Sie den Fernseher: Use the security screws or locking mechanisms on the TV brackets to prevent the TV from accidentally disengaging from the wall plate.
Notiz: The included screw kit is standard and may not fit all TV models. If the provided screws do not fit your television, please purchase a compatible screw kit separately.

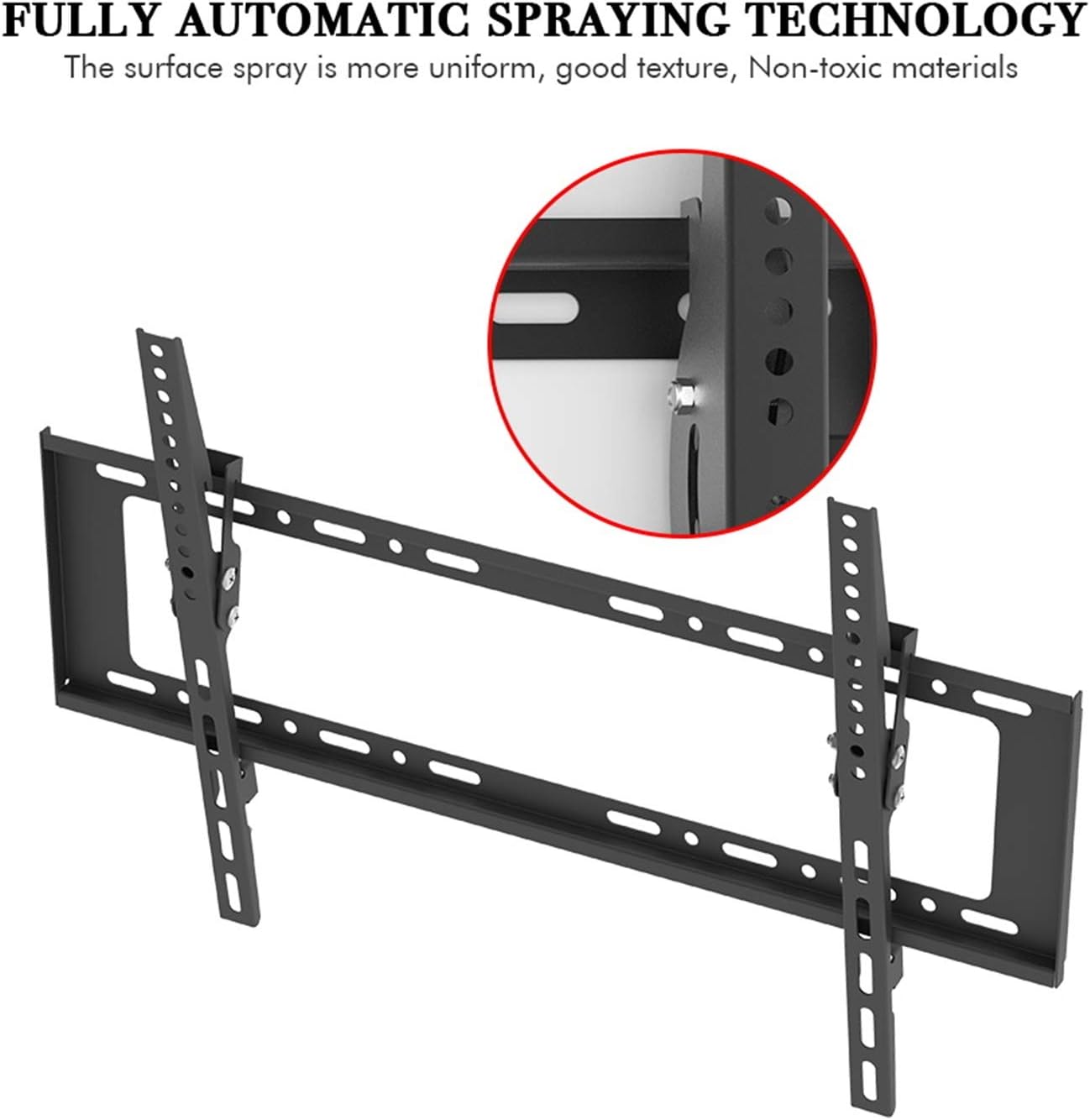

Abbildung 5.1: Draufsicht view of the LEADZM TMW798 TV Wall Mount, showing the main wall plate and two vertical TV brackets, illustrating the primary components for setup.
6. Betrieb
Neigungswinkeleinstellung
The LEADZM TMW798 TV Wall Mount features a tilt range of 0-10 degrees, allowing you to adjust the viewing angle of your television. To adjust the tilt, loosen the tilt adjustment knobs or bolts on the side of the TV brackets, set the desired angle, and then securely tighten them to lock the TV in place.
Image 6.1: An illustration demonstrating the 0-10 degree depression angle adjustment feature of the TV wall mount, allowing for optimal viewwinkeln.
7. Wartung
The LEADZM TMW798 TV Wall Mount is constructed from high-quality cold rolled plate (alloy steel) with a high-temperature paint piano surface finish, designed for durability and resistance to rust and deformation. Regular maintenance is minimal:
- Periodically check all mounting screws and bolts to ensure they remain tight and secure.
- Reinigen Sie die Halterung mit einem weichen, trockenen Tuch. Vermeiden Sie scheuernde Reiniger oder Lösungsmittel, die die Oberfläche beschädigen könnten.
- Ensure no excessive weight is placed on the mounted television beyond its specified load capacity.
Image 7.1: An image highlighting key features of the mount, including its cold rolled steel sheet construction and security screw lock.
8. Fehlerbehebung
Sollten Sie während der Installation oder Nutzung auf Probleme stoßen, beachten Sie bitte Folgendes:
- Mount not level: Ensure the wall plate was installed using a spirit level. If not, carefully remove and re-install, ensuring it is perfectly horizontal.
- TV not fitting: Double-check your TV's VESA mounting pattern against the mount's specifications (Max VESA 600x400mm). Ensure you are using the correct screws and spacers for your TV model.
- Schrauben passen nicht zum Fernseher: The included screw kit is standard. If the provided screws do not match your TV's threading or length requirements, you may need to purchase a compatible screw kit separately from a hardware store.
- Das Gefährt fühlt sich instabil an: Verify that all lag bolts securing the wall plate to the wall are fully tightened. Ensure the wall type is compatible and that appropriate anchors were used for brick/concrete. Confirm the TV's weight does not exceed the 110 lbs (50 kg) load capacity.
- Schwierigkeiten bei der Neigungseinstellung: Ensure the tilt adjustment knobs or bolts are sufficiently loosened before attempting to change the angle. Tighten them firmly once the desired angle is achieved.
