1. Einleitung
Thank you for choosing the MEIKEE 12W Low Voltage Landscape Light. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new landscape light. Please read these instructions thoroughly before use and retain them for future reference.
Packungsinhalt:
- MEIKEE 12W Niedrige Lautstärketage Landscape Light (1 unit)
- Easy Setup Wire Connectors
Bild 1.1: Überview of the MEIKEE 12W Low Voltage Landscape Light highlighting key features.
2. Sicherheitshinweise
Bitte beachten Sie die folgenden Sicherheitsvorkehrungen, um Verletzungen oder Schäden am Produkt zu vermeiden:
- Vor Installation, Wartung oder Reinigung muss die Stromversorgung unterbrochen sein.
- This product operates on 12-24V DC/AC low voltage. Eine niedrige Lautstärketage transformer (not included) is required for operation. Do not connect directly to 120V AC household current.
- All electrical connections should comply with local codes and regulations. If unsure, consult a qualified electrician.
- Do not attempt to modify or disassemble the light fixture.
- Halten Sie Kinder vom Installationsbereich fern.
3. Spezifikationen
| Besonderheit | Spezifikation |
|---|---|
| Marke | Meike |
| Modellname | DSTA15 |
| Wastage | 12 Watt |
| Helligkeit | 1200 Lumen |
| Farbtemperatur | 2700 Kelvin (Warmweiß) |
| Bandtage | 12-24 V Gleichstrom/Wechselstrom |
| Material | Aluminium |
| Wasserbeständigkeit | IP66 Wasserdicht |
| Technische Daten | 2.8 Zoll L x 2.8 Zoll B x 6.77 Zoll H |
| Lichtquellentyp | LED |
| Einstellbarer Kopf | 270° Rotational |

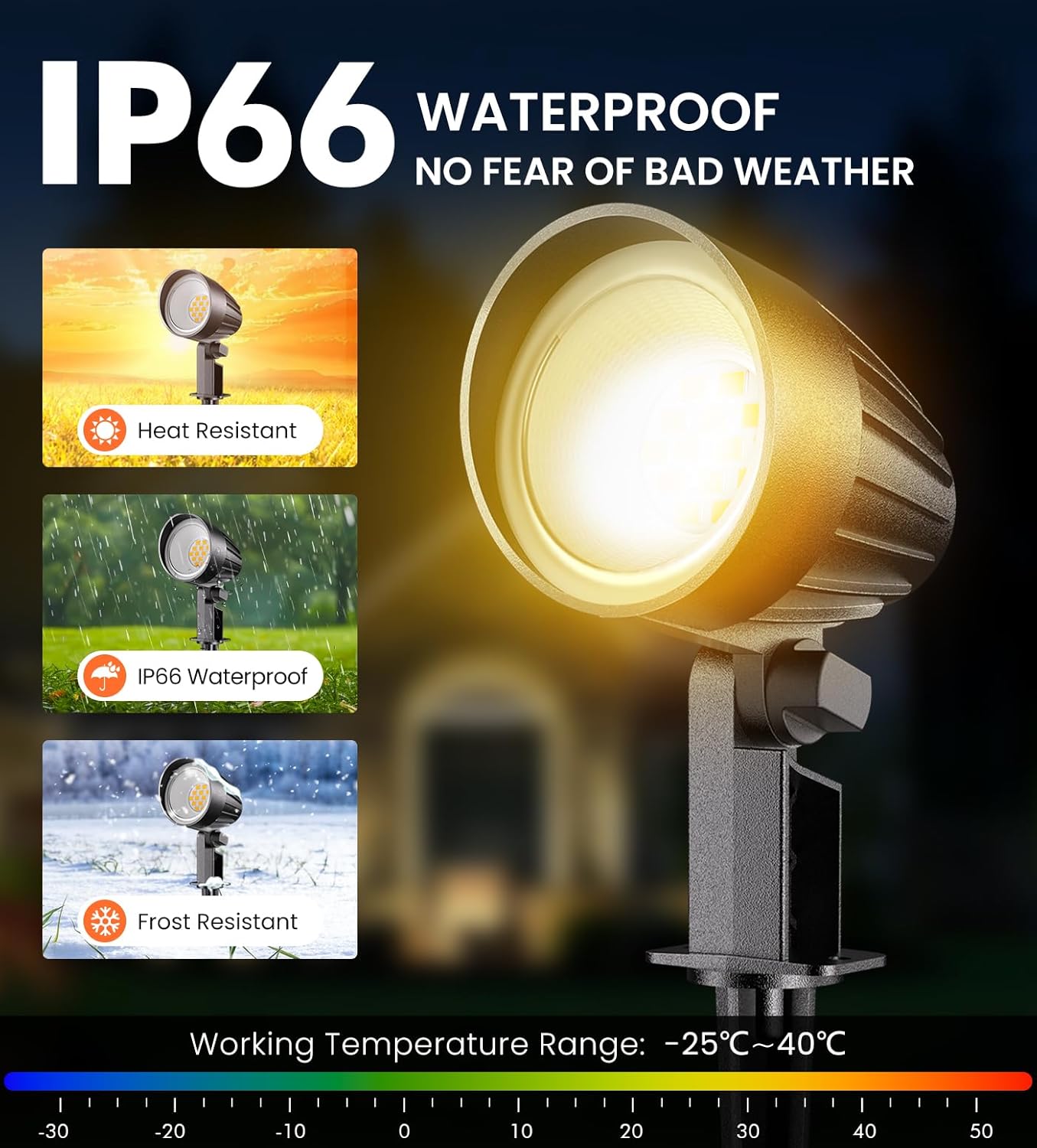

Image 3.1: IP66 Waterproof rating and weather resistance of the light.
4. Einrichtung und Installation
Before installation, ensure you have a compatible 12-24V low voltage-Transformator und niedrige Spannungtage wires (not included in this package).
4.1 Montagemöglichkeiten
The MEIKEE landscape light offers two primary mounting methods:
Boden eingefügt:
- Attach the spike to the bottom of the light fixture.
- Insert the spike firmly into the ground at your desired location.
An der Wand montiert:
- Markieren Sie die gewünschte Montageposition an der Wand.
- Bohren Sie Führungslöcher für die Befestigungsschrauben.
- Secure the light fixture's base to the wall using appropriate screws (not included).
Image 4.1: Illustration of ground inserted and wall mounted installation methods.
4.2 Verdrahtungsanweisungen
The landscape light connects to your low voltage wiring system using the provided wire connectors. The low voltage wires from the light are typically red and black. These wires do not require distinguishing between positive and negative poles for AC low voltage-Systeme.
- Carefully divide the main low voltage power cable into two halves at the connection point.
- Insert one half of the power cable into the large cap of the wire connector.
- Screw the pin part of the connector into the power cable, ensuring it pierces the cable insulation to make contact with the conductor.
- Insert one of the light's wires (red or black) through the small cap of the wire connector.
- Screw the small cap into the joint, ensuring the light's wire makes secure contact.
- Repeat steps 2-5 for the other half of the power cable and the remaining light wire.
- Gently pull on the wires to ensure all connections are secure and the wires do not come out.
Hinweis: Die niedrige Lautstärketage transformer and main low voltage wires are NOT included with this product.
Image 4.2: Detailed steps for connecting the low voltage Drähte.
Video 4.1: This video demonstrates the process of connecting the low voltage wires to the landscape light using the provided connectors. It shows how to prepare the wires and secure them within the connector for a proper electrical connection.
5. Bedienungsanleitung
Once properly installed and connected to a compatible low voltage transformer, the MEIKEE landscape light will operate according to the transformer's settings (e.g., dusk-to-dawn, timer-controlled, or manual switch). Ensure the transformer is powered on for the lights to function.
Einstellen des Lichtwinkels:
The light head features a 270° adjustable rotation. Loosen the adjustment screw on the side of the fixture, position the light to your desired angle, and then tighten the screw to secure it. This allows for precise illumination of trees, pathways, or architectural features.
Image 5.1: Demonstration of the 270° adjustable head for directing light.
6. Wartung
Regular maintenance ensures optimal performance and longevity of your landscape light.
- Reinigung: Reinigen Sie die Linse und das Äußere der Leuchte regelmäßig mit einem weichen, fusselfreien Tuch.amp cloth to remove dirt, dust, and debris. Ensure the power is off before cleaning. Do not use abrasive cleaners or solvents.
- Inspektion: Regularly inspect the wiring and connections for any signs of damage, wear, or corrosion. Ensure all connections remain secure. Check the ground stake or wall mount for stability.
- LED-Lebensdauer: The integrated LED light source has a long lifespan (50,000+ hours) and is not user-replaceable.
7. Fehlerbehebung
If you encounter issues with your landscape light, refer to the following common problems and solutions:
| Problem | Mögliche Ursache | Lösung |
|---|---|---|
| Licht geht nicht an | No power to the transformer Loose or faulty wiring connection Defekter Transformator Damaged light fixture | Check if the transformer is plugged in and receiving power. Verify all wire connections are secure. Test the transformer with another low voltage device. If the light is still not working, contact customer support. |
| Das Licht ist schwach oder flackert | Insufficient power from transformer Wackelkontakt Bandtage drop due to long wire runs or thin gauge wire | Ensure the transformer's wattage capacity is sufficient for all connected lights. Check and tighten all wire connections. Consider using heavier gauge wire or shorter runs to reduce voltage fallen. |
| Wasser im Inneren der Armatur | Improper sealing or damage to the fixture | Although rated IP66, inspect the fixture for any visible cracks or damage. Ensure all seals are intact. If water ingress persists, discontinue use and contact customer support. |
8. Garantie und Support
The MEIKEE 12W Low Voltage Landscape Light comes with a Lebenslange Garantie. Diese Garantie deckt Material- und Verarbeitungsfehler bei normalem Gebrauch ab.
For warranty claims, technical support, or any questions regarding your product, please contact MEIKEE customer service through the retailer where the product was purchased or visit the official MEIKEE webWebsite für Kontaktinformationen.
