1. Einleitung
Vielen Dank für Ihren Einkauf.asing the Panasonic NP-45KS8W K8 Series Built-in Dishwasher. This manual provides essential information for the safe installation, operation, and maintenance of your appliance. Please read this manual thoroughly before using the dishwasher and keep it for future reference.
2. Sicherheitshinweise
Beachten Sie bei der Verwendung dieses Geräts stets die grundlegenden Sicherheitsvorkehrungen, um das Risiko von Bränden, Stromschlägen oder Verletzungen zu verringern.
- Professionelle Installation: This appliance must be installed by a qualified technician in accordance with all local codes and ordinances.
- Elektrische Sicherheit: Ensure the dishwasher is properly grounded. Do not use extension cords or adapter plugs.
- Wassertemperatur: Do not allow children to play with or in the dishwasher. Hot water can cause severe burns.
- Reinigungsmittelverwendung: Verwenden Sie ausschließlich Spülmittel und Klarspüler, die speziell für Geschirrspüler entwickelt wurden. Bewahren Sie diese Produkte außerhalb der Reichweite von Kindern auf.
- Scharfe Gegenstände: Load sharp items (knives, skewers, etc.) with the handles up to reduce the risk of cuts.
- Türverkleidung: The NP-45KS8W is a door panel model. The door panel is a separate component sold with the system kitchen. Without the door panel, the product's functionality and design are incomplete and it cannot be used. This model is not suitable for replacement or retrofitting without the appropriate door panel.
3. Einrichtung und Installation
The Panasonic NP-45KS8W is a built-in dishwasher designed for integration into your kitchen cabinetry. Professional installation is required.
3.1 Kitchen Requirements
- Compatible Kitchen Depth: 65 cm oder mehr.
- Recommended Kitchen Opening: Approximately 225 cm or more.
- Türverkleidung: This model requires a custom door panel to match your kitchen cabinetry. The door panel is sold separately as part of a system kitchen set.
3.2 Erstgebrauch
After installation, perform a test wash cycle without dishes to flush out any manufacturing residues and check for leaks.
4. Bedienungsanleitung
4.1 Beladen von Geschirr
Proper loading ensures optimal cleaning performance. The NP-45KS8W can accommodate approximately 5 place settings (40 items) with an internal capacity of approximately 40 liters.

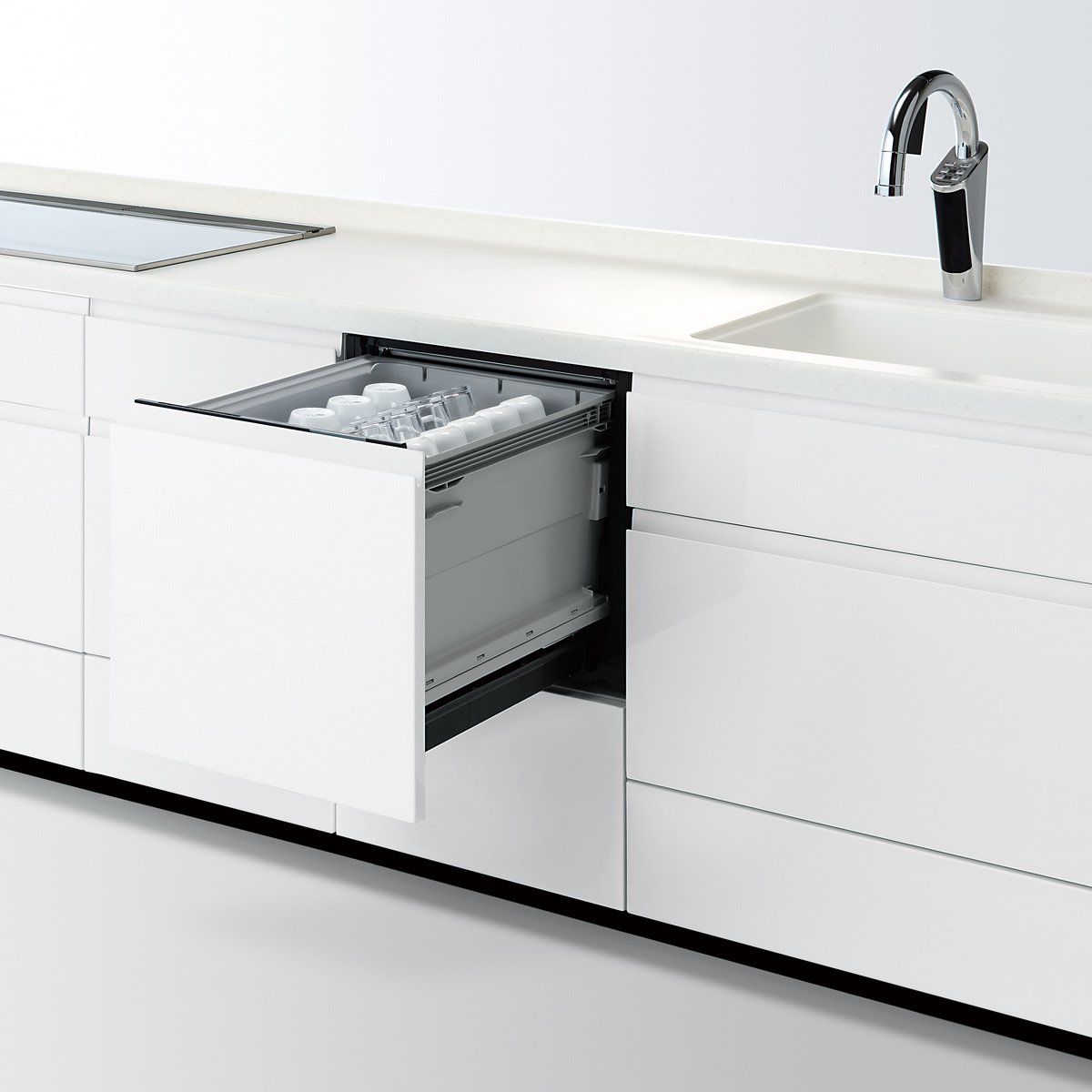

Image: The dishwasher drawer fully extended, showing a typical load of dishes including plates, bowls, and cups arranged in the racks.

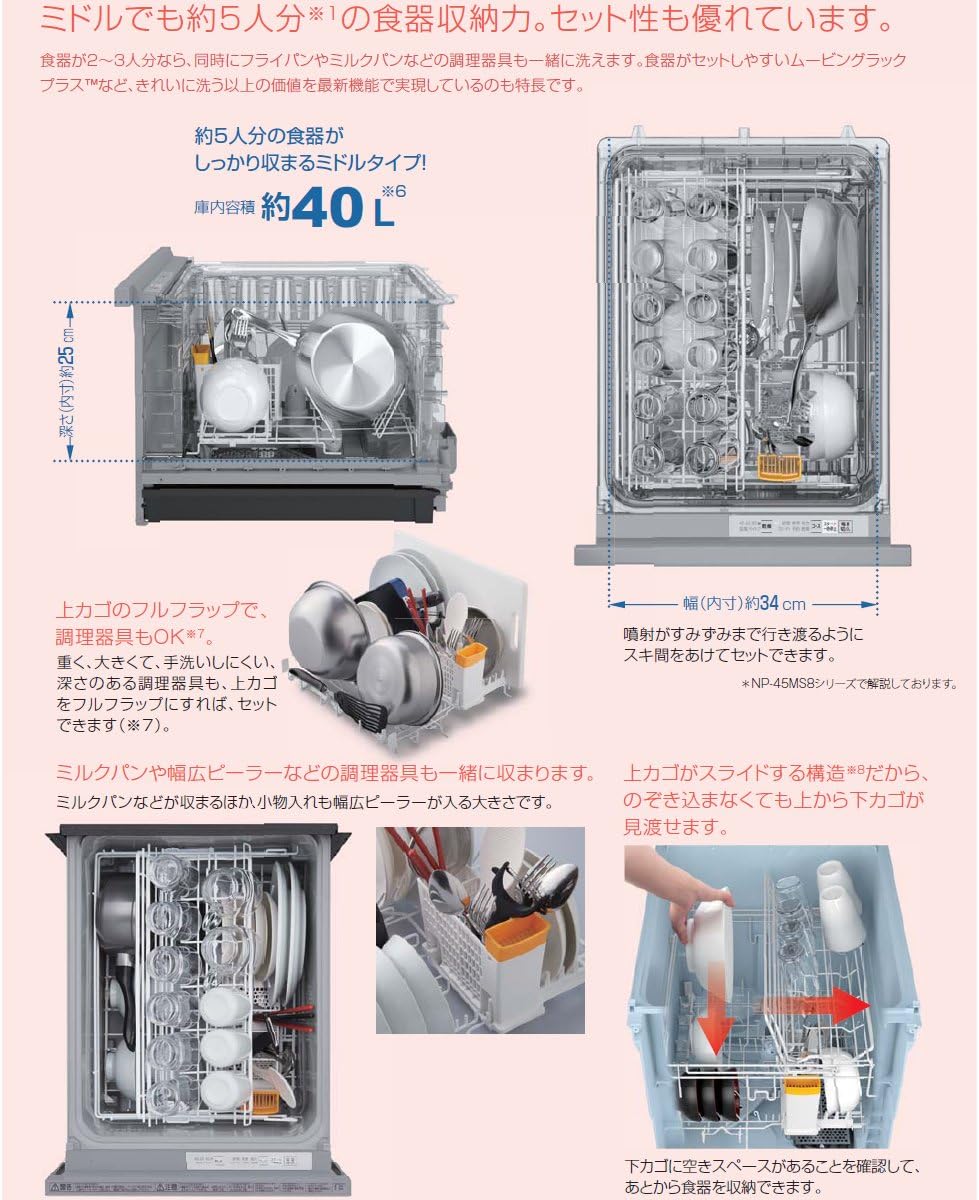

Bild: Detailliert views of the dishwasher's interior, illustrating how to load different items. The upper basket features a full flap for larger cooking utensils like milk pans and wide peelers. Dishes should be arranged with gaps to allow water spray to reach all surfaces. The upper basket has a sliding structure for easier access to the lower basket.
- Oberkorb: Ideal for cups, glasses, small bowls, and cooking utensils. The full flap allows for larger items.
- Unterer Korb: Best for plates, large bowls, and pots.
- Besteckkorb: Place forks, spoons, and knives (handles up for safety) in the designated cutlery basket.
- Überladung vermeiden: Do not overcrowd the dishwasher. Ensure water can reach all surfaces.
- Glashöhe: Standard dish glass height is 10cm, but glasses up to 11cm can fit.
4.2 Waschmittel und Klarspüler hinzufügen
Add the appropriate amount of dishwasher detergent to the dispenser before each wash cycle. If using rinse aid, ensure the rinse aid dispenser is filled.
4.3 Auswahl eines Waschprogramms
Choose a wash cycle based on the type and soil level of your dishes. The NP-45KS8W offers six operating courses:
| Operating Course | Guide for Selection | Wash (Bio Power) | Rinse (Water/Heat) | Trocken | Operating Time (50Hz/60Hz) |
|---|---|---|---|---|---|
| Standard | For washing immediately after meals. | 29/34 min (approx. 52°C) | 31 min [2 cycles/1 cycle (approx. 67°C)] | 30 min Warm air | 130 min / 125 min |
| Leistungsstark | For washing several hours after meals or with heavy grease. | 41/36 min (approx. 62°C) | 64 min [3 cycles/1 cycle (approx. 67°C)] | 30 min Warm air | 195 min / 190 min |
| Schnell | For light soil, pre-soaked, or after rinsing with water. | 9 / 9 min | 19 min [1 cycle/1 cycle (approx. 55°C)] | --- | approx. 28 min / 28 min |
| Energieeinsparung | For light soil to save electricity, or for heat-sensitive dishes (60°C to <90°C). | 39/34 min (approx. 35°C) | 38 min [2 cycles/1 cycle (approx. 60°C)] | 30 min Fan dry | approx. 197 min / 192 min |
| Nur trocken | After hand washing or for warming dishes. | --- | --- | 90 Minuten, 60 Minuten, 40 Minuten | --- |
| Reservierung | To start operation 4 hours later. | Operates on "Standard" course 4 hours later. | --- | ||
Image: A table detailing the six available wash cycles, their recommended use, duration of wash, rinse, and dry phases, and total operating time. Operating times may vary based on water pressure, water temperature, and room temperature. The wash time for each course includes a Bio Power Sterilization process (approx. 5 minutes).
4.4 Starten und Beenden eines Zyklus
- Anfangen: Close the dishwasher door firmly. Select your desired cycle and press the Start button.
- To Stop/Pause: Open the door carefully. The cycle will pause. Close the door to resume. To cancel a cycle, press and hold the Start/Cancel button for a few seconds.
5. Wartung
Regelmäßige Wartung gewährleistet die Langlebigkeit und Effizienz Ihres Geschirrspülers.
5.1 Filter reinigen
The dishwasher has filters at the bottom of the tub to trap food particles. Clean these filters regularly (e.g., once a week or as needed) to prevent blockages and ensure proper drainage.
- Entfernen Sie den unteren Rost.
- Die Filterbaugruppe drehen und herausheben.
- Rinse the filters under running water to remove any debris. Use a soft brush if necessary.
- Setzen Sie die Filter wieder zusammen und legen Sie sie zurück in den Geschirrspüler. Achten Sie darauf, dass sie sicher eingerastet sind.
5.2 Allgemeine Reinigung
- Innere: Wischen Sie den Innenraum mit Werbung abamp cloth periodically. For stubborn stains or odors, run an empty cycle with a dishwasher cleaner.
- Exterieur: Reinigen Sie die Außenflächen mit einem weichen, fusselfreien Tuch.amp Tuch. Keine Scheuer- oder Lösungsmittel verwenden.
- Sprüharme: Check the spray arm nozzles for any blockages. If clogged, remove the spray arms and clear the holes with a toothpick.
6. Fehlerbehebung
Before calling for service, refer to the following common issues and their solutions:
- Geschirrspüler startet nicht: Prüfen Sie, ob die Tür vollständig geschlossen ist, das Netzkabel eingesteckt ist und der Sicherungsautomat nicht ausgelöst hat.
- Geschirr nicht sauber: Ensure dishes are loaded correctly without blocking spray arms. Check detergent levels and clean filters. Verify the correct wash cycle was selected.
- Wasser läuft nicht ab: Clean the filters. Check the drain hose for kinks or blockages.
- Ungewöhnliche Geräusche: Ensure dishes are not interfering with the spray arms. Check for foreign objects in the pump area.
- Undichtigkeiten: Check that the door seal is clean and intact. Ensure hoses are properly connected.
Sollte das Problem nach Anwendung dieser Lösungsansätze weiterhin bestehen, wenden Sie sich bitte an den Panasonic-Kundendienst.
7. Spezifikationen
Key specifications for the Panasonic NP-45KS8W Built-in Dishwasher:
- Modell: NP-45KS8W
- Serie: K8-Serie
- Typ: Built-in, Middle Type, Door Panel Model
- Breite: 45 cm
- Kapazität: Approx. 5 place settings (40 items)
- Interne Kapazität: Ca. 40 Liter
- Water Saving (Standard Course vs. Hand Washing): Ca. 48.2 Liter
- Exhaust Temperature: Approx. 35°C (soft exhaust)
- Installationstyp: Built-in (requires professional installation)
Bild: Ein überview of the Panasonic NP-45KS8W, highlighting its K8 series designation, middle type, 45cm width, and door panel model. It also shows the capacity of approximately 5 place settings (40 items) and water-saving features, noting a saving of approximately 48.2 liters compared to hand washing on the standard course. The image also indicates a compatible kitchen depth of 65 cm or more.
8. Garantie und Support
For warranty information, service, or technical support, please refer to the official Panasonic website or contact your local Panasonic customer service center. Keep your purchase receipt as proof of purchase.
You can find more product information and support on the official Panasonic webWebsite: Panasonic Dishwasher Product Page
