Karcher K 3.540 Electric Pressure Washer Instruction Manual

1. Einleitung

This manual provides essential information for the safe and efficient operation of your Karcher K 3.540 electric pressure washer. Please read these instructions carefully before using the product and keep them for future reference.

The Karcher K 3.540 is a mid-level electric pressure washer designed for various cleaning projects around the home. It features a patented water-cooled induction motor for superior performance and extended life.

2. Sicherheitshinweise

Beachten Sie beim Gebrauch elektrischer Geräte stets grundlegende Sicherheitsvorkehrungen, um das Risiko von Bränden, Stromschlägen und Verletzungen zu verringern.

• Lesen Sie vor der Benutzung des Hochdruckreinigers alle Anweisungen sorgfältig durch.
• Do not operate the unit if any parts are damaged.
• Stellen Sie vor Beginn sicher, dass alle Verbindungen sicher sind.
• Tragen Sie geeignete Schutzausrüstung, einschließlich Augenschutz.
• Halten Sie Kinder und Haustiere vom Betriebsbereich fern.
• Do not direct the spray at people, animals, or electrical devices.
• The product is certified by CSA International for safety.

3. Einrichtung

The Karcher K 3.540 is designed for easy assembly and quick connection. Follow these steps to prepare your pressure washer for use:

1. Auspacken: Entnehmen Sie vorsichtig alle Komponenten aus der Verpackung.
2. Griffmontage: Befestigen Sie den Griff an der Haupteinheit.
3. Schlauchanschlüsse:
   • Connect your garden hose to the water inlet using the quick-connect adapter.
   • Connect the high-pressure hose to the unit's outlet.
   • Connect the trigger gun to the high-pressure hose.
4. Wand Attachment: Attach your desired spray wand (Vario Power Spray or DirtBlaster) to the trigger gun.

Image: The Karcher K 3.540 pressure washer showing the main unit, trigger gun, and two spray wands.

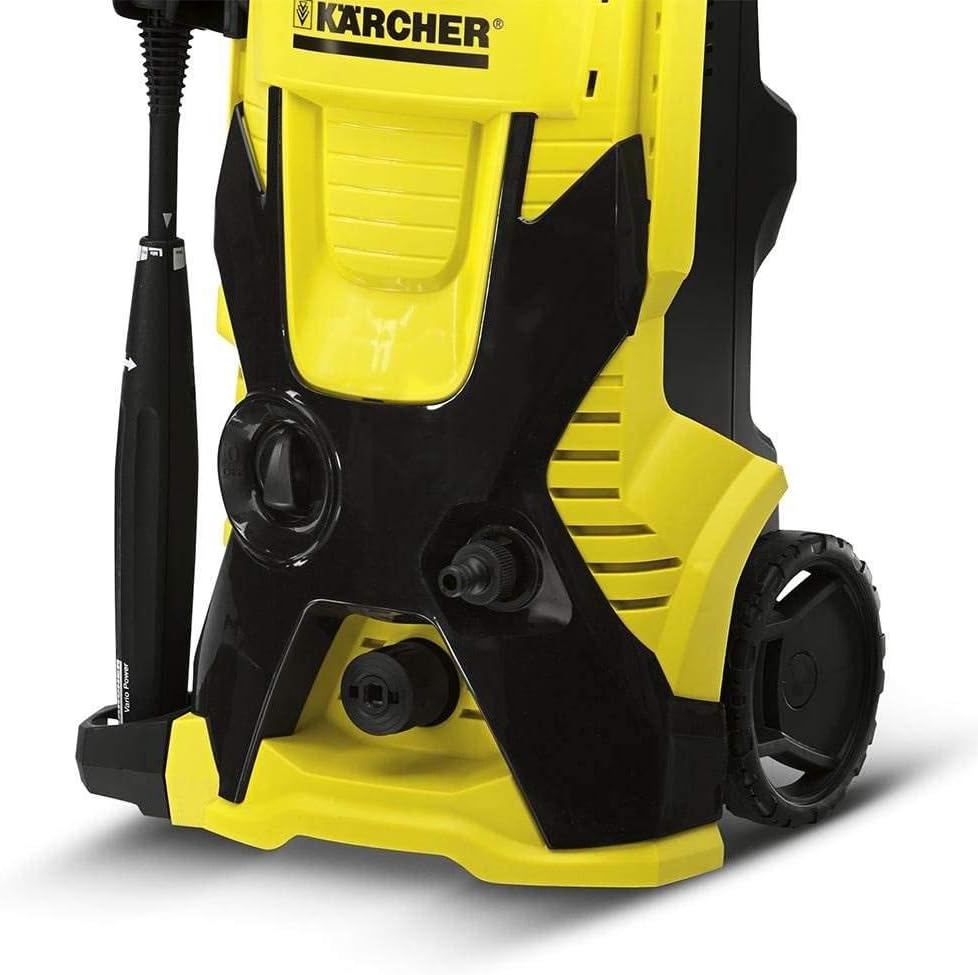

Abbildung: Seite view of the Karcher K 3.540 pressure washer, highlighting its wheels and hose connection point.

4. Bedienungsanleitung

Your Karcher K 3.540 offers versatile cleaning capabilities. Here's how to operate it effectively:

4.1. Reinigungsmittelanwendung

The unit includes an onboard detergent tank for easy application:

1. Fill the onboard detergent tank with Karcher pressure washer detergent (e.g., Vehicle Wash & Wax or Multipurpose Cleaner).
2. Attach the Vario Power Spray (VPS) wand.
3. Select the low-pressure setting on the VPS wand.
4. Apply the detergent to the area you wish to clean.

4.2. Using Spray Wands

• Vario Power Spray (VPS) Wand: This wand allows you to adjust the pressure directly on the wand for less intense cleaning tasks. It is recommended to start with this wand.
• DirtBlaster Spray Wand: For tough jobs, such as heavy soiling or stain removal, attach the DirtBlaster wand. This patented technology increases the effective cleaning pressure by up to 50%. Always test on a small, inconspicuous area before full use.

Image: A person using the Karcher pressure washer to clean a wooden fence, demonstrating a common application.

5. Hauptmerkmale

• Water-Cooled Induction Motor: This patented motor circulates water around the motor, lowering operating temperatures, improving performance, and prolonging motor life by up to 5 times.
• N-Cor Pump: The durable, non-corrosive N-Cor pump is self-priming, allowing it to draw water from a standing or collected water source when a faucet is not available (optional accessory required).
• Schnellverbindungssystem: Reduces setup time by up to 50% with quick-connect fittings for the garden hose, high-pressure hose, and spray wands.
• Onboard Detergent Tank: Integrated tank for convenient detergent application.
• Ergonomisches Design: Upright design, easy to maneuver and operate.

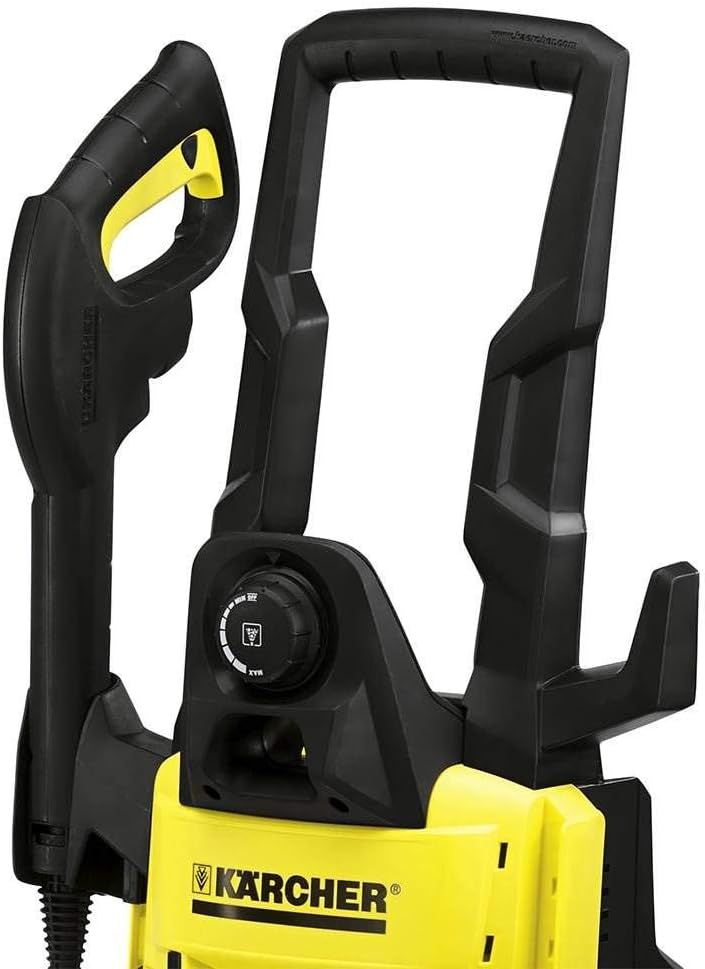

Bild: Nahaufnahme view of the Karcher K 3.540 pressure washer's handle and the integrated detergent dial.

6. Kompatibles Zubehör

Enhance your cleaning capabilities with a range of Karcher accessories:

• Verlängerungsstäbe: Um hochgelegene Gebiete zu erreichen.
• Bürsten waschen: For gentle cleaning of vehicles and other surfaces.
• Deck and Driveway Cleaners (e.g., T200/T250): For efficient, streak-free cleaning of large flat surfaces.
• PS40 Power Scrubber: For removing stubborn stains from patios, garage floors, and sidewalks.
• Schaumdüse: For applying thick foam for vehicle cleaning.
• Wheel Rim Brush: Specifically designed for cleaning vehicle wheel rims.
• Right-Angle Wand: Useful for cleaning gutters and vehicle undercarriages.

7. Wartung

Eine ordnungsgemäße Wartung gewährleistet die Langlebigkeit und optimale Leistung Ihres Hochdruckreinigers:

• Pump Guard Solution: Use Karcher Pump Guard Solution to protect the pump from corrosion, premature wear, and freezing down to -25°F during storage or in cold weather.
• Reinigung: Spülen Sie das System nach jeder Benutzung mit klarem Wasser durch, um eventuelle Reinigungsmittelrückstände zu entfernen.
• Lagerung: Store the unit in a dry, frost-free area. Ensure all water is drained from the pump and hoses if storing in freezing temperatures.

8. Fehlerbehebung

If you encounter issues with your Karcher K 3.540, refer to the following common troubleshooting tips:

• Kein Druck: Check water supply, ensure garden hose is fully open, and verify all connections are tight. Ensure the pump is primed.
• Fluctuating Pressure: Inspect the water inlet filter for clogs. Check for air in the system; run the unit without the spray wand until a steady stream of water emerges.
• Motor startet nicht: Vergewissern Sie sich, dass das Netzkabel fest in einer funktionierenden Steckdose steckt. Überprüfen Sie den Sicherungsautomaten.
• Detergent Not Dispensing: Ensure the detergent tank is filled and the Vario Power Spray wand is set to low pressure.

For more detailed troubleshooting, consult the full user manual or contact Karcher customer support.

9. Spezifikationen

10. Garantie und Support

The Karcher K 3.540 comes with a 1 Jahr eingeschränkte Garantie and is eligible for the Rapid Exchange Program. For warranty claims, technical support, or to inquire about replacement parts, please contact Karcher customer service.

Besuchen Sie die Karcher Store for more information and to explore additional products and accessories.
