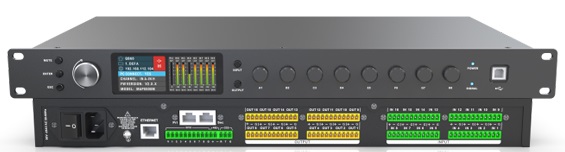

DATEQ MDM-D4 D8/D16 DSP Matrix Audio Processor
FAQs
- Q: How can I recall a preset using the product?
- A: To recall a preset, send the corresponding instruction code as outlined in the manual. For example, to recall preset 1, use the provided code for preset 1 recall.
- Q: How do I mute specific input or output channels?
- A: Muting specific channels can be achieved by sending the appropriate mute setting codes. Refer to the manual for detailed instructions on muting and unmuting channels.
Connecting configuration
RS232/485 connecting configuration
Baud rate:
- 115200 bit/s for RS485
- 2400/4800/9600/19200/38400/57600/115200 bit/s for RS232 Parity bits: NONE
- Data bits: 8
- Stop bits: 1
- Control sending interval: >200ms (when setting for Presets function >3s)
TCP/IP connecting configuration
- Transport protocol: TCP client
- IP address: refer to the IP address information in the LCD, or check it in DSP software. Network port: 8234
- Control sending interval: >200ms (when setting for Presets function >3s)
Regulation of control codes
Send instruction to the device
- 0xA5 0xC3 0x3C 0x5A 0xFF 0x36 0x0? 0x?? 0x?? … 0x?? 0xEE
feedback code from the device:
- 0x00: sending successful
- 0x01: sending failed
Read status of the device
- 0xA5 0xC3 0x3C 0x5A 0xFF 0x63 0x00 0x?? 0x?? … 0x?? 0xEE
- Feedback code from the device:
- same code as above: sending successful
- 0x01: sending failed
- Feedback code from the device:
- 0xA5 0xC3 0x3C 0x5A: start code
- 0xFF: device ID
- 0x0?: functions code
- 0x??: data length (byte-sized) of 0x?? … 0x??
- 0x?? … 0x??: data (such as input/output, channel No., on/off, etc.)
- 0xEE: end code
Notice: hexadecimal data for the sample, using without the prefix “0x”, such as A5 C3 3C 5A FF 36 00 ?? … ?? EE
Functions code:
| 02 | Scene (presets) |
| 03 | Mute |
| 04 | Volume and channels gain |
| 05 | +/-Gain in step |
| 06 | Line/Mic level with sensitivity |
| 07 | Phantom +48V |
| 08 | AFC feedback control setting |
| 09 | Matrix mixing |
| 0D | Switch of analog/Dante/USB audio input |
Decimal and hexadecimal digit table
- D: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
- H: 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
- D: 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
- H: 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E
Scene (presets) (0x02)
Scene (presets) recalling
| Recall preset 1 (default of ex) | A5 C3 3C 5A FF 36 02 01 01 EE |
| Recall preset 2 | A5 C3 3C 5A FF 36 02 01 02 EE |
| Recall preset … | A5 C3 3C 5A FF 36 02 01 .. EE |
| Recall preset 30 | A5 C3 3C 5A FF 36 02 01 1E EE |
Scene (presets) reading
| Read current preset | A5 C3 3C 5A FF 63 02 00 EE |
Feedback code description:
A5 C3 3C 5A FF 63 02 01 03 EE means current preset No.3
Mute (0x03)
Mute setting
| All input channels mute | A5 C3 3C 5A FF 36 03 03 01 00 01 EE |
| All input channels cancel mute | A5 C3 3C 5A FF 36 03 03 01 00 00 EE |
| All output channels mute | A5 C3 3C 5A FF 36 03 03 02 00 01 EE |
| All output channels cancel mute | A5 C3 3C 5A FF 36 03 03 02 00 00 EE |
| Input 1 mute | A5 C3 3C 5A FF 36 03 03 01 01 01 EE |
| Input 2 mute | A5 C3 3C 5A FF 36 03 03 01 02 01 EE |
| Input .. mute | A5 C3 3C 5A FF 36 03 03 01 .. 01 EE |
| Input 16 mute | A5 C3 3C 5A FF 36 03 03 01 16 01 EE |
| Input 1 mute cancel | A5 C3 3C 5A FF 36 03 03 01 01 00 EE |
| Input 2 mute cancel | A5 C3 3C 5A FF 36 03 03 01 02 00 EE |
| Input .. mute cancel | A5 C3 3C 5A FF 36 03 03 01 .. 00 EE |
| Input 16 mute cancel | A5 C3 3C 5A FF 36 03 03 01 16 00 EE |
| Output 1 mute | A5 C3 3C 5A FF 36 03 03 02 01 01 EE |
| Output 2 mute | A5 C3 3C 5A FF 36 03 03 02 02 01 EE |
| Output .. mute | A5 C3 3C 5A FF 36 03 03 02 .. 01 EE |
| Output 16 mute | A5 C3 3C 5A FF 36 03 03 02 16 01 EE |
| Output 1 mute cancel | A5 C3 3C 5A FF 36 03 03 02 01 00 EE |
| Output 2 mute cancel | A5 C3 3C 5A FF 36 03 03 02 02 00 EE |
| Output .. mute cancel | A5 C3 3C 5A FF 36 03 03 02 .. 00 EE |
| Output 16 mute cancel | A5 C3 3C 5A FF 36 03 03 02 16 00 EE |
Status of mute reading
| Read Input 1 mute status | A5 C3 3C 5A FF 63 03 02 01 01 EE |
| Read Input 2 mute status | A5 C3 3C 5A FF 63 03 02 01 02 EE |
| Read Input .. mute status | A5 C3 3C 5A FF 63 03 02 01 .. EE |
| Read Input 16 mute status | A5 C3 3C 5A FF 63 03 02 01 16 EE |
| Read Output 1 mute status | A5 C3 3C 5A FF 63 03 02 02 01 EE |
| Read Output 2 mute status | A5 C3 3C 5A FF 63 03 02 02 02 EE |
| Read Output .. mute status | A5 C3 3C 5A FF 63 03 02 02 .. EE |
| Read Output 16 mute status | A5 C3 3C 5A FF 63 03 02 02 16 EE |
Feedback code description:
- A5 C3 3C 5A FF 63 03 03 02 04 00 EE means Output 4 mute cancel
- A5 C3 3C 5A FF 63 03 03 02 04 01 EE means Output 4 mute
Volume and channels gain
Volume and channels gain (0x04)
Device volume setting
| Device main volume set in -60.0dB | A5 C3 3C 5A FF 36 04 04 00 01 A8 FD EE |
| Device main volume set in -20.0dB | A5 C3 3C 5A FF 36 04 04 00 01 9C FF EE |
| Device main volume set in … dB | A5 C3 3C 5A FF 36 04 04 00 01 XX XX EE |
Channels gain setting
| Input 1 gain set in -60.0dB | A5 C3 3C 5A FF 36 04 04 01 01 A8 FD EE |
| Input 2 gain set in -60.0dB | A5 C3 3C 5A FF 36 04 04 01 02 A8 FD EE |
| Input .. gain set in -60.0dB | A5 C3 3C 5A FF 36 04 04 01 .. A8 FD EE |
| Input 16 gain set in -60.0dB | A5 C3 3C 5A FF 36 04 04 01 16 A8 FD EE |
| Output 1 gain set in 12.0dB | A5 C3 3C 5A FF 36 04 04 02 01 78 00 EE |
| Output 2 gain set in 12.0dB | A5 C3 3C 5A FF 36 04 04 02 02 78 00 EE |
| Output .. gain set in 12.0dB | A5 C3 3C 5A FF 36 04 04 02 .. 78 00 EE |
| Output 16 gain set in 12.0dB | A5 C3 3C 5A FF 36 04 04 02 16 78 00 EE |
- Remark: 0.1dB in step when calculate
- Example 1: if set volume in -60.0dB, -60.0/0.1=-600
- Using excel to calculate low bit: =RIGHT(DEC2HEX(-600,2),2), final value A8
- Using excel to calculate high bit: ==MID(DEC2HEX(-600,4),LEN(DEC2HEX(-600,4))-3,2), final value FD
Channel volume value reading
| Read device main volume | A5 C3 3C 5A FF 63 04 02 00 00 EE |
| Read Input 1 volume | A5 C3 3C 5A FF 63 04 02 01 01 EE |
| Read Input 2 volume | A5 C3 3C 5A FF 63 04 02 01 02 EE |
| Read Input .. volume | A5 C3 3C 5A FF 63 04 02 01 .. EE |
| Read Input 16 volume | A5 C3 3C 5A FF 63 04 02 01 16 EE |
| Read Output 1 volume | A5 C3 3C 5A FF 63 04 02 02 01 EE |
| Read Output 2 volume | A5 C3 3C 5A FF 63 04 02 02 02 EE |
| Read Output .. volume | A5 C3 3C 5A FF 63 04 02 02 .. EE |
| Read Output 16 volume | A5 C3 3C 5A FF 63 04 02 02 16 EE |
Feedback code description:
- A5 C3 3C 5A FF 63 04 04 00 00 AC FE EE means device main volume is -34.0dB
- A5 C3 3C 5A FF 63 04 04 02 04 EC FF EE means Output 4 volume is -2.0dB
To calculate dB volume value from hex answer:
- =HEX.N.DEC(A1 & A2) / 256
- Example 78 00:
- A1 is MSB (78) .
- A2 is LSB (00) .
Voor 78 00 levert dit:
- 30720÷256=12030720 \div 256 = 12030720÷256=120
- Divide this answer by 10 to get 12dB in this example
Example A8 FD:
- Hexadecimale value: A8FD → 432614326143261 (unsigned decimaal).
- 43261÷256=−60043261 \div 256 = -60043261÷256=−600.
- -600/10= -60dB
+/-Gain in step (0x05)
| Input all channels gain +1.0dB | A5 C3 3C 5A FF 36 05 04 01 00 00 0A EE |
| Input all channels gain -1.0dB | A5 C3 3C 5A FF 36 05 04 01 00 01 0A EE |
| Output all channels gain +1.0dB | A5 C3 3C 5A FF 36 05 04 02 00 00 0A EE |
| Output all channels gain -1.0dB | A5 C3 3C 5A FF 36 05 04 02 00 01 0A EE |
| Input 1 gain +1.0dB | A5 C3 3C 5A FF 36 05 04 01 01 00 0A EE |
| Input 2 gain +1.0dB | A5 C3 3C 5A FF 36 05 04 01 02 00 0A EE |
| Input .. gain +1.0dB | A5 C3 3C 5A FF 36 05 04 01 .. 00 0A EE |
| Input 16 gain +1.0dB | A5 C3 3C 5A FF 36 05 04 01 16 00 0A EE |
| Input 1 gain -1.0dB | A5 C3 3C 5A FF 36 05 04 01 01 01 0A EE |
| Input 2 gain -1.0dB | A5 C3 3C 5A FF 36 05 04 01 02 01 0A EE |
| Input .. gain -1.0dB | A5 C3 3C 5A FF 36 05 04 01 .. 01 0A EE |
| Input 16 gain -1.0dB | A5 C3 3C 5A FF 36 05 04 01 16 01 0A EE |
| Output 1 gain +1.0dB | A5 C3 3C 5A FF 36 05 04 02 01 00 0A EE |
| Output 2 gain +1.0dB | A5 C3 3C 5A FF 36 05 04 02 02 00 0A EE |
| Output .. gain +1.0dB | A5 C3 3C 5A FF 36 05 04 02 .. 00 0A EE |
| Output 16 gain +1.0dB | A5 C3 3C 5A FF 36 05 04 02 16 00 0A EE |
| Output 1 gain -1.0dB | A5 C3 3C 5A FF 36 05 04 02 01 01 0A EE |
| Output 2 gain -1.0dB | A5 C3 3C 5A FF 36 05 04 02 02 01 0A EE |
| Output .. gain -1.0dB | A5 C3 3C 5A FF 36 05 04 02 .. 01 0A EE |
| Output 16 gain -1.0dB | A5 C3 3C 5A FF 36 05 04 02 16 01 0A EE |
- Remark: 0.1dB in step when calculate
- Example: if +/-1.0dB, 1.0/0.1=10
- Using excel to calculate low bit: =DEC2HEX(10,2),2), final value 0A
Line/Mic level with sensitivity (0x06)
Mic level with sensitivity setting
| Input 1 mic input with sensitivity in 5dB | A5 C3 3C 5A FF 36 06 03 01 00 01 EE |
| Input 1 mic input with sensitivity in10dB | A5 C3 3C 5A FF 36 06 03 01 00 02 EE |
| Input 1 mic input with sensitivity in 15dB | A5 C3 3C 5A FF 36 06 03 01 00 03 EE |
| Input 1 mic input with sensitivity in 20dB | A5 C3 3C 5A FF 36 06 03 01 00 04 EE |
| Input 1 mic input with sensitivity in 25dB | A5 C3 3C 5A FF 36 06 03 01 00 05 EE |
| Input 1 mic input with sensitivity in 30dB | A5 C3 3C 5A FF 36 06 03 01 00 06 EE |
| Input 1 mic input with sensitivity in 35dB | A5 C3 3C 5A FF 36 06 03 01 00 07 EE |
Remark:
Sensitivity from 1 to 7 level: 5/10/15/20/25/30/35 dB
| Input 1 line input | A5 C3 3C 5A FF 36 06 03 01 01 00 EE |
| Input 2 line input | A5 C3 3C 5A FF 36 06 03 02 01 00 EE |
| Input … line input | A5 C3 3C 5A FF 36 06 03 … 01 00 EE |
| Input 16 line input | A5 C3 3C 5A FF 36 06 03 16 01 00 EE |
Line/Mic input reading
| Input 1 | A5 C3 3C 5A FF 63 06 01 01 EE |
| Input 2 | A5 C3 3C 5A FF 63 06 01 02 EE |
| Input … | A5 C3 3C 5A FF 63 06 01 … EE |
| Input 16 | A5 C3 3C 5A FF 63 06 01 16 EE |
Feedback code description:
A5 C3 3C 5A FF 63 06 03 02 00 05 EE means input channel 2 in Mic level with No.5 sensitivity (25dB)
Phantom +48V (0x07)
Input in Mic level with phantom +48V setting
| Input 1 in Mic level open phantom +48V | A5 C3 3C 5A FF 36 07 02 01 01 EE |
| Input 1 in Mic level close phantom +48V | A5 C3 3C 5A FF 36 07 02 01 00 EE |
| Input 2 in Mic level open phantom +48V | A5 C3 3C 5A FF 36 07 02 02 01 EE |
| Input 2 in Mic level close phantom +48V | A5 C3 3C 5A FF 36 07 02 02 00 EE |
| … | … |
| Input 16 in Mic level open phantom +48V | A5 C3 3C 5A FF 36 07 02 16 01 EE |
| Input 16 in Mic level close phantom +48V | A5 C3 3C 5A FF 36 07 02 16 00 EE |
Remark: user should affect Mic level before opening or closing the 48V phantom
Input in Mic level with phantom +48V reading
| Input 1 | A5 C3 3C 5A FF 63 07 01 01 EE |
| Input 2 | A5 C3 3C 5A FF 63 07 01 02 EE |
| Input … | A5 C3 3C 5A FF 63 07 01 … EE |
| Input 16 | A5 C3 3C 5A FF 63 07 01 16 EE |
Feedback code description:
A5 C3 3C 5A FF 63 07 02 05 00 EE means input channel 5 closed phantom +48V
AFC feedback control setting
AFC feedback control setting (0x08)
Input with AFC-level setting
| Input 1 with AFC level 1 | A5 C3 3C 5A FF 36 08 02 01 01 EE |
| Input 1 with AFC level 2 | A5 C3 3C 5A FF 36 08 02 01 02 EE |
| Input 1 close AFC function | A5 C3 3C 5A FF 36 08 02 01 00 EE |
| … | … |
- Remark:
- AFC level 1: 01; level 2: 02
- AFC close: 00
Input with AFC-level reading
| Input 1 AFC status reading | A5 C3 3C 5A FF 63 08 01 01 EE |
| Input 2 AFC status reading | A5 C3 3C 5A FF 63 08 01 02 EE |
| … | … |
Feedback code description:
A5 C3 3C 5A FF 63 08 02 02 01 EE means input channel 2 opened with AFC level 1
Matrix mixing
Matrix mixing (0x09)
Input-output channels matrix setting
| Set matrix Input 1- Output 1 √ | A5 C3 3C 5A FF 36 09 03 01 01 01 EE |
| Set matrix Input 1- Output 2 √ | A5 C3 3C 5A FF 36 09 03 01 02 01 EE |
| Set matrix Input ..- Output .. √ | A5 C3 3C 5A FF 36 09 03…… 01 EE |
| Set matrix Input 16- Output 16 √ | A5 C3 3C 5A FF 36 09 03 16 16 01 EE |
| Set matrix Input 1- Output 1 × | A5 C3 3C 5A FF 36 09 03 01 01 00 EE |
| Set matrix Input 1- Output 2 × | A5 C3 3C 5A FF 36 09 03 01 02 00 EE |
| Set matrix Input ..- Output .. × | A5 C3 3C 5A FF 36 09 03…… 00 EE |
| Set matrix Input 16- Output 16 × | A5 C3 3C 5A FF 36 09 03 16 16 00 EE |
Status of Input-output channels matrix reading
| Input 1- Output 1 | A5 C3 3C 5A FF 63 09 02 01 01 EE |
| Input 1- Output 2 | A5 C3 3C 5A FF 63 09 02 01 02 EE |
| Input ..- Output .. | A5 C3 3C 5A FF 63 09 02…… EE |
| Input 16- Output 16 | A5 C3 3C 5A FF 63 09 02 16 16 EE |
Feedback code description:
- A5 C3 3C 5A FF 63 09 03 04 04 01 EE means Input 4 – Output 4 connecting √
- A5 C3 3C 5A FF 63 09 03 04 04 00 EE means Input 4 – Output 4 disconnecting ×
Switch of analog/Dante/USB audio input (0x0D)
Analog/Dante/USB audio input setting
| Input 1 – analog | A5 C3 3C 5A FF 36 0D 02 01 00 EE |
| Input 2 – analog | A5 C3 3C 5A FF 36 0D 02 02 00 EE |
| Input .. – analog | A5 C3 3C 5A FF 36 0D 02 .. 00 EE |
| Input 16 – analog | A5 C3 3C 5A FF 36 0D 02 16 00 EE |
| Input 1 – Dante | A5 C3 3C 5A FF 36 0D 02 01 04 EE |
| Input 2 – Dante | A5 C3 3C 5A FF 36 0D 02 02 04 EE |
| Input .. – Dante | A5 C3 3C 5A FF 36 0D 02 .. 04 EE |
| Input 16 – Dante | A5 C3 3C 5A FF 36 0D 02 16 04 EE |
| Input 1 – USB audio | A5 C3 3C 5A FF 36 0D 02 01 05 EE |
| Input 2 – USB audio | A5 C3 3C 5A FF 36 0D 02 02 05 EE |
Status of analog/Dante/USB audio input reading
| Input 1 | A5 C3 3C 5A FF 63 0D 01 01 EE |
| Input 2 | A5 C3 3C 5A FF 63 0D 01 02 EE |
| Input .. | A5 C3 3C 5A FF 63 0D 01 .. EE |
| Input 16 | A5 C3 3C 5A FF 63 0D 01 16 EE |
Feedback code description:
- A5 C3 3C 5A FF 63 0D 02 04 04 EE means Input 4 is using Dante signal
- A5 C3 3C 5A FF 63 0D 02 06 00 EE means Input 6 is using analog signal
- A5 C3 3C 5A FF 63 0D 02 02 05 EE means Input 2 is using USB audio signa
Documents / Resources
 |
DATEQ MDM-D4 D8/D16 DSP Matrix Audio Processor [pdf] User Manual MDM-D4 D8 D16 DSP Matrix Audio Processor, MDM-D4 D8, D16 DSP, Matrix Audio Processor, Audio Processor, Processor |
