Danfoss PR-SC4K Direct Telemetry Kit

Hardware installation

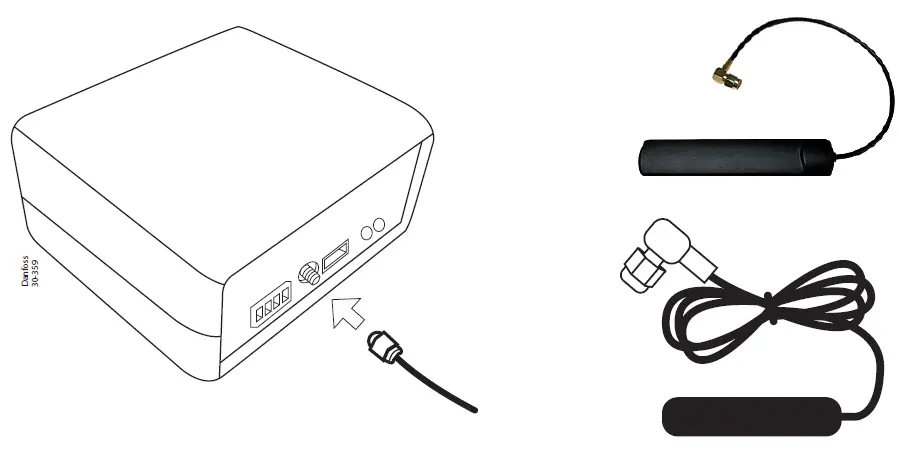

Antenna

PR-ANTGLASS LTE 30 2J5024P Antenna
Optional Antenna PR-ANTGLASS LTE 200 – 300B0131
Optional: 2 m long antenna in case of poor signal

Note: do not install antenna on metallic surface

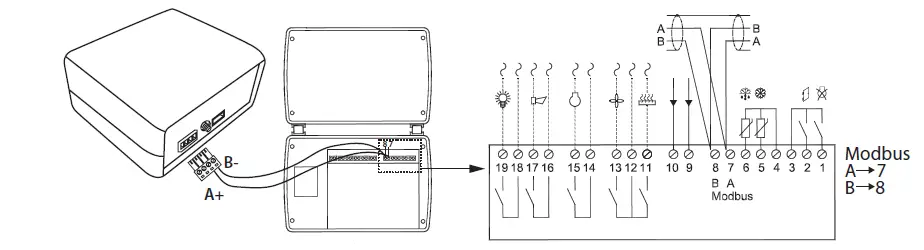

Optyma™ Control (AK-RC 101/111/103/113) MODBUS connection

Note:

Variable bdr Set to 7 (default in 101/103)

Variable Ad Set to 1
Variable AU Set to 7 (only for 101/103)

Only for 101/103

Move JP2 in position 3-2 for MODBUS communication

AK-CC 210 MODBUS connection

AK-CC 250 MODBUS connection

Protection box

Use cable glands to maintain the IP65

Note:

Remember to use twisted pair cable and terminate via resistor in case of long Modbus connection. If in doubt, please look at the Design Guide for Data Communication between ADAP-KOOL® Refrigeration Controls

Power cable and status LED

Red LED

On: Power ON
Off : Power Off (No power)

Blinking: No communication with controller (or temporary condition during firmware update)
Fast blinking: Lost communication with controller

Green LED (after few seconds from power ON)
On: Signal OK

Off: no or poor signal
Blinking: attempting signal connection

ProsaLink App

App download

Android V5.0 or later

iOS 11 or later

Installation

Follow automatic steps to

Register yourself and activate the device by scanning QR code as seen to the right. Configurate your installation. For more information www.prosa.danfoss.com

Scan the QR code on the label

Hand over to end user

In case you did the configuration for somebody else and captured his email address, he will receive an email with instructions on how to download, register in and use ProsaLink App.
First month of subscription is free of charge. Installers benefit from free access to ProsaLink and web server.
Be sure you have activated your alarms (refer to My account \ notifications).
Notifications are sent to your own credentials & E mails to your registered Email address.

WARNINGS

Installation of PR- SC4 mode:
- embedded into the equipment or installed in a protected enclosure (secure, no risk of electric shock)
- while the equipment is unplugged
- with double insulated cable
- by qualified and skilled technicians only
Operating temperature: Min. 0 °C, Max. 70 °C
Ensure use of the Services is legal in the country where you reside, including specific usage and place of usage (mobile communication might be subject to certain restrictions)
