Danfoss M30x1.5 Built In Valve Insert Installation Guide

Sets for systems with flow coming from the bottom and with an M30x1.5 built-in valve insert:

Sets voor radiatoren met vloeraansluiting en M30x1,5 inbouwventiel

Installation Guide

Danfoss Thermostatic Sensors RAX-K

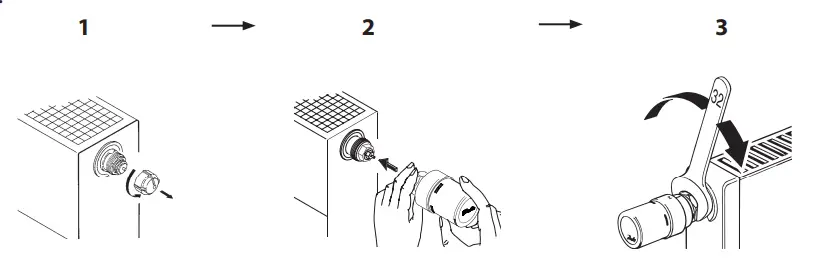

1. Remove the protective cap from the valve insert by turning it
2. Ensure that the setting mark on the sensor is positioned at the top before mounting the
3. Mount the thermostatic sensor on the valve and tighten it with a 32 mm spanner (max torque 15 Nm).

Read More About This Manual & Download PDF:

Documents / Resources

Danfoss M30x1.5 Built In Valve Insert [pdf] Installation Guide RAX-K, RLV-KS, M30x1.5 Built In Valve Insert, M30x1.5, Valve, Insert, Valve Insert, M30x1.5 Valve Insert, Built In Valve Insert
